Compatibility Information for Tenda LTE Router:
Asia Version
- FDD: B1, B3, B5, B8
- TDD: B38, B39, B40, B41
- WCDMA: B1, B8
- Countries/Regions: South Korea, Israel, Saudi Arabia, Thailand, etc.
EU Version
- FDD: B1, B3, B5, B7, B8, B20
- TDD: B38, B39, B40, B41
- WCDMA: B1, B8
- Countries/Regions:
- Asia: South Korea, Israel, Saudi Arabia, Singapore, Thailand, etc.
- Europe: Russia, France, Italy, Spain, Poland, Netherlands, United Kingdom, etc.
- South America: Chile, Brazil
- Africa: Nigeria, Ghana, Morocco, etc.
Note for Ukraine:
- The lifecell operator in Ukraine is not compatible with this device.
How to Check if This Router Will Work in Your Country:
- Contact your local communication operator to confirm the LTE frequency bands supported in your area.
- If the local LTE frequency bands match the ones supported by the router, it will work in your country.
For example, in South Korea, the 4G frequency bands are B1/3/5/7/8. If the router supports B1/3/5/7/8/20/38/39/40/41, it will work in South Korea.
Important Usage Information:
- Not Supported:
- Special SIM cards like eSIM, IOT SIM, Roaming SIM, and unlimited data SIM cards.
- SIM Card PIN Code/Lock:
- If your SIM card has a PIN or lock, you must disable the PIN code on your phone or through your communication operator for the router to recognize the SIM card.
- If this is not done, the router will show no SIM (it will connect to Wi-Fi but not the network).
- Transmission Rate:
- The 150Mbps/300Mbps/866Mbps are theoretical transmission rates. The actual speed may vary based on environmental factors and network conditions.
- Do not purchase the router if you are focused solely on the theoretical transmission rate.
How to Use the LTE Router:
- Insert SIM Card:
- Insert the required SIM card into the router. The router will automatically detect and match the best LTE frequency bands available.
- Access Web UI:
- After connecting to Wi-Fi, open a browser and enter the Web UI IP address. This address is located on the label of the router.
- Login:
- Enter the username and password. The default for most LTE routers is “admin”. If this is not the case, check the label on your router.
- Check Internet Status:
- If your SIM card data is not showing, contact the support team for assistance.
- Check Wi-Fi Status:
- Ensure your Wi-Fi status is active and stable.
- Network Mode:
- Set the network mode to “4G only”. If there is no 4G signal, it means your area might have a weak 4G signal, or only 3G is available.
- Enter APN Information:
- Go to APN Management and enter the APN settings for your SIM card. Without this, the router will connect to Wi-Fi but won’t have internet access. You can obtain APN info from your communication operator.
- Change Wi-Fi Settings:
- Modify the Wi-Fi name and password according to your preferences.

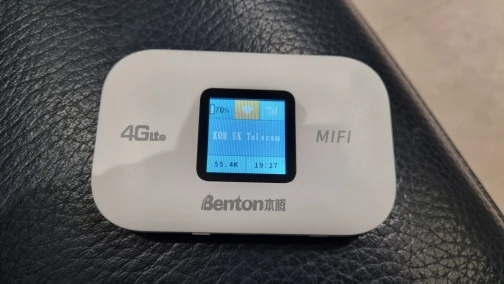

In the latter part, in the case of SKT, you only need to insert the heart, especially to write data together. It doesn't work at all. As a result, there was trial and error, but it is available.
-I was using the existing two-tablet data together, but the tablet is not used.
-Take the ball phone and go to the SKT dealer, write the data together tablet, and replace it with a smartphone gods sign up. Installed but antenna X.
-I changed settings such as APN and 4G by accessing the settings window, but still not.
-When I kept searching, there was a message that you could turn it off and on several times, but still not.
-There is also a message that it takes a while to give up.. (It is morning to issue a smart phone)
* Conclusion: I couldn't confirm whether it is necessary to set APN, etc., but the time until recognition after the SKT data is written together necessity (if you are issued a trial, half a day)
* Note: Can be used immediately when mounting the core used in the tea plus discount phone.
