TENSTAR 0.96 Inch OLED 128×64 I2C Serial Display Module
Price range: $4.43 through $4.79
Pay now, in 4 interest-free payments of $1.11, or over 3β6 months
4 interest-free payments of $1.11
Compact 0.96-inch OLED display featuring 128x64 resolution and I2C serial interface.
- Ultra-low power consumption with full screen lit at 0.08W
- Compatible with Arduino, 51 Series, MSP430, STM32, and other controllers
- Adjustable brightness and contrast for clear visuals
β
Estimated Delivery Time3β7 business days

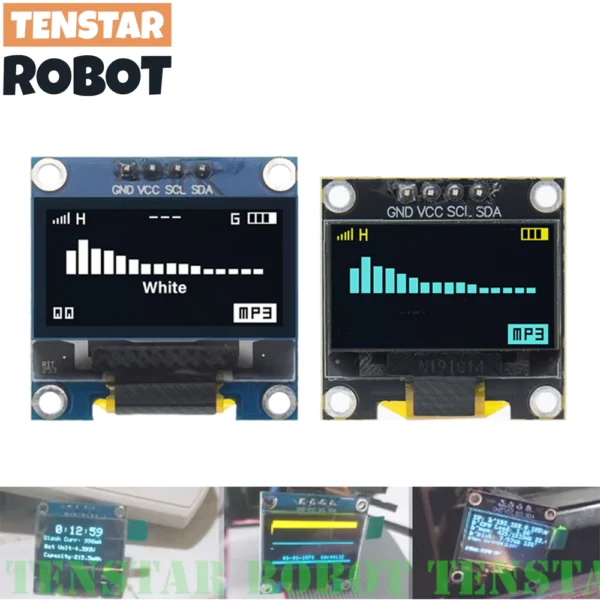

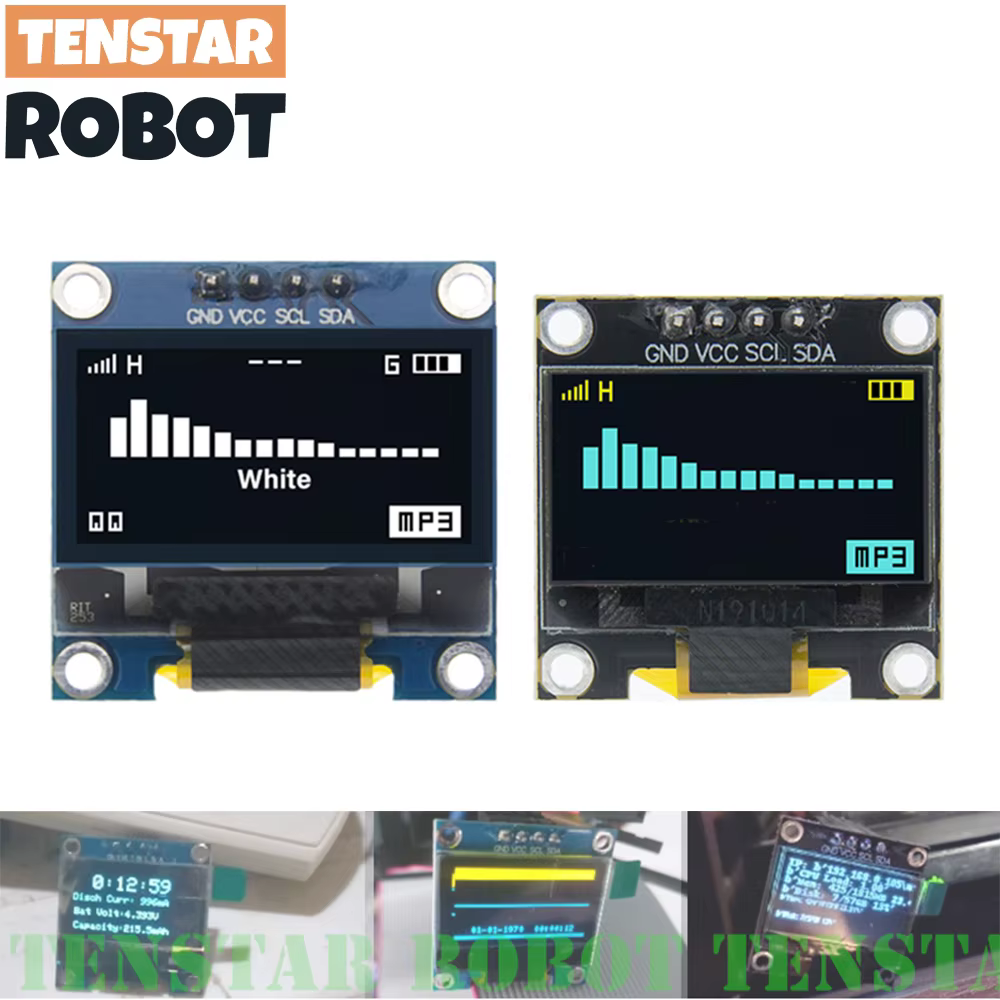

Compact High-Contrast Display

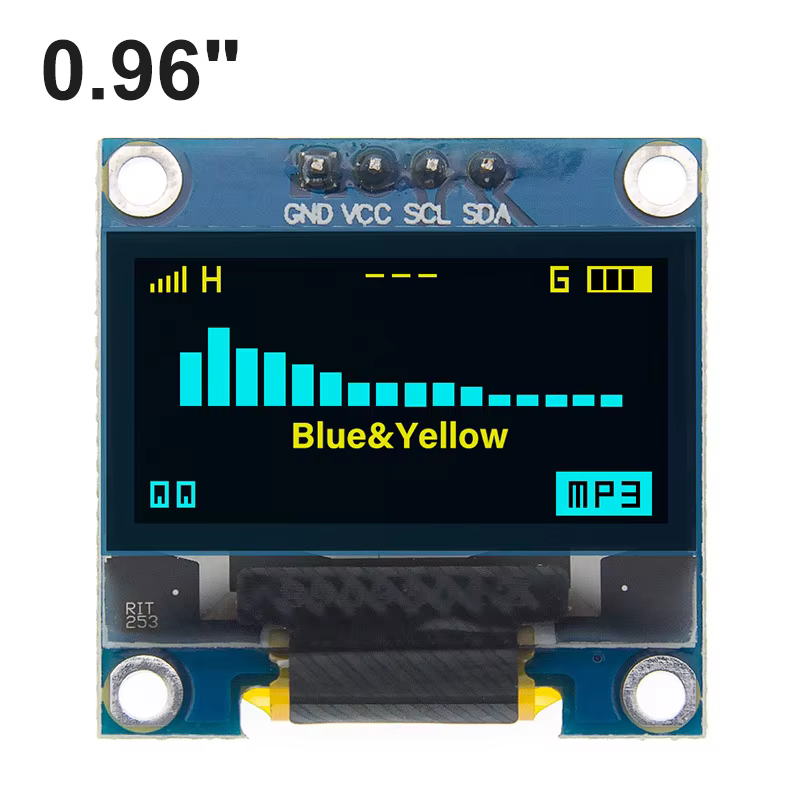

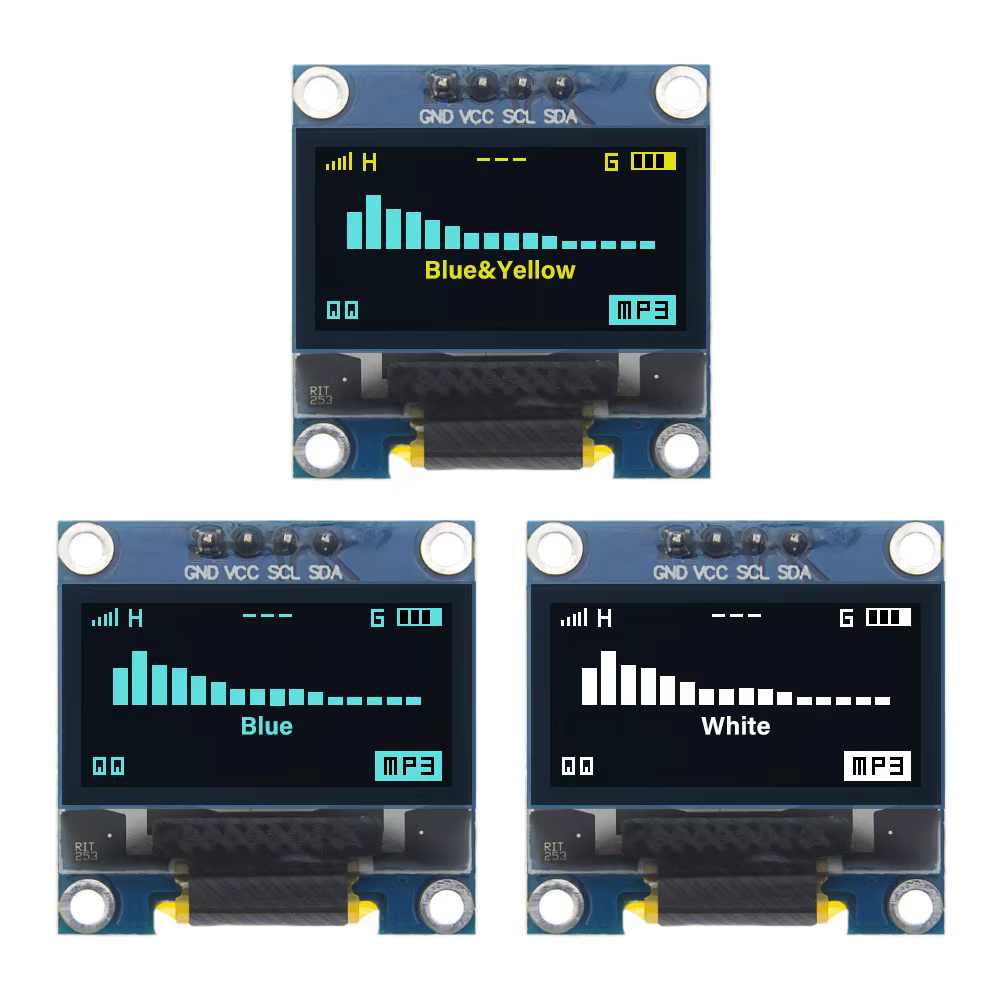

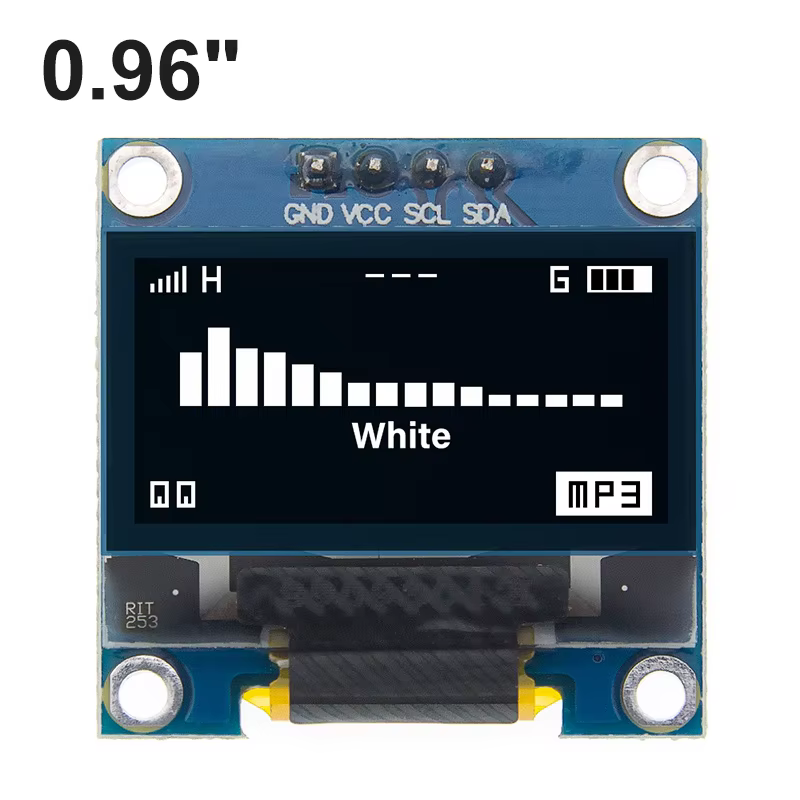

This TENSTAR OLED module features a crisp 0.96-inch screen with a sharp 128Γ64 pixel resolution, delivering clear monochrome visuals. Its high brightness and adjustable contrast ensure excellent readability in varied lighting conditions.
Wide Controller Compatibility
Designed to support multiple control chips, the module seamlessly integrates with Arduino, 51 Series, MSP430, STM32, and CSR IC systems. This broad compatibility simplifies development for diverse embedded projects.
Energy Efficient Operation
Utilizing ultra-low power technology, the display consumes only 0.08 watts when fully lit, making it ideal for battery-powered applications requiring long operating times.
Robust Electrical and Environmental Specs
Operating from 3 to 5 volts DC, the module runs within a temperature range of -30Β°C to 70Β°C. The 4-pin I2C interface (GND, VCC, SCL, SDA) enables easy and reliable communication with host devices.
- Voltage: 3Vβ5V DC
- Operating temperature: -30Β°C to 70Β°C
- I2C serial interface with 4 pins
Precision Manufacturing Details

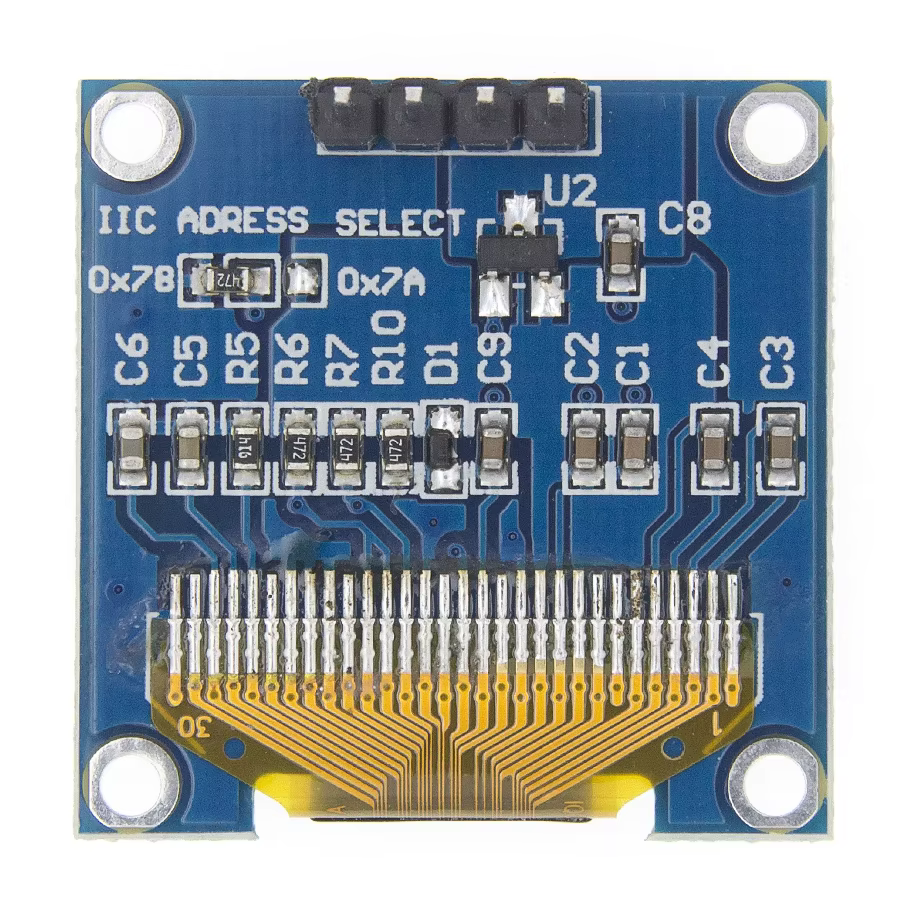

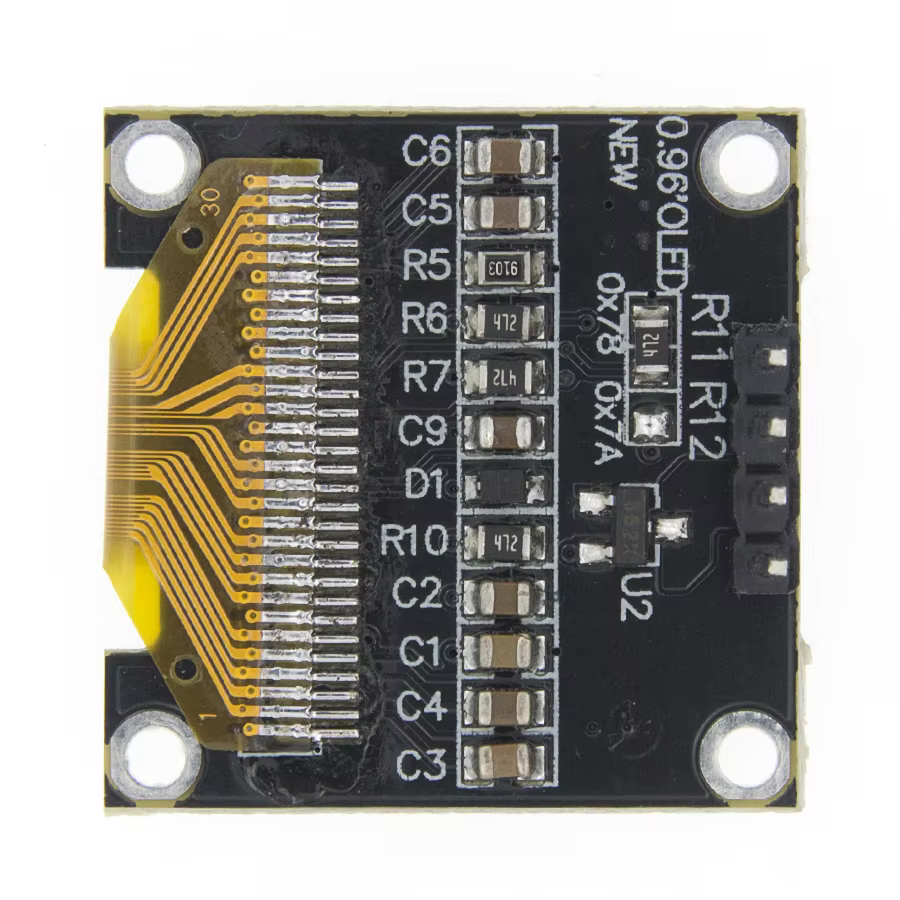

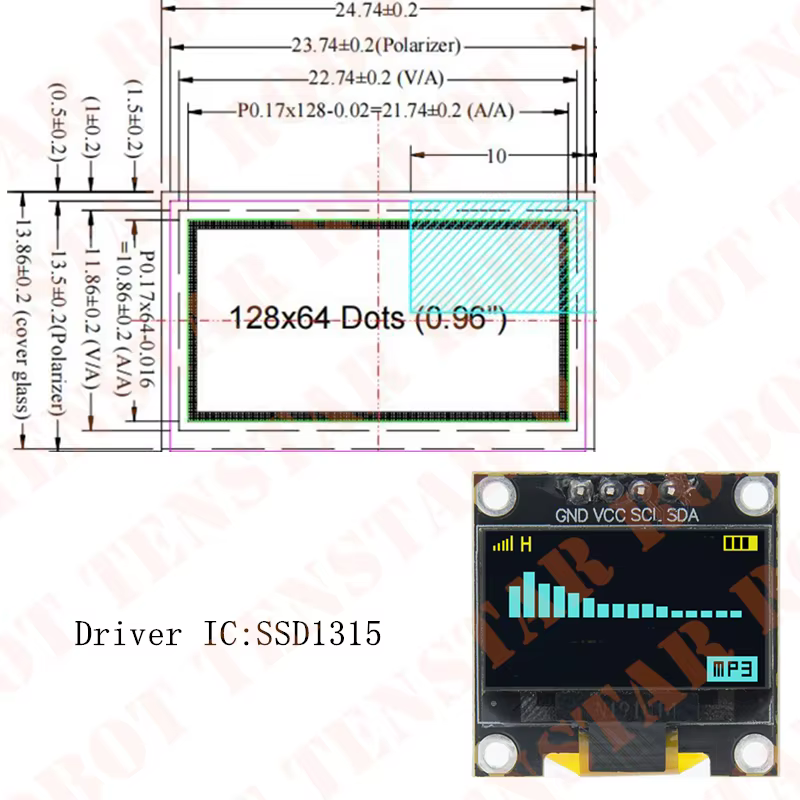

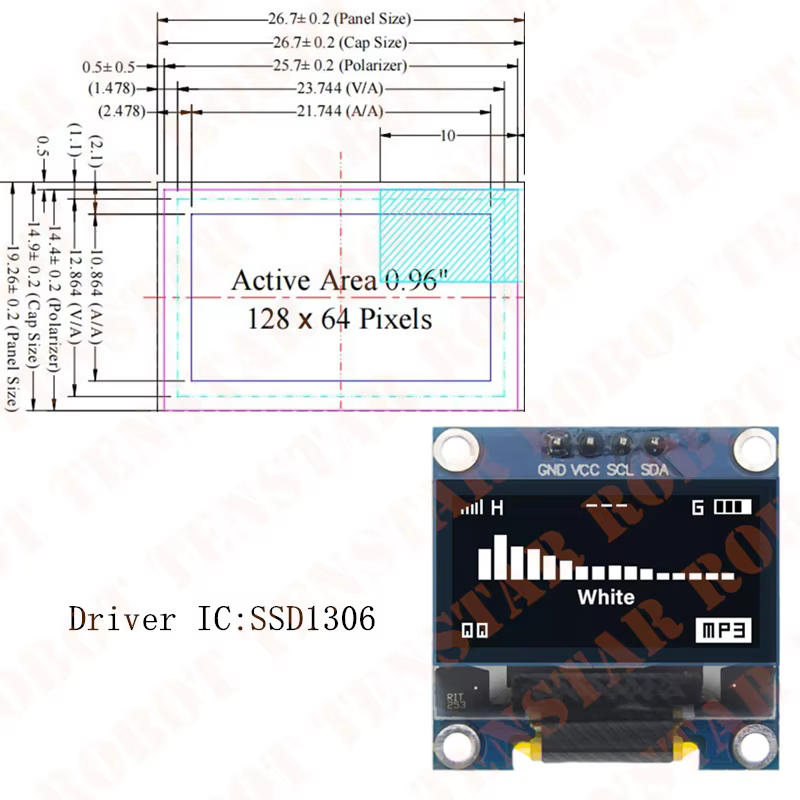

The panel size is compact at 26.70 x 19.26 x 1.85 mm, providing an active display area of 21.74 x 11.2 mm. The blue PCB board version is equipped with the SSD1306 driver, while the black board uses the SSD1315 IC.
- Panel dimensions: 26.70 Γ 19.26 Γ 1.85 mm
- Active area: 21.74 Γ 11.2 mm
- Driver IC: SSD1306 (blue board) or SSD1315 (black board)
Key specifications
- Resolution: 128 x 64 pixels
- Display Size: 0.96 inches
- Interface: I2C (IIC) serial
- Operating Voltage: 3V to 5V DC
- Power Consumption: 0.08 W (full screen lit)
- Operating Temperature: -30Β°C to 70Β°C
- Driver IC: SSD1306 (blue board), SSD1315 (black board)
- Dimensions (LΓWΓH): 26.70 Γ 19.26 Γ 1.85 mm
- Active Area Size: 21.74 Γ 11.2 mm
What's in the box
- OLED display module
Product FAQ
Frequently asked questions
01 What controller chips are compatible with this OLED display module?
It is fully compatible with Arduino, 51 Series, MSP430 Series, STM32, CSR IC, and other similar control chips.
02 What is the resolution of the OLED display?
The display resolution is 128 x 64 pixels.
03 Which interface type does this module use?
The module uses an I2C (IIC) serial interface.
04 What is the operating voltage range for the OLED display?
It operates between 3V and 5V DC.
05 What are the dimensions of the OLED display panel?
The panel measures approximately 26.70 mm by 19.26 mm, with an active area of 21.74 mm by 11.2 mm.
06 What is the display's power consumption when fully lit?
The full screen lit power consumption is about 0.08W, representing ultra-low power usage.
07 What is the working temperature range of this display module?
The display functions within a temperature range of -30Β°C to 70Β°C.
08 What driver IC does the blue board version use?
The blue board version uses the SSD1306 driver IC.
09 How many pins does the OLED module have and what are their functions?
The module has 4 pins: GND, VCC, SCL (clock), and SDA (data).
10 Is the brightness or contrast adjustable on this display?
Yes, the display's brightness and contrast are adjustable for optimal visibility.
