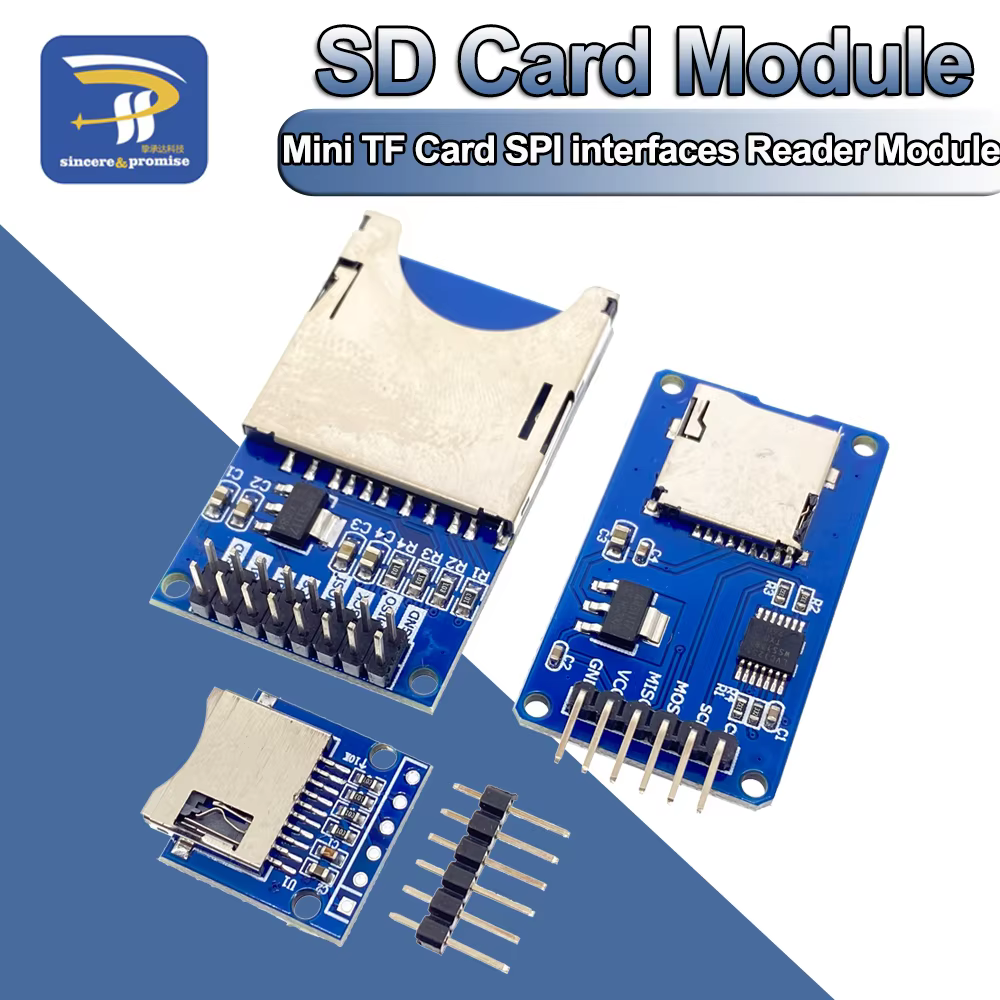

Micro SD Card Reader Module with Level Converter SPI Interface
Price range: $3.10 through $3.26
Pay now, in 4 interest-free payments of $0.78, or over 3β6 months
4 interest-free payments of $0.78
Compact Micro SD card reader module featuring SPI interface and level conversion for 5V/3.3V systems.
- Supports Micro SD and Micro SDHC cards
- Integrated 3.3V voltage regulator and level shifting
- Easy installation with 4 M2 screw holes
β
Estimated Delivery Time3β7 business days
Modular Design for Easy Integration

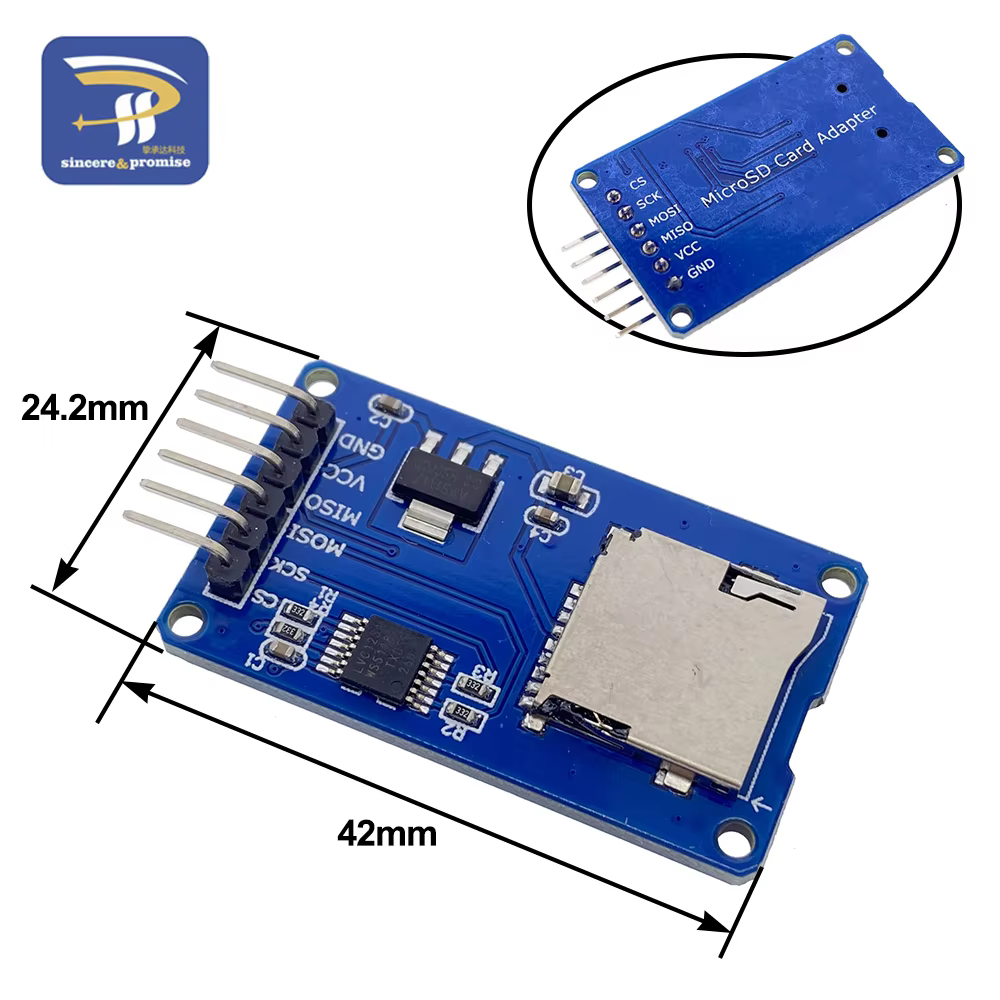

This Micro SD Card Reader Module offers seamless SPI interface connectivity and is ideal for Arduino and DIY electronics projects. Its compact design with standard SPI pins (MISO, MOSI, SCK, CS) simplifies interfacing with microcontrollers.
Reliable Voltage Level Conversion
Equipped with a level converter chip and a built-in 3.3V LDO voltage regulator, the module supports both 5V and 3.3V MCU systems. This ensures signal compatibility and stable power supply to the Micro SD card.
- Supports 5V/3.3V logic signal levels
- Stable 3.3V power for Micro SD card
- Level shifting on SPI signals for compatibility
Supports Multiple Card Types

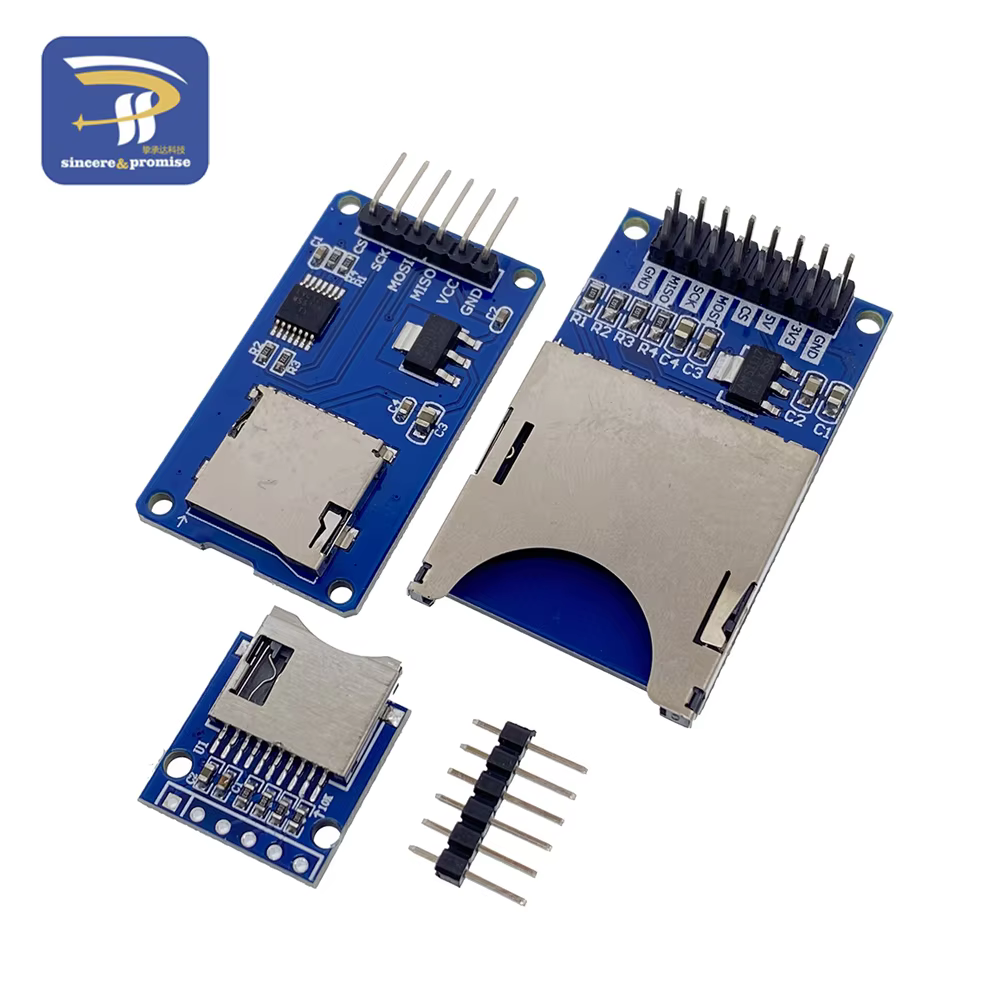

Compatible with Micro SD, Micro SDHC (high speed), and Mini SD cards (select variants). This flexibility suits different storage needs and project requirements.
- Micro SD and Micro SDHC card support
- Mini SD card variant with pop-up interface
Durable Mounting and Convenient Usage
Incorporates four M2 screw holes for secure installation in projects. The card slot features a self-locking design for easy insertion and removal.
- 4 M2 screw holes (2.2mm diameter) for mounting
- The Micro SD card slot supports simple card insertion/removal
Key Specifications
- Operating voltage: 4.5V to 5.5V input
- Onboard 3.3V LDO voltage regulator
- SPI communication interface
- Board size (Mini SD variant): 17.9 mm x 17.9 mm
What's in the box
- Micro SD Card Reader Module with Level Converter SPI Interface
Product FAQ
Frequently asked questions
01 What types of cards does this module support?
It supports Micro SD cards, including Micro SDHC high-speed cards, and Mini SD cards in corresponding variants.
02 What is the operating voltage range for this module?
The module operates from 4.5V to 5.5V and includes a 3.3V voltage regulator for the Micro SD card supply.
03 Which interface does the module use to communicate with microcontrollers?
It uses a standard SPI (Serial Peripheral Interface) with pins for MOSI, MISO, SCK, and CS signals.
04 Does the module handle voltage level conversion?
Yes, it features a level converter chip to shift signals between 5V and 3.3V levels, ensuring compatibility with various MCU systems.
05 How do I connect the module to my microcontroller?

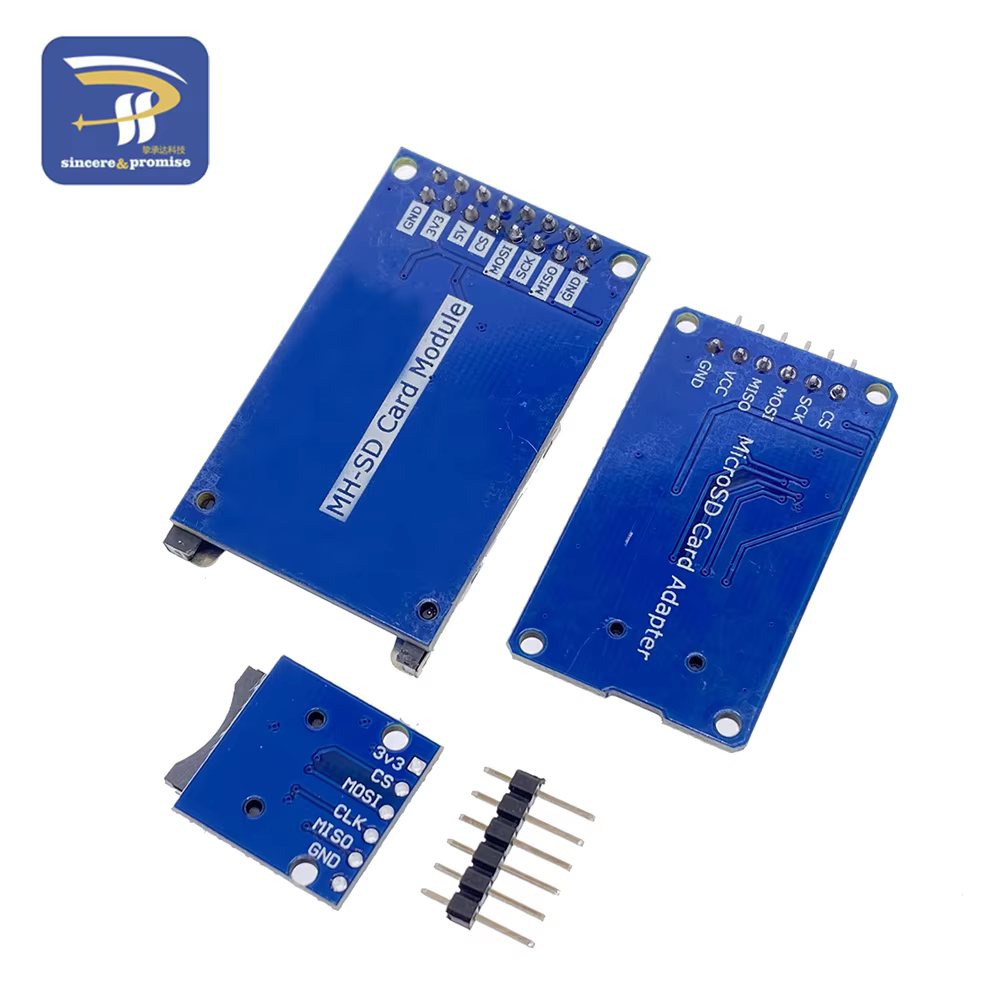

The module provides six pins: GND, VCC (power), MISO, MOSI, SCK (SPI bus), and CS (chip select) for direct connection.
06 Is the module easy to mount in DIY projects?
Yes, it includes four M2 screw holes (2.2mm diameter) for secure and easy installation.
07 Does the module require additional libraries or drivers?
You can use the IDE's built-in SD card library to initialize and read/write data with the Micro SD card on this module.
08 Can this module be used for MP3 playback projects?
Yes, it can be used with MCU or ARM systems to manage SD card storage, suitable for applications like MP3 player projects.
09 What are the physical dimensions of the module?

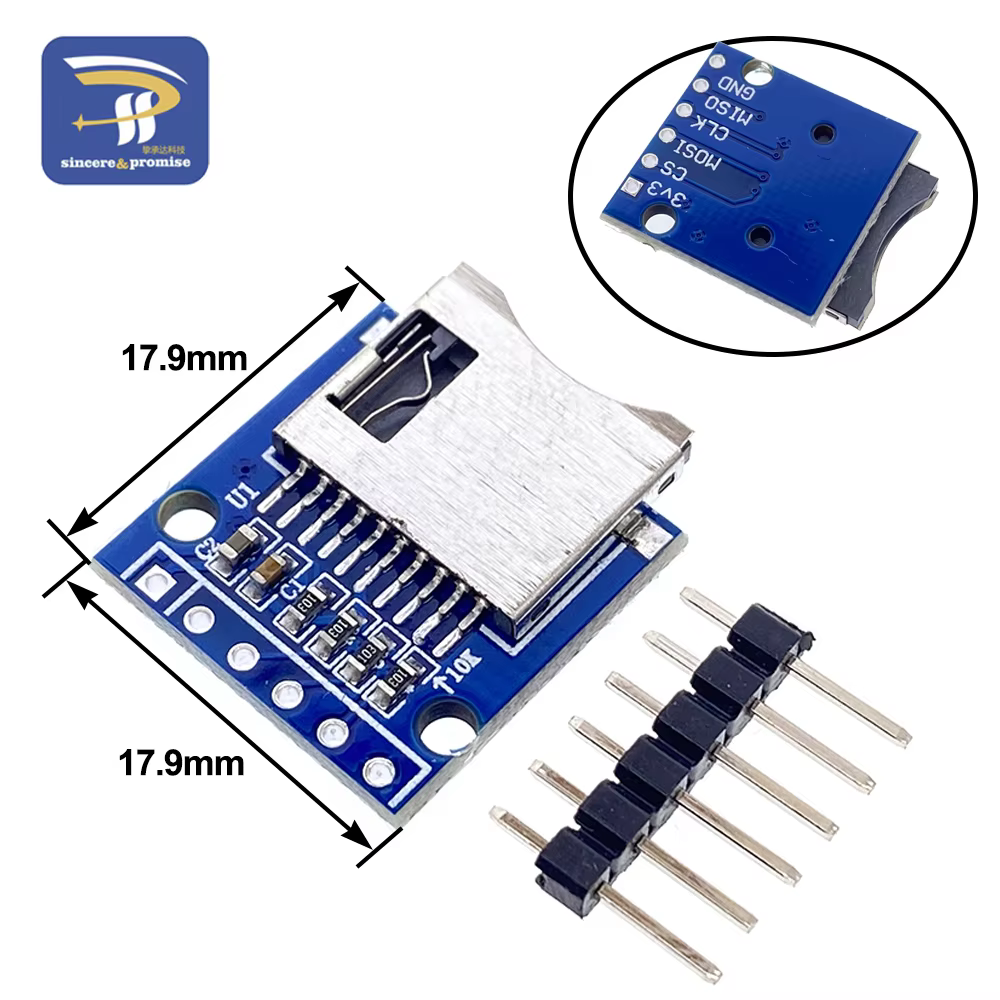

The mini SD card variant board measures approximately 17.9 mm x 17.9 mm.
10 Does this module provide an onboard voltage regulator?
Yes, it includes an LDO regulator providing a stable 3.3V supply for the Micro SD card.
