SSR Solid State Relay DC 3-32V 6A Slim DIN Rail Module
Price range: $4.40 through $4.44
Pay now, in 4 interest-free payments of $1.10, or over 3β6 months
4 interest-free payments of $1.10

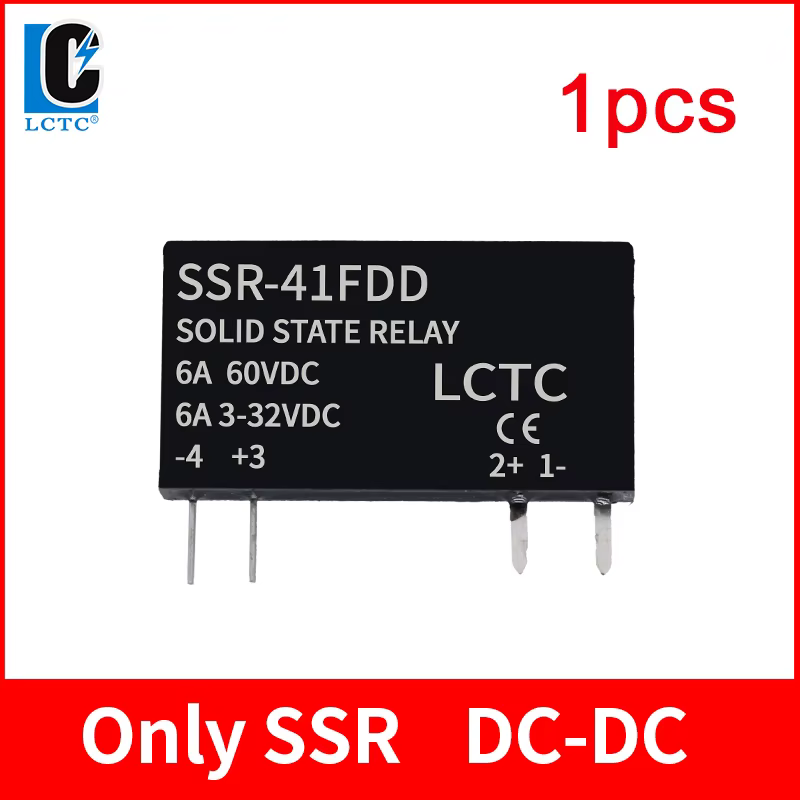

Compact SSR-41F solid state relay from LCTC with 3-32V DC control voltage and 6A load capacity.
- Slim DIN rail mount design
- Sealed protection for durability
- CE certified for safety
β
Estimated Delivery Time3β7 business days
Compact and Durable Design
The SSR-41F from LCTC is a slim solid state relay module engineered for seamless DIN rail installation. Its sealed casing ensures durable performance and protection from environmental factors, making it reliable for various low power DC switching applications.
Wide DC Input Voltage Range
Supporting an input control voltage range from 3V to 32V DC, this relay offers versatile control compatibility for many DC circuits.
Efficient Load Switching Capability
Designed to handle load currents up to 6 amps, the SSR-41F is suitable for precise and efficient operation in low power contact load scenarios.
Safety and Compliance
This relay module holds CE certification, ensuring it meets European safety and quality standards, providing users confidence in its use.

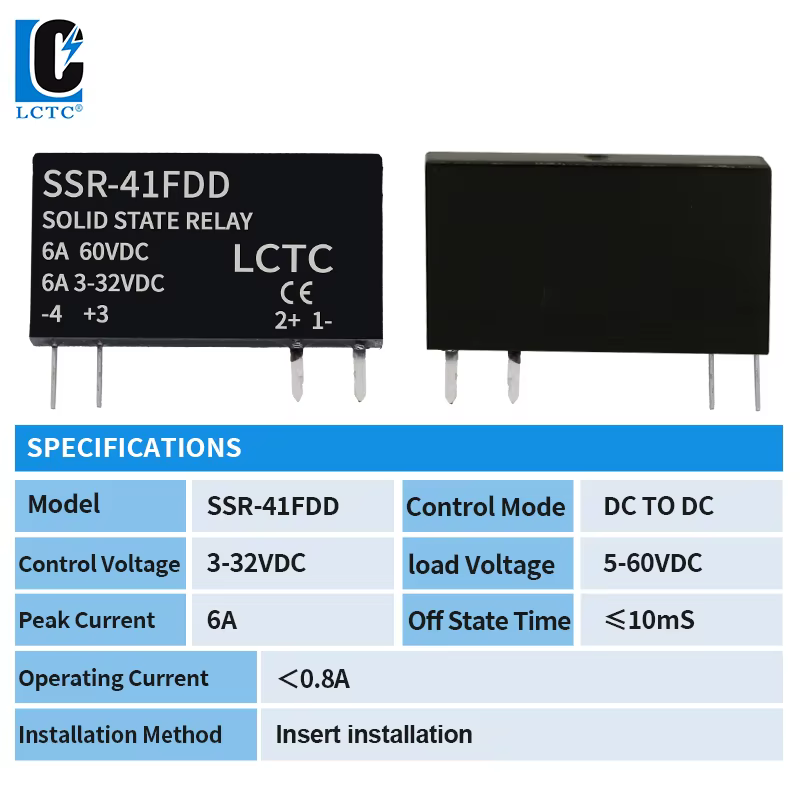

Key Specifications
- Input voltage: 3-32 V DC
- Load current: 6 A
- Mounting type: Slim DIN rail module
- Protection: Sealed design
- Certification: CE
What's in the box
- SSR-41F Solid State Relay Module
Product FAQ
Frequently asked questions
01 What is the input voltage range for this SSR?
The input control voltage for the SSR-41F is DC 3-32 volts.
02 What maximum current can this relay switch?
It supports a maximum load current of 6 amps.
03 Is the relay suitable for DIN rail mounting?
Yes, it is designed as a slim relay module compatible with DIN rail mounting.
04 Does this SSR have any protective features?
Yes, the relay is sealed to provide protection against environmental factors.
05 Is this product certified for safety standards?
The SSR-41F is CE certified, indicating compliance with European safety standards.
06 What is the power source type for this relay?
The relay uses DC as its power source.
07 Can this relay be used for low power applications?
Yes, it is intended for low power contact load switching.
08 Where is this product manufactured?
The SSR-41F is manufactured in Mainland China.
09 Are there any high-concerned chemicals used in this relay?
No, the product does not contain any high-concerned chemicals.
10 What brand manufactures this SSR?
This solid state relay is manufactured by the brand LCTC.
Discussion
4.6
Based on 28 reviews
Confirmed working with variabile voltage dc, these are great compared to mechanical relay, however be mindful that they will heat up if you try to switch too much ac current. also ssr have a tiny bit leakage current and it's a problem when switching led supplies, i used a small rc snubber to prevent led ghosting when switched off. good product, recommended π
Exactly what i expected and was described in the listing.
it never arrived
It arrived on time and in good condition.
