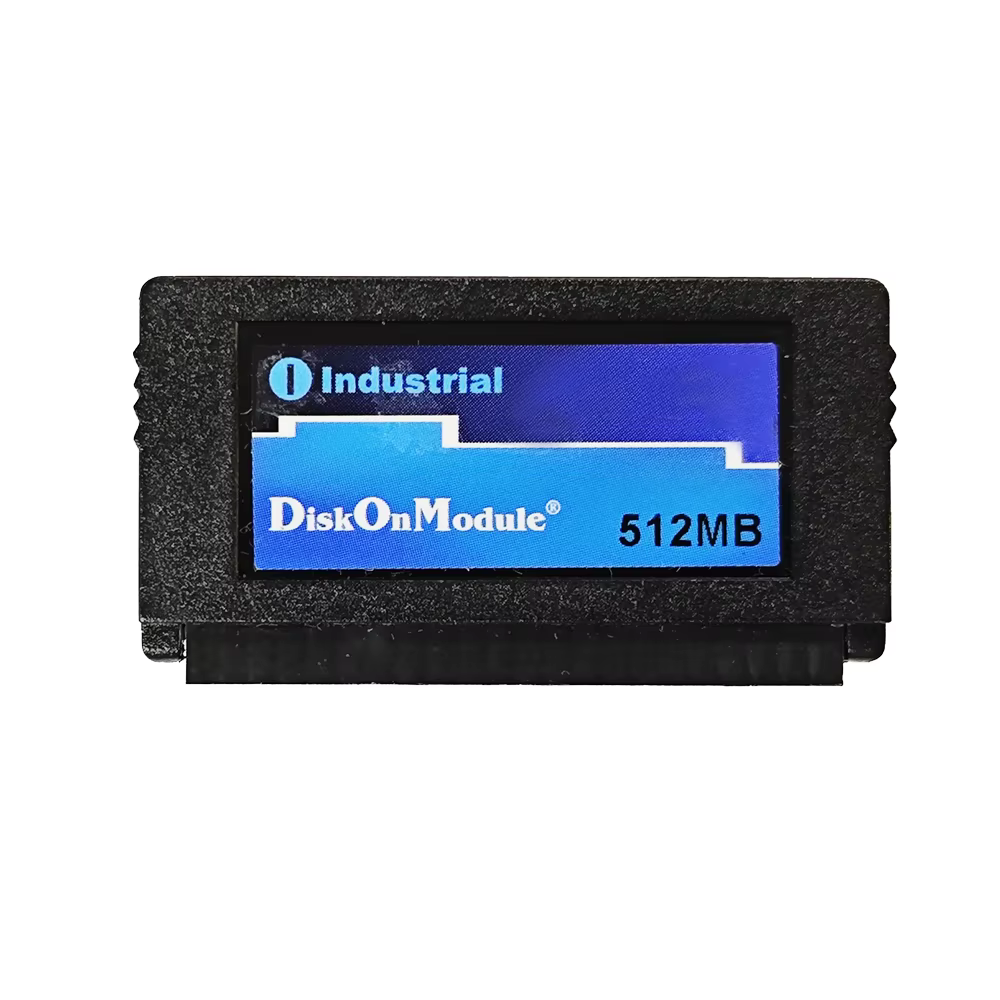

Industrial 44PIN PQI Disk On Module SSD 512MB-4GB
Price range: $73.70 through $74.79
Pay now, in 4 interest-free payments of $18.43, or over 3β6 months
4 interest-free payments of $18.43
Industrial-grade 44PIN IDE Disk On Module SSD with 512MB to 4GB storage options. Features write protection and master-slave switches for data safety. Robust design for demanding applications.
β
Estimated Delivery Time3β7 business days
Reliable Industrial Storage
This Disk On Module is designed for industrial applications, ensuring robust and stable performance in demanding environments. It is a used but thoroughly tested module guaranteeing reliable operations.
Enhanced Data Protection Features
Equipped with a write protection switch and master-slave switch, this module provides efficient ways to secure sensitive data against accidental writes or overwrites.
- Write protection switch to safeguard data
- Master-slave switch for controlling operation mode
Compact and Compatible Design
The module features a compact size suitable for embedded systems and supports a 44-pin IDE interface for seamless integration with compatible devices.
- Dimensions: 6.2 x 59.2 x 27.2 mm
- 44-pin IDE connector interface
Robust Performance Specifications
This Disk On Module offers reliable reading and writing speeds, low power consumption, and has passed rigorous vibration and impact tests to withstand tough industrial conditions.
- Read speed up to 4.3 MB/s
- Write speed up to 3.3 MB/s
- Power consumption: 30mA read, 28mA write, 3mA standby
- Vibration test: 15G, Impact test: 1000G
- MTBF: 2,000,000 hours
Wide Operating Conditions
Designed to operate reliably within a broad temperature range and high humidity environments, ensuring consistent performance for critical applications.
- Operating temperature: 0Β°C to 70Β°C
- Humidity: 8% to 95%
Key specifications
- Interface: 44-pin IDE
- Storage Capacities: 512MB, 1GB, 4GB
- Data Transfer Rate: Read: up to 4.3 MB/s, Write: up to 3.3 MB/s
- Power Supply: DC +5V Β±10%, DC +3.3V Β±5%
- Power Consumption: Read: 30mA, Write: 28mA, Suspend: 3mA
- Dimensions: 6.2 x 59.2 x 27.2 mm
- Operating Temperature: 0 to 70 Β°C
- Humidity Range: 8% to 95%
- Vibration: Tested at 15G
- Impact Resistance: Tested at 1000G
- MTBF: 2,000,000 hours
What's in the box
- 1 x Industrial 44PIN PQI Disk On Module SSD
Product FAQ
Frequently asked questions
01 What storage capacities are available for this PQI Disk On Module?
This Industrial PQI Disk On Module comes in 512MB, 1GB, and 4GB storage capacities.
02 What interface does this Disk On Module use?
It supports a 44-pin IDE interface for data connection.
03 Does this module have a write protection feature?
Yes, it includes a write protection switch to help safeguard data.
04 What are the power specifications for this SSD?
It operates on DC +5V Β±10% and DC +3.3V Β±5%, consuming 30mA during read, 28mA during write, and 3mA in suspend.
05 What are the dimensions of this Disk On Module?
The module measures 6.2 x 59.2 x 27.2 mm (0.24 x 2.33 x 1.07 inches).
06 Is this Disk On Module new or used?
The product is used but well-tested, ensuring normal performance.
07 What is the operating temperature range for this storage device?
It operates reliably between 0 to 70 degrees Celsius.
08 How durable is this Disk On Module?
It has undergone vibration testing at 15G, impact testing at 1000G, and has a Mean Time Between Failures (MTBF) of 2,000,000 hours.
09 What is the maximum data transfer speed?
The module supports up to 4.3 MB/sec read speed and up to 3.3 MB/sec write speed.
10 Does this Disk On Module require special certification for use?
No specific certifications are listed for this product.
