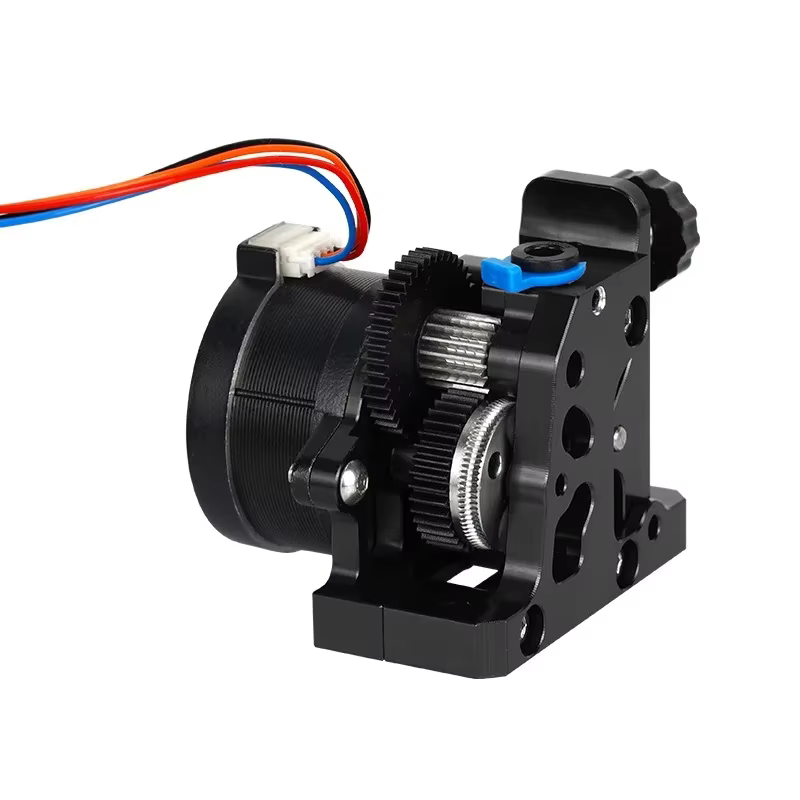

HGX LITE Dual Gear Extruder for CR-10 Ender-3 V2
Price range: $13.07 through $37.71
Pay now, in 4 interest-free payments of $3.27, or over 3–6 months
4 interest-free payments of $3.27
The HGX LITE dual gear extruder offers high wear resistance and strong 15KG driving force, compatible with CR-10, CR-10S, Ender-3, and Ender-3 V2 3D printers.
- Hard steel gears for durability
- Quiet operation at 22dB
- Suitable for PLA, PETG, TPU, ABS, PEEK, and nylon filaments
↗
Estimated Delivery Time3–7 business days
Durable Dual Gear Extruder
Designed for CR-10 and Ender-3 V2 series printers, the HGX LITE extruder features hard steel gears rated HRC 60+, providing superior wear resistance and delivering a robust 15kg driving force. Its large gears ensure consistent filament feeding for high-quality 3D printing.
Quiet and Efficient Motor
The included NEMA14 36mm motor offers quiet operation at just 22dB, ideal for home or office settings. With high temperature resistance and long service life of up to 30,000 hours, it reliably supports short-range printing requirements.
Wide Filament Compatibility
This extruder supports a broad range of filament types including PLA, PETG, TPU, ABS, PEEK, and nylon, allowing versatile printing options for various projects and materials.
Easy Installation and Use
The extruder assembly comes pre-installed and debugged, simplifying setup. Its compact, lightweight design suits remote and short-range printing configurations without requiring welding or complicated extensions.
Key Specifications
- Gear hardness: HRC 60+
- Driving force: 15KG
- Gear material: Hard steel
- Motor type: NEMA14 36mm round pancake
- Rated voltage: DC 2.4V
- Rated current: DC 0.5A
- Noise level: 22dB
- Motor cable length: 70cm (27.5in)
What's in the box
- 1 extruder unit
- 1 motor (optional)
- 1 meter motor cable
Product FAQ
Frequently asked questions
01 Which 3D printer models is the HGX LITE extruder compatible with?
It is mainly suitable for Creality CR-10, CR-10S, Ender-3, and Ender-3 V2 series models.
02 What filaments can be used with the HGX LITE extruder?
It supports various filaments including PLA, PETG, TPU, ABS, PEEK, and nylon.
03 What materials are used in the HGX LITE extruder's gears?
The extruder features hard steel gears with a hardness rating of HRC 60+ for enhanced wear resistance.
04 How much driving force does the extruder gear provide?
The large gears deliver a driving force of approximately 15 kilograms.
05 What is the noise level during operation?
The extruder operates quietly, producing only about 22 decibels of noise.
06 Does the extruder come with a motor and cable?
Yes, the set can include a NEMA14 36mm motor and a 1-meter cable depending on the package chosen.
07 Is the HGX LITE extruder easy to install?
Yes, it has a simple structure, all parts are installed and debugged, allowing for easy operation and installation.
08 What is the rated voltage and current of the motor?
The motor is rated for DC 2.4V and DC 0.5A.
09 How long is the motor cable included?
The motor comes with a complimentary 70cm (27.5 inch) extension cable.
10 What is the expected service life of the motor?
The high-temperature resistant motor can operate for up to 30,000 hours.
