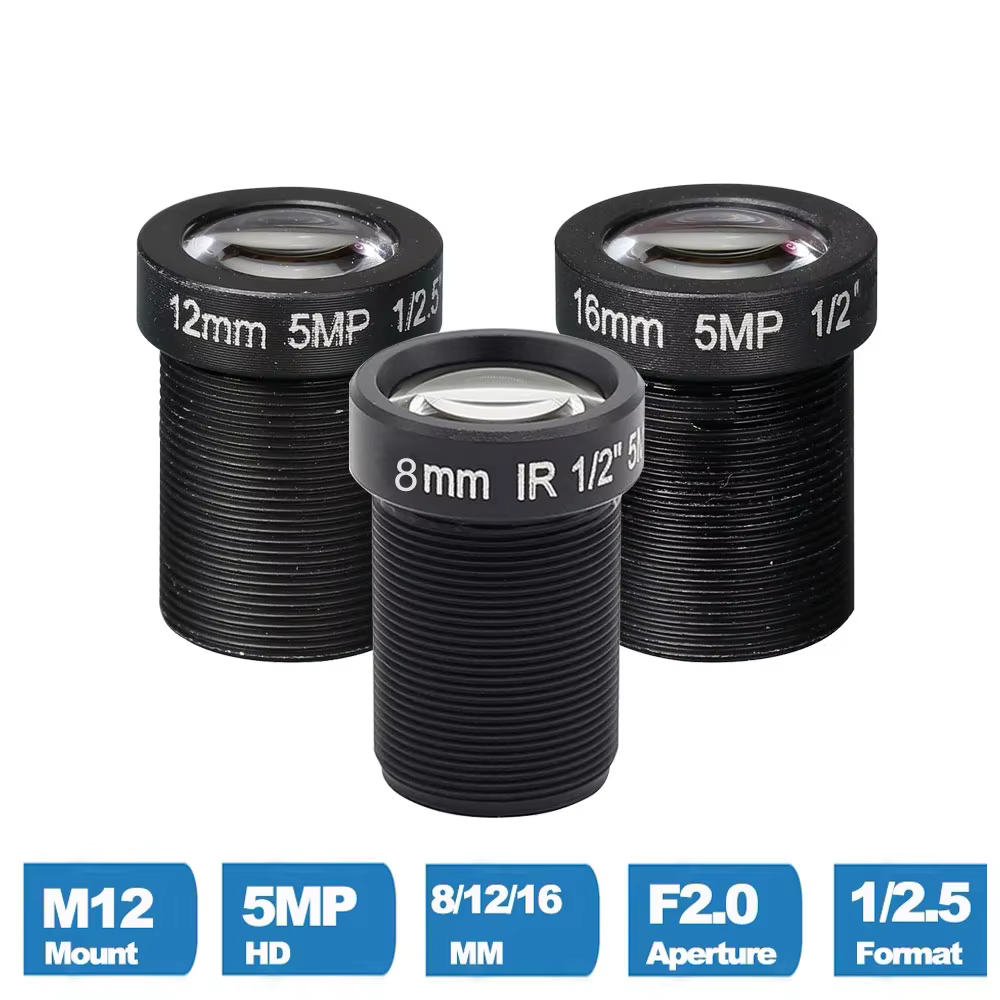

HD 5MP CCTV Lens 8mm 12mm 16mm M12 Mount IR Board
Price range: $5.21 through $5.65
Pay now, in 4 interest-free payments of $1.30, or over 3–6 months
4 interest-free payments of $1.30
High-definition 5MP CCTV lenses with M12x0.5 mount thread for 1/2.5" sensor IP cameras.
- Choose between 8mm, 12mm, or 16mm focal lengths
- Manual lens with F2.0 aperture and fixed iris
- Wide angle coverage and IR board lens for enhanced security monitoring
↗
Estimated Delivery Time3–7 business days
Precision Optics for Security
These HD 5MP lenses provide sharp, clear imagery designed for surveillance use with IP and AHD cameras. They feature a fixed iris aperture of F2.0 for consistent image clarity.
Choose from three focal lengths—8mm, 12mm, and 16mm—to suit varying monitoring distances and coverage needs.
Standard M12 Mount Compatibility
All lenses utilize the standard M12x0.5 thread, compatible with 1/3" and 1/4" CCD chipsets used in common security cameras.
This ensures easy installation and reliable attachment on most IP surveillance camera models.
- M12x0.5 mount thread
- Fits 1/3" and 1/4" CCD sensors
- Secure and stable lens connection
Wide Angle and Long Range Views
– 8mm lens: 52° angle of view for broad scene coverage
– 12mm lens: 32° angle with viewing distance up to 40 meters
– 16mm lens: 20° angle providing focused long-distance views for detailed surveillance
Compact, Lightweight Design
These lenses are designed with minimal weight (7g for the 16mm lens) and compact dimensions, making them suitable for slim security cameras without bulk.
Their durable IR board construction supports effective night vision capabilities.
Key Specifications
- Sensor format: 1/2.5 inch
- Aperture: F2.0 fixed iris
- Mount thread: M12x0.5mm
- Weight: 7 grams (16mm lens)
- Angle of view: 8mm (52°), 12mm (32°), 16mm (20°)
What's in the box
- One CCTV lens (choose 8mm, 12mm, or 16mm)
Product FAQ
Frequently asked questions
01 What focal lengths are available for this CCTV lens?
This HD CCTV lens is available in 8mm, 12mm, and 16mm focal lengths.
02 What sensor size is this lens compatible with?
It is compatible with 1/2.5-inch sensors used in security IP and AHD cameras.
03 What is the mount type for this lens?
The lens uses a standard M12x0.5 mounting thread suitable for IP cameras.
04 Does the lens support infrared (IR) lighting?
Yes, it includes an IR board lens suitable for night surveillance.
05 What is the aperture of the lens?
Each lens features a fixed iris aperture of F2.0 for clear imaging.
06 What is the angle of view for the 8mm lens?
The 8mm lens provides a 52-degree angle of view.
07 What viewing distance does the 12mm lens support?
The 12mm lens supports viewing distances up to approximately 40 meters.
08 What is the angle of view for the 16mm lens?
The 16mm lens has a narrow angle of view around 20 degrees.
09 Is this lens manual or auto focus?
This CCTV lens is manual focus with a fixed iris.
10 What is the weight of the 16mm lens?
The 16mm variant weighs approximately 7 grams.
