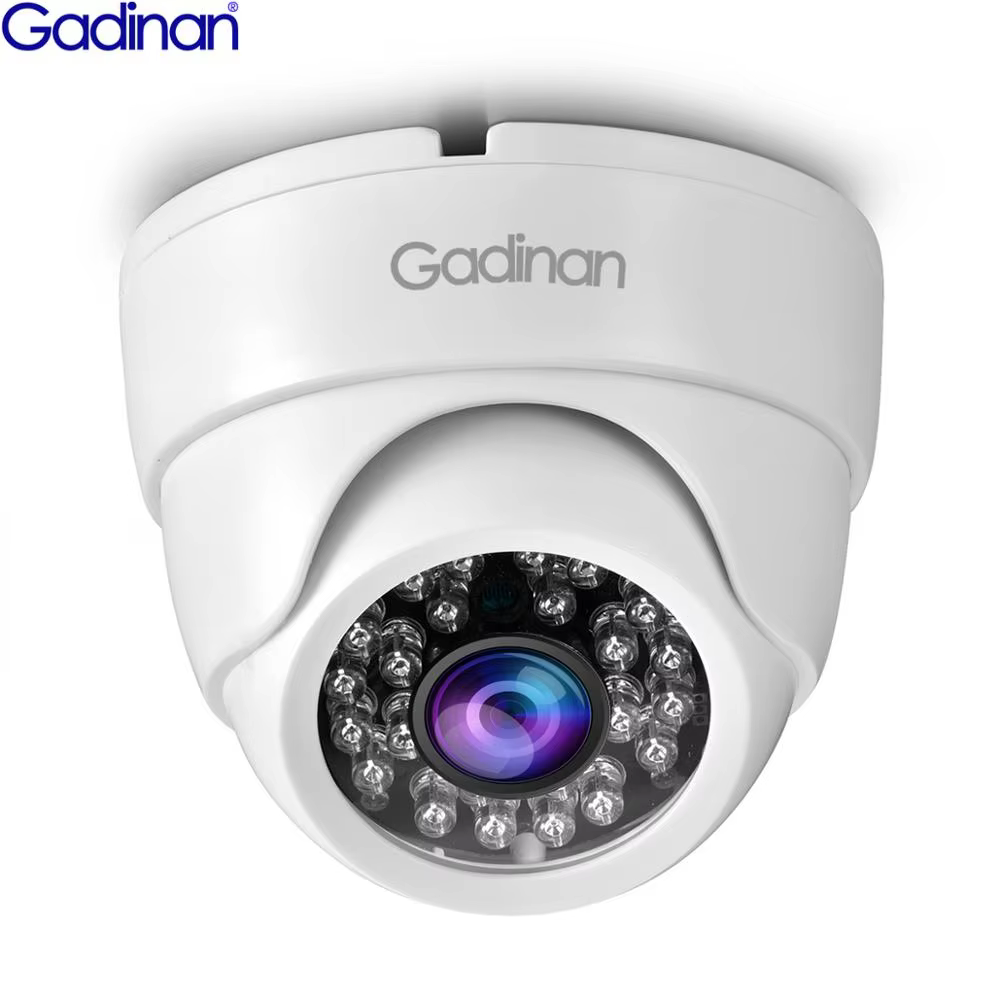

Gadinan 5MP AHD Dome CCTV Camera with IR Night Vision
Price range: $13.19 through $21.66
Pay now, in 4 interest-free payments of $3.30, or over 3–6 months
4 interest-free payments of $3.30
Gadinan 5MP AHD Dome Camera offers clear, progressive scan HD video with excellent night vision and easy coax cable installation.
↗
Estimated Delivery Time3–7 business days
Sharp Analog HD Video
Gadinan's AHD technology uses progressive scan and separates brightness and color signals to eliminate blur and blinking. This results in crystal clear video images with improved color reproduction for your indoor surveillance.
Flexible Wired Connection
The camera supports reliable AHD data transmission over standard coaxial cables, including composite cables, reducing installation costs and complexity.
- Works over up to 500 meters without video quality loss
- No signal latency, unlike some IP systems
Powerful Night Vision
Equipped with 24 infrared LEDs and IR-CUT auto-switch filter, this dome camera delivers clear black and white images in low light or complete darkness, with up to 20-25 meters infrared range.
- 0.01 Lux minimum illumination in color mode
- 0 Lux with IR LEDs active
Versatile Lens Options and Construction
Choose from 2.8mm, 3.6mm, or 6mm HD lenses to fit your monitoring needs. The camera housing is durable ABS plastic optimized for indoor ceiling installation.
It features a dome design that blends discreetly with any indoor environment.
- Compact size: 9.2 x 6 cm
- Operating temperature range: -10°C to 60°C
Key Specifications
- Image Sensor: Sony CMOS
- Video Compression: H.264
- Viewing Angle: 80-90 degrees
- Power Supply: DC 12V (adapter sold separately)
- Power Consumption: 3 Watts
- Noise-Signal Ratio: >58dB
What's in the box
- 1x Gadinan AHD Dome CCTV Camera (power adapter and cables sold separately)
Product FAQ
Frequently asked questions
01 What video resolutions does the Gadinan AHD Dome Camera support?
It supports 720P (1MP), 1080P (2MP), and 5MP video resolutions.
02 Is a power adapter included with the camera?
No, the power adapter and BNC cable are not included and must be purchased separately.
03 Can the camera be used outdoors?
No, this dome camera is designed for indoor use only.
04 What type of lens options are available?
Lens options include 2.8mm, 3.6mm, and 6mm HD lenses.
05 Does the camera support night vision?
Yes, it has 24 infrared LEDs providing night vision effective up to 20-25 meters.
06 What is the minimum illumination needed for the camera?
Color minimum illumination is 0.01 Lux; with IR it can see in complete darkness (0 Lux).
07 What type of sensor does the camera use?
It uses a Sony CMOS color sensor with an IR CUT filter for day/night switching.
08 What cable is needed for installation?
The camera uses coaxial cable compatible with standard composite cables for video transmission.
09 What power supply does the camera require?
The camera requires a 12V DC power supply, which is not included.
10 Is this camera compatible with all DVRs?
No, it specifically requires an AHD DVR compatible with the camera's resolution.
Discussion
4.0
Based on 8 reviews
Thank you
Very good camera in terms of price and quality, it arrived on time, I do recommend the camera.
everything is fine with the 2MP PAL signal, it can be seen clearly at a distance of 10 meters, the only small defect (maybe it happened only to me) was that the IR-cut was left open and therefore the images were red.
Found the solution by disconnecting the IR wire and manually moving the holder with two small tweezers so that the filter is closed.
Good quality
