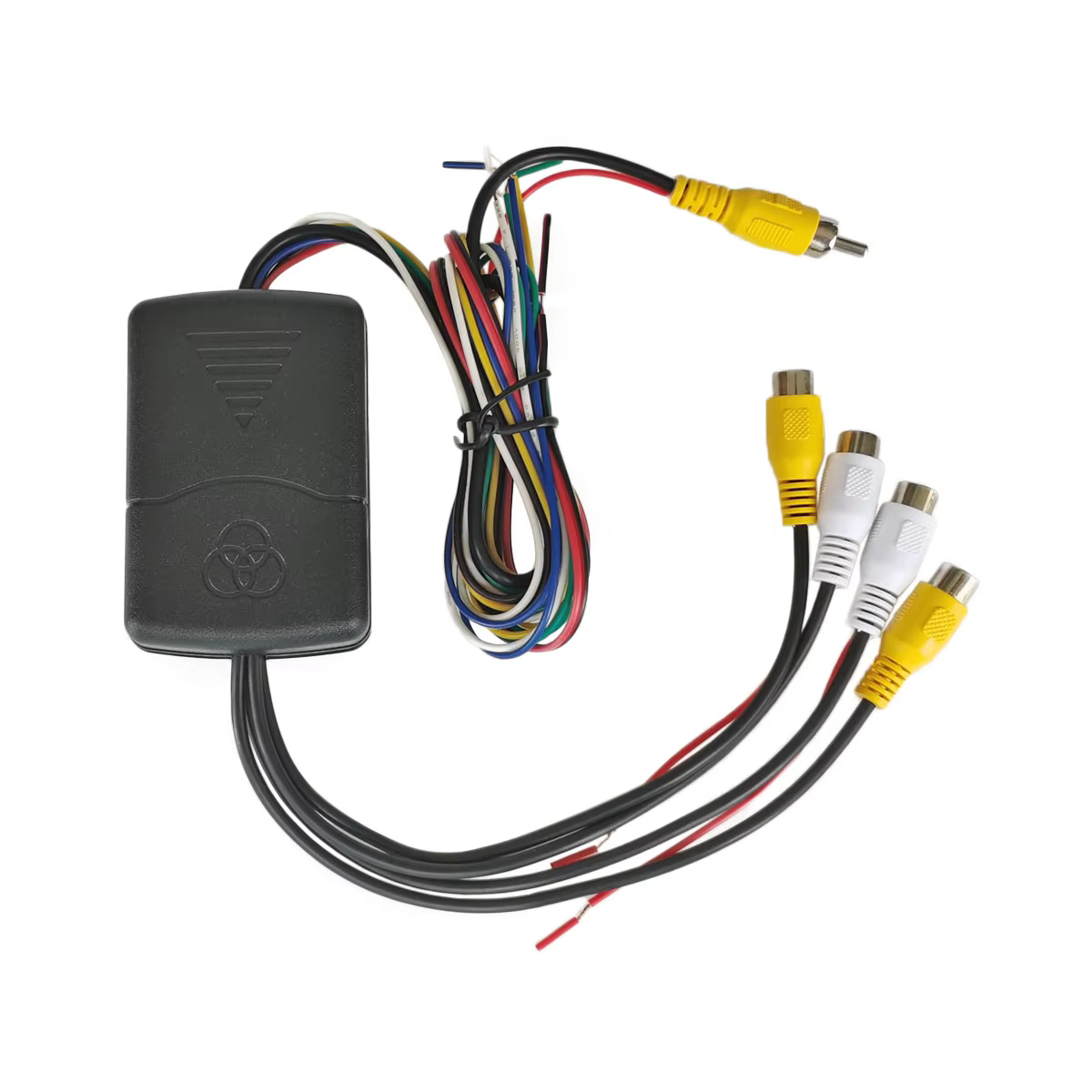

DIYKIT 4-Channel Car Camera Video Control Converter Box
$17.53
Pay now, in 4 interest-free payments of $4.38, or over 3–6 months
4 interest-free payments of $4.38
Control up to 4 car cameras (front, rear, left, right) with this video channel converter box.
- Supports 4 AHD or 4 CVBS cameras (cannot mix types)
- Compatible with PAL/NTSC signals
- Easy connection to brake, backup, and turn signals
5 in stock
↗
Estimated Delivery Time3–7 business days
Four-Camera Integration for Complete Coverage
Manage four cameras installed on your vehicle—front, rear, left, and right sides—with a single converter box. Designed for both AHD and CVBS cameras, it simplifies monitoring without mixing signal types.
The converter automatically switches the video feed based on the vehicle’s brake, reverse, and turn signals, ensuring you always see the right view when needed.
Flexible Signal and Power Connections
Wiring is straightforward with color-coded connectors for power and vehicle signal inputs: red for +12V ACC, black for ground, blue for brake, white for backup light, green/brown for left turn, and yellow for right turn.
- Supports 12V DC power operation with low current draw
- Compatible with PAL and NTSC video standards
Durable and Reliable Operation
Engineered to operate in extreme temperatures from -20℃ up to 80℃, the converter performs reliably in diverse climates and driving conditions.
- Certified with E-Mark, CE, FCC, and KC for quality assurance
- Supports real-time surveillance with 25 FPS video output
Key Specifications
- Power: 12V DC, Max 50mA
- Number of lenses supported: 4
- Video formats supported: AVI, AHD, CVBS
- Frame rate: 25 frames per second
- Screen ratio: 16:9
- Operating temperature: -20℃ to 80℃
What's in the box
- 1 x 2 to 4 Way Camera Controller
Product FAQ
Frequently asked questions
01 How many cameras does this converter support?
It supports 4 cameras connected simultaneously.
02 Can I connect AHD and CVBS cameras at the same time?
No, the system supports either 4 AHD cameras or 4 CVBS cameras but not both together.
03 What power supply is needed?
The device operates on 12V DC power with a maximum current of 50mA.
04 Which video signals are compatible?
It supports AHD and CVBS signals with PAL and NTSC formats.
05 What vehicle signals can I connect to control video display?
You can connect brake light, backup light, left and right turn signals to switch camera views.
06 What happens when multiple signals activate simultaneously?
The priority order for screen display is double flashing lamp, right turn, left turn, reverse, then brake.
07 What is the operating temperature range?
The device works reliably between -20℃ and 80℃.
08 Is this compatible with touch screen monitors?
The product does not support touch screen functionality.
09 What video format does this converter output?
It outputs video in AVI format with 25 frames per second.
10 What certifications does this product have?
It carries E-Mark, CE, FCC, and KC certifications.
