A4988 requires 5V to be applied to the MS pin, but this product only has a circuit that connects the MS pin to GND. Microstepping is essentially unusable.
CNC Shield V4 Kit with Nano 3.0 & Stepper Drivers
Price range: $4.04 through $11.12
Pay now, in 4 interest-free payments of $1.01, or over 3–6 months
4 interest-free payments of $1.01
Complete CNC Shield V4 kit including Nano 3.0 board with USB cable and three stepper drivers (A4988 or DRV8825), compatible with Arduino-based 3D printers and engraving machines.
↗
Estimated Delivery Time3–7 business days
Compact control for 3D printing
The CNC Shield V4 combined with the Nano 3.0 board offers a streamlined solution for controlling stepper motors on 3D printers and engraving machines. It integrates multiple components into a neat kit that simplifies machine operation.
Versatile stepper driver options

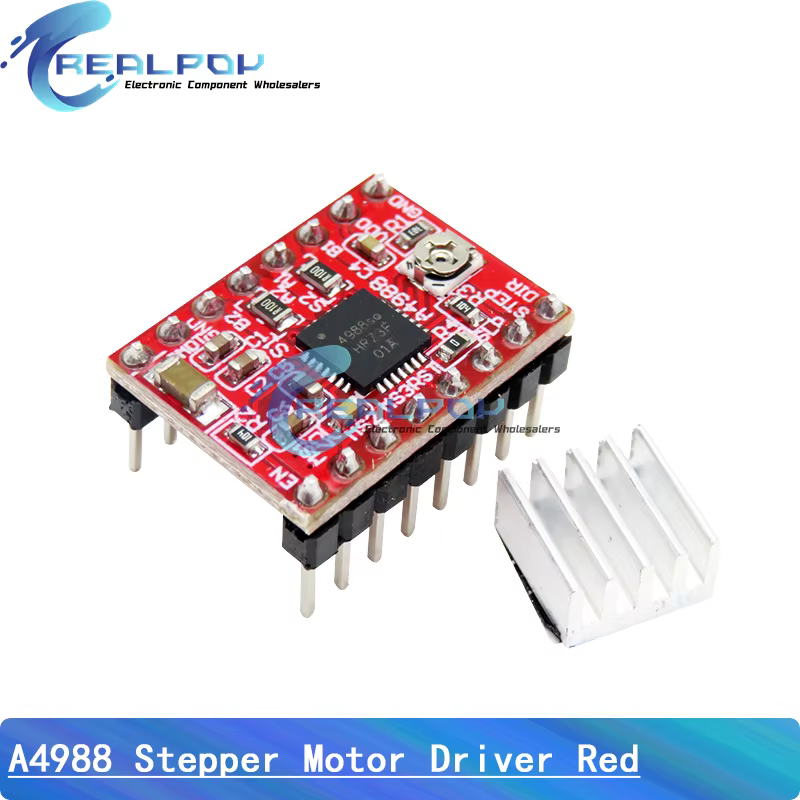

Choose from three included stepper drivers: A4988 in red or green versions, or DRV8825, to suit your specific motor control needs. Each driver supports precise microstepping for smooth movements.
- Compatible with Arduino-based systems
- Supports up to three stepper drivers
- Plug-and-play USB connection with Nano 3.0
Durable and chemical safe design
Constructed to meet quality standards, the kit contains no high-concerned chemicals ensuring safe usage in maker environments.
- New condition from REALPOY brand
- Manufactured in Mainland China
- Customizable assembly options
Key specifications
The CNC Shield V4 kit measures approximately 12 cm on each side and weighs 80 grams including packaging, making it compact and portable.
- Model: CNC Shield V4 + A4988/DRV8825 + Nano 3.0
- Includes USB cable
- Compatible with 3D printers and engraving machines
What's in the box
- CNC Shield V4
- Nano 3.0 controller with USB cable
- 3 stepper drivers (A4988 or DRV8825)
Product FAQ
Frequently asked questions
01 What components are included in this CNC Shield V4 kit?
The kit includes a CNC Shield V4, Nano 3.0 board with USB cable, and three stepper drivers (A4988 or DRV8825).
02 Is the Nano 3.0 board USB compatible?
Yes, the Nano 3.0 board comes with a USB cable for easy connection to a computer or controller.
03 Are there different types of stepper drivers available in this set?
Yes, the kit offers options including A4988 (Red or Green versions) and DRV8825 stepper drivers.
04 Can this kit be used for 3D printers?
Yes, this CNC Shield V4 kit with Nano 3.0 and stepper drivers is designed for Arduino-based 3D printers and engraving machines.
05 What is the brand of this CNC Shield V4 kit?
The kit is branded REALPOY and manufactured in Mainland China.
06 Is this a new or used product?
The product condition is new.
07 Does this kit contain any high-concerned chemicals?
No, there are no high-concerned chemicals in this product.
08 Is this CNC Shield customizable?
Yes, the product is marked as customizable to suit specific application needs.
09 What is the package size and weight for this kit?
The package measures approximately 12 x 12 x 12 cm and weighs about 0.08 kg gross.
10 Is this product compatible with Arduino?
Yes, the CNC Shield V4 and Nano 3.0 board are compatible with Arduino control boards.
Discussion
4.5
Based on 14 reviews
Ok
Untested yet, i'm looking forward to putting together my project for which i bought it
The product has good quality and a very good price. Overall, highly recommended!
It is a clone, difficult to program for those without experience, although it is not always sufficient, depending on the usage.
