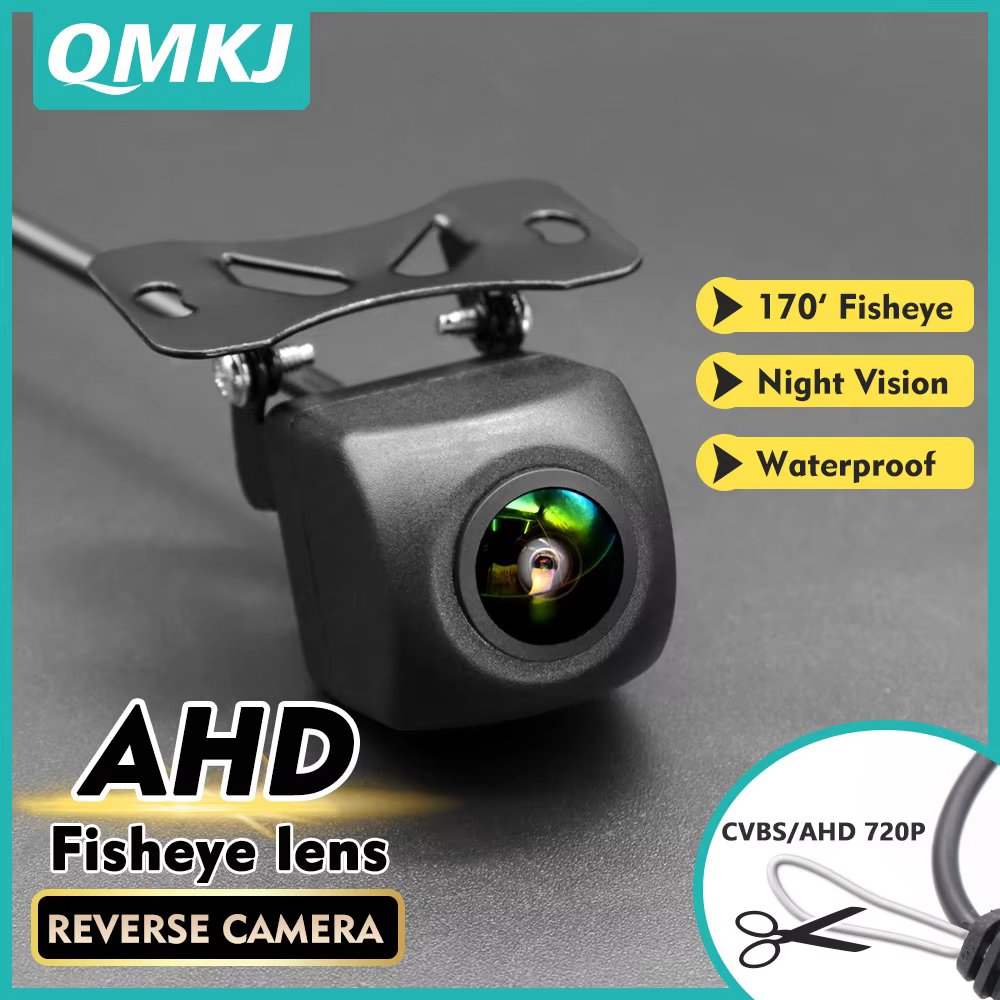

AHD 720P CVBS Dual Switch Car Rear View Backup Camera
$14.45
Pay now, in 4 interest-free payments of $3.61, or over 3–6 months
4 interest-free payments of $3.61
High-definition dual signal output supports AHD 720P and CVBS. Adjustable metal bracket allows flexible installation. IP67 rated waterproof for all weather use.
929 in stock
↗
Estimated Delivery Time3–7 business days
Versatile Dual-Mode Video Output
Easily switch between AHD 720P high-definition video at 25fps and traditional CVBS NTSC signal to match your car stereo system’s compatibility. This dual switch feature is controlled by a simple wire cut, making installation adaptable.Compatible with most Android radios with AHD input for crisp rear view images.
Robust and Weatherproof Design
Built to endure harsh outdoor conditions, this camera achieves an IP67 waterproof rating using special potting technology. It resists rain, snow, and dust, ensuring reliable performance and longevity on your vehicle regardless of weather.
Wide-Angle Fisheye Lens for Enhanced Safety
The 170° super-wide fisheye lens minimizes blind spots, offering a comprehensive view behind your vehicle. This greatly improves safety while reversing and parking by capturing a broad field of view in real time.
Compact Size with Adjustable Mounting
Measuring just 2.2 cm cubed, the camera is discreet yet functional. The included adjustable metal bracket lets you easily set the perfect viewing angle and mount on your trunk, bumper, or license plate area for optimal visibility.
Simple Installation and Operation
Includes an RCA extension video cable and power supply wire for straightforward setup. Verify compatibility with your head unit before purchase. Switching modes is intuitive via a white trigger wire and in-car settings menu.
Key Specifications
- Image sensor: AHD 720P
- Signal modes: AHD 720P at 25fps / CVBS NTSC (dual-switch)
- Viewing angle: 170° fisheye
- Waterproof rating: IP67 commercial grade
- Power supply: DC 12V
- Camera size: 2.2 x 2.2 x 2.2 cm
- Mount: Adjustable metal bracket
- Cable length: 6 meters
What's in the box
- 1 x Car Rear View Camera
- 1 x RCA Extension Video Cable
- 1 x Power Supply Wire
Product FAQ
Frequently asked questions
01 What video signal modes does this camera support?
It supports AHD 720P at 25fps and CVBS NTSC signal modes, switchable by cutting the white wire.
02 Is this camera waterproof?
Yes, it features commercial grade IP67 waterproofing, suitable for rain and snow conditions.
03 What is the camera's viewing angle?
The camera has a 170-degree fisheye wide-angle lens to reduce blind spots during reversing.
04 What power supply does the camera require?
It operates on a DC 12V power supply.
05 What are the dimensions of the camera body?
The mini camera body measures 2.2 x 2.2 x 2.2 cm.
06 How is the camera mounted?
It comes with an adjustable metal mounting bracket allowing flexible angle adjustment.
07 Can this camera be used with any car stereo system?
It is compatible with Android car radios that support AHD reversing input; CVBS mode works with other stereos.
08 What cables come with the camera?
The package includes an RCA extension video cable and a power supply wire.
09 How to switch between AHD and CVBS modes?
Cut the white trigger wire to select AHD 720P mode; leaving it intact defaults to CVBS NTSC mode.
10 Does the camera support night vision?
Night vision is not explicitly stated and thus not confirmed.
Discussion
4.6
Based on 26 reviews
Good
For its price and quality, the 720 camera is good. Don't forget to cut the white loop)) When we cut it, the second grid of parking lines disappeared and the quality improved.
The package arrived in Ireland in 8 days.
I recommend it!
A good camera for the money. There really is AHD 720.
When you cut the white wire.
I recommend it. I've bought it more than once.
Grainy, but it will do.
