MSI PRO B365M PRO-VH LGA 1151 (300 Series) Intel B365 SATA 6Gb/s Micro ATX Intel Motherboard Price in Pakistan Specs
| Brand | MSI |
|---|---|
| Series | PRO |
| Model | B365M PRO-VH |
| CPU Socket Type | LGA 1151 (300 Series) |
|---|---|
| CPU Type | Supports 9th/8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket * Not backward compatible with older generation of LGA 1151 CPUs |
| Chipset | Intel B365 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic: 1 x VGA port, supports a maximum resolution of 2048×1536@50Hz, 2048×1280@60Hz, 1920×1200@60Hz 1 x HDMI port 1.4, supports a maximum resolution of 4096×2160@30Hz * No display support when using the processor model with suffix F |
|---|
| Number of Memory Slots | 2x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 2666/ 2400/ 2133 |
| Maximum Memory Supported | 32GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 |
|---|---|
| PCI Express x1 | 2 x PCIe 3.0 x1 slots |
| SATA 6Gb/s | 6 x SATA 6Gb/s ports* * The SATA1 port will be unavailable when an M.2 SATA SSD module has been installed in the M.2 slot. |
|---|---|
| M.2 | 1 x M.2 slot (Key M) Supports up to PCIe 3.0 x4 and SATA 6Gb/s Supports 2242/2260/2280 storage devices |
| Intel Optane Ready | Yes* * Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC887 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek RTL8111H |
|---|---|
| Max LAN Speed | 10/100/1000Mbps |

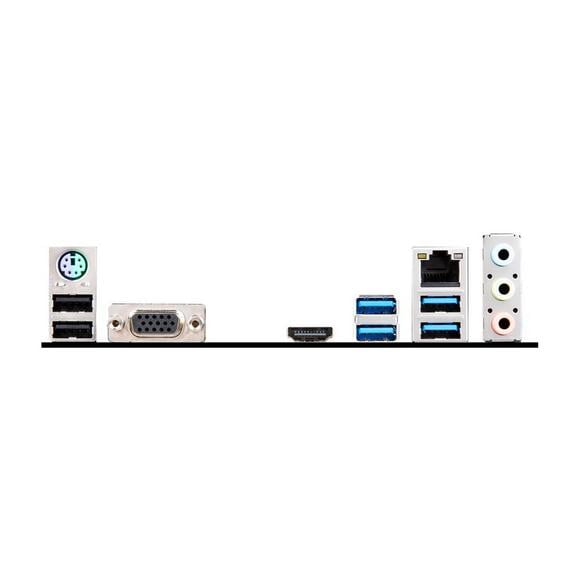

| Back I/O Ports | 1 x D-Sub / 1 x HDMI / 1 x LAN (RJ45) / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 2.0/1.1 / 3 x Audio Jacks / 4 x USB 3.1 Gen 1 |
|---|
| Onboard USB | 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) |
|---|---|
| Other Connectors | 1 x Clear CMOS jumper 2 x Front panel connectors 1 x Serial port connector 1 x Chassis Intrusion connector 1 x Front panel audio connector 1 x 4-pin CPU fan connector 1 x 4-pin system fan connector 1 x TPM module connector |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 8.9″ x 7.3″ |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| Features | Supports 9th/8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket
Supports DDR4 Memory, up to 2666 MHz Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs Core Boost: With premium layout and fully digital power design to support more cores and provide better performance Audio Boost: Reward your ears with studio grade sound quality EZ Debug LED: Easiest way to troubleshoot X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device |
|---|
