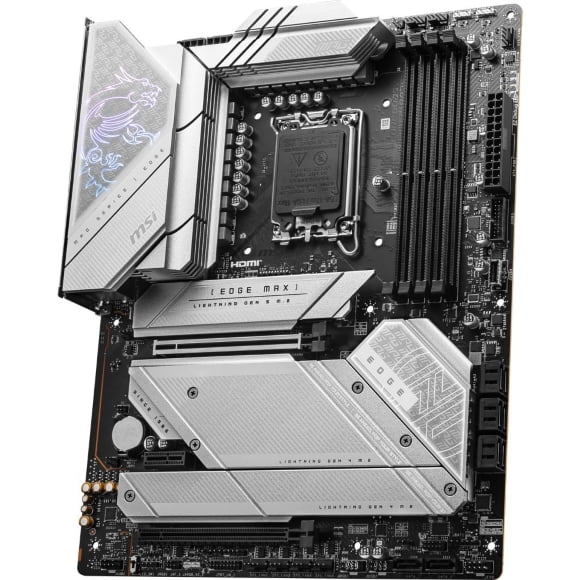

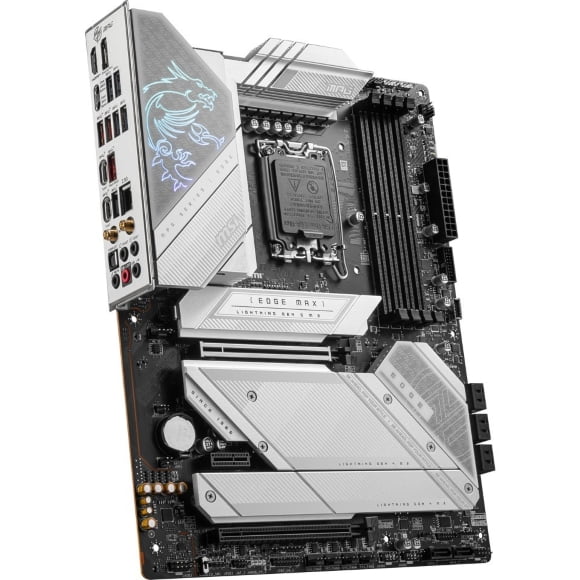

MSI MPG Z790 EDGE TI MAX WIFI LGA 1700(14th,13th,12th Gen) DDR5 Intel Z790 SATA 6Gb/s ATX Motherboard 2x PCI-E x16 slot Wi-Fi 7 Solution 2.5Gbps LAN

  • BIOS update may be required when used with some 14th generation Intel Core processors, visit MSI support website for more information
  • Supports Intel Core Next-gen / 13th Gen / 12th Gen, Pentium Gold and Celeron processors for LGA 1700 socket
  • Supports DDR5 Memory, up to 7800+(OC) MHz
  • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, USB 3.2 Gen 2×2
  • Enhanced Power Design: 16+1+1 Mirrored Power Arrangement, dual 8-pin CPU power connectors, Core Boost, Memory Boost
  • Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
  • 2.5G LAN and Wi-Fi 7 Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

Summer Shopping Season Sale

Hurry and get discounts on all products up to 2%

02_sale

₨ 95,000

Out of stock

Out of stock

Add to compare
Add to wishlist
SKU: MPG Z790 EDGE TI MAX WIFI

Payment Methods:

Description

MSI MPG Z790 EDGE TI MAX WIFI LGA 1700(14th,13th,12th Gen) DDR5 Intel Z790 SATA 6Gb/s ATX Motherboard 2x PCI-E x16 slot Wi-Fi 7 Solution 2.5Gbps LAN Price in Pakistan

Best Seller Ranking #40 in Intel Motherboards
Model
Brand MSI
Model MPG Z790 EDGE TI MAX WIFI
Supported CPU
CPU Socket Type  LGA 1700
CPU Type Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors
Chipsets
Chipset  Intel Z790
Memory
Number of Memory Slots 4x288pin (DDR5)
Memory Standard Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
– 1DPC 1R Max speed up to 7800+ MHz
– 1DPC 2R Max speed up to 6600+ MHz
– 2DPC 1R Max speed up to 6400+ MHz
– 2DPC 2R Max speed up to 5600+ MHz
Maximum Memory Supported 192GB
Channel Supported  Dual Channel
Memory Feature Supports Intel XMP3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Expansion Slots
PCI Express 5.0 x16 PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI Express 4.0 x16 PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI Express x1 PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage Devices
SATA 6Gb/s  8 x SATA 6Gb/s
M.2 5x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
SATA RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Onboard Audio
Audio Chipset  Realtek ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports up to 32-Bit/384 kHz playback on front panel
Audio Channels  7.1 Channels
Onboard LAN
LAN Chipset Intel 2.5Gbps LAN
Max LAN Speed 2.5Gbps
Wireless LAN Wi-Fi 7 Solution
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.4**, MLO, 4KQAM

* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.
Bluetooth Yes
Rear Panel Ports

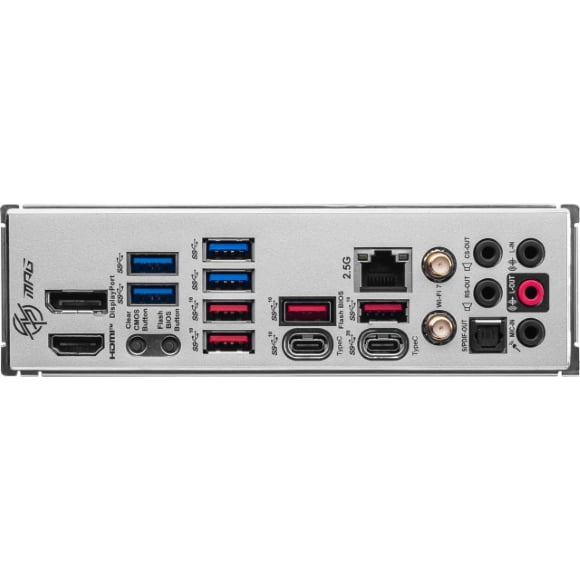

Back I/O Ports 1 x Display Port
4 x USB 3.2 Gen 1 5 Gbps (Type-A)
4 x USB 3.2 Gen 2 10Gbps (Type-A)
1 x 2.5G LAN
5 x Audio Connectors
1 x HDMI
1 x Clear CMOS
1 x Flash BIOS
1 x USB 3.2 Gen 2 10Gbps (Type-C)
1 x USB 3.2 Gen 2×2 20Gbps (Type-C)
2 x Wi-Fi / Bluetooth Antenna Bracket
1 x Optical S/PDIF Out
Internal I/O Connectors
Onboard USB 4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports
Other Connectors 1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
1x ARGB+FAN Header (JAF_1)
1x USB4 card connector (JTBT_U4_1, supports RTD3)
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0″ x 9.6″
Power Pin 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
Windows Compatibility
Windows 11 Supported
