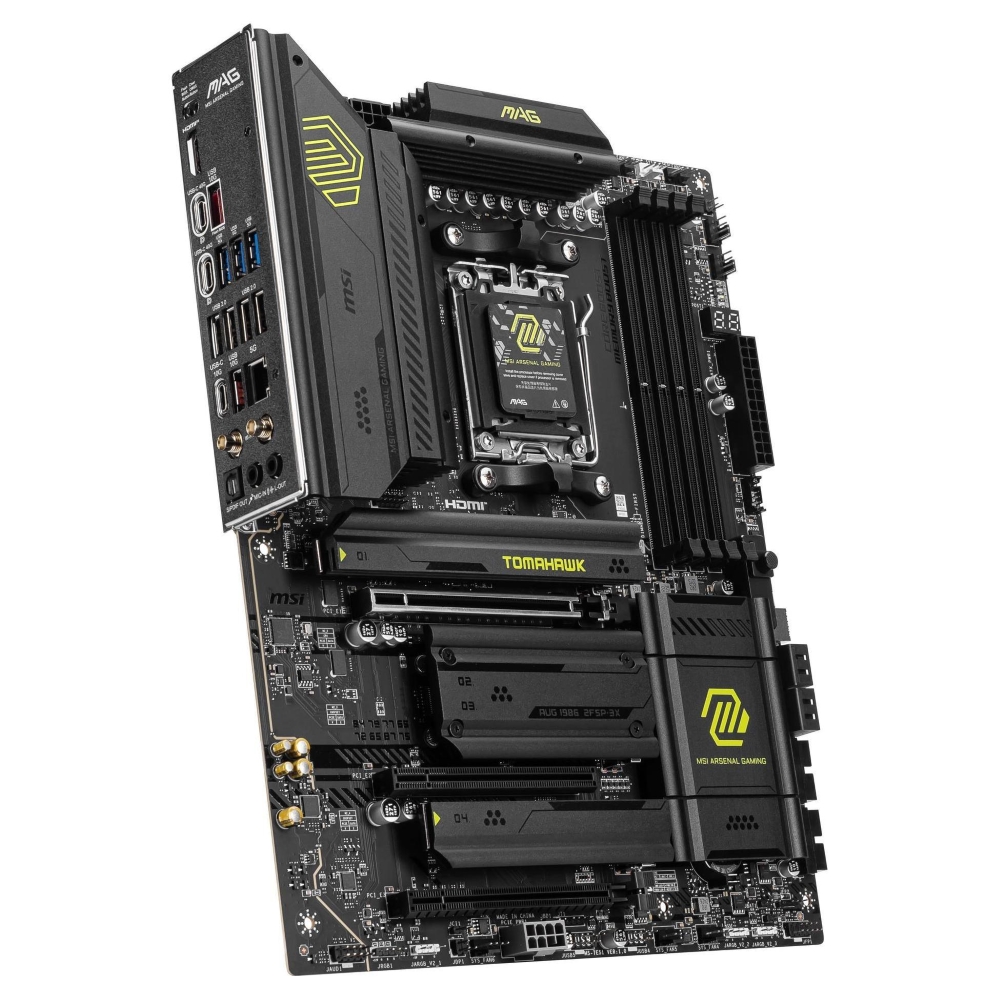

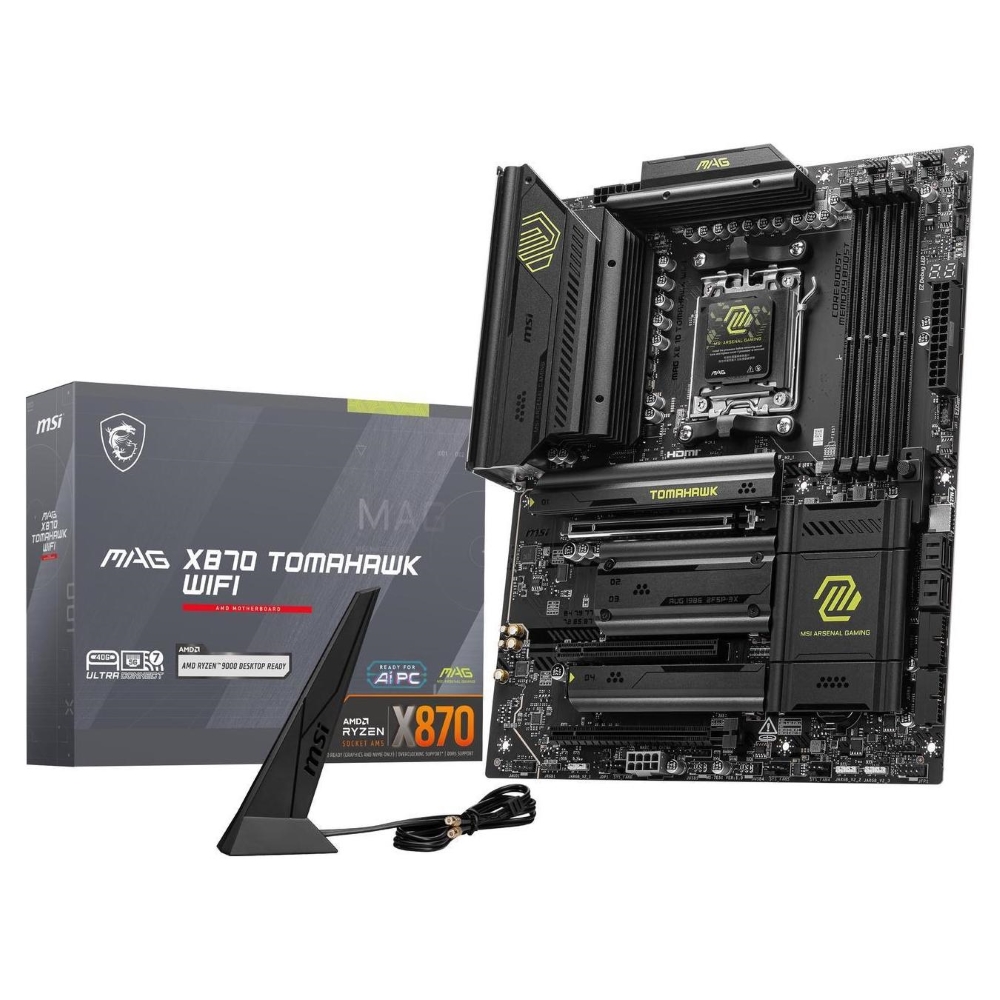

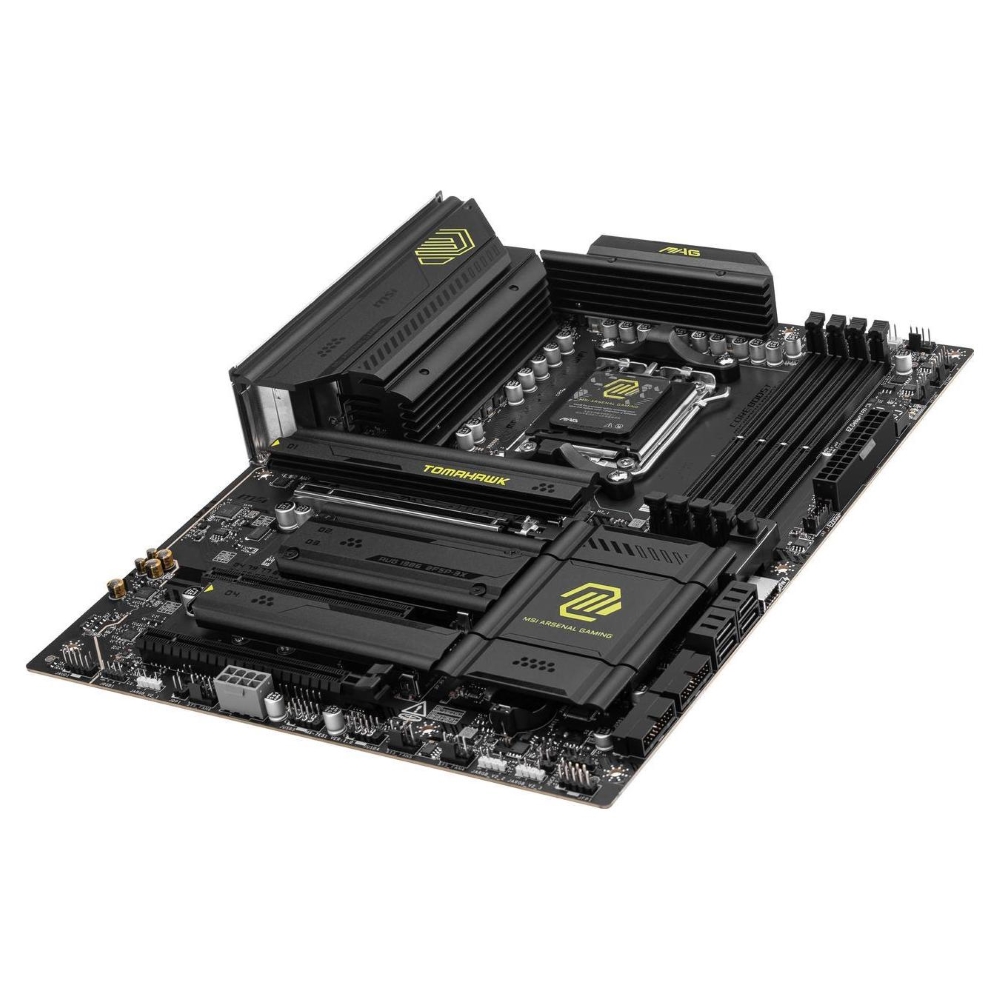

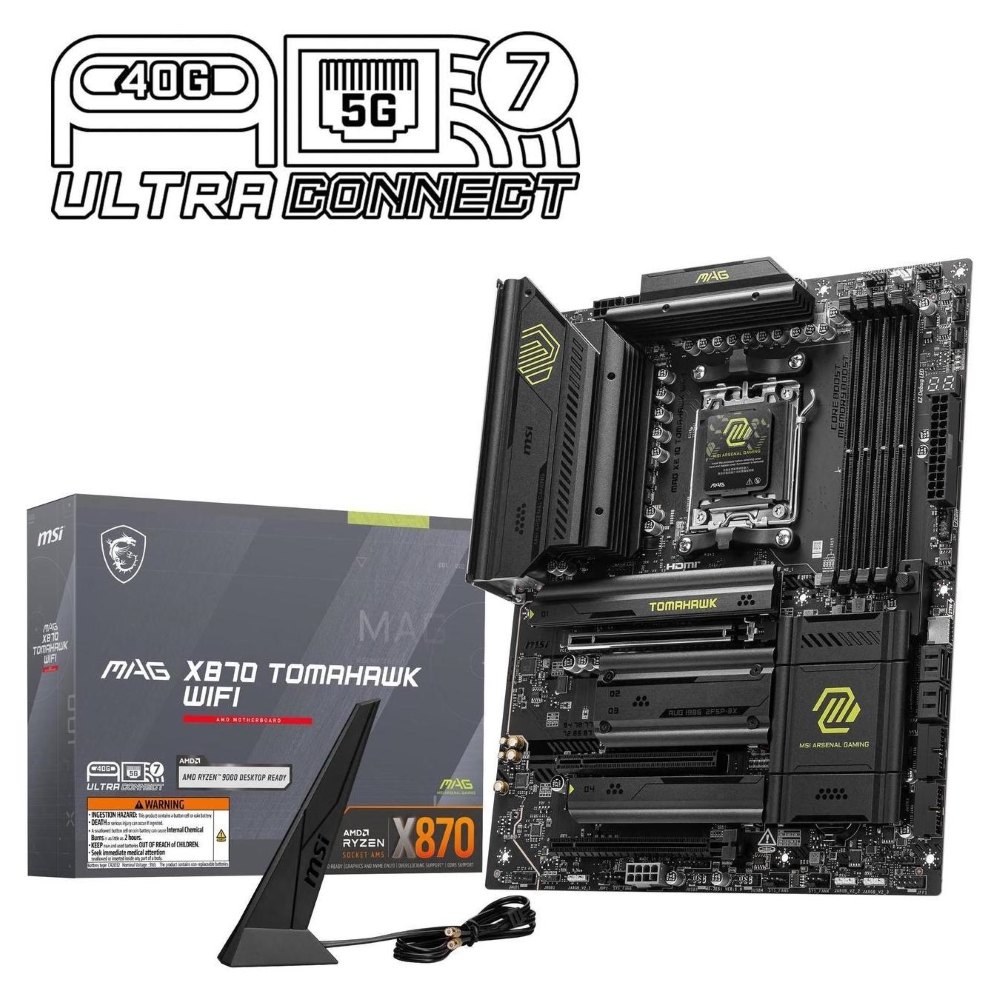

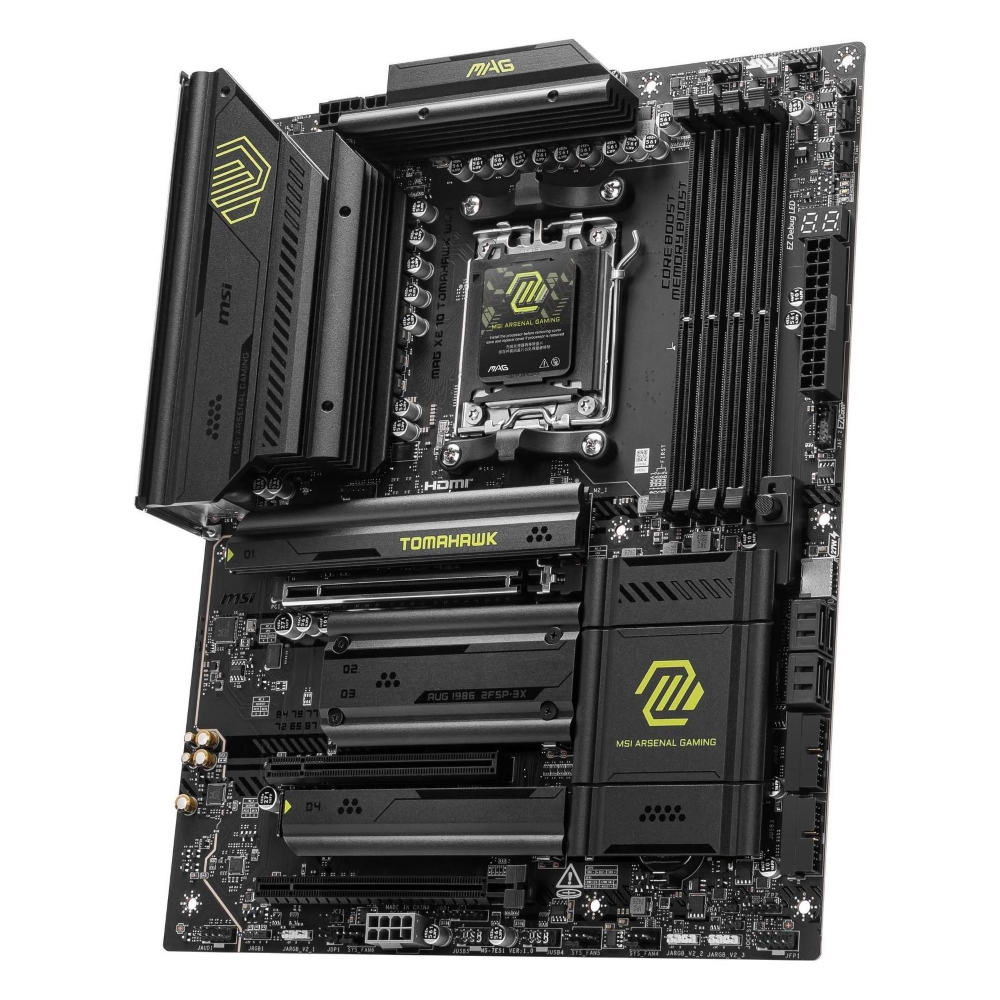

MSI MAG X870 TOMAHAWK WIFI AM5 ATX Gaming Motherboard

Lightning USB 40G: Featuring a built-in USB 4 port, it offers a lightning-fast 40Gbps transmission speed.
EZ PCIe Release: A simple press of a button to effortlessly lock or unlock the PCIe slot, simplifying the installation and removal of the graphics card.
Extended Heatsink Design: MSI extended PWM heatsink, and enhanced circuit design ensures even high-end processors to run in full speed.
Lightning Gen 5: The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.
Quadruple M.2 Connectors: Onboard quadruple M.2 connectors for the maximum storage performance.
5G Network solution: Featuring premium 5G LAN to deliver better network experience.
Wi-Fi 7:The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps.
DDR5 Memory:A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.

Hurry and get discounts on all products up to 2%

02_sale

₨ 115,000

Out of stock

SKU: MAG X870 TOMAHAWK WIFI

Payment Methods:

MSI MAG X870 TOMAHAWK WIFI AM5 ATX Gaming Motherboard, Price in Pakistan

Best Seller Ranking	#5 in AMD Motherboards

Model
Brand	MSI
Model	MAG X870 TOMAHAWK WIFI

Supported CPU
CPU Socket Type	AM5
CPU Type	Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series

Chipsets
Chipset	AMD X870

Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	DDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 / DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8400
Maximum Memory Supported	256GB
Channel Supported	Dual Channel
ECC Supported	Non-ECC
Buffer Supported	Un-buffered

Expansion Slots
PCI Express 5.0 x16	PCI_E1 slot (From CPU) Supports up to PCIe 5.0 x16
PCI Express x4	PCI_E3 slot (From Chipset X870) Supports up to PCIe 4.0 x4
PCI Express x1	PCI_E2 slot (From Chipset X870) Supports up to PCIe 3.0 x1

Storage Devices
SATA 6Gb/s	4 x SATA 6Gb/s
M.2	M2_1 slot (From CPU) – Supports up to PCIe 5.0 x4 – Supports 2280/110 storage devices M2_2 slot (From CPU) – Supports up to PCIe 5.0 x4 – Supports 2260/80 storage devices M2_3 slot (From Chipset) – Supports up to PCIe 4.0 x2 – Supports 2260/80 storage devices M2_4 slot (From Chipset) – Supports up to PCIe 4.0 x4 – Supports 2260/80 storage devices * The M2_2 slot will be unavailable when using Ryzen 5 8500G processor. ** PCI_E3 slot will run at x2 speed when installing device in the M2_3 slot
SATA RAID	Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

Onboard Audio
Audio Chipset	Realtek ALC4080
Audio Channels	7.1 Channels

Rear Panel Ports

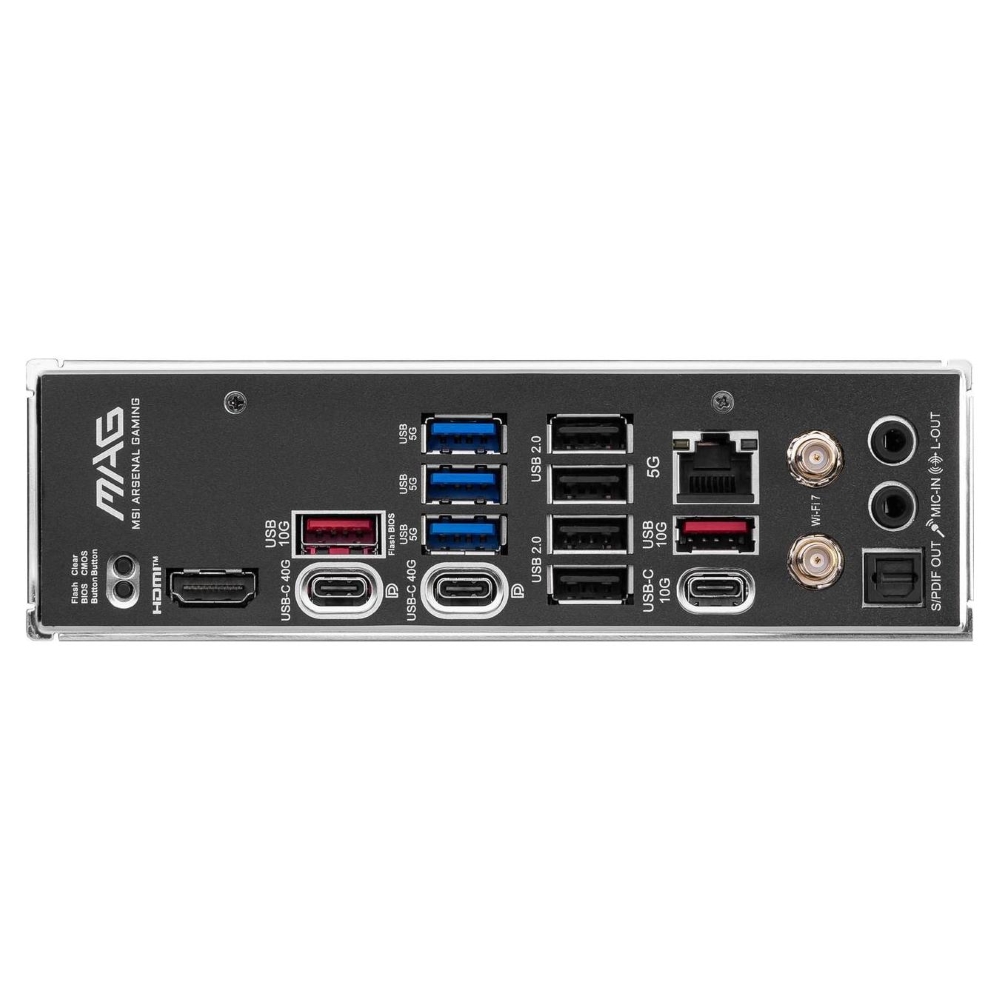

Back I/O Ports	1 x Flash BIOS button 1 x Clear CMOS button 1 x HDMI port 1 x USB 10Gbps Type-A (From CPU) 1 x USB 10Gbps Type-A (From X870 chipset) 1 x USB 10Gbps Type-C (From X870 chipset) 2 x USB 40Gbps Type-C (From ASM4242) 3 x USB 5Gbps Type-A (From GL3523) 4 x USB 2.0 Type-A ports (From GL850) 1 x 5Gbps LAN (RJ45) port 2 x Wi-Fi Antenna connectors 2 x audio jacks 1 x Optical S/PDIF Out connector

Internal I/O Connectors
Onboard USB	AMD X870 Chipset – 1 x USB 20Gbps Type-C front panel port with Power Delivery Supports up to 27W fast charging – 2 x USB 5Gbps connectors Supports additional 4 USB 5Gbps ports – 2 x USB 2.0 connectors Supports additional 4 USB 2.0 ports
Other Connectors	Fan Connectors – 1x 4-pin CPU fan connector – 6x 4-pin system fan connectors – 1x 4-pin water-pump/ system fan connector – 1x EZ Conn-Header V2 (JAF_2 with 11-Pin) System Connectors – 1x Front panel audio connector – 2x System panel connectors – 1x Chassis Intrusion connector – 1x TPM module connector Jumpers – 1x Clear CMOS jumper – 1x OC safe boot BIOS jumper

Physical Spec
Form Factor	ATX
LED Lighting	1 x 4-pin RGB LED connector 3 x 3-pin A-RAINBOW V2 (ARGB Gen2) LED connectors 4 x EZ Debug LED 1 x 2-Digit Debug Code LED 1 x EZ Conn-Header V2 (JAF_2 with 11-Pin)
Dimensions (W x L)	12.0″ x 9.6″
Power Pin	1 x 24-pin Power Connector (ATX_PWR) 2 x 8-pin Power Connector (CPU_PWR) 1 x 8-pin Power Connector (PCIE_PWR)

Software Feature
BIOS Feature	1x 256 Mb flash UEFI AMI BIOS ACPI 6.4, SMBIOS 3.7 Multi-language
Software	Drivers MSI Center Acrobat Adobe Creative Cloud AIDA64 Extreme-MSI Edition CPU-Z MSI GAMING MSI App Player (BlueStacks) Norton 360

Features
Features	MSI Center Features – MSI AI Engine – Game Highlights – Frozr AI Cooling – Hardware Monitoring – Live Update – MSI Companion – System Diagnosis – Cooling Wizard – LAN Manager – Mystic Light – Ambient Link – True Color – User Scenario – Super Charger + Thermal Features – K7 MOSFET thermal pad / K5 Extra choke pad – Extended Heatsink Design – Fan headers (CPU + Combo+PUMP + SYSTEM) – M.2 Shield Frozr Performance – Lightning Gen 5 PCI-E Slot / M.2 – Lightning Gen 4 PCI-E Slot / M.2 – Front USB Type-C – USB with PD – Supplemental PCIe Power Connector – Core Boost – Dual CPU Power – Memory Boost – Server Grade PCB – 2oz Copper thickened PCB DIY Friendly – EZ M.2 Sheild Frozr II – EZ M.2 Clip II – EZ PCIe Release – Flash BIOS Button – Clear CMOS Button – Pre-installed I/O Shield – EZ Antenna – EZ Front Panel Cable – EZ Conn-Design – PCI-E STEEL ARMOR II – EZ Digi-Debug LED – EZ LED Control Audio – Audio Boost 5 RGB Support – Mystic Light – Mystic Light Extension (RGB) – Mystic Light Extension (ARGB V2) – Ambient Devices Support BIOS – Click BIOS X – AI Boost – Performance Preset
