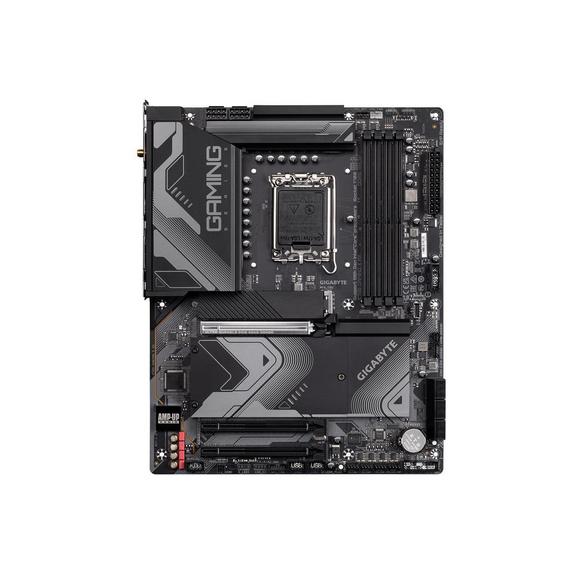

GIGABYTE Z790 GAMING X AX LGA 1700 Intel Z790 with DDR5, M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, Intel Wi-Fi 6E, 2.5GbE LAN, Q-Flash Plus, EZ-Latch Plus ATX Motherboard

  • Intel LGA 1700 Socket: Supports 13th and 12th Gen Intel Core Series Processors
  • DDR5 Compatible: Dual Channel DDR5, 4 DIMMs
  • Sturdy Power Design: Twin 16+2+1 Phases Digital VRM Solution
  • Comprehensive Thermal Design: Advanced Thermal Design, Fully Covered MOSFET Heatsinks, M.2 Thermal Guard
  • Next Gen Connectivity: PCIe 5.0, NVMe M.2, USB 3.2 Gen 2×2 Type-C
  • Fast Networking: 2.5GbE LAN, Intel Wi-Fi 6E
  • Fine Tuning Features: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Q-Flash Plus Update BIOS without installing, CPU, Memory, and GPU”

Summer Shopping Season Sale

Hurry and get discounts on all products up to 2%

02_sale

₨ 79,000

Out of stock

Out of stock

Add to compare
Add to wishlist
SKU: Z790 GAMING X AX

Payment Methods:

Description

GIGABYTE Z790 GAMING X AX LGA 1700 Intel Z790 with DDR5, M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, Intel Wi-Fi 6E, 2.5GbE LAN, Q-Flash Plus, EZ-Latch Plus ATX Motherboard Price in Pakistan

Model
Brand GIGABYTE
Model Z790 GAMING X AX
Supported CPU
CPU Socket Type  LGA 1700
CPU Type Celeron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Pentium Gold
Chipsets
Chipset  Intel Z790
Memory
Number of Memory Slots 4x288pin (DDR5)
Memory Standard DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000
Maximum Memory Supported 192GB
Channel Supported  Dual Channel
Memory Feature Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Expansion Slots
PCI Express 5.0 x16 CPU:
1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
PCI Express 4.0 x16 Chipset:
1 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1)
PCI Express 3.0 x16 1 x PCI Express x16 slots, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
Storage Devices
SATA 6Gb/s  6 x SATA 6Gb/s
M.2 CPU:
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
SATA RAID 0/1/5/10
Onboard Audio
Audio Channels  7.1 Channels
Onboard LAN
Max LAN Speed 2.5Gbps
Wireless LAN Intel Wi-Fi 6E AX211
Bluetooth BLUETOOTH 5.3

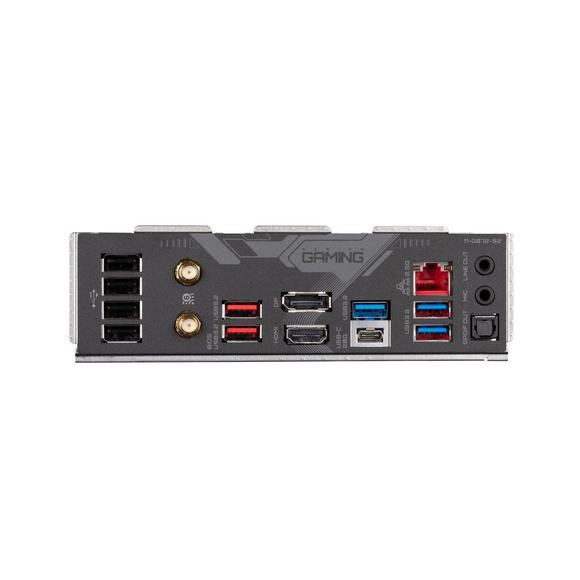

Rear Panel Ports
Back I/O Ports 4 x USB 2.0/1.1 ports
2 x SMA antenna connectors (2T2R)
2 x USB 3.2 Gen 2 Type-A ports (red)
1 x DisplayPort
1 x HDMI 2.0 port
3 x USB 3.2 Gen 1 ports
1 x USB Type-C port, with USB 3.2 Gen 2×2 support
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks
Internal I/O Connectors
Onboard USB 1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
Other Connectors 1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
4 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
2 x Thunderbolt add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0″ x 9.6″
Power Pin 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
Windows Compatibility
Windows 11 Supported
Features
Features Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
