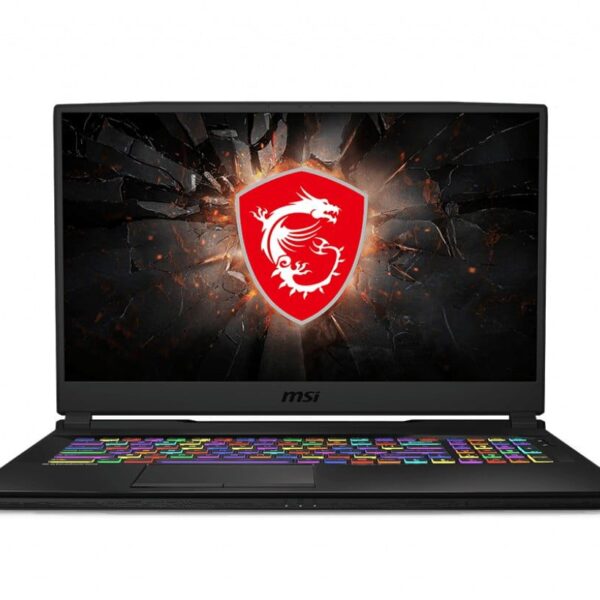

MSI GL75 i7 9750h 64GB 2TB NVME 2TB HDD RTX 2060 17″ Display 120hz
MSI GL75 i7 9750h 64GB 2TB NVME 2TB HDD RTX 2060 17″ Display 120hz ₨ 300,000
Sold out
Click to enlarge

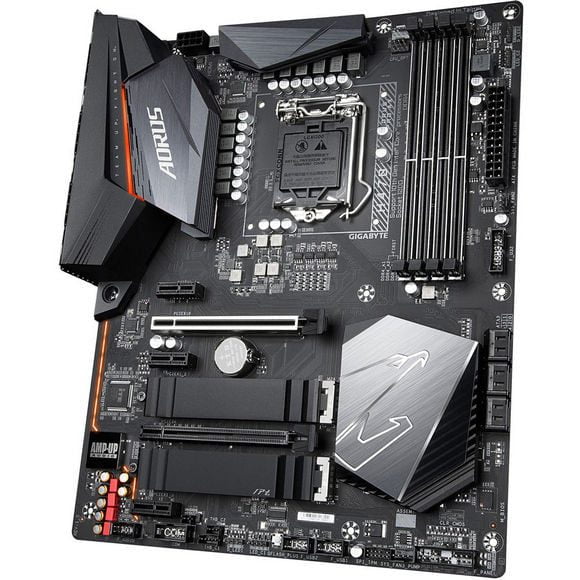

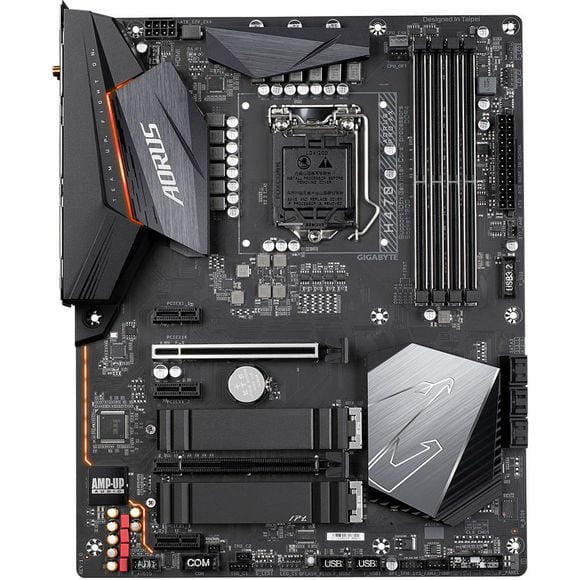

Gigabyte H470 AORUS PRO AX LGA 1200 ATX Motherboard

  • Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors*
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Direct 11+1 Phases Digital VRM Solution
  • Advanced Thermal Design with Enlarged Surface Heatsink
  • Smart Fan 5 Features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • Intel® Optane™ Memory Ready
  • Onboard Intel® WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna
  • Blazing Fast Intel® 2.5GbE LAN with cFosSpeed
  • Intel® USB 3.2 Gen 2 Type-C™ Support
  • ALC1220-VB Enhance 114dB(Rear) / 110dB(Front) SNR in Microphone with WIMA Audio Capacitors
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Pre-installed IO Shield for Easy and Quick Installation
  • Q-Flash Plus Update BIOS without Installing the CPU、Memory and Graphics Card

Summer Shopping Season Sale

Hurry and get discounts on all products up to 2%

02_sale

₨ 30,500

Out of stock

Out of stock

Add to compare
Add to wishlist
SKU: H470-AORUS-PRO-AX

Payment Methods:

Description

CPU

General
Chipset Intel H470
CPU Socket LGA 1200

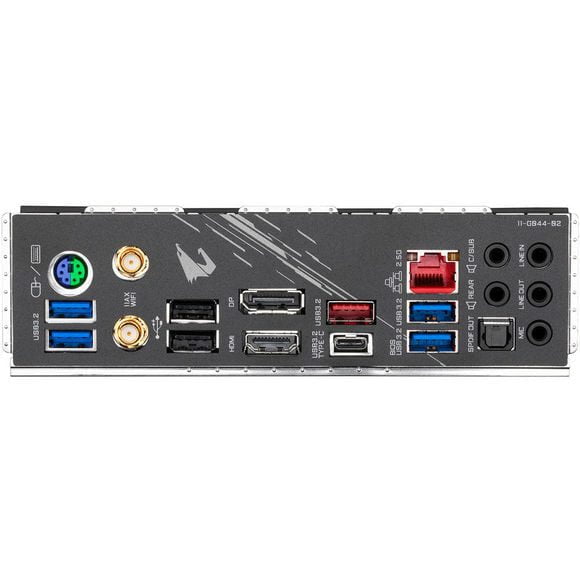

Back Panel I/O
USB 1 x USB 3.1 / USB 3.2 Gen 2 Type-C
1 x USB 3.1 / USB 3.2 Gen 2 Type-A
4 x USB 3.1 / USB 3.2 Gen 1 Type-A
2 x USB 2.0 Type-A
Display 1 x HDMI
1 x DisplayPort
Audio 1 x S/PDIF
5 x 3.5 mm
Ethernet / Controller 1 x Intel 2.5Gigabit
PS/2 1 x Combo
Memory
Memory Slots 4 x 288-Pin
Memory Support DDR4 2133, 2400, 2666, 2933 MHz
Maximum Capacity 128 GB
Channel Architecture Dual Channel
ECC Support Non-ECC, ECC (Non-ECC Mode) Unbuffered
Storage Expansion
SATA 6 x SATA III
M.2 1 x M Key 2242, 2260, 2280, 22110 (PCIe (Unspecified), SATA (Unspecified))
1 x M Key 2242, 2260, 2280, 22110 (PCIe (Unspecified))
Optane Memory Support Yes
RAID Support RAID 0, 1, 5, 10
Internal I/O
Expansion Slots 1 x PCIe 3.0 x16
1 x PCIe 3.0 x16 (x4 mode)
3 x PCIe 3.0 x1
USB 1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)
2 x USB 2.0 Header (Supports 4 USB Type-A Port)
Multi-GPU Support Quad-GPU AMD CrossFireX
2-Way AMD CrossFireX
Air Cooling 1 x 4-Pin CPU
3 x 4-Pin System
Liquid Cooling 1 x Radiator Fan
Power Connectors 1 x 24-Pin Mainboard
1 x 8-Pin ATX
Security TPM Module
LED Header 4 x RGB
Audio 1 x S/PDIF
Diagnostics Clear CMOS, Flash BIOS
Add-On 2 x Thunderbolt Card Header
Legacy 1 x Serial
BIOS
ROM 256 Mb
Audio
Audio Codec Realtek ALC1220-VB (7.1-Channel)
Wireless
Bluetooth 5.1
Wi-Fi Wi-Fi 6 (802.11ax)
Software
Supported Operating Systems Windows 10 (64-Bit)
Physical
Form Factor ATX
Dimensions 12.0 x 9.6″ / 30.5 x 24.4 cm
Packaging Info
Package Weight 3.88 lb
Box Dimensions (LxWxH) 13.4 x 10.9 x 3.4″
