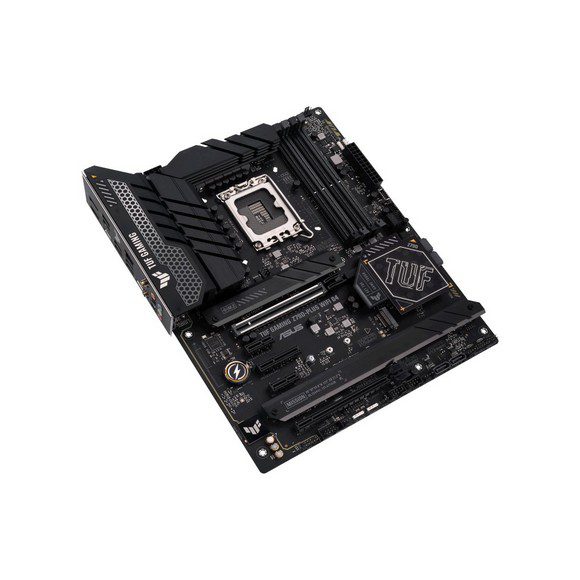

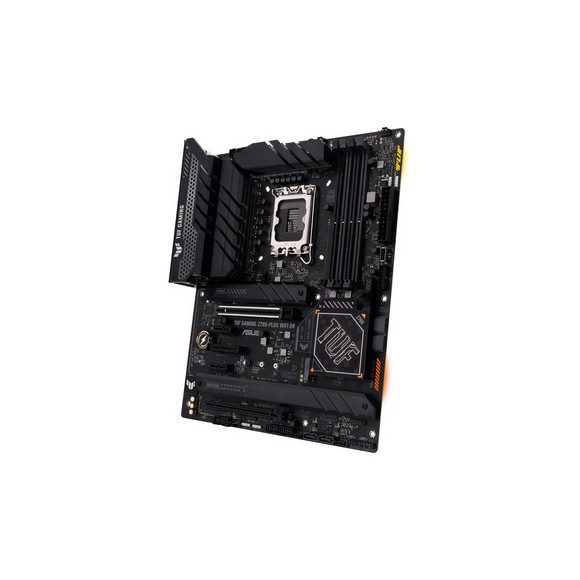

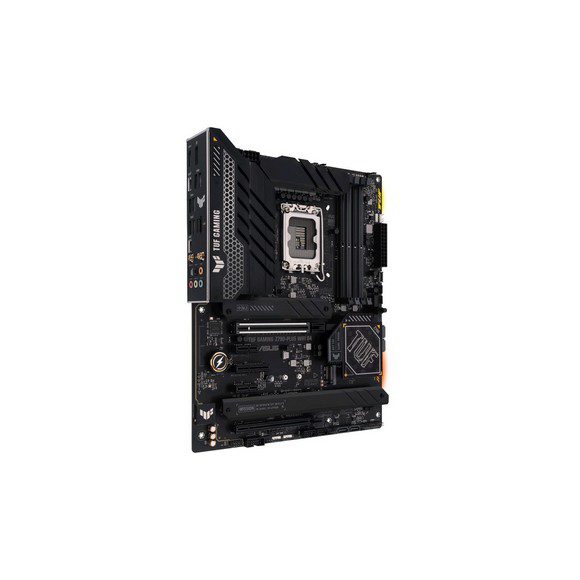

ASUS TUF Gaming Z790-Plus WiFi D4 LGA 1700 (Intel 12th&13th Gen) ATX Gaming Motherboard

Intel® Z790 (LGA1700) ATX Gaming motherboard, 16+1 DrMOS power stages, PCIe® 5.0, DDR4 memory, four M.2 slots, Wi-Fi 6 and Intel 2.5 Gb Ethernet, HDMI®, DisplayPort™, USB 3.2 Gen 2×2 Type-C®, front USB 3.2 Gen 2 Type-C®, SATA 6 Gbps, Thunderbolt™ 4 header and Aura Sync RGB lighting

  • Intel® LGA 1700 socket: Ready for 13th Gen Intel® Core™ processors
  • Enhanced power solution: 16+1 DrMOS, six-layer PCB, ProCool sockets, alloy chokes and durable capacitors for stable power delivery
  • Next-gen connectivity: PCIe® 5.0, USB 3.2 Gen2x2 Type-C®, front USB 3.2 Gen 2 Type-C, Thunderbolt™ 4 header support
  • Made for online gaming: Wi-Fi 6, Intel 2.5 Gb Ethernet and TUF LANGuard
  • Two-Way AI Noise-Cancelation: Reduces background noise for crystal-clear communication in games or video conferences
  • AI Cooling II: Balances thermals and acoustics of any build with a single click
  • Comprehensive cooling: Enlarged VRM and PCH heatsinks, M.2 heatsinks, hybrid fan headers and Fan Xpert 4 utility in Armoury Crate
  • Aura Sync RGB effects: Stylish edge lighting design, addressable RGB headers and RGB strip header support
  • PC DIY design: PCIe® Slot Q-Release, M.2 Q-Latch, Q-LED and SafeSlot

Summer Shopping Season Sale

Hurry and get discounts on all products up to 2%

02_sale

₨ 117,000

Out of stock

Out of stock

Add to compare
Add to wishlist
SKU: TUF Gaming Z790-Plus WiFi

Payment Methods:

Description

ASUS TUF Gaming Z790-Plus WiFi D4 LGA 1700 (Intel 12th&13th Gen) ATX Gaming Motherboard Price in Pakistan

Model
Brand ASUS
Series TUF
Model TUF GAMING Z790-PLUS WIFI D4
Part Number 90MB1CR0-M0AAY0
Supported CPU
CPU Socket Type  LGA 1700
CPU Type Supports 13th Gen Intel Core & 12th Gen Intel Core Processors, Pentium Gold , Celeron Processors*

* Refer to www.asus.com for CPU support list.
Supported CPU Technologies Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**

** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipsets
Chipset  Intel Z790
Memory
Number of Memory Slots 4x288pin (DDR4)
Memory Standard Supports DDR4 5333(OC)/5133(OC)/5066(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*

Supports Intel Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
Maximum Memory Supported 128GB
Channel Supported  Dual Channel
Expansion Slots
PCI Express 5.0 x16 1 x PCIe 5.0 x16 slot*

* Please check the PCIe bifurcation table at the support site (https://www.asus.com/support/FAQ/1037507/).
– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
PCI Express 4.0 x16 1 x PCIe 4.0 x16 slot (supports x4 mode)
PCI Express x4 1 x PCIe 4.0 x4 slot
PCI Express x1 2 x PCIe 3.0 x1 slots
Storage Devices
SATA 6Gb/s  4 x SATA 6Gb/s
M.2 Intel 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110
– Intel 13th & 12th Gen processors support PCIe 4.0 x4 mode

Intel Z790 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

* Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset  Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
– Impedance sense for front and rear headphone outputs
– Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
– Supports up to 32-Bit/192 kHz playback*

Audio Features
– Audio Shielding
– Rear optical S/PDIF out port
– Premium audio capacitors
– Dedicated audio PCB layers
– Audio Cover

* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
Audio Channels  7.1 Channels
Onboard LAN
LAN Chipset 1 x Intel 2.5Gb Ethernet
Max LAN Speed 2.5Gbps
Wireless LAN Wi-Fi 6
2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth Bluetooth v5.2

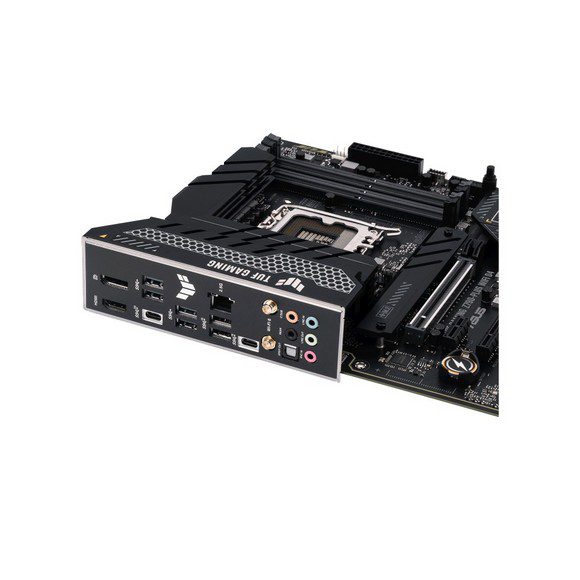

Rear Panel Ports
Back I/O Ports 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C)
3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi Module
1 x Intel 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
Internal I/O Connectors
Onboard USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Other Connectors Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers

Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt header
Physical Spec
Form Factor ATX
LED Lighting RGB
Dimensions (W x L) 12.0″ x 9.6″
Power Pin 1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Windows Compatibility
Windows 11 Supported
Features
Features ASUS TUF PROTECTION
– DIGI+ VRM (- Digital power design with DrMOS)
– ESD Guards
– TUF LANGuard
– Overvoltage Protection
– Safeslot
– Stainless-Steel Back I/O

ASUS Q-Design
– M.2 Q-Latch
– PCIe Slot Q-Release
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot

ASUS Thermal Solution
– M.2 heatsink
– VRM heatsink design

ASUS EZ DIY
– CPU Socket lever protector
– ProCool
– Pre-mounted I/O shield
– SafeDIMM

AURA Sync
– Aura RGB header
– Addressable Gen 2 headers
Packaging
Package Contents Cables
2 x SATA 6Gb/s cables

Miscellaneous
1 x ASUS Wi-Fi moving antenna
1 x TUF GAMING sticker
2 x M.2 Rubber Packages
1 x Screw package for M.2 SSD

Documentation
1 x TUF Certification card
1 x User guide
