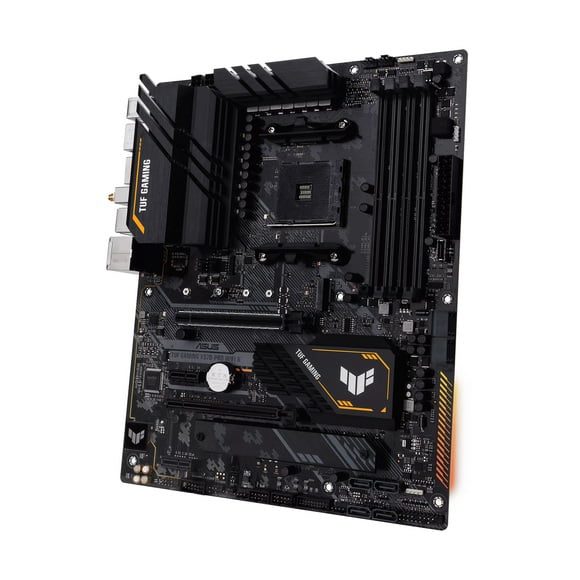

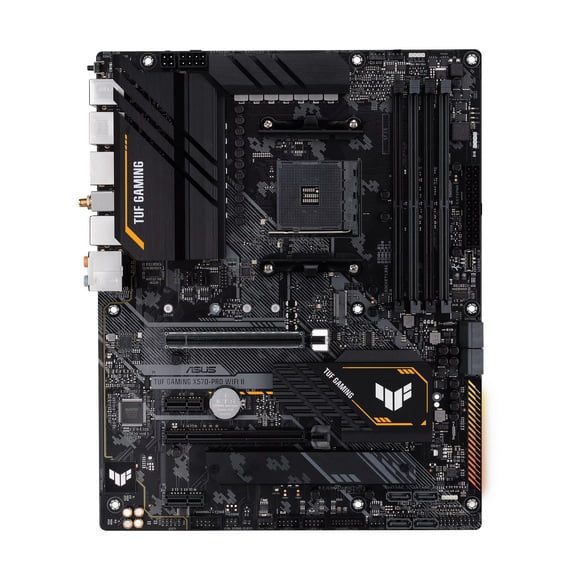

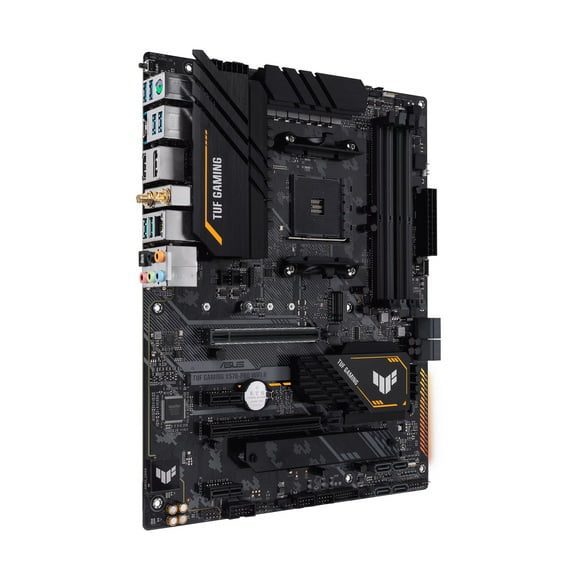

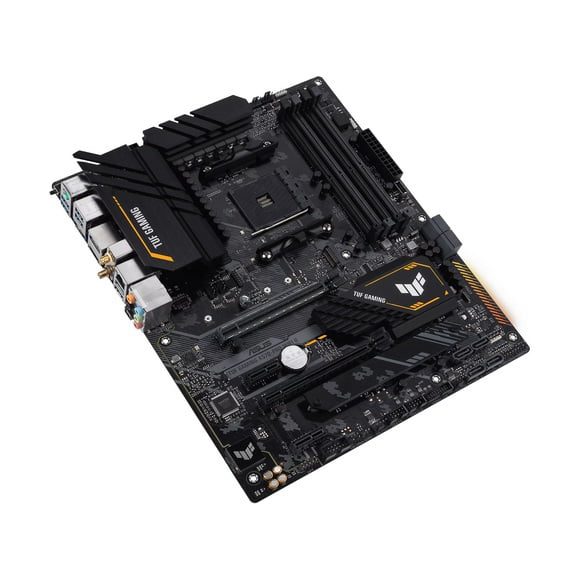

ASUS TUF Gaming X570-Pro WiFi II AM4 ATX Gaming Motherboard

ASUS TUF GAMING X570-PRO WIFI II takes all the essential elements of the latest AMD processors and combines them with game-ready features and proven durability.

  • AMD AM4 socket: Ready for AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 G-Series and 2000 Series desktop processors
  • Enhanced power solution: 12+2 DrMOS power stages, six-layer PCB, ProCool sockets, military-grade TUF components and Digi+ VRM for maximum durability
  • Comprehensive cooling: Enlarged VRM heatsink, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility
  • Next-gen connectivity: PCIe® 4.0, USB 3.2 Gen 2 Type-A and Type-C®, front-panel header for USB 3.2 Gen 1 Type-C
  • Made for online gaming: WiFi 6E, Intel® 2.5 Gb Ethernet, TUF LANGuard technology
  • Two-Way AI Noise Cancelation: Reduces background noise from the microphone and incoming audio for crystal-clear communication in games or video conferences
  • Aura Sync RGB: Enables synchronized LED lighting across a vast portfolio of compatible PC gear, including addressable RGB strips

Summer Shopping Season Sale

Hurry and get discounts on all products up to 2%

02_sale

₨ 87,000

Out of stock

Out of stock

Add to compare
Add to wishlist
SKU: X570-Pro WiFi

Payment Methods:

Description

ASUS TUF Gaming X570-Pro WiFi II AM4 ATX Gaming Motherboard Price in Pakistan Specs



Model
Brand ASUS
Model TUF GAMING X570-PRO WIFI II
Supported CPU
CPU Socket Type  AM4
CPU Type Supports AMD Ryzen 5000 Series / 5000 G-Series / 4000 G-Series / 3000 Series / 3000 G-Series / 2000 Series / 2000 G-Series Processors
Chipsets
Chipset  AMD X570
Memory
Number of Memory Slots 4×288pin (DDR4)
Memory Standard DDR4 5100(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3200(OC) / 3000(OC) / 2933 / 2800 / 2666 / 2400 / 2133*

* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* The maximum memory frequency supported varies by processor.
Maximum Memory Supported 128GB
Channel Supported  Dual Channel
ECC Supported ECC Memory (ECC mode) support varies by CPU
Buffer Supported Un-buffered
Expansion Slots
PCI Express 4.0 x16 1 x PCIe 4.0 x16*
1 x PCIe 4.0 x16 (max. x4)

* Actual support may vary by CPU.
PCI Express 3.0 x16  1 x PCI Express 3.0 x16
PCI Express x16 None
PCI Express x1 2 x PCIe 4.0 x1
Storage Devices
SATA 6Gb/s  8 x SATA 6Gb/s
M.2 AMD Ryzen 5000 Series/ 3000 Series Desktop Processors:
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)

AMD Ryzen 5000 G-Series/ 4000 G-Series / 3000 G-Series / 2000 Series / 2000 G-Series Processors:
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)

AMD X570 chipset:
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
SATA RAID 0/1/10
Onboard Video
Onboard Video Chipset  Supported only by CPU with integrated graphic
Onboard Audio
Audio Chipset  Realtek Surround Sound High Definition Audio CODEC
Audio Channels  7.1 Channels
Onboard LAN
LAN Chipset Intel 2.5Gb Ethernet
Max LAN Speed 10/100/1000/2500Mbps
Wireless LAN Wi-Fi 6E
802.11 a/b/g/n/ac/ax
Bluetooth Bluetooth 5.2

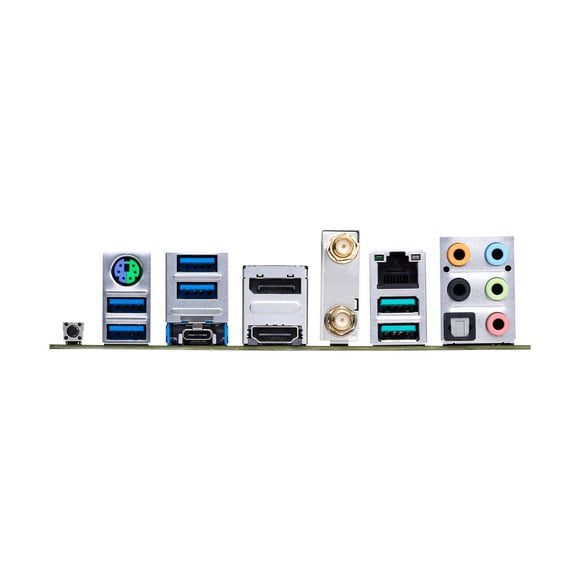

Rear Panel Ports
Back I/O Ports 3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C)
4 x USB 3.2 Gen 1 port(s) (4 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi Module
1 x Intel 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x PS/2 Keyboard/Mouse combo port
HDMI  1 x HDMI
USB 3.0  6 x USB 3.0
Internal I/O Connectors
Onboard USB 1 x USB 3.2 Gen 2 Front Panel connector (support(s) USB Type-C)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Other Connectors Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s)
1 x 4-pin AIO Pump header(s)
3 x 4-pin Chassis Fan header(s)
Miscellaneous
1 x Addressable Gen 2 header(s)
2 x AURA RGB header(s)
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x SPI TPM header (14-1pin)
20-5 pin System Panel header
Physical Spec
Form Factor ATX
LED Lighting RGB
Dimensions (W x L) 12.0″ x 9.6″
Power Pin 1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Windows 11 Compatibility
Windows 11 Supported
Features
Features Multi-GPU Support:
AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series/ Desktop Processors:
Supports AMD 2-Way CrossFireX Technology

Special Features:
ASUS TUF PROTECTION
– ASUS DIGI+ VRM (- Digital power design with Dr. MOS)
– ASUS Enhanced DRAM Overcurrent Protection
– ASUS ESD Guards
– TUF LANGuard
– ASUS Overvoltage Protection
– ASUS SafeSlot
– ASUS Stainless-Steel Back I/O
ASUS Q-Design
– M.2 Q-Latch
– ASUS Q-DIMM
– ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– ASUS Q-Slot
ASUS Thermal Solution
– Aluminum M.2 heatsink
– Aluminum heatsink design
ASUS EZ DIY
– BIOS FlashBack button
– BIOS FlashBack LED
– Procool
AURA Sync
– AURA RGB header(s)
– Addressable Gen 2 RGB header(s)

Software Features:
ASUS Exclusive Software
Armoury Crate
– AURA Creator
– AURA Sync
– Two-Way AI Noise Cancelation
AI Suite 3
– Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert 4
EZ update
ASUS CPU-Z
AI Charger
DAEMON Tools
DTS Custom for GAMING Headsets
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode

BIOS:
256 Mb Flash ROM, UEFI AMI BIOS

Manageability:
WOL by PME, PXE

Operating System:
Windows 11 64-bit, Windows 10 64-bit
Packaging
Package Contents Accessories:
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 Rubber Package(s)
1 x TUF Gaming sticker
1 x ASUS 2×2 Dual-Band Wi-Fi moving antennas
Installation Media
1 x Support DVD
Documentation
1 x TUF Certification card
1 x User guide
