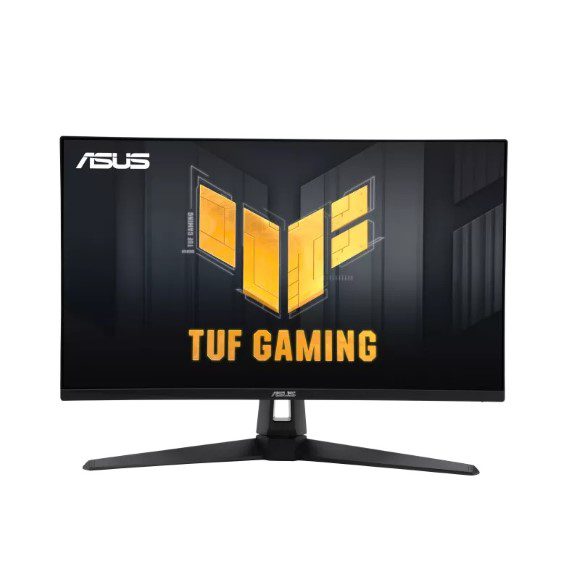

ASUS TUF Gaming VG27AQ3A 27″ 1440P HDR QHD (2560 x 1440), 180Hz, 1ms, Fast IPS, 130% sRGB, Extreme Low Motion Blur Sync, Speakers, Freesync Premium, G-SYNC Compatible, HDMI, DisplayPort Gaming Monitor
ASUS TUF Gaming VG27AQ3A 27″ 1440P HDR QHD (2560 x 1440), 180Hz, 1ms, Fast IPS, 130% sRGB, Extreme Low Motion Blur Sync, Speakers, Freesync Premium, G-SYNC Compatible, HDMI, DisplayPort Gaming Monitor ₨ 79,000
-5%Sold out
Click to enlarge

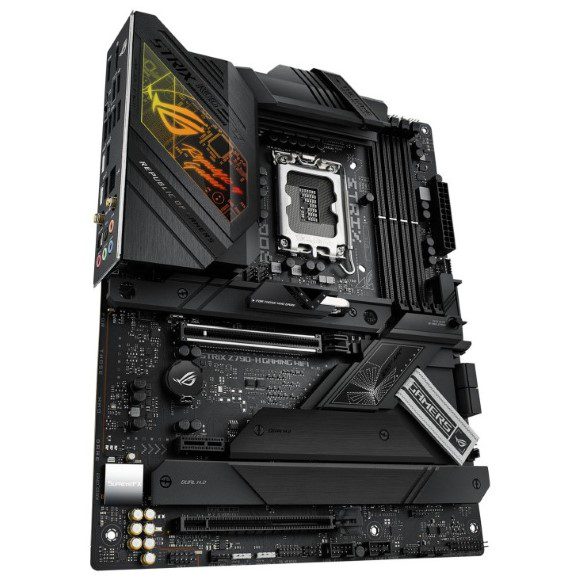

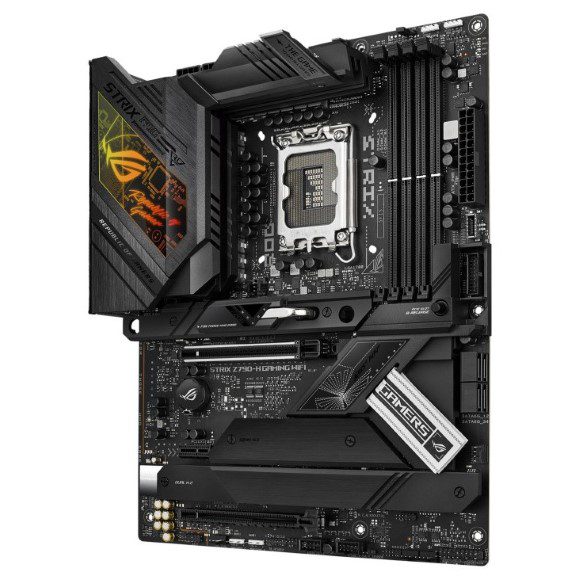

ASUS ROG STRIX Z790-H Gaming (WiFi 6E) LGA 1700 (Intel12th&13th Gen) Motherboard

ASUS ROG STRIX Z790-H Gaming (WiFi 6E) LGA 1700(Intel12th&13th Gen) ATX gaming motherboard(DDR5 up to 7800 MT/s, PCIe 5.0 x16 SafeSlot with Q-Release, 4xPCIe 4.0 M.2 slots,USB 3.2 Gen 2×2 Type-C,front-panel connector, AI Motherboard)

  • Intel LGA 1700 socket: Ready for 13th Gen Intel Core, and 12th Gen Intel Core, Pentium Gold, and Celeron® processors.
  • Robust Power Solution: 16 + 1 power stages rated for 80A, dual ProCool II power connectors, high-quality alloy chokes, and durable capacitors are all leveraged to support the latest multi-core processors.
  • Optimized VRM Thermals: Massive heatsinks connected by an L-shaped heatpipe, bridged to the VRM with high-conductivity thermal pads, and with an integrated I/O cover.
  • Ample M.2 Support: Four PCIe 4.0 M.2 slots all with heatsinks, and the topmost one also sports a Combo-sink extension and backplate for additional cooling.
  • Abundant Connectivity: USB 3.2 Gen 2×2 Type-C® rear I/O port and additional front-panel connector, seven USB 3.2 Gen 2 and Gen 1 ports, PCIe 5.0 x16 SafeSlot, HDMI 2.1, and DisplayPort 1.4.
  • High-Performance Networking: On-board WiFi 6E (802.11ax) and Intel 2.5Gb Ethernet with ASUS LANGuard.
  • Intelligent Control: ASUS-exclusive AI Overclocking

Summer Shopping Season Sale

Hurry and get discounts on all products up to 2%

02_sale

Original price was: ₨ 97,000.Current price is: ₨ 92,500.

Out of stock

Out of stock

Add to compare
Add to wishlist
SKU: ROG STRIX Z790-H Gaming

Payment Methods:

Description

ASUS ROG STRIX Z790-H Gaming (WiFi 6E) LGA 1700(Intel12th&13th Gen) ATX gaming motherboard(DDR5 up to 7800 MT/s, PCIe 5.0 x16 SafeSlot with Q-Release, 4xPCIe 4.0 M.2 slots,USB 3.2 Gen 2×2 Type-C,front-panel connector, AI Motherboard) Price in Pakistan

Model
Brand ASUS
Model ROG STRIX Z790-H GAMING WIFI
Supported CPU
CPU Socket Type  LGA 1700
CPU Type Celeron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Pentium Gold
Chipsets
Chipset  Intel Z790
Memory
Number of Memory Slots 4x288pin (DDR5)
Memory Standard DDR5 7800+(OC) / 7600(OC) / 7400(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600 / 5400 / 5200 / 5000 / 4800
Maximum Memory Supported 192GB
Channel Supported  Dual Channel
Memory Feature Supports Intel Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Expansion Slots
PCI Express 5.0 x16 1 x PCI Express 5.0 x16
PCI Express 4.0 x16 1 x PCI Express 4.0 x16
PCI Express x1 1 x PCI Express 3.0 x1
Storage Devices
SATA 6Gb/s  4 x SATA 6Gb/s
M.2 Intel 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
Intel Z790 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
* Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset  ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
– Impedance sense for front and rear headphone outputs
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
– Supports up to 32-Bit/384 kHz playback
Audio Features
– SupremeFX Shielding Technology
– Savitech SV3H712 AMP
– Rear optical S/PDIF out port
– Premium audio capacitors
– Audio cover
Audio Channels  7.1 Channels
Onboard LAN
Max LAN Speed 2.5Gbps
Wireless LAN Wi-Fi 6E
2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
* WiFi 6E 6GHz regulatory may vary between countries.
** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.
Bluetooth Bluetooth v5.3
Rear Panel Ports
Back I/O Ports 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C)
3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi Module
1 x Intel 2.5Gb Ethernet port
5 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Internal I/O Connectors
Onboard USB 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Other Connectors Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt header
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0″ x 9.6″
Power Pin 1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
Windows Compatibility
Windows 11 Supported
Features
Features Extreme Engine Digi+
– 5K Black Metallic Capacitors
ASUS Q-Design
– M.2 Q-Latch
– PCIe Slot Q-Release
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink backplate
– M.2 heatsink
– VRM heatsink design
ASUS EZ DIY
– BIOS FlashBack button
– BIOS FlashBack LED
– Clear CMOS button
– CPU Socket lever protector
– ProCool II
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM
Aura Sync
– Aura RGB header
– Addressable Gen 2 headers
Packaging
Package Contents Cables
2 x SATA 6Gb/s cables
Additional Cooling Kit
1 x Thermal pad for M.2
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties package
1 x M.2 backplate Q-Latch package
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
2 x M.2 Rubber Packages
1 x M.2 backplate Rubber Package
Documentation
1 x User guide
