ASUS ROG Strix B550-A Gaming AM4 ATX Motherboard

  • AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
  • Best gaming connectivity: PCIe® 4.0-ready, dual M.2, USB 3.2 Gen 2 Type-C® plus HDMI™ 2.1 and DisplayPort 1.2 output support
  • Smooth networking: Intel® 2.5Gb Ethernet with ASUS LANGuard
  • Robust power solution: Teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitors
  • Renowned software: Intuitive dashboards for UEFI BIOS and ASUS AI Networking make it easy to configure gaming builds
  • DIY-friendly design: Includes pre-mounted I/O shield, BIOS FlashBack™, Q-LEDs and SafeSlot

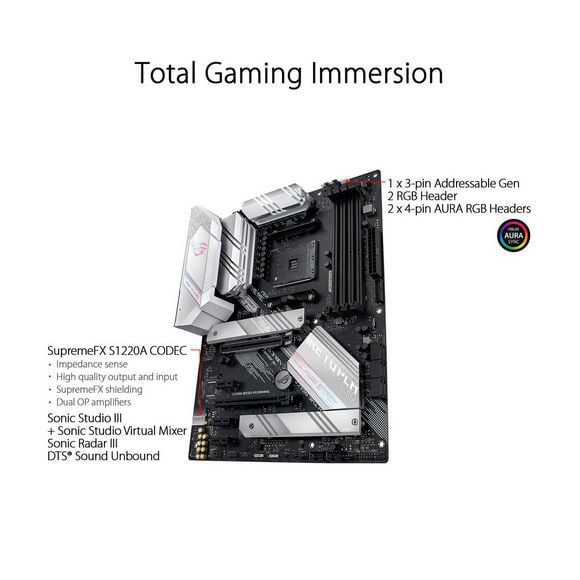

  • Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including Aura RGB header and addressable Gen 2 RGB header
  • Industry-leading gaming audio: AI Noise-Canceling Microphone, SupremeFX S1220A codec, DTS® Sound Unbound™ and Sonic Studio III for immersive audio

Summer Shopping Season Sale

Hurry and get discounts on all products up to 2%

02_sale

₨ 70,000

Out of stock

Out of stock

Add to compare
Add to wishlist
SKU: B550-A

Payment Methods:

Description

ASUS ROG Strix B550-A Gaming AM4 ATX Motherboard Price in Pakistan



Model
Brand ASUS
Series ROG
Model STRIX B550-F GAMING
Supported CPU
CPU Socket Type  AM4
CPU Type Supports AMD Ryzen 5000 Series / 4000 G-Series / 3000 Series Processors*

* BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU. Refer to ASUS website for CPU support list.
Chipsets
Chipset  AMD B550
Memory
Number of Memory Slots 4x288pin (DDR4)
Memory Standard DDR4 5100(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3600(OC) / 3466(OC) / 3200 / 3000 / 2800 / 2666 / 2400 / 2133 (Next Generation AMD Ryzen PRO Processors)

DDR4 4600(OC) / 4400(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3600(OC) / 3466(OC) / 3200 / 3000 / 2800 / 2666 / 2400 / 2133 (3rd Gen AMD Ryzen Processors)

* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported 128GB
Channel Supported  Dual Channel
ECC Supported ECC supported varies by processors
Buffer Supported Un-buffered
Expansion Slots
PCI Express 4.0 x16 1 x PCI Express 4.0 x16*

* Actual support may vary by CPU.
PCI Express 3.0 x16  1 x PCIe 3.0 x16 (x4 mode)*

* Share bandwidth with PCIe3.0 x1_1, PCIe3.0 x1_2, PCIe3.0 x1_3.
PCI Express x1 3 x PCIe 3.0 x1
Storage Devices
SATA 6Gb/s  6 x SATA 6Gb/s
M.2 3rd Gen AMD Ryzen Processors:
1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIe 4.0 x4 mode)

AMD B550 Chipset:
1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x4 mode)*

* When the M.2_2 Socket 3 is populated, SATA6G_5/6 ports will be disabled.
SATA RAID 0/1/10
Onboard Video
Onboard Video Chipset  Supported only by CPU with integrated graphic
Onboard Audio
Audio Chipset  ROG SupremeFX High Definition Audio CODEC S1220A
Audio Channels  8 Channels*

* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
Onboard LAN
LAN Chipset Intel I225-V
Max LAN Speed 2.5Gbps

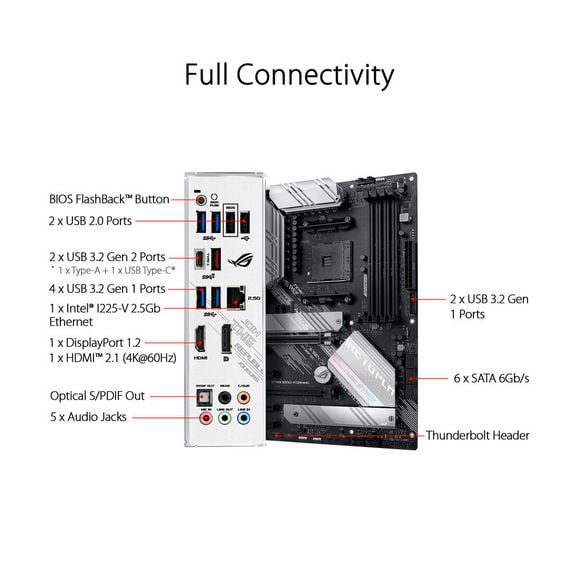

Rear Panel Ports
Back I/O Ports 1 x Intel I225-V 2.5Gb Ethernet
1 x DisplayPort
1 x HDMI
2 x USB 3.2 Gen 2 (1 x Type-A + 1 x USB Type-C)
4 x USB 3.2 Gen 1
2 x USB 2.0
1 x Optical S/PDIF out
1 x BIOS FlashBack Button(s)
5 x Gold-plated audio jacks
Internal I/O Connectors
Onboard USB 1 x USB 3.2 Gen 1 (up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Other Connectors 1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x AAFP connector
2 x Aura RGB Strip Header(s)
1 x Addressable Gen 2 header(s)
1 x Thunderbolt header(s)
1 x System panel(s)
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
Physical Spec
Form Factor ATX
LED Lighting RGB
Dimensions (W x L) 12.0″ x 9.6″
Power Pin 1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
Windows 11 Compatibility
Windows 11 Supported
Features
Features Multi-GPU Support:
Supports AMD 2-Way CrossFireX Technology

Software Features:
ROG Exclusive Software
– RAMCache III
– ROG CPU-Z
– GameFirst VI
– Sonic Studio III + Sonic Studio Virtual Mixer
– Sonic Radar III
– DTS Sound Unbound
– Overwolf
– Anti-virus software
ASUS Exclusive Software Features
Armoury Crate
– Aura Creator
– Aura Sync
– AI Noise Cancelling Microphone
AI Suite 3:
– PPSU
EPU
DIGI+ VRM
Fan Xpert 4
TurboV EVO
– EZ update
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode

ASUS Special Features:
Aura Sync
– Standard RGB header(s)
– Addressable Gen 2 RGB header(s)
ASUS Q-Design
– ASUS Q-DIMM
– ASUS Q-LED (DRAM [yellow], CPU [red], VGA [white], Boot Device [yellow green)
– ASUS Q-Slot

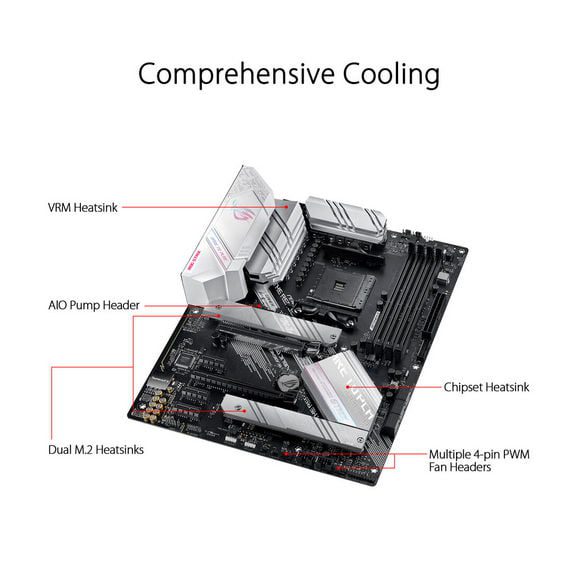

ASUS Thermal Solution
– Aluminum M.2 heatsink
ASUS EZ DIY
– BIOS FlashBack button
– BIOS FlashBack LED
– Clear CMOS header
– ProCool
– Pre-mounted I/O shield
– SafeSlot

BIOS:
256MB Flash ROM, UEFI AMI BIOS

Manageability:
WOL by PME, PXE

Operating System:
Windows 10 64-bit

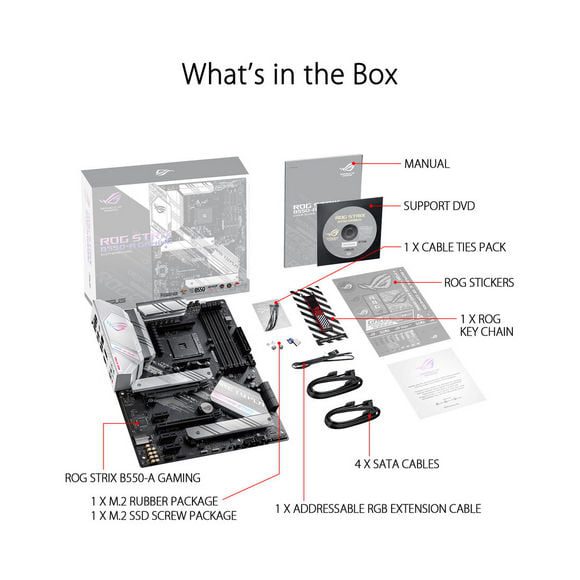

Packaging
Package Contents Accessories:
User’s manual
4 x SATA 6Gb/s cable(s)
1 x Supporting DVD
1 x ROG Strix stickers
1 x Cable ties pack(s)
1 x Extension cable for Addressable LED
1 x ROG Thank you card
1 x M.2 SSD screw package(s)
1 x M.2 Rubber Package(s)
