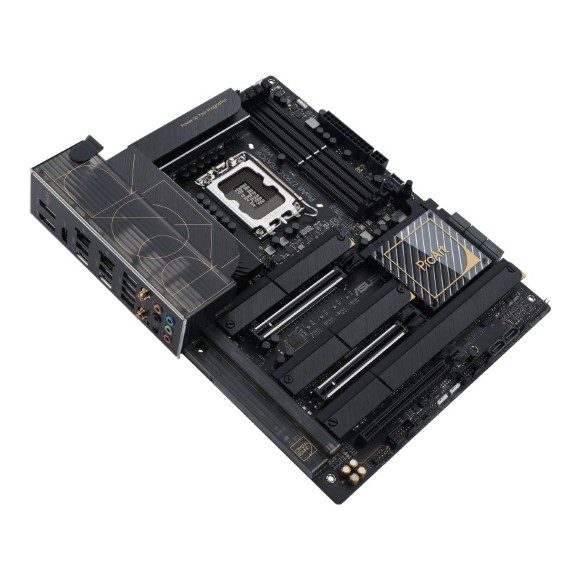

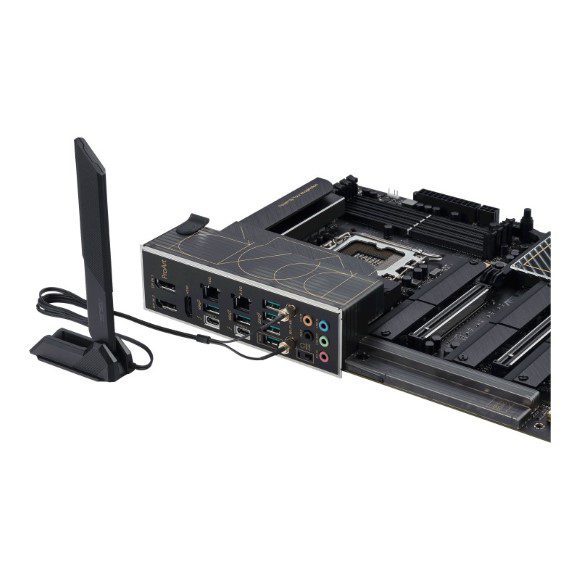

ASUS ProArt Z790-Creator WiFi 6E LGA 1700 (Intel 12th&13th Gen) ATX Content Creator Motherboard Price in Pakistan
| Brand | ASUS |
|---|---|
| Model | PROART Z790-CREATOR WIFI |
| Part Number | 90MB1DV0-M0AAY0 |
| CPU Socket Type | LGA 1700 |
|---|---|
| CPU Type | Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. |
| Chipset | Intel Z790 |
|---|
| Number of Memory Slots | 4x288pin (DDR5) |
|---|---|
| Memory Standard | Supports DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory* Supports Intel Extreme Memory Profile (XMP) OptiMem II * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types. |
| Maximum Memory Supported | 192GB |
| Channel Supported | Dual Channel |
| PCI Express 5.0 x16 | 2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)*
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). |
|---|---|
| PCI Express 4.0 x16 | 1 x PCIe 4.0 x16 slot (supports x4 mode) |
| SATA 6Gb/s | 8 x SATA 6Gb/s |
|---|---|
| M.2 | Total supports 4 x M.2 slots
Intel 13th & 12th Gen Processors Intel Z790 Chipset ** M.2_4 slot shares bandwidth with SATA6G_5~8. SATA6G5~8 will be suspended once either a SATA or NVMe device is detected at M.2_4. |
| SATA RAID | Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. |
| Audio Chipset | Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* – Impedance sense for front and rear headphone outputs – Internal audio Amplifier to enhance the highest quality sound for headphone and speakers – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) – Supports up to 32-Bit/192 kHz playback* Audio Features * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | 1 x Marvell AQtion 10Gb Ethernet |
|---|---|
| Second LAN Chipset | 1 x Intel 2.5Gb Ethernet |
| Max LAN Speed | 10Gbps + 2.5Gbps |
| Wireless LAN | Wi-Fi 6E 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* * WiFi 6E 6GHz regulatory may vary between countries. |
| Bluetooth | Bluetooth v5.3**
** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications. |

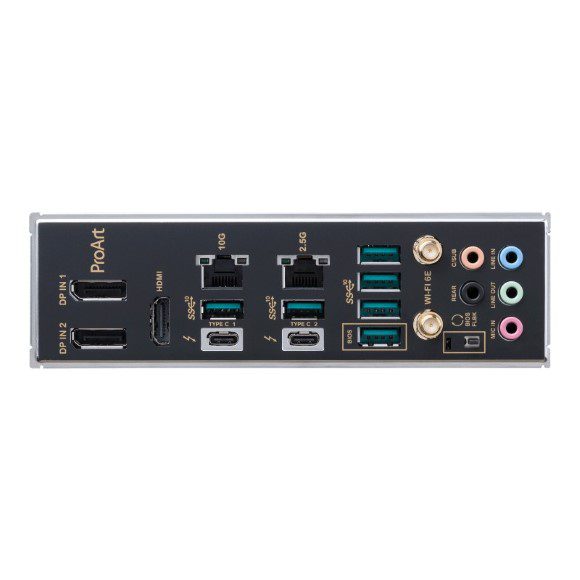

| Back I/O Ports | 2 x Thunderbolt 4 USB Type-C port(s) 6 x USB 3.2 Gen 2 port(s) (6 x Type-A) 2 x DisplayPort (Input only) 1 x HDMI port 1 x ASUS Wi-Fi Module 1 x Marvell AQtion 10Gb Ethernet port 1 x Intel 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack button |
|---|
| Onboard USB | 1 x USB 3.2 Gen 2×2 (support(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports |
|---|---|
| Other Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 5 x 4-pin Chassis Fan header(s) Storage related Miscellaneous |
| Form Factor | ATX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Power Pin | 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector 1 x 6-pin +12V Power connector |
| Windows 11 | Windows 11 64-bit, Windows 10 64-bit |
|---|
| Features | ASUS 5X PROTECTION III – DIGI+ VRM (- Digital power design with DrMOS) – Enhanced DRAM Overcurrent Protection – ESD Guards – LANGuard – Overvoltage Protection – SafeSlot – Stainless-Steel Back I/O ASUS Q-Design – M.2 Q-Latch – Q-Connector – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – M.2 heatsink – VRM heatsink design ASUS EZ DIY – BIOS FlashBack™ button – BIOS FlashBack™ LED – Box Headers – ProCool II – Pre-mounted I/O shield AURA Sync – AURA RGB header(s) – Addressable Gen 2 header(s) ASUS Exclusive Software Armoury Crate – AURA Creator – AURA Sync – Fan Xpert 4 with AI Cooling II – Two-Way AI Noise Cancelation – Power Saving AI Suite 3 – Easy Optimization with AI Overclocking – TPU – DIGI+ Power Control – Turbo app – PC Cleaner ASUS CPU-Z IT Management software supported – ASUS Control Center Express(ACCE) ProArt Creator Hub CreationFirst MyAsus Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode FlexKey MemTest86 |
|---|

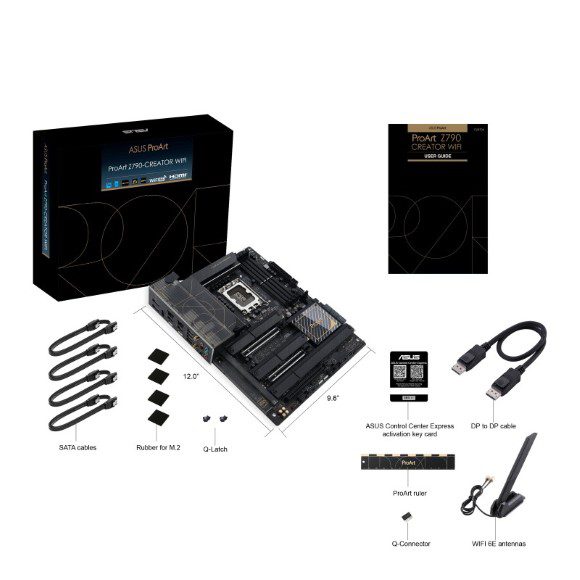

| Package Contents | Cables 1 x DisplayPort cable 4 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 2 x M.2 Rubber Package(s) 1 x M.2 SSD Q-Latch package(s) 1 x Q-connector 1 x ProArt ruler 1 x Screw rubber cover Documentation 1 x ACC Express Activation Key Card 1 x User guide |
|---|
