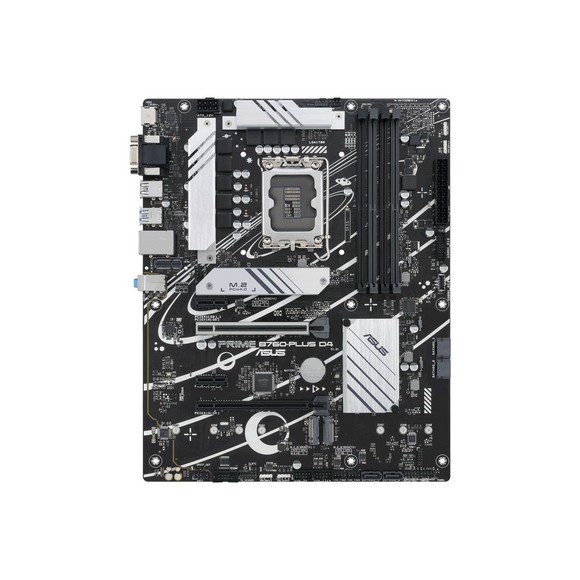

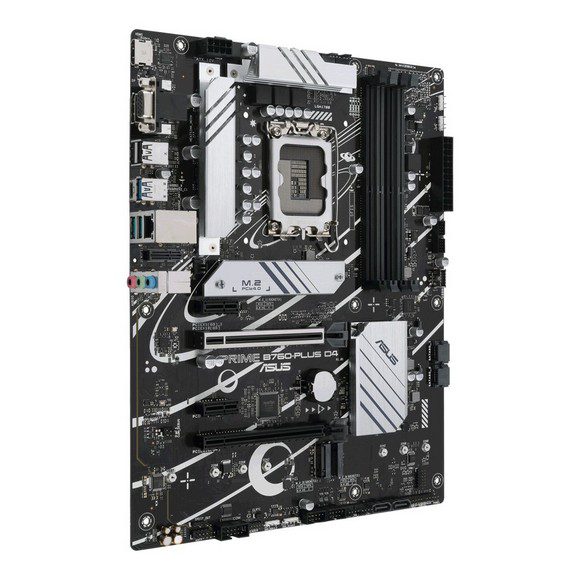

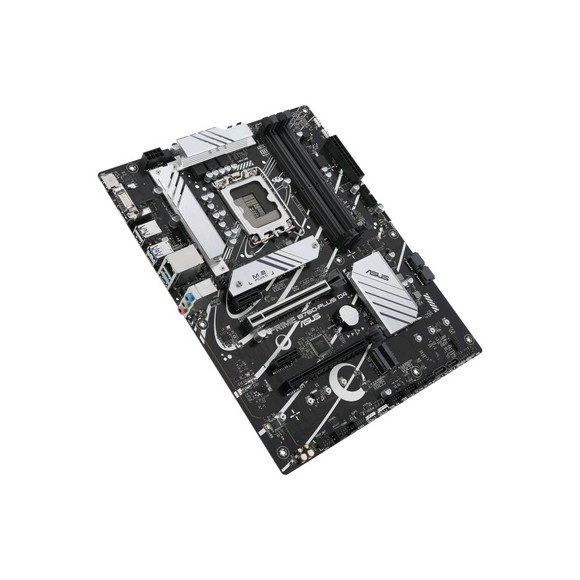

ASUS Prime B760-PLUS D4 Intel B760 (13th and 12th Gen) LGA 1700 ATX Motherboard

  • Intel LGA 1700 Socket: Ready for 13th Gen Intel Core processors.
  • Ultrafast Connectivity: PCIe 5.0, three PCIe 4.0 M.2 slots, Realtek 2.5Gb Ethernet, rear USB 3.2 Gen 2×2 Type-C, front USB 3.2 Gen 1 Type-C and Thunderbolt (USB4®) header support.
  • Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+.
  • ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability.
  • Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware.
  • Memory: DDR4 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)

Summer Shopping Season Sale

Hurry and get discounts on all products up to 2%

02_sale

₨ 66,000

Out of stock

Out of stock

Add to compare
Add to wishlist

Payment Methods:

Description

ASUS Prime B760-PLUS D4 Intel B760 (13th and 12th Gen) LGA 1700 ATX Motherboard Price in Pakistan

Model
Brand ASUS
Model PRIME B760-PLUS D4
Supported CPU
CPU Socket Type  LGA 1700
CPU Type Celeron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Pentium Gold
Chipsets
Chipset  Intel B760
Memory
Number of Memory Slots 4x288pin (DDR4)
Memory Standard DDR4 3200
Maximum Memory Supported 128GB
Channel Supported  Dual Channel
Memory Feature DDR4 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*

Supports Intel Extreme Memory Profile (XMP)
OptiMem
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
Expansion Slots
PCI Express 5.0 x16 Intel 13th & 12th Gen Processors*
1 x PCIe 5.0 x16 slot
PCI Express 4.0 x16 Intel B760 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
PCI Express x1 Intel B760 Chipset
2 x PCIe 3.0 x1 slots

Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage Devices
SATA 6Gb/s  4 x SATA 6Gb/s
M.2 Intel 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
SATA RAID Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Onboard Audio
Audio Chipset  Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Audio Channels  7.1 Channels
Onboard LAN
Max LAN Speed 2.5Gbps

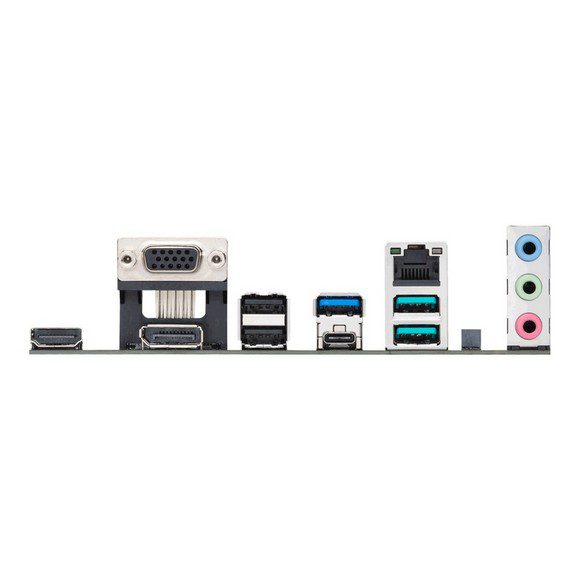

Rear Panel Ports
Back I/O Ports 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
1 x USB 3.2 Gen 1 port (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x VGA port
1 x HDMI port
1 x Vertical M.2 slot (Key E)
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
Internal I/O Connectors
Onboard USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other Connectors Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers

Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt (USB4) header
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0″ x 9.6″
Power Pin 1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Windows Compatibility
Windows 11 Supported
Features
Features ASUS 5X PROTECTION III
– DIGI+ VRM
– LANGuard
– Overvoltage Protection
– SafeSlot Core+
– Stainless-Steel Back I/O
ASUS Q-Design
– Q-DIMM
– Q-LED Core
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink
– VRM heatsink design
ASUS EZ DIY
– ProCool
Aura Sync
– Aura RGB header
– Addressable Gen 2 RGB headers
Packaging
Package Contents Cables
2 x SATA 6Gb/s cables

Miscellaneous
1 x I/O Shield
1 x M.2 Rubber Package
2 x Screw Packages for M.2 SSD

Documentation
1 x User guide
