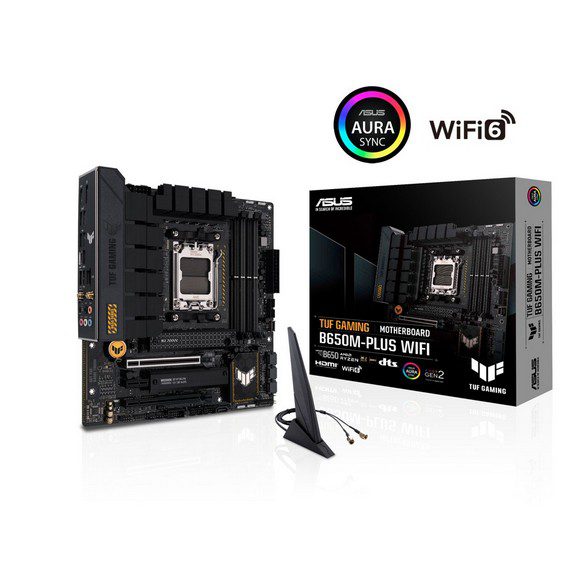

ASUS TUF GAMING B650M-PLUS WIFI Socket AM5 (LGA 1718) Ryzen 7000 mATX Gaming Motherboard
ASUS TUF GAMING B650M-PLUS WIFI Socket AM5 (LGA 1718) Ryzen 7000 mATX Gaming Motherboard ₨ 56,000
Back to products
Asus ROG Strix Helios GX601 RGB Mid-Tower EATX Gaming Case White
Asus ROG Strix Helios GX601 RGB Mid-Tower EATX Gaming Case White ₨ 90,000
Sold out
Click to enlarge

ASUS Prime B650-PLUS AMD B650 (Ryzen 7000) ATX Motherboard

  • AMD AM5 Socket: Ready for AMD Ryzen 7000 Series Desktop Processors.
  • Ultrafast Connectivity: M.2 PCIe 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2 Type-C, front USB 3.2 Gen 1 Type-C, USB4® support.
  • ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking.
  • Comprehensive Cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+.

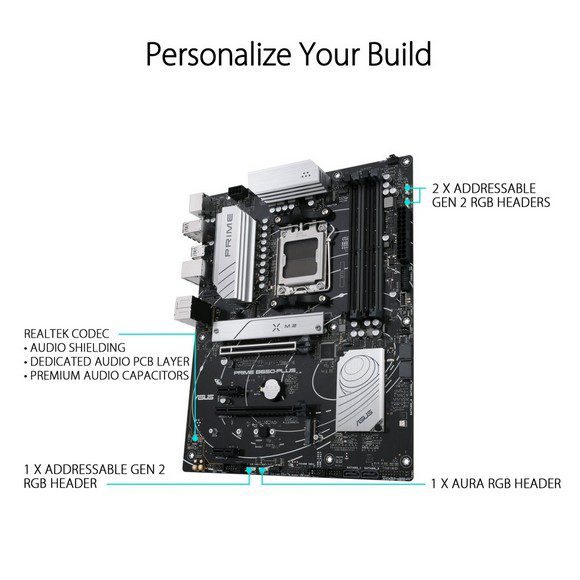

  • Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware

Summer Shopping Season Sale

Hurry and get discounts on all products up to 2%

02_sale

₨ 65,000

Out of stock

Out of stock

Add to compare
Add to wishlist
SKU: B650-PLUS

Payment Methods:

Description

ASUS Prime B650-PLUS AMD B650 (Ryzen 7000) ATX Motherboard Price in Pakistan

Model
Brand ASUS
Series Prime
Model B650-PLUS
Supported CPU
CPU Socket Type  AM5
CPU Type Supports AMD Ryzen 7000 Series Desktop Processors*

* Refer to www.asus.com for CPU support list.
Chipsets
Chipset  AMD B650
Memory

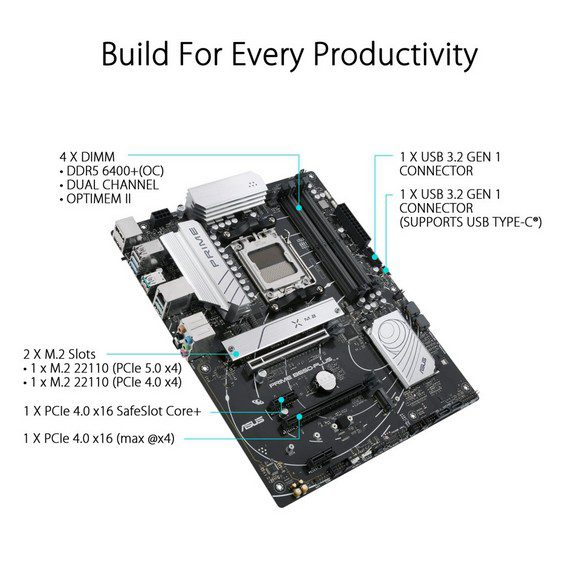

Number of Memory Slots 4x288pin (DDR5)
Memory Standard DDR5 6400+(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200 / 5000 / 4800*

* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.
Maximum Memory Supported 128GB
Channel Supported  Dual Channel
ECC Supported Yes
Buffer Supported Un-buffered
Memory Feature Supports AMD EXTended Profiles for Overclocking (EXPO)
OptiMem II
Expansion Slots
PCI Express 4.0 x16 AMD Ryzen 7000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x16 mode)

AMD B650 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)

* Please check the PCIe bifurcation table on the ASUS support site
PCI Express x1 2 x PCIe 4.0 x1 slots
Storage Devices
SATA 6Gb/s  4 x SATA 6Gb/s
M.2 AMD Ryzen 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
SATA RAID AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10
Onboard Audio
Audio Channels  Realtek 7.1 Surround Sound High Definition Audio CODEC
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback

Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
Onboard LAN
Max LAN Speed 2.5Gbps
Wireless LAN Vertical M.2 slot only (Key E, PCIe)*
* Wi-Fi module is sold separately.
Rear Panel Ports
Back I/O Ports 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Vertical M.2 slot (Key E)
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
Internal I/O Connectors
Onboard USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C )
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other Connectors Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers

Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt (USB4) header
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0″ x 9.6″
Power Pin 1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Windows 11 Compatibility
Windows 11 Supported
Features
Features ASUS 5X PROTECTION III
– DIGI+ VRM
– LANGuard
– Overvoltage Protection
– Safeslot Core+
– Stainless-Steel Back I/O
ASUS Q-Design
– Q-DIMM
– Q-LED Core
– Q-Slot
ASUS Thermal Solution
– Flexible M.2 heatsink
– VRM heatsink design
ASUS EZ DIY
– BIOS FlashBack button
– BIOS FlashBack LED
– ProCool
Aura Sync
– Aura RGB header
– Addressable Gen 2 headers
Packaging
Package Contents Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 Rubber Package
1 x Screw package for M.2 SSD
Documentation
1 x User guide
