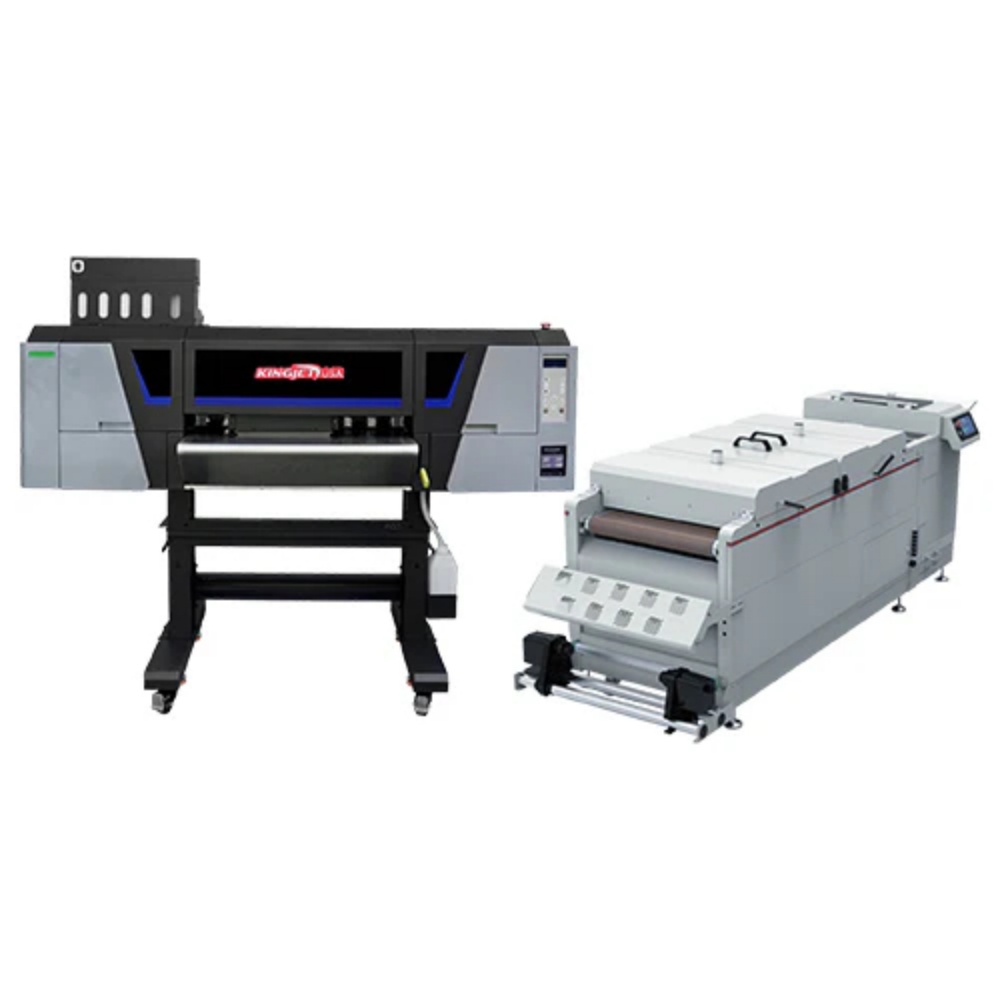

Used KINGJET KJ-605 24in 4-5 Head Industrial DTF Printer

Pay now, in 4 interest-free payments of $401.25, or over 3–6 months

4 interest-free payments of $401.25

Professional used KINGJET KJ-605 DTF printer with 24" print width and 4-5 EPSON I3200 printheads. Features auto white ink circulation and supports high-quality heat transfers.

Style

Clear

↗

Estimated Delivery Time3–7 business days

Industrial-grade 24-inch DTF printing

The KINGJET KJ-605 industrial direct-to-film printer offers vibrant, high-resolution heat transfer printing up to 24 inches wide. It utilizes 4 or 5 EPSON I3200-A1 printheads configured for professional-grade output suitable for apparel and textile applications.

Its sturdy metal frame supports robust performance for continuous printing jobs in a production environment.

Advanced white ink circulation system

An automatic white ink circulation mechanism reduces ink settling and clogging, ensuring consistent print quality and less maintenance downtime.

Maintains ink freshness during extended operation
Improves printhead longevity and reliability

Versatile RIP software compatibility

Ships with Maintop RIP software, featuring precise color management and print control. Customers can request upgrades to other professional software such as Flexi Plan or CADlink to suit specific workflow preferences.

Tailored for optimized workspace environment

Designed for use in dust-free rooms with controlled temperature (60-85°F) and humidity (46-65%). Proper ventilation or smoke filtering is recommended to manage fumes produced during printing processes.

Basic system requirements

Minimum PC specs are a 10th gen Core i5 or equivalent CPU, 16GB RAM, and 256GB SSD storage for smooth operation.

Basic Adobe Photoshop and Illustrator skills aid efficient print file preparation.

Key specifications

Print Width: 24 inches (60 cm)
Printheads: 4 or 5 EPSON I3200-A1
Printing speeds: 50 tf2/h (4 pass), 33 tf2/h (6 pass), 26 tf2/h (8 pass)
Dimensions: Printer 74"x32"x63", Powder Shaker 112"x40"x41"
Weight: Printer ~300 lbs, Powder Shaker ~500 lbs
Power: Printer 110V/16A, Powder Shaker 110V/72A or 220V/36A

What's in the box

KINGJET KJ-605 Industrial DTF Printer unit

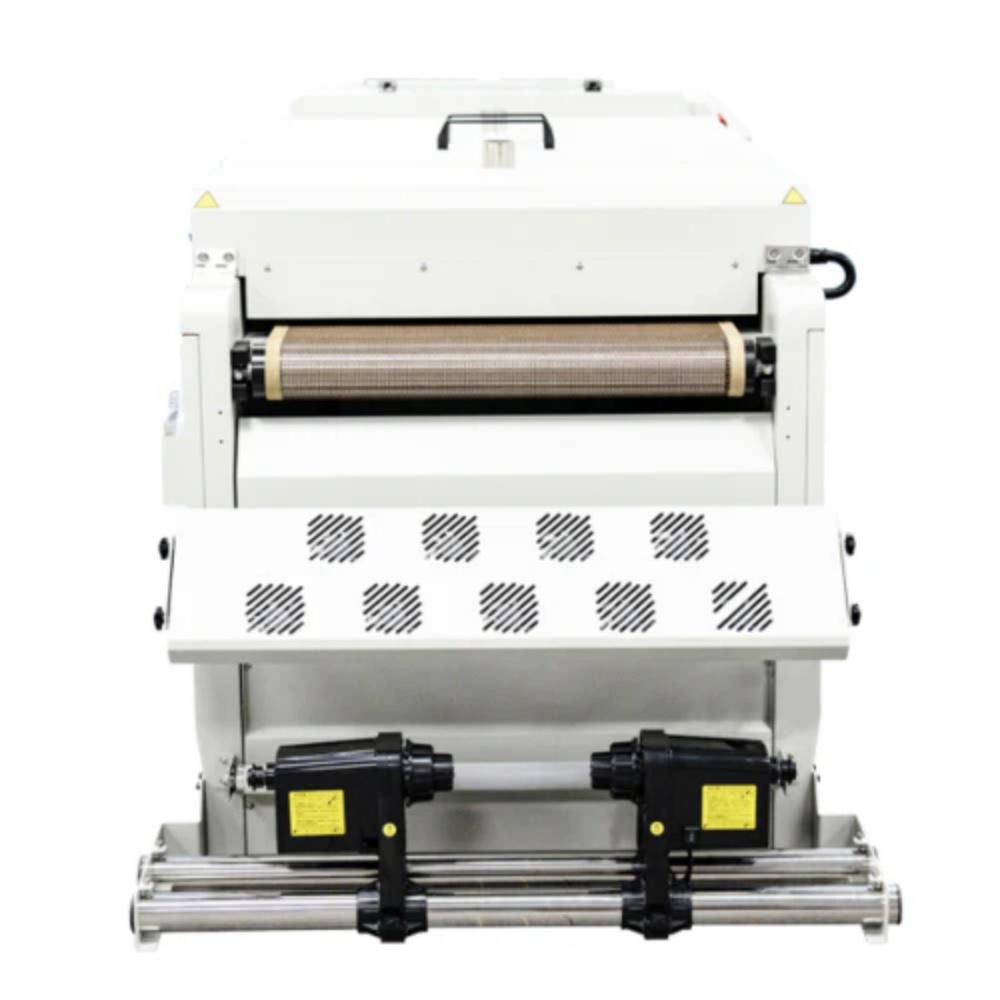

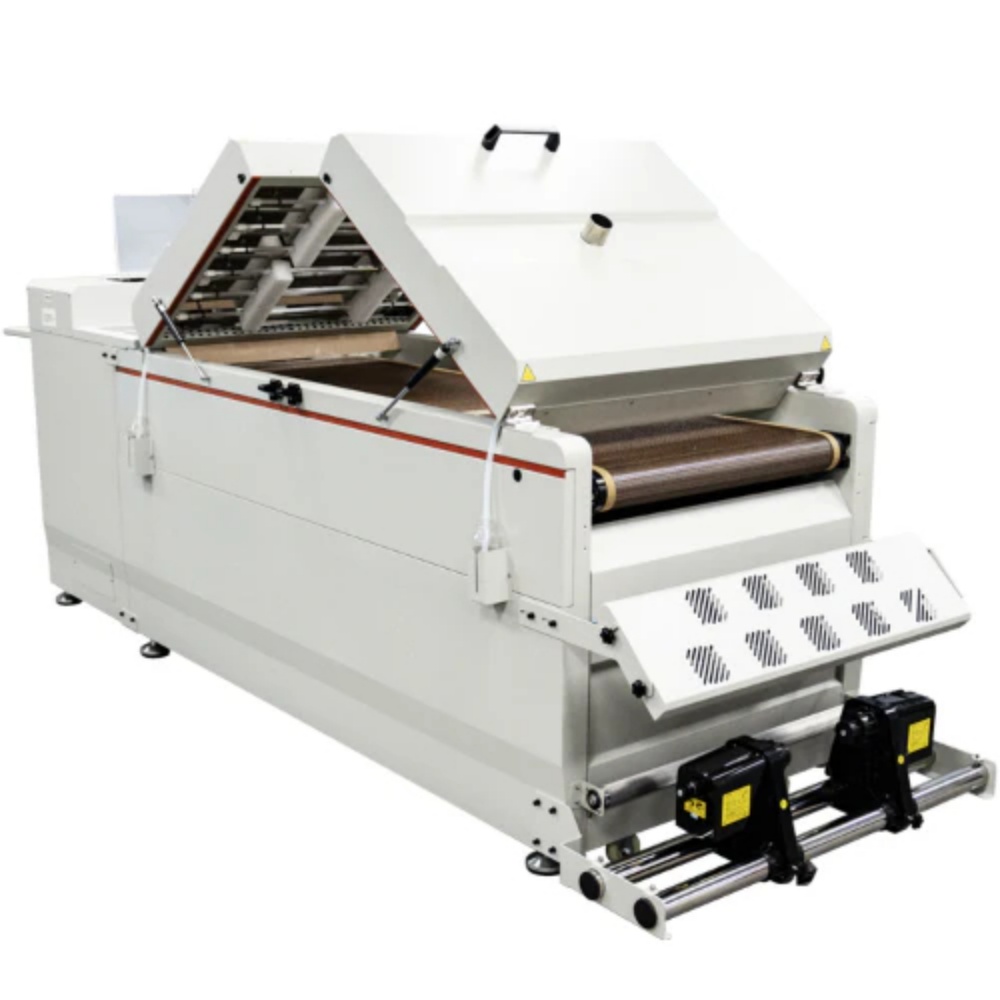

Powder Shaker unit
RIP Software: Maintop (upgrade available)
White ink auto circulation system
User manual and installation guides

Product FAQ

Frequently asked questions

01 What print resolution and speed does the KINGJET KJ-605 support?

The KINGJET KJ-605 uses 4-pass print mode at approximately 50 tf2/h, 6-pass at 33 tf2/h, and 8-pass at 26 tf2/h for high-quality transfers.

02 How many printheads does the printer have and what model?

It is equipped with either 4 or 5 EPSON I3200-A1 printheads depending on the variant.

03 What is the maximum printing width of the printer?

The printer supports a maximum printing width of 24 inches (60 cm).

04 Does the printer have a white ink circulation system?

Yes, it includes an auto white ink circulation system to maintain ink quality and prevent clogging.

05 What software does the printer use?

The included RIP software is Maintop, with optional upgrades to Flexi Plan or CADlink upon customer request.

06 What are the physical dimensions and weight of the printer?

The printer measures 74" x 32" x 63" (L x W x H) and weighs approximately 300 lbs. The powder shaker measures 112" x 40" x 41" and weighs around 500 lbs.

07 What are the power requirements for the printer and powder shaker?

The printer requires 110V/16A power supply, and the powder shaker requires 110V/72A (or 220V/36A) with L6-20 outlet.

08 What are the recommended operating environment conditions?

Use the printer in a dust-free environment with room temperature between 60-85°F and humidity between 46-65%. Venting smoke outside or using a smoke filter is suggested.

09 Is training or support available with the purchase?

Yes, training and support are provided along with a 1-year warranty for the DTF printer.

10 What are the minimum PC specifications for operating the printer?

A PC with at least a 10th generation Core i5 CPU or equivalent, 16GB RAM, and 256GB SSD hard drive is recommended.
