SSD & Hard Drive Maintenance Tools SATA USB Converter
Price range: $18.01 through $176.12
Pay now, in 4 interest-free payments of $4.50, or over 3–6 months
4 interest-free payments of $4.50
Reliable SATA to USB3.0 and USB3.1 converter boards for SSD and NVMe drives.
- Supports 2.5" SSD/HDD and M.2/NVMe SSDs
- Compatible with Windows, Mac, Linux
- Includes LED indicators for status
↗
Estimated Delivery Time3–7 business days
Versatile Drive Access and Maintenance
These converters enable effortless reading and writing of data from various drive types, including 2.5-inch SSDs, mechanical hard drives, and NVMe M.2 SSDs.
Ideal for professionals upgrading, maintaining, or testing storage devices, they provide reliable access without complicated setup.
Smart Design and Power Management
Featuring the JMS578 and MS583 main control chips from JMicron, the devices ensure broad compatibility and efficient data transfer.
LED indicators provide clear operational status, while optional DC 5V power input caters to power-hungry devices, ensuring stable performance.
- JMS578 high-compatibility chip
- Three LED status indicators
- Optional DC power input for stable operation
Wide Compatibility and Connectivity
These tools support major operating systems like Windows, Mac, and Linux, and accommodate multiple drive form factors.
The USB3.0 and USB3.1 interfaces offer high-speed data transmission, accelerating workflows for maintenance and data recovery tasks.
- Supports Windows, Mac, Linux
- USB3.0 (6G/s) and USB3.1 (10G/s) interfaces
- Compatible with 2.5" SSD/HDD and M.2 2230-2280 NVMe drives
Robust SATA Base for Multiple Drives

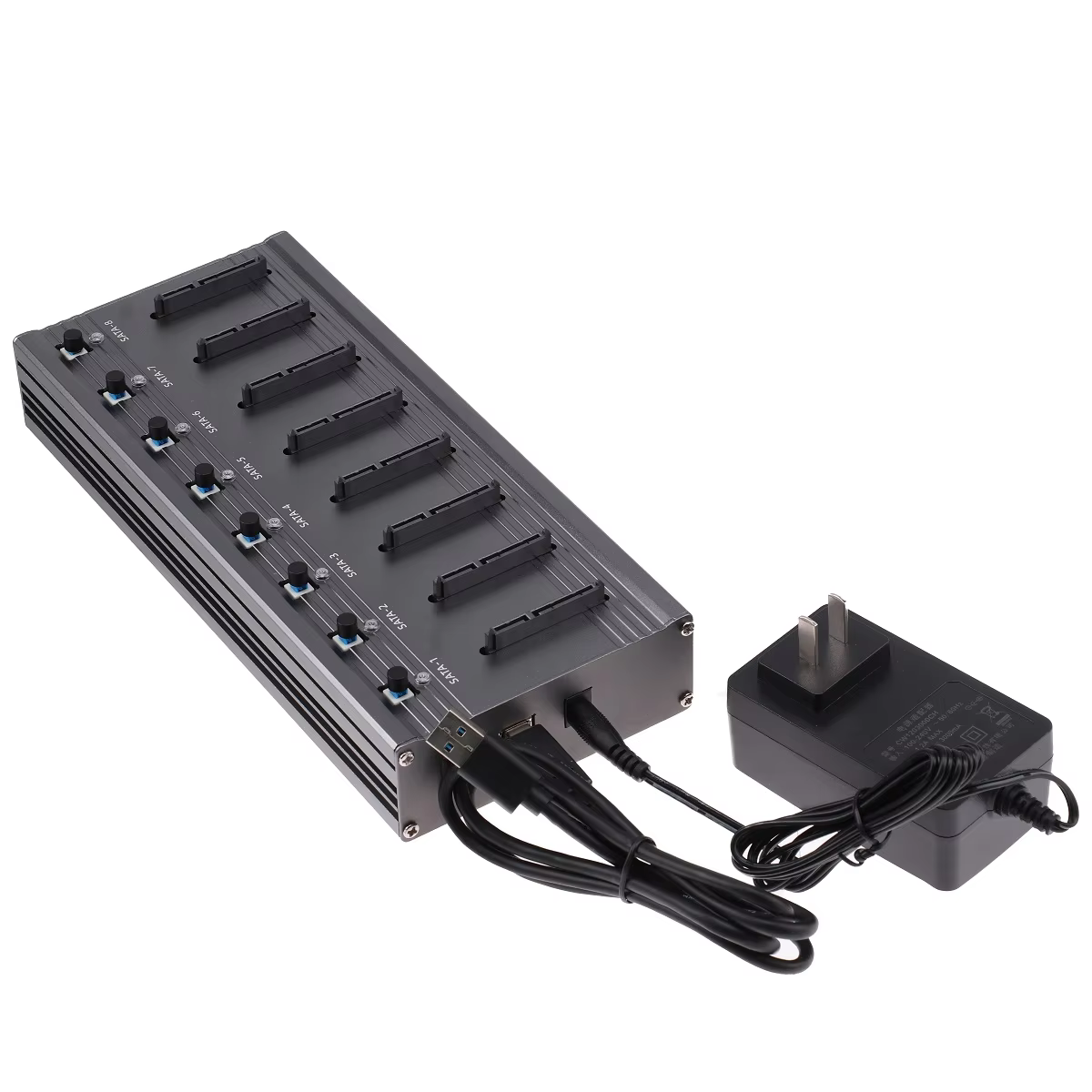

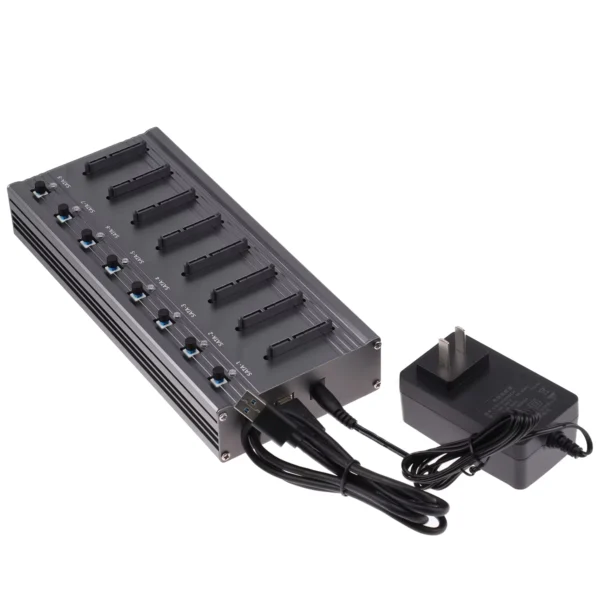

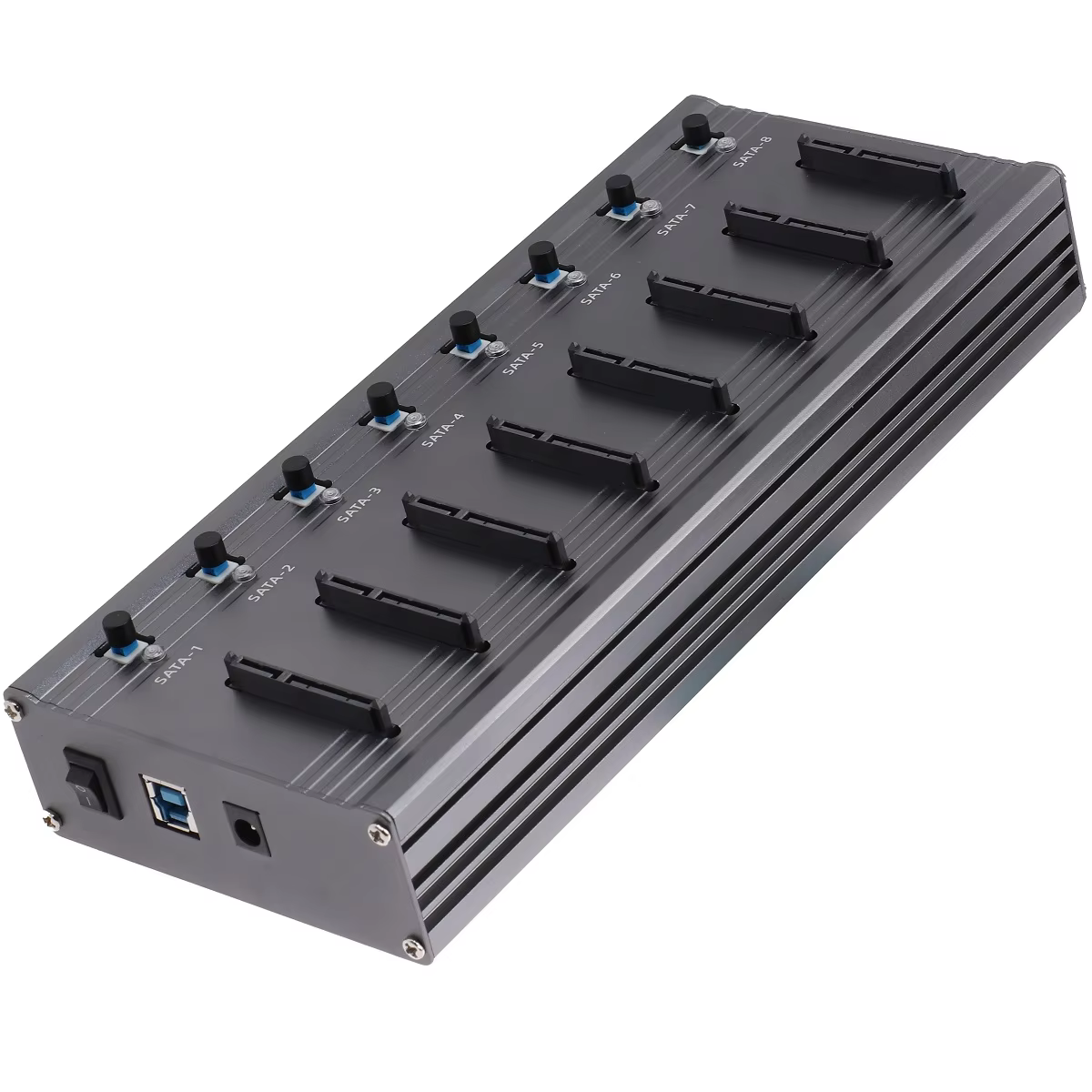

The 8-port SATA hard disk base allows simultaneous connection of up to eight 2.5-inch drives.
Each port has independent power supply and supports hot swapping for efficient batch operations.
- 8 SATA 3.0 interfaces
- Independent power supply per port
- Supports hot swap for batch testing
Key Specifications

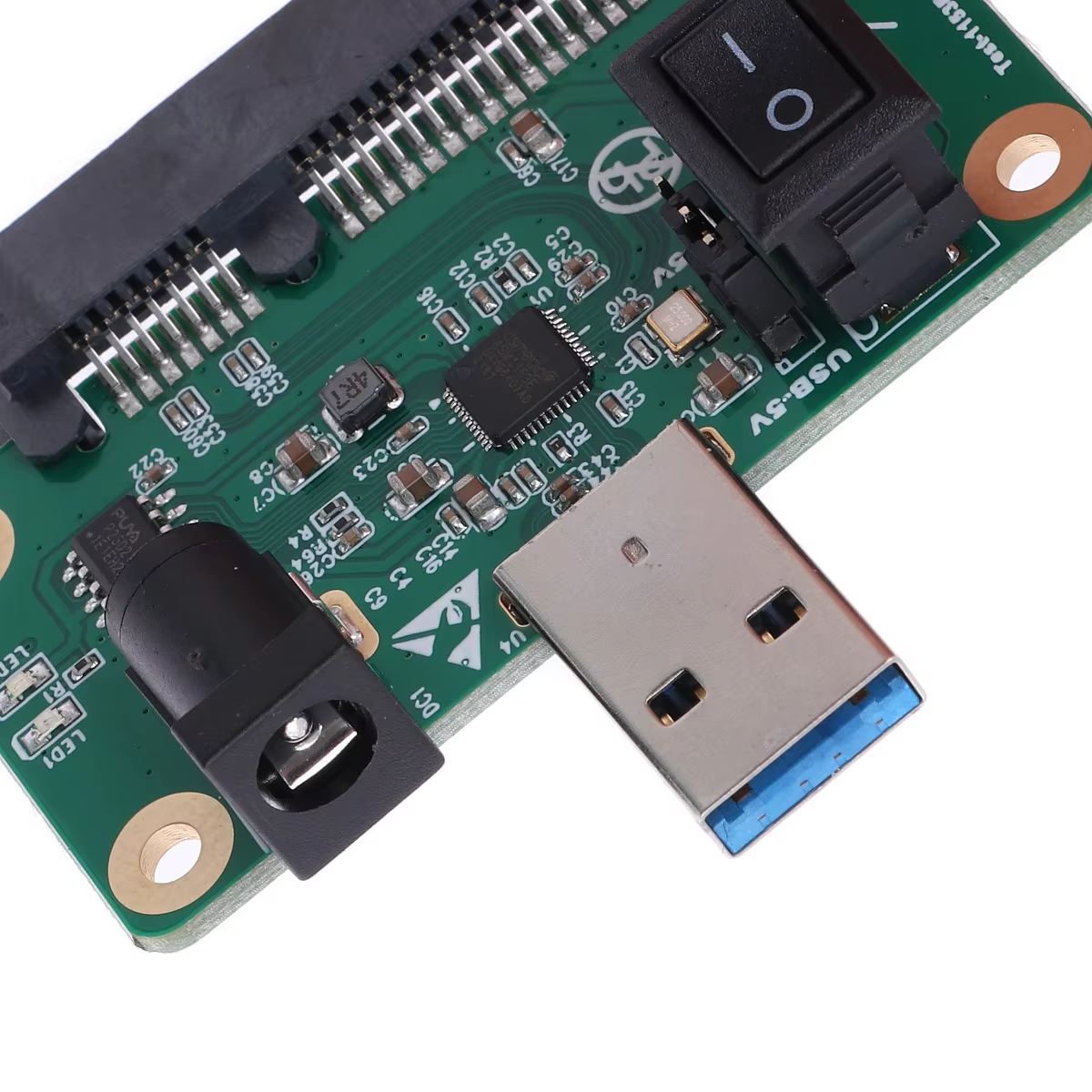

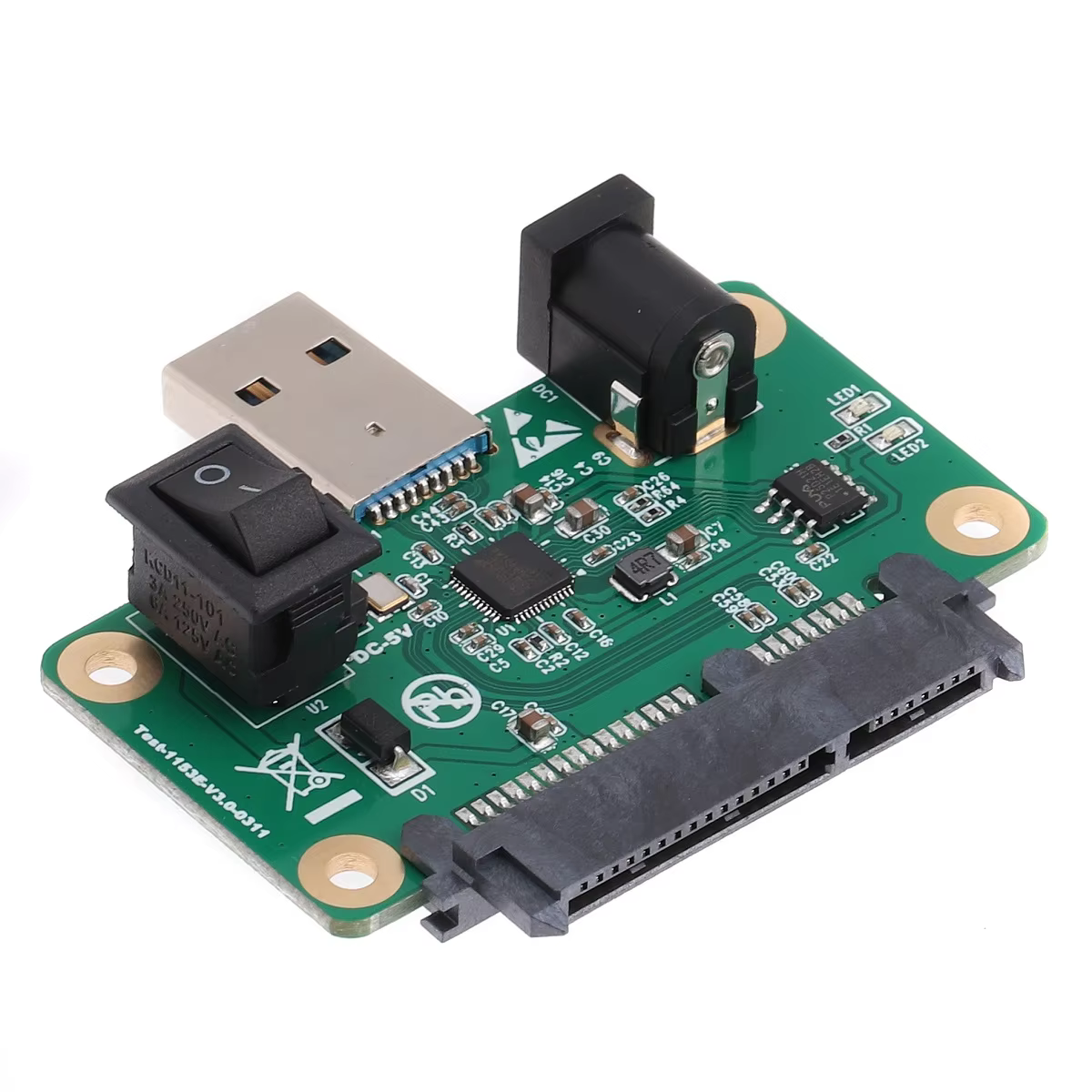

- SATA to USB3.0 Model UN2 with JMS578 chip

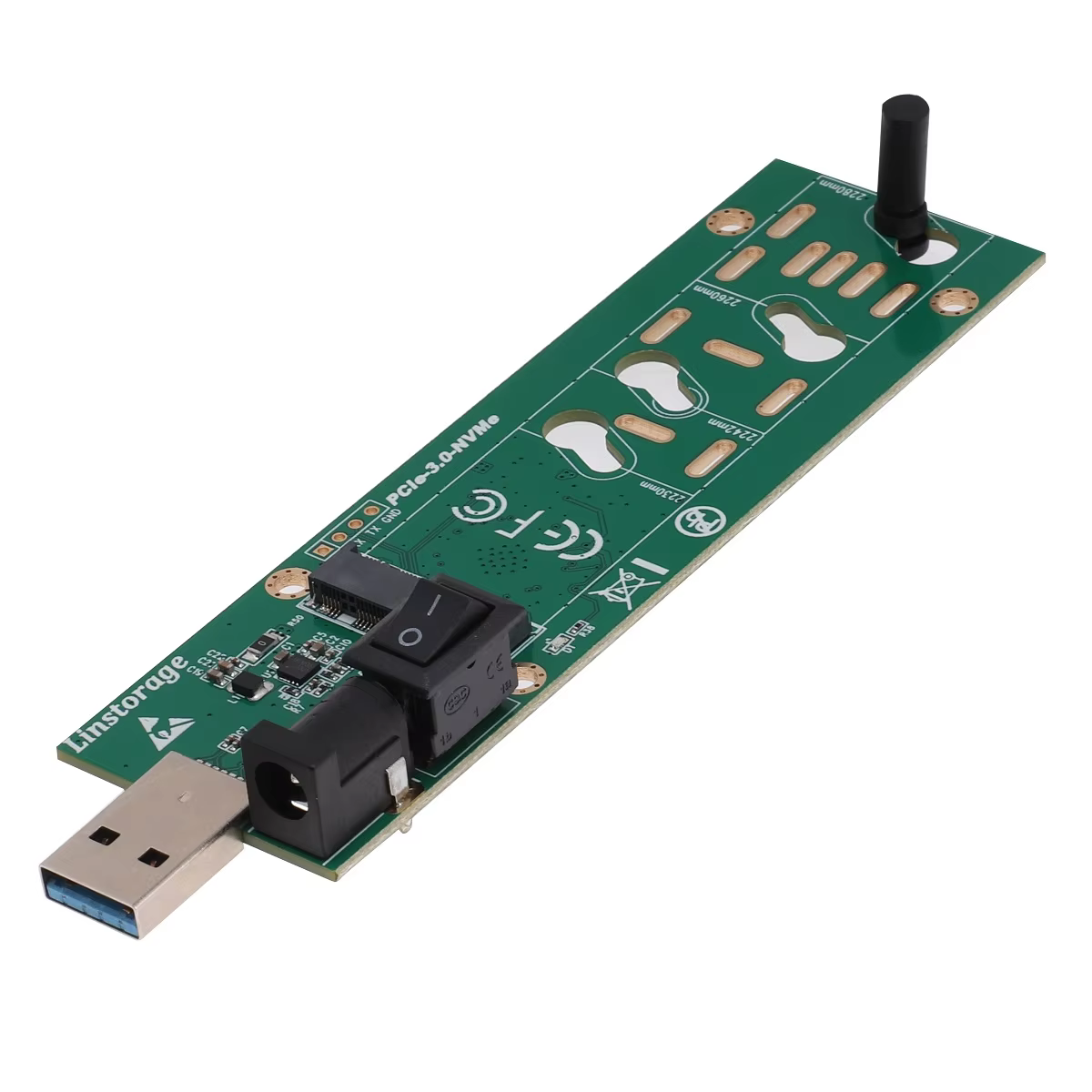

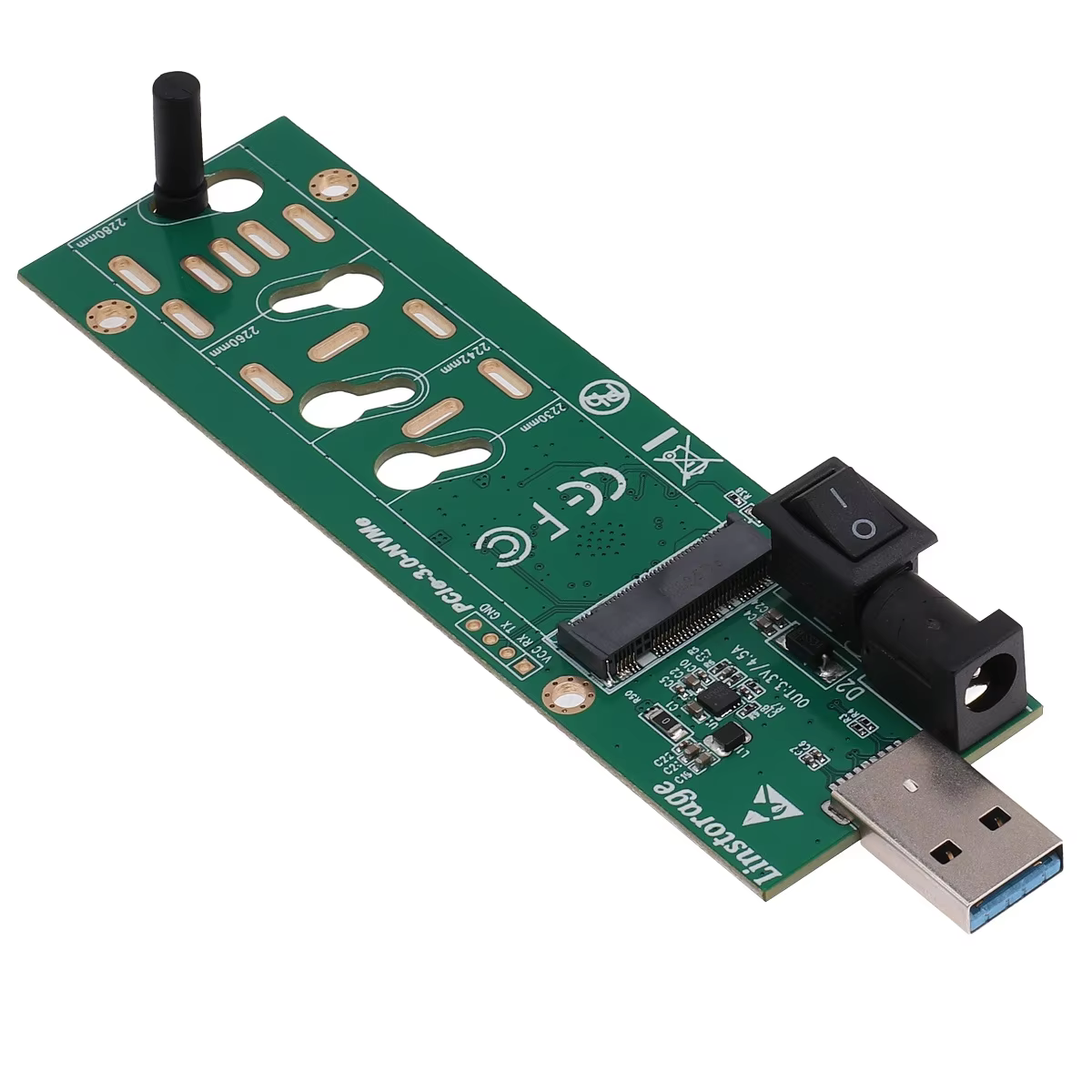

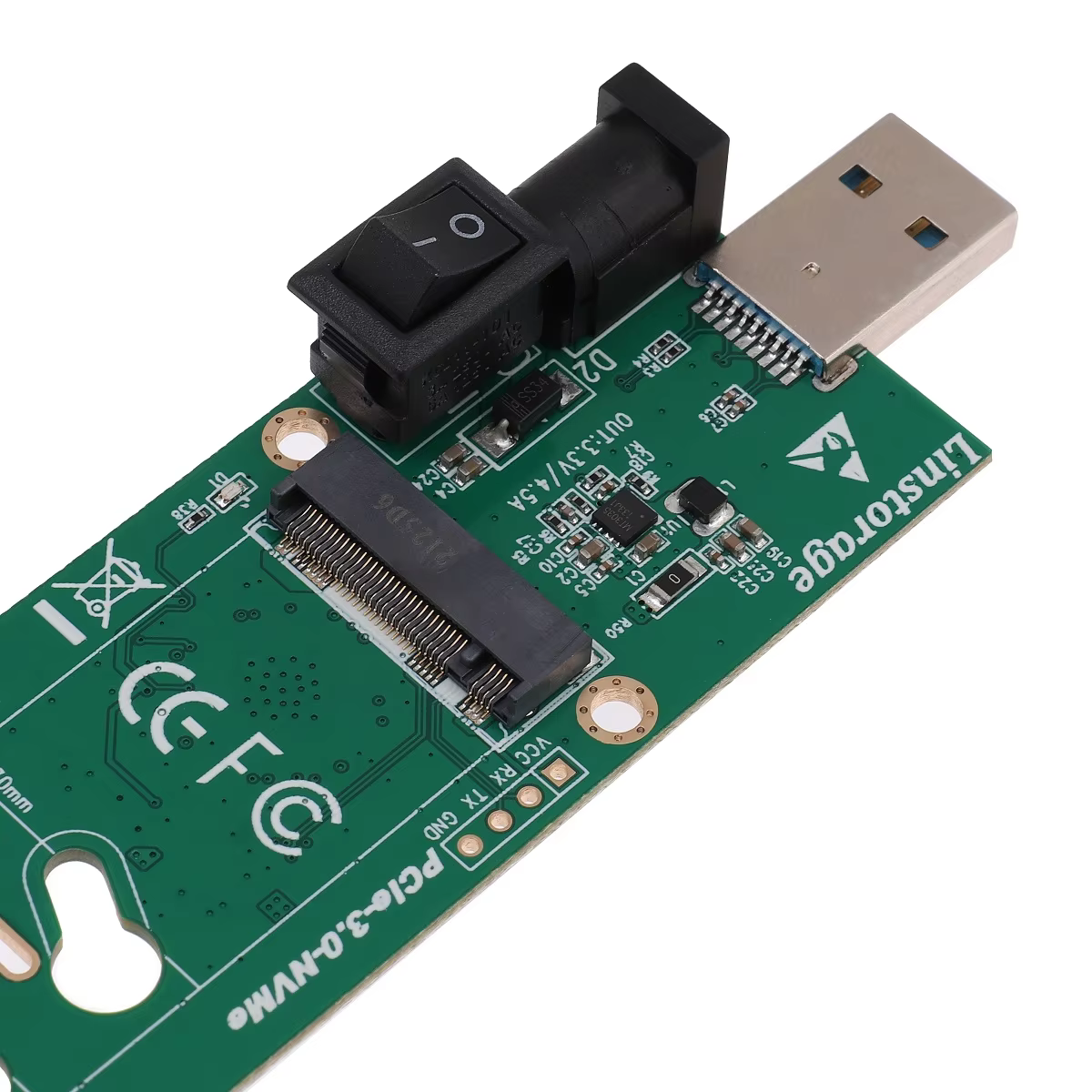

- USB3.1 to M.2/NVMe model UNI with MS583 chip
- USB interface types: USB-A male (USB3.0/B and USB3.1/A)
- Dimensions: SATA converter approx. 233 x 90.5 x 46 mm; M.2 converter approx. 117 x 34 x 17 mm
- Power input: DC 5V, 500-1000mA
What's in the box
- SATA to USB3.0 Converter Board
- USB3.1 to M.2/NVMe Converter Board
- 8 Ports SATA HDD SSD Base
- USB Data Cable
- 12V Power Supply
Product FAQ
Frequently asked questions
01 What types of drives does the SATA to USB3.0 converter support?
It supports 2.5-inch SSDs and mechanical hard drives for data reading and writing.
02 Which chips control the converter boards?
The SATA to USB3.0 uses the JMS578 chip, and the USB3.1 to M.2/NVMe uses the MS583 chip.
03 Is an external power supply required for these converters?
Usually, no additional power supply is needed, but a DC 5V input can be used when power is insufficient.
04 Which operating systems are compatible?
The devices support Mac, Linux, Windows, including Windows 8 and IVlac.
05 Can the USB3.1 to M.2 converter read NVMe SSDs?
Yes, it supports NVMe M.2 SSDs of sizes 2230, 2242, 2260, and 2280.
06 Does the product support hot swapping?
Yes, the 8-port SATA base supports hot swap functionality.
07 What interfaces are used for data transmission?
The SATA to USB3.0 uses USB3.0/B port at 6G/s; the M.2 converter uses USB3.1/A port at up to 10G/s.
08 What indicators show the device status?
Three LED indicators on the SATA to USB3.0 converter board display working status at a glance.
09 What are the dimensions of the USB3.1 to M.2/NVMe converter?
Approximately 117 x 34 x 17 mm, including switch height.
10 Are these products intended for professional use?
Yes, they are designed as professional maintenance and batch testing tools for SSDs and hard drives.
