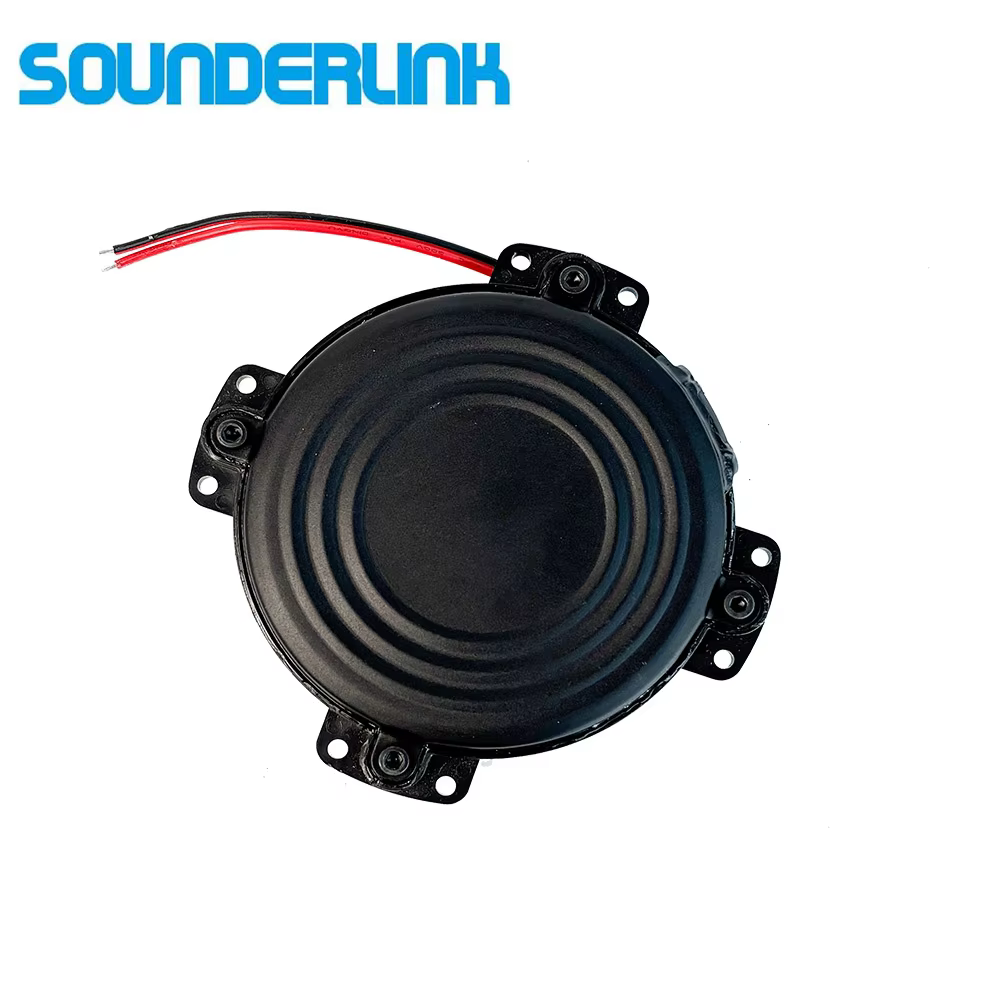

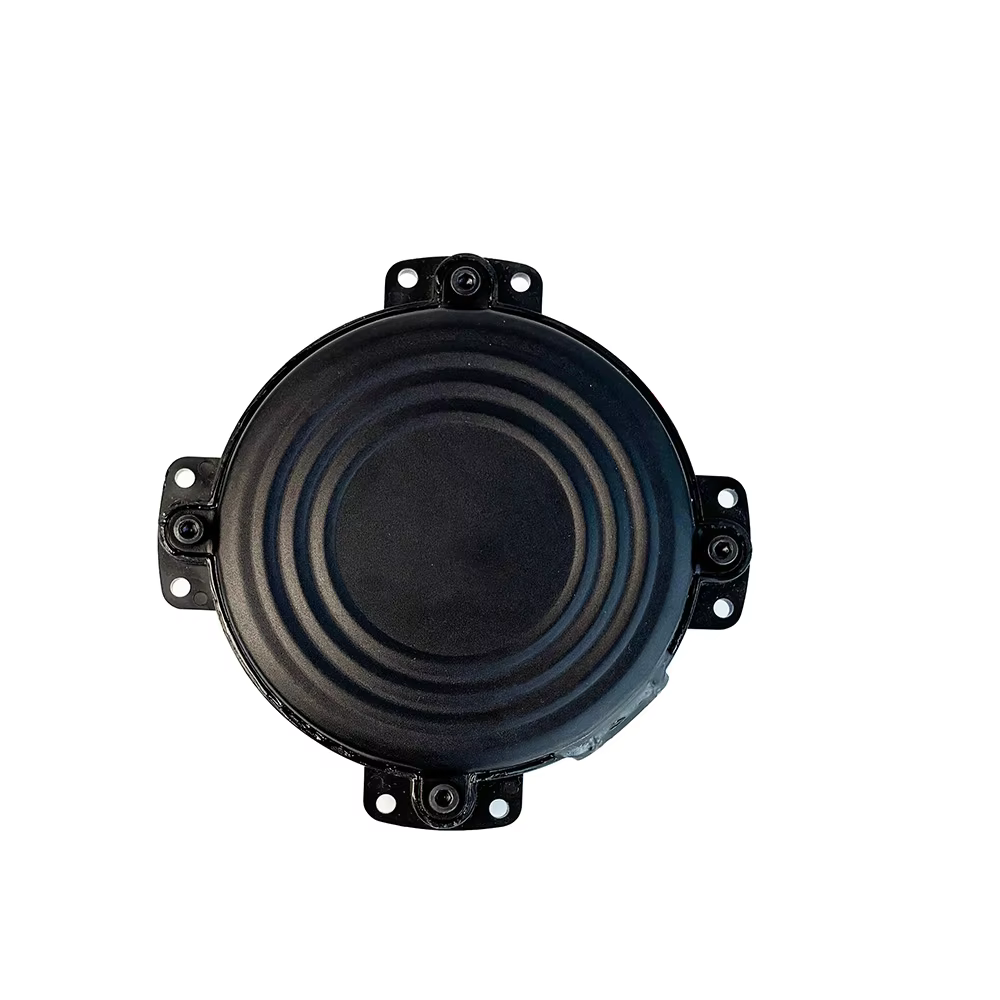

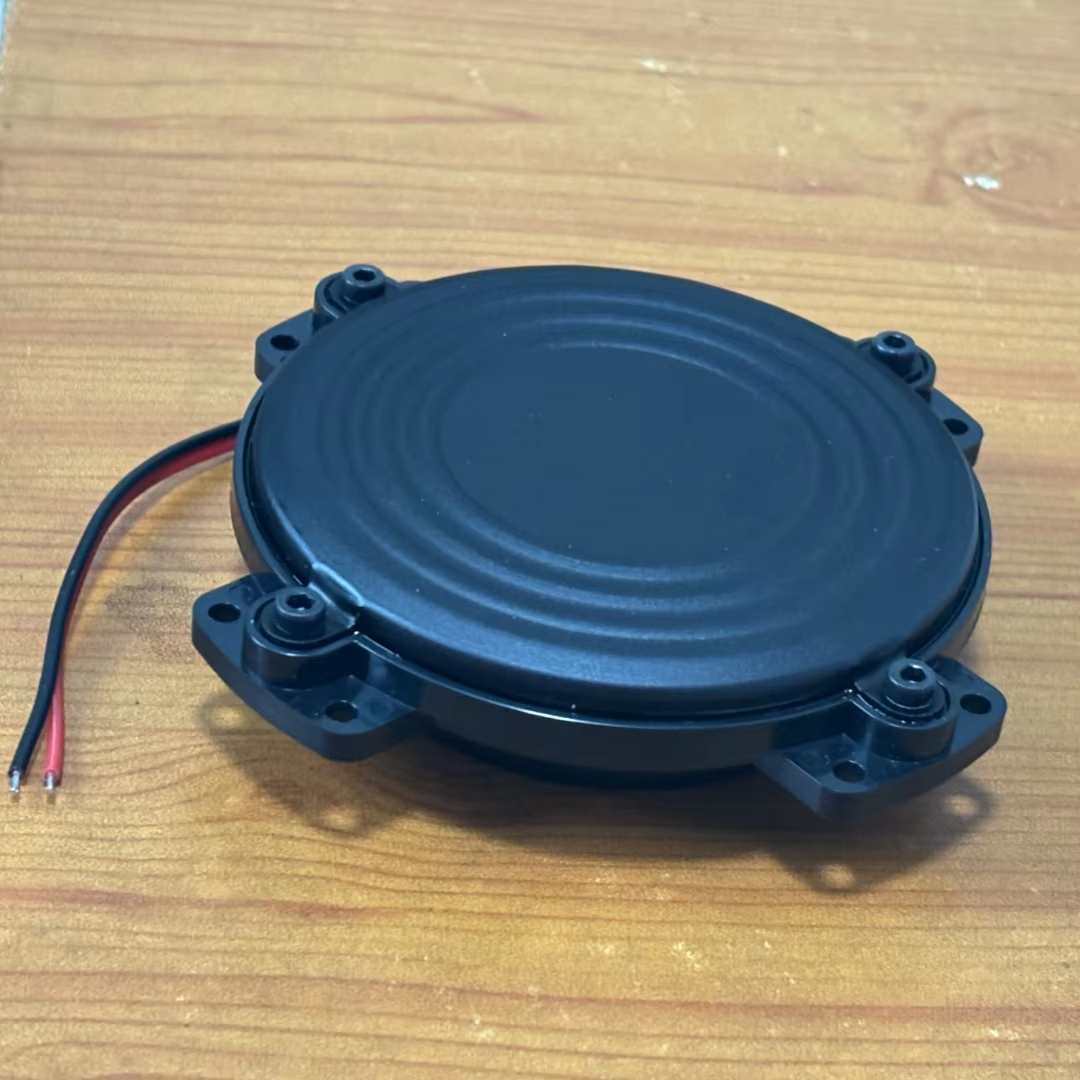

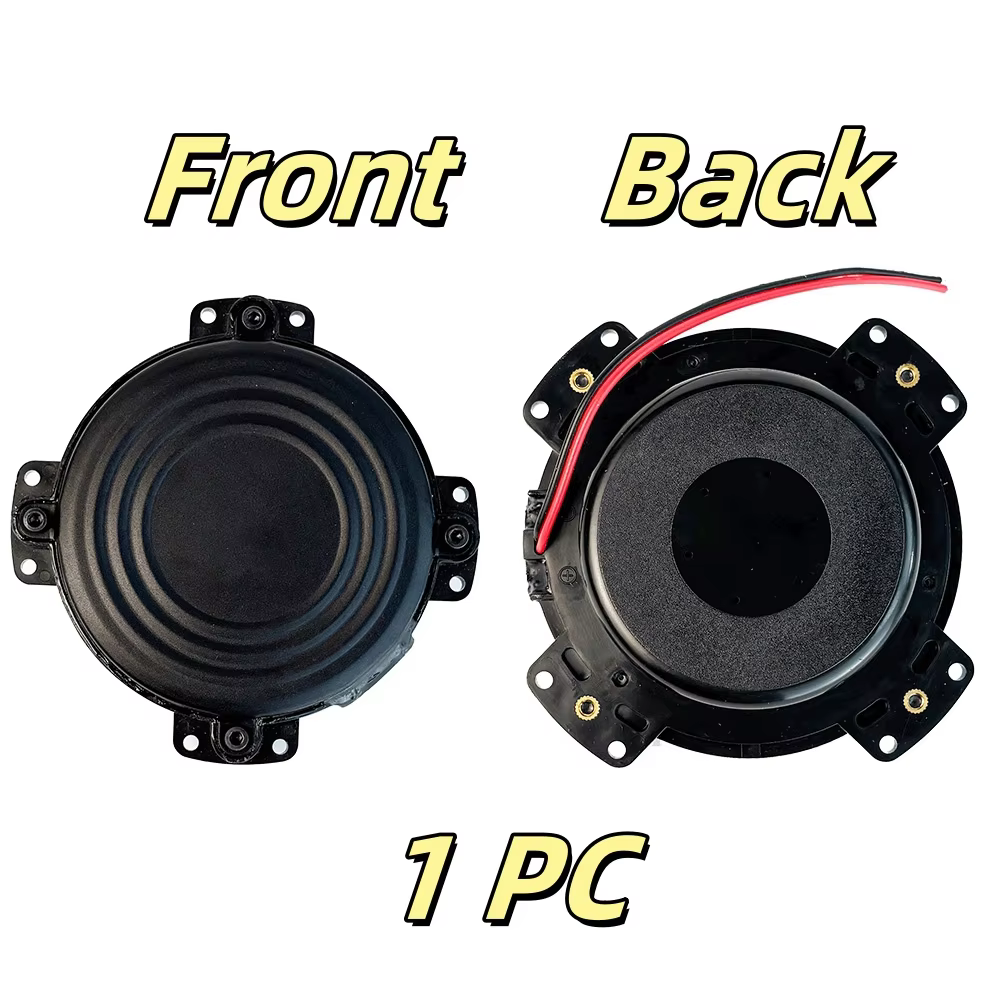

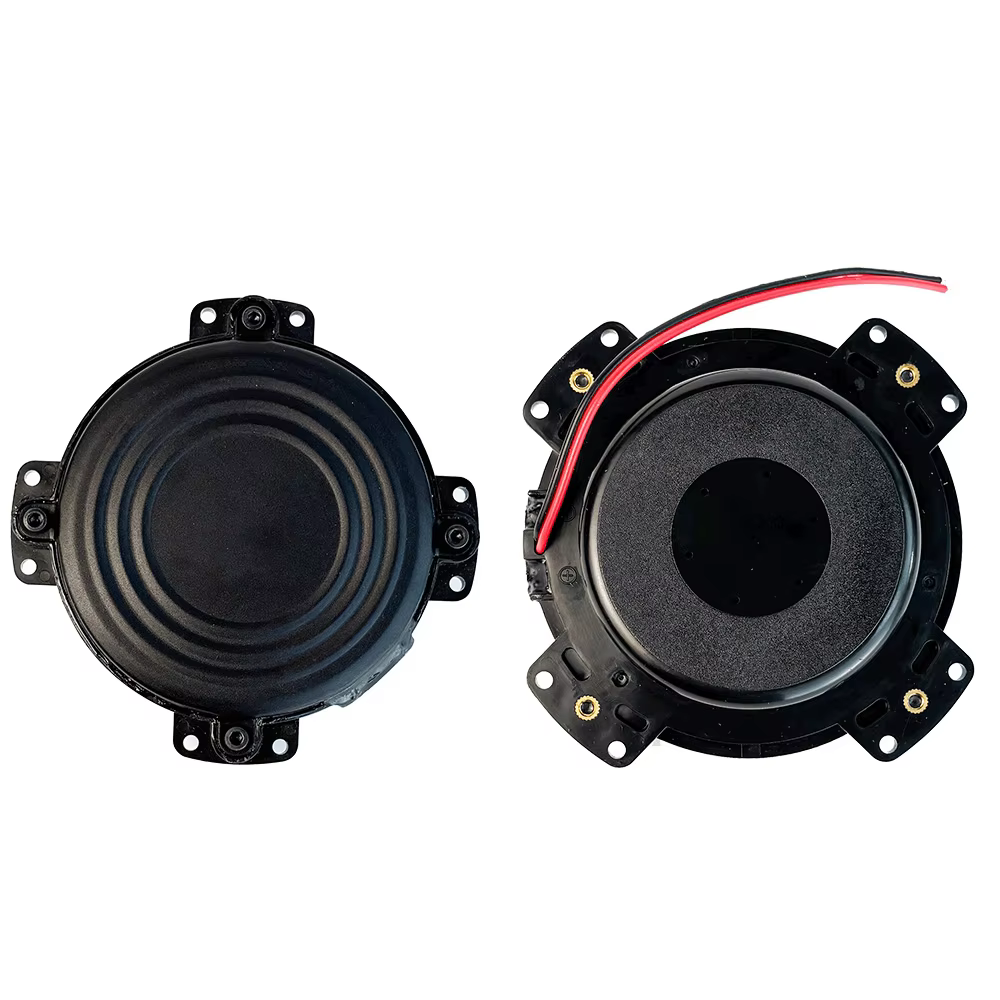

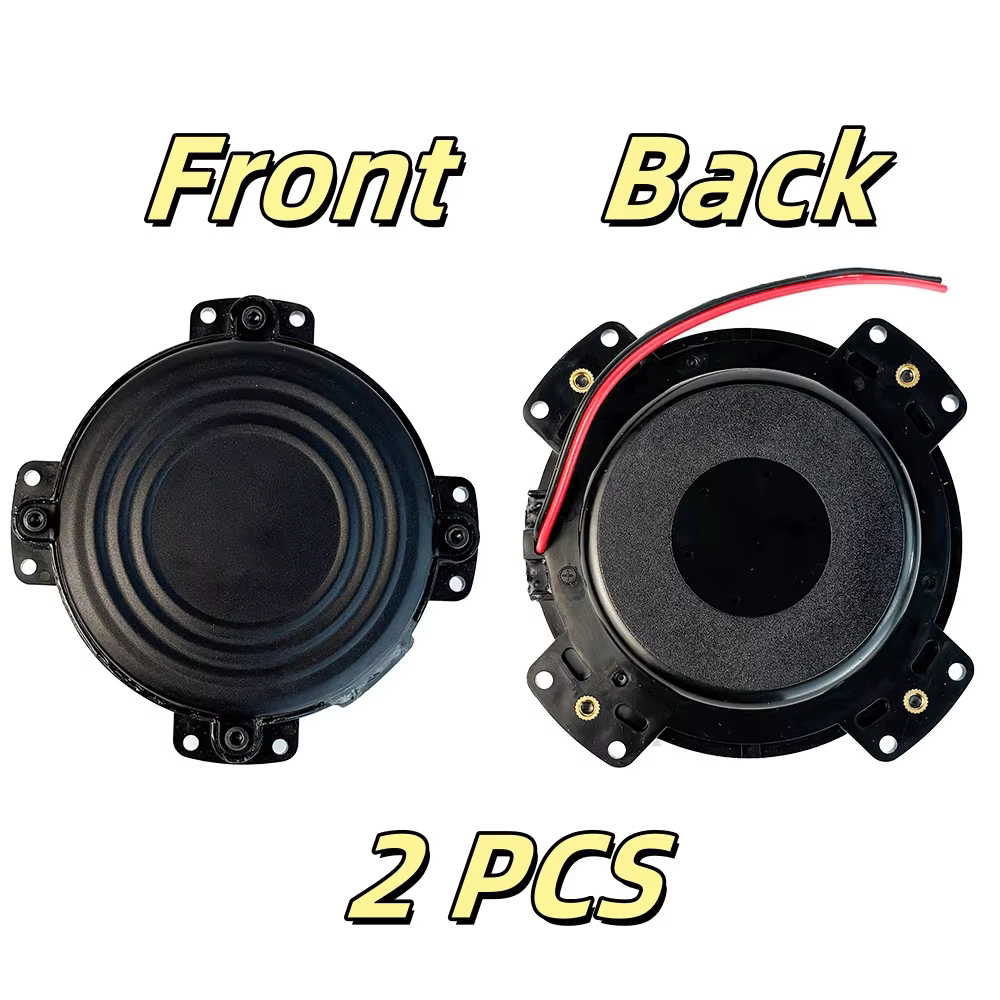

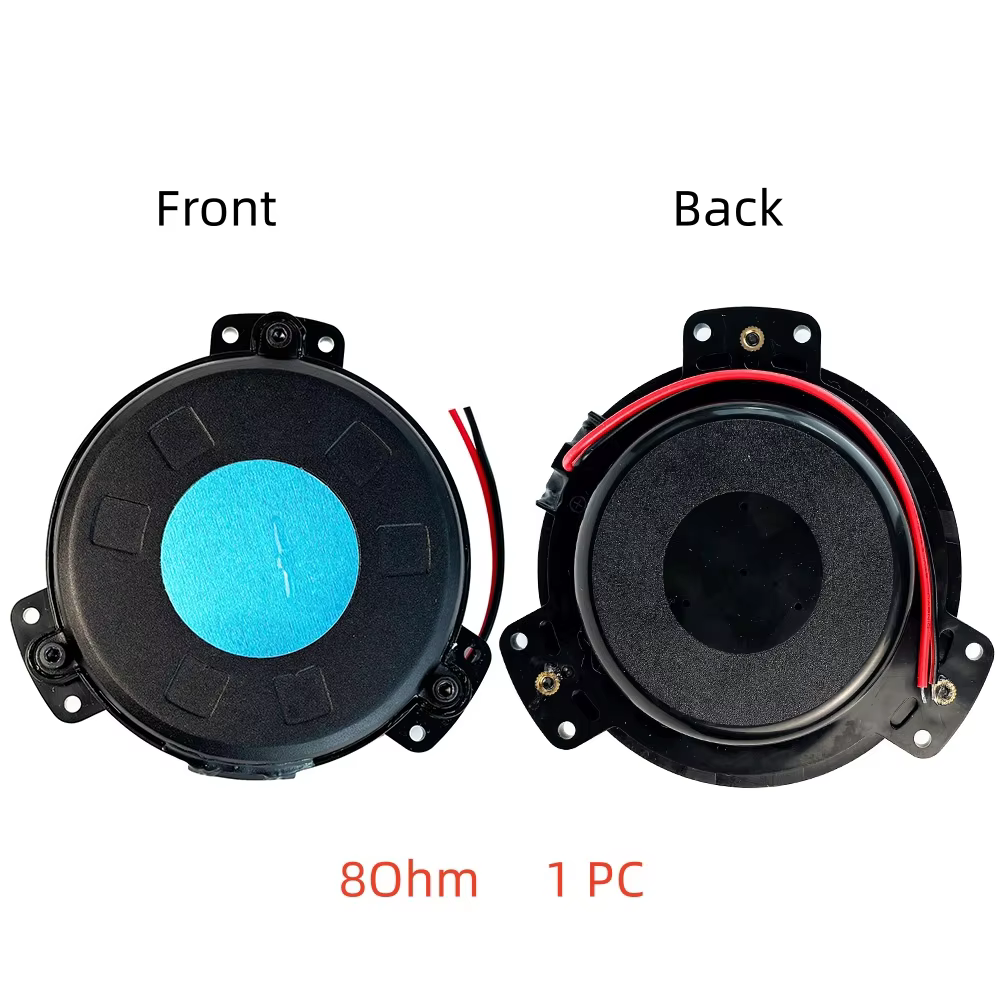

Sounderlink Puck Mini Bass Shaker 4 Ohm Tactile Transducer
Price range: $37.43 through $54.12
Pay now, in 4 interest-free payments of $9.36, or over 3β6 months
4 interest-free payments of $9.36
Compact tactile transducer designed for immersive bass in home theater, gaming, and auto sound setups.
- Power handling: 20W RMS/30W max
- Frequency response: 20-80 Hz
- Impedance: 4 Ohm
β
Estimated Delivery Time3β7 business days
Compact tactile transducer for immersive bass
The Sounderlink Puck is a small tactile transducer designed to bring deep bass sensations directly to your body. Ideal for home theater, gaming, and automotive audio setups, it enhances the low-frequency experience by vibrating surfaces you touch, allowing you to feel the music's bass without high volume levels.
This compact unit offers quality construction and economical pricing, making it versatile for various applications where added vibration feedback is desired.
Powerful bass response with controlled frequency

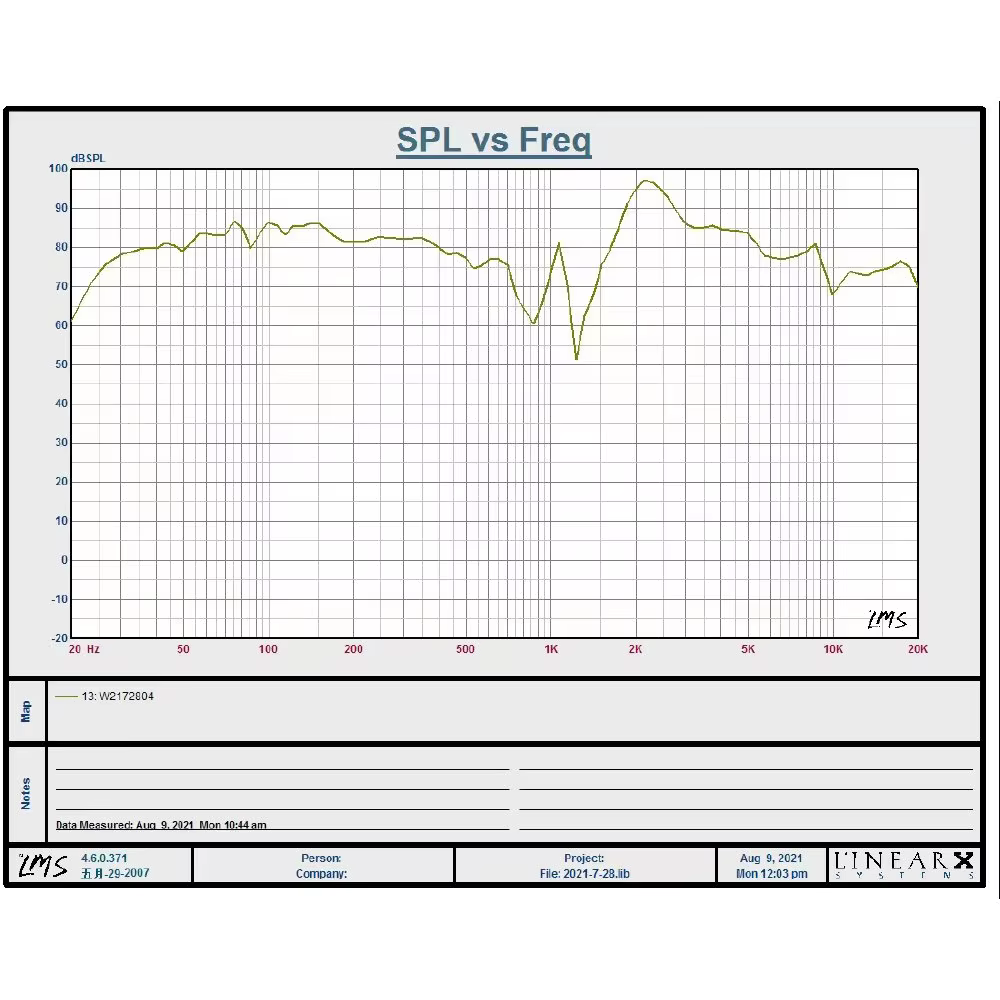

This shaker handles 20 watts RMS power (30 watts max) with an impedance of 4 Ohms. It features a usable frequency range of 20 to 80 Hz, focusing on the low bass spectrum where tactile feedback is most effective.
- Power handling: 20W RMS / 30W max
- Impedance: 4 Ohm
- Frequency response: 20β80 Hz
- Peak force with four units: 30 lbs. per foot
Durable design with easy installation

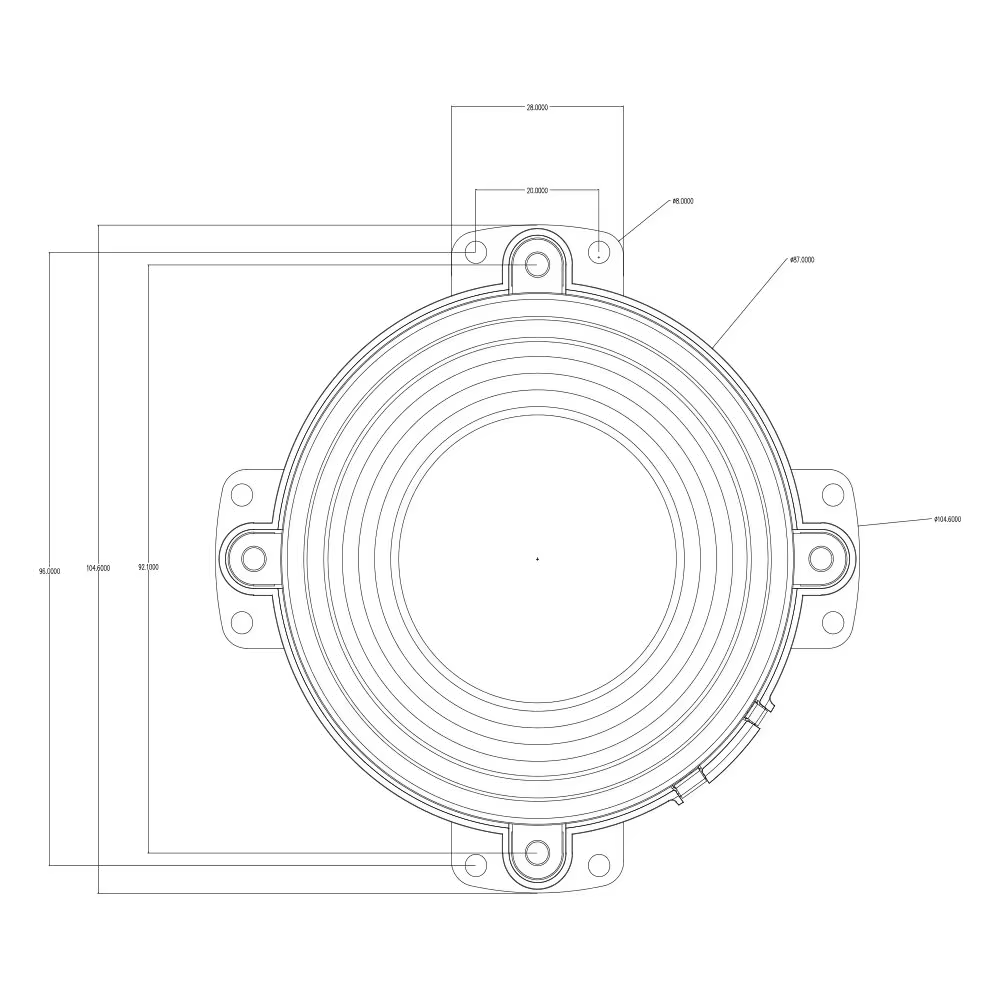

Measuring 3.37 inches in diameter and 1 inch tall, the mini bass shaker weighs 0.75 pounds, using a robust plastic cabinet. Its design includes a 70 mm cutout with a 25 mm slot to conveniently pass wiring during installation.
- Diameter: 3.37 inches
- Height: 1 inch
- Weight: 0.75 lbs
- Cutout dimension: 70 mm with 25 mm wire slot
Enhance audio experiences with body vibration
By mounting this transducer on surfaces in contact with your body, it converts low-frequency signals into vibrations you can feel. This means you can enjoy immersive bass sensations without turning your audio system volume very high, protecting your hearing while boosting realism.
Key specifications
- Power handling: 20 watts RMS / 30 watts max
- Impedance: 4 Ohms
- Frequency response: 20 to 80 Hz
- Dimensions: 3.37" diameter Γ 1" height
- Weight: 0.75 lbs
- Cutout dimension: 70 mm with 25 mm slot
What's in the box
- 1 x Sounderlink Puck Mini Bass Shaker
Product FAQ
Frequently asked questions
01 What applications is the Sounderlink Puck mini bass shaker designed for?
It is designed for home theater systems, gaming setups, and automotive sound applications.
02 What power handling does this bass shaker support?
It supports 20 watts RMS power handling with a maximum of 30 watts.
03 What is the impedance of this tactile transducer?
The impedance is 4 Ohms.
04 What frequency range does this shaker operate within?
It operates between 20 to 80 Hz, focusing on low-frequency bass.
05 What are the physical dimensions of the Sounderlink Puck?
The device measures 3.37 inches in diameter and 1 inch in height.
06 How does the mini bass shaker create the bass sensation?
It transfers low-frequency sound waves directly to the listener by vibrating surfaces contacted by the body.
07 Can multiple units of this shaker be used together?
Yes, using four units increases the force peak to 30 pounds per foot total.
08 Does the shaker include a wire passage for easy installation?
Yes, it has a 70 mm cutout with a 25 mm slot to pass wires through.
09 Is there any video resource available to help with setup?
Yes, setup videos are available upon request from the supplier.
10 What is the weight of the mini bass shaker?
It weighs approximately 0.75 pounds.
