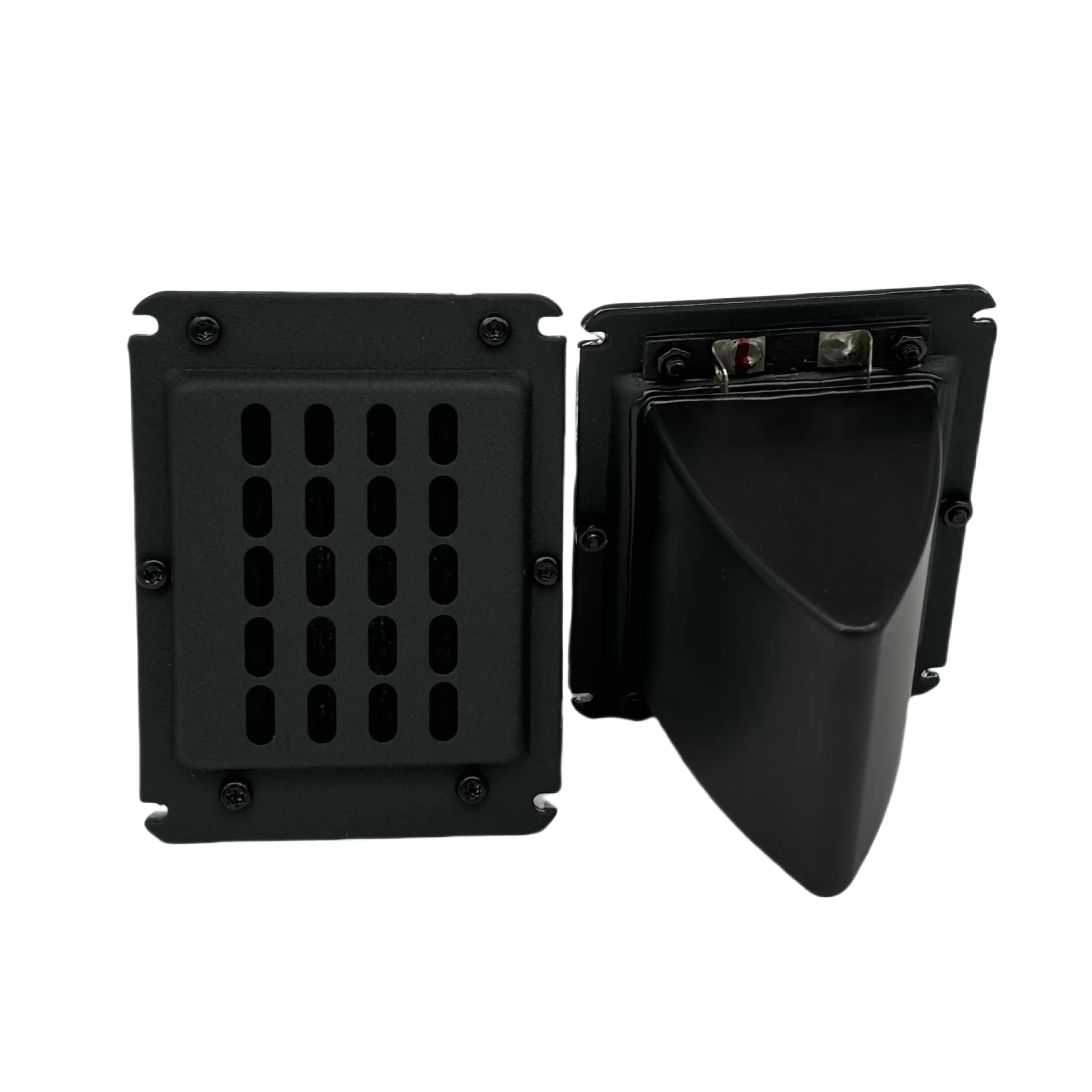

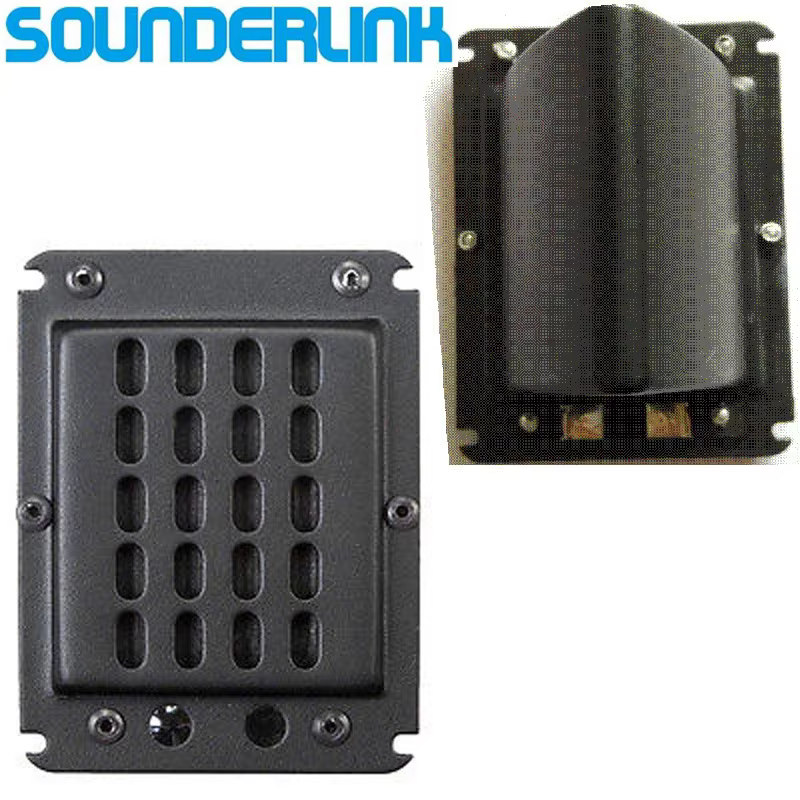

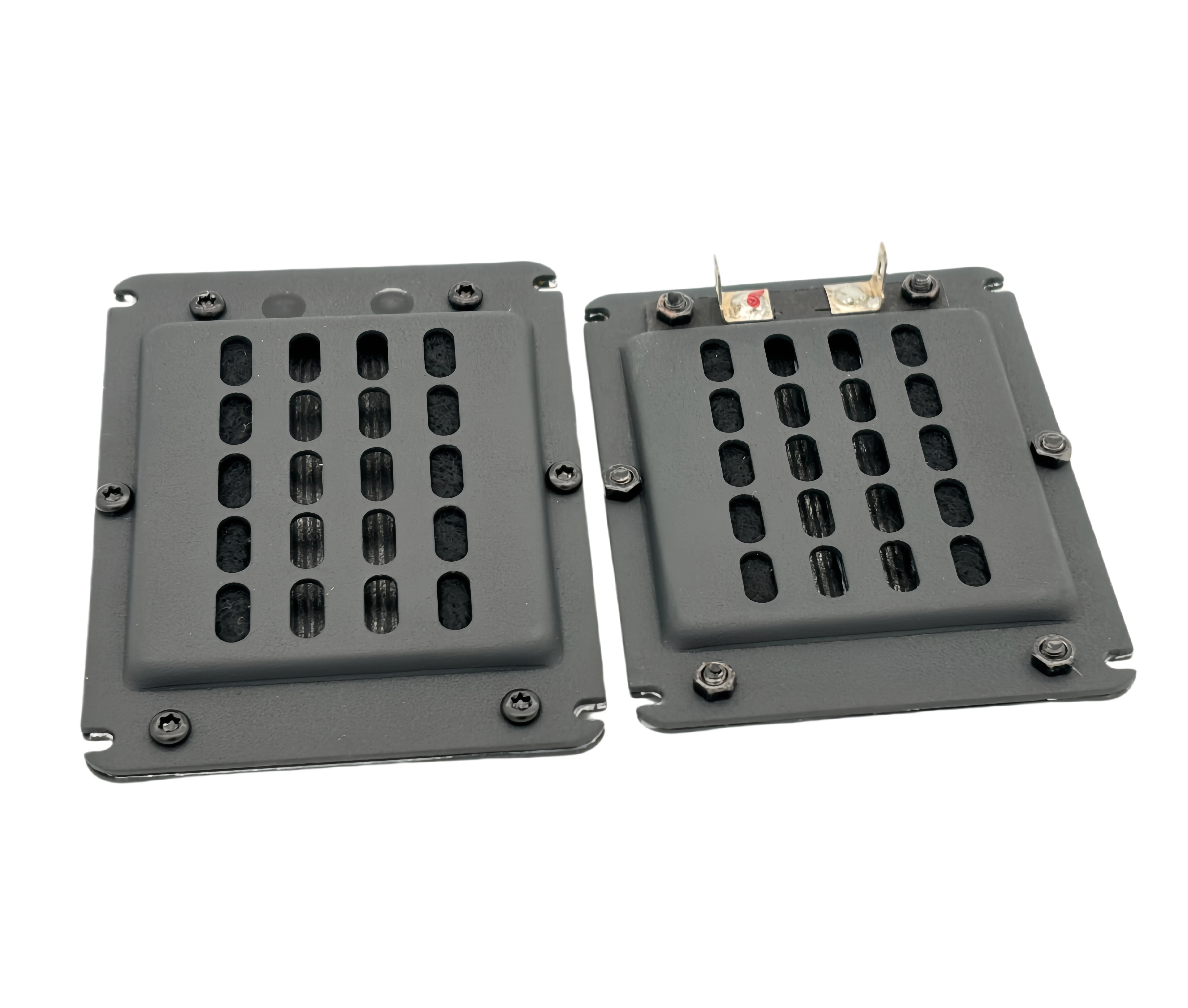

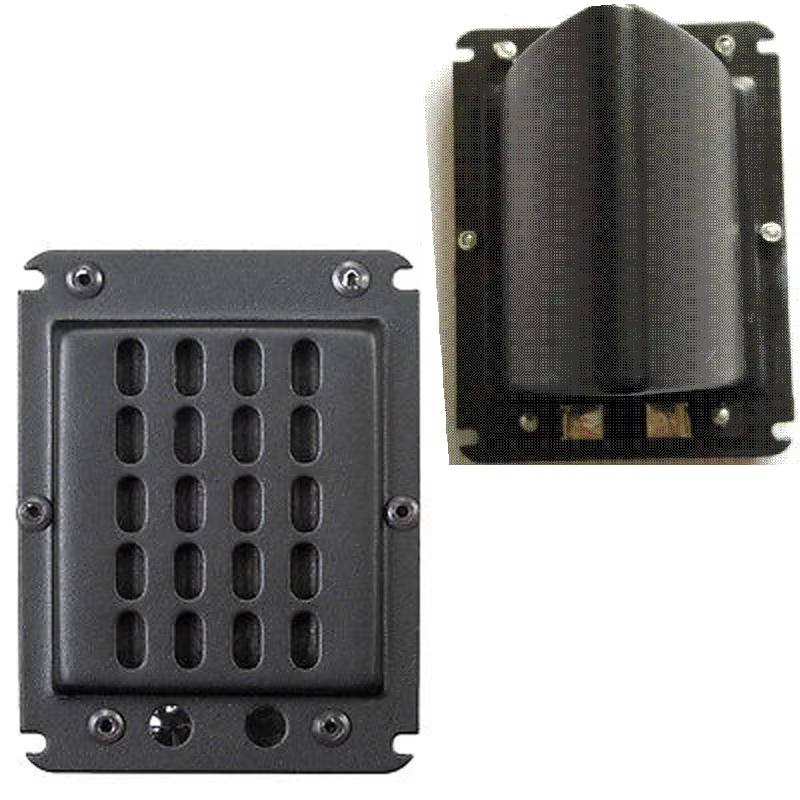

Sounderlink Planar Magnetic Speaker Driver & AMT Ribbon Tweeter
Original price was: $93.63.$64.43Current price is: $64.43.
Pay now, in 4 interest-free payments of $16.11, or over 3β6 months
4 interest-free payments of $16.11
High-performance planar magnetic driver with AMT ribbon tweeter.
4Ξ© impedance, 20W RMS power handling, 93dB sensitivity.
β
Estimated Delivery Time3β7 business days
Advanced Planar Magnetic Design
This Sounderlink driver features the AMT-300-2 planar-magnetic transducer with a ribbon tweeter and innovative Kaladex diaphragm material. Kaladex, developed by Dupont, offers superior thermal limits, reduced mass, and enhanced mechanical stability compared to traditional Mylar diaphragms, elevating sound quality and durability.
Enhanced Power and Sensitivity
With a 4-ohm impedance, this driver supports 20 watts RMS and peaks at 40 watts. It delivers a high sensitivity of 93 dB at 1 watt/1 meter, making it efficient and responsive for dynamic audio reproduction.
- Impedance: 4 ohms
- Power Handling: 20 W RMS, 40 W max
- Sensitivity: 93 dB @ 1W/1m
Wide Frequency Response
The driver covers a broad frequency range from 1000 Hz up to 35,000 Hz, suitable for high-fidelity applications requiring crisp mid to high frequencies and clear detail.
Premium Construction Materials
The diaphragm is made from PEN and aluminum foil laminate, combined with a strong neodymium magnet system for enhanced magnetic flux and consistent performance. This design results in excellent sound clarity and longevity.
- Diaphragm: PEN & Aluminum foil
- Magnet System: Neodymium
Compact Size for Easy Integration
With an overall diameter of 3.5 inches by 2.66 inches and a depth of 2.59 inches, this planar magnetic driver fits well in custom speaker builds and DIY projects.
- Diameter: 3.5" x 2.66"
- Depth: 2.59"
Key specifications
- Impedance: 4 ohms
- Power Handling: 20W RMS, 40W max
- Sensitivity: 93 dB @ 1W/1m
- Frequency Response: 1000β35,000 Hz
- Diaphragm Material: PEN & Aluminum foil
- Magnet System: Neodymium
- Dimensions: 3.5" x 2.66" diameter, 2.59" depth
What's in the box
- 1 x Sounderlink planar magnetic speaker driver with AMT ribbon tweeter
Product FAQ
Frequently asked questions
01 What type of diaphragm does this planar magnetic driver use?
It uses a Kaladex diaphragm material laminated with aluminum foil for higher thermal limits and durability.
02 What is the impedance of this Sounderlink speaker driver?
The driver has a 4-ohm impedance.
03 What power handling capacity does the speaker have?
It handles 20 watts RMS power and up to 40 watts maximum.
04 What frequency range can this driver cover?
It covers a frequency response from 1000 Hz to 35,000 Hz.
05 Is this product sold as a single unit or a pair?
The package contains one piece; purchasing two pieces is required for a pair.
06 What type of magnet system is used in this driver?
It uses a neodymium magnet system for efficient performance.
07 What are the physical dimensions of the driver?
Overall diameter is 3.5 by 2.66 inches with a depth of 2.59 inches.
08 Does this speaker include a cabinet or housing?
No, it is intended as a driver for DIY speaker projects and does not include a cabinet.
09 What is the sensitivity rating of the driver?
The sensitivity is rated at 93 dB at 1 watt/1 meter.
10 Does the driver feature an AMT ribbon tweeter?
Yes, it includes an AMT-300-2 series planar-magnetic ribbon tweeter with back cup design.
