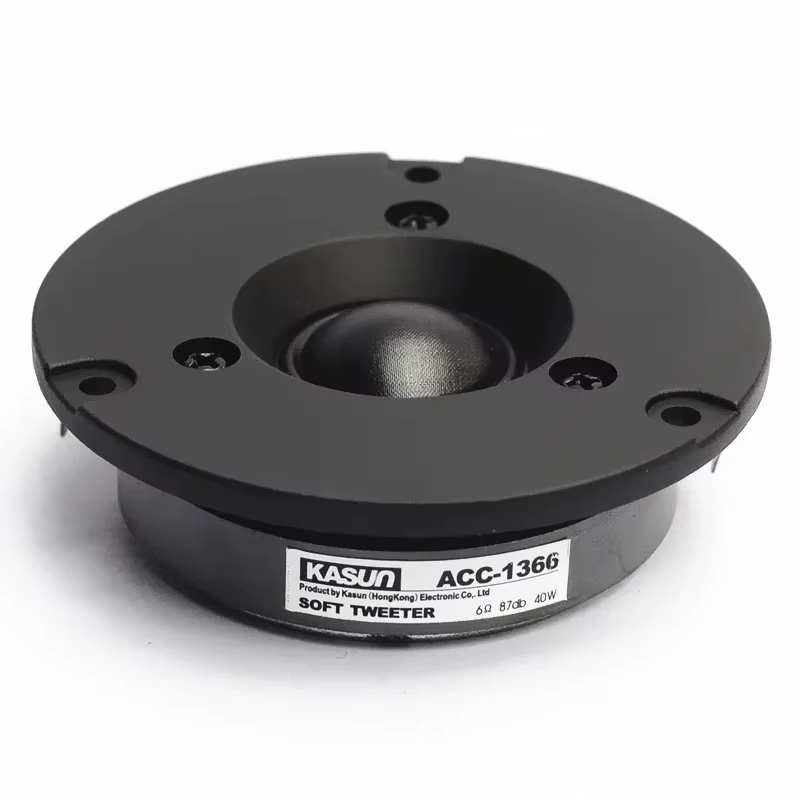

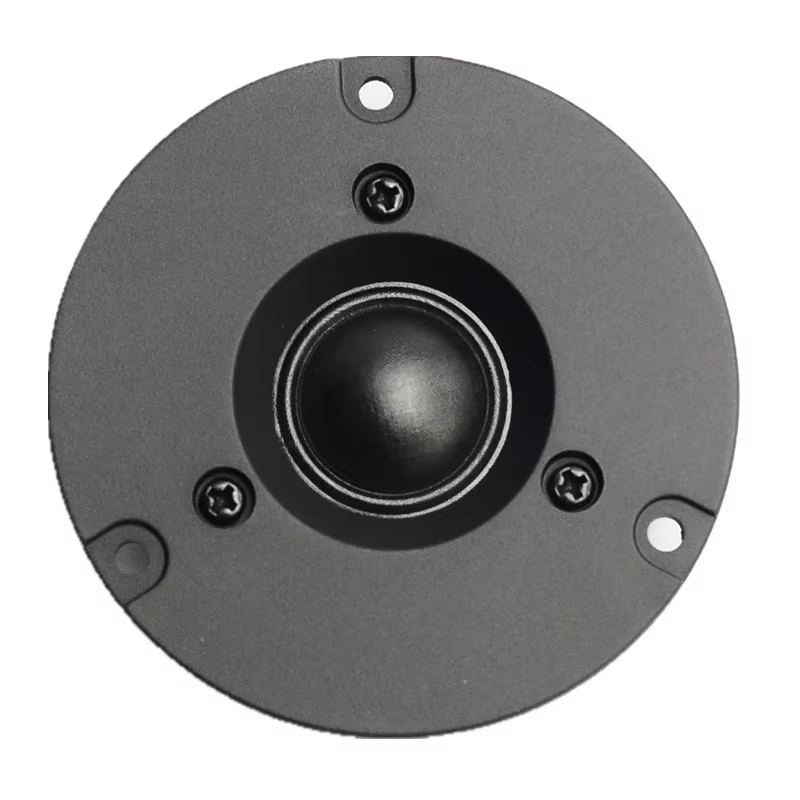

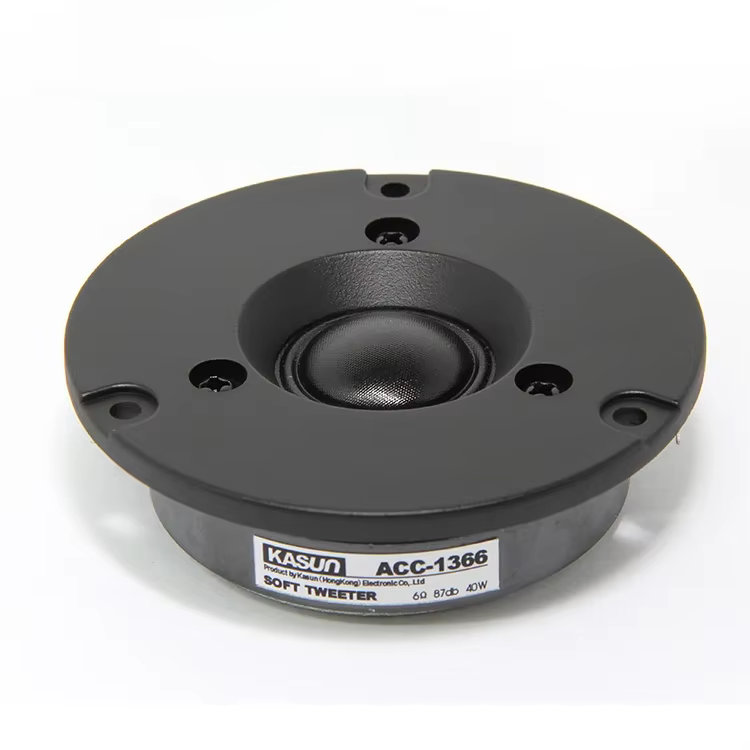

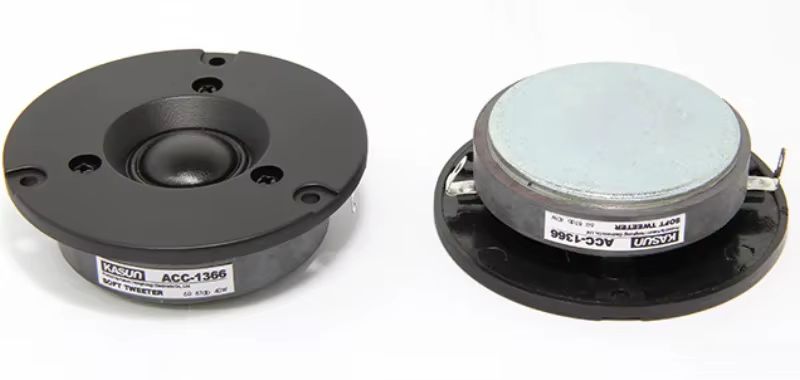

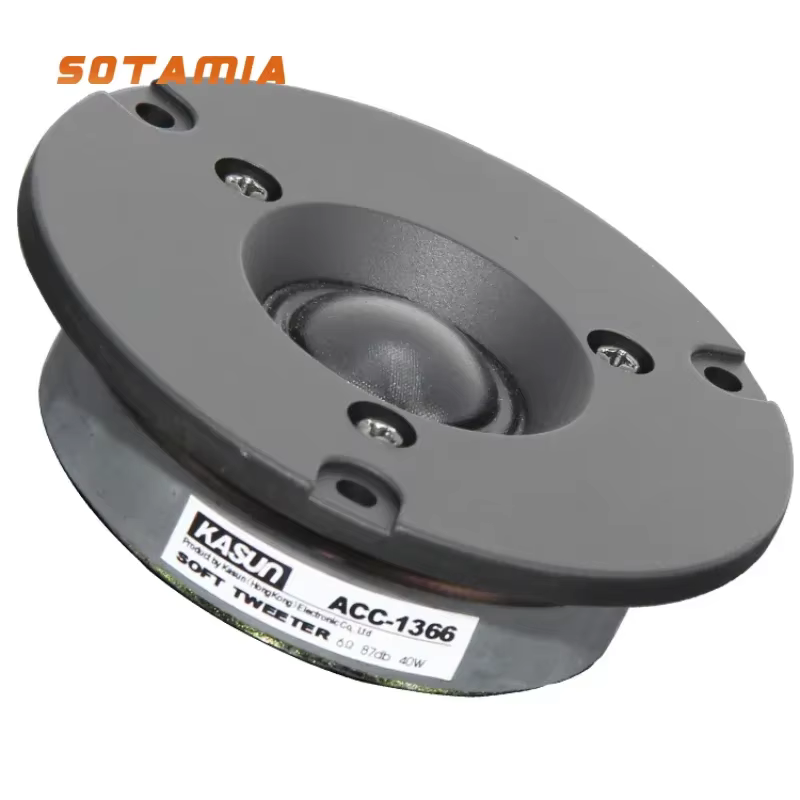

SOTAMIA 3-Inch Silk Film Tweeter Speaker 6 Ohm 40W
Original price was: $25.65.$18.72Current price is: $18.72.
Pay now, in 4 interest-free payments of $4.68, or over 3β6 months
4 interest-free payments of $4.68
Enhance your audio system with the SOTAMIA 3-inch silk film dome tweeter, delivering crisp highs and superb clarity at 40W power.
- 6 ohm impedance for efficient performance
- Wide frequency response from F0 to 20KHz
- Metal cabinet with two-way audio crossover
956 in stock
β
Estimated Delivery Time3β7 business days
Precision Treble Performance
The SOTAMIA 3-inch tweeter employs a silk film dome designed to deliver clear and detailed high frequencies, enhancing your listening experience with crisp, dynamic treble sound.
With a sensitivity of 87dB and resonance frequency at 1800 Hz, it produces accurate audio reproduction ideal for home theater systems and hi-fi setups.
Robust Construction and Compatibility

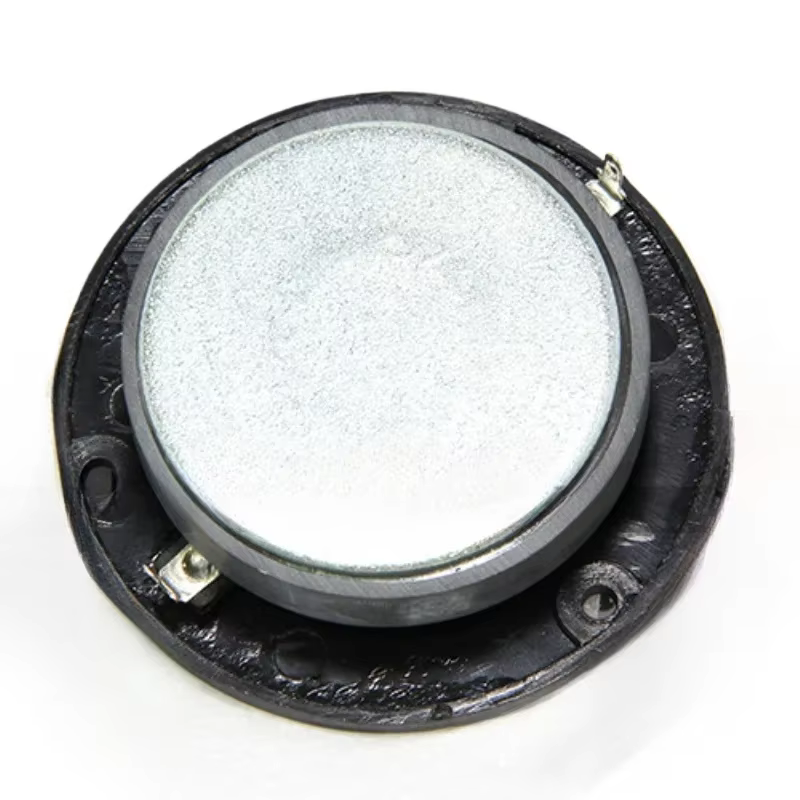

Constructed with a metal cabinet and equipped with a 60mm diameter magnetic steel, the tweeter offers durability and stable performance over time.
Its 6-ohm impedance and 40W power rating ensure compatibility with a wide range of audio amplifiers and enclosures.
Specifically Designed Dimensions
The tweeter measures 78mm in panel diameter with a total height of 24mm, fitting speaker openings between 61-64mm for easy installation.
The 71mm screw hole diameter matches standard mounting options for secure and stable fixture.
Effective Two-Way Audio Crossover
Incorporating a two-way crossover system, the tweeter optimizes frequency distribution by accurately handling high-frequency treble signals.
This allows for smooth integration with midrange and bass drivers in multi-speaker setups.
Key specifications
- Impedance: 6 ohms
- Power Rating: 40 watts
- Sensitivity: 87 dB
- Resonance Frequency: 1800 Hz
- Frequency Response: F0β20 kHz
- Voice Coil Diameter: 20 mm
- Panel Diameter: 78 mm
- Screw Hole Diameter: 71 mm
- Speaker Opening Diameter: 61β64 mm
- Total Height: 24 mm
- Magnetic Steel Diameter: 60 mm
- Cabinet Material: Metal
- Audio Crossover: Two-Way
What's in the box
- 1 x 3-inch SOTAMIA silk film tweeter speaker
Product FAQ
Frequently asked questions
01 What is the power rating of the SOTAMIA 3-inch tweeter?
The tweeter has a power rating of 40 watts.
02 What impedance does this tweeter have?
This tweeter has an impedance of 6 ohms.
03 What materials are used in the tweeter construction?
It features a silk film dome and a metal cabinet.
04 What is the frequency response range of this tweeter?
The frequency response ranges from F0 to 20KHz.
05 What is the size of the tweeter's voice coil?
The voice coil diameter is 20 millimeters.
06 What are the physical dimensions of the tweeter panel?
The panel diameter is 78 millimeters, with total height of 24 millimeters.
07 Is this tweeter designed for home audio use?
Yes, it is intended for home audio and theater sound applications.
08 What type of audio crossover does the tweeter use?
It uses a two-way audio crossover.
09 How many tweeters are included in the package?
The package includes one 3-inch tweeter speaker.
10 Does the tweeter come with an onboard adapter or battery?
No, this tweeter requires no power source and does not include an adapter or battery.
