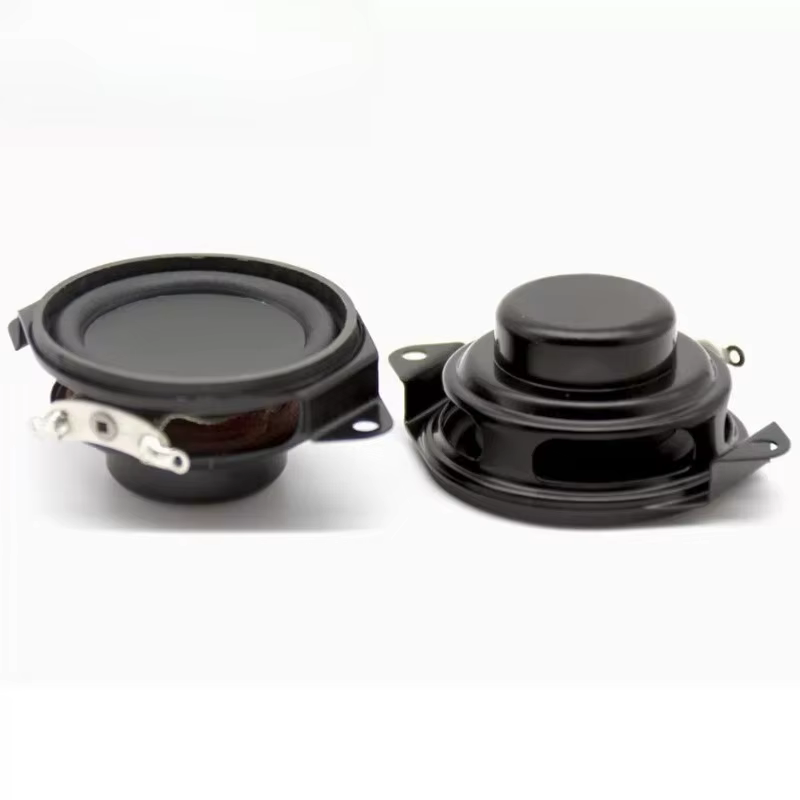

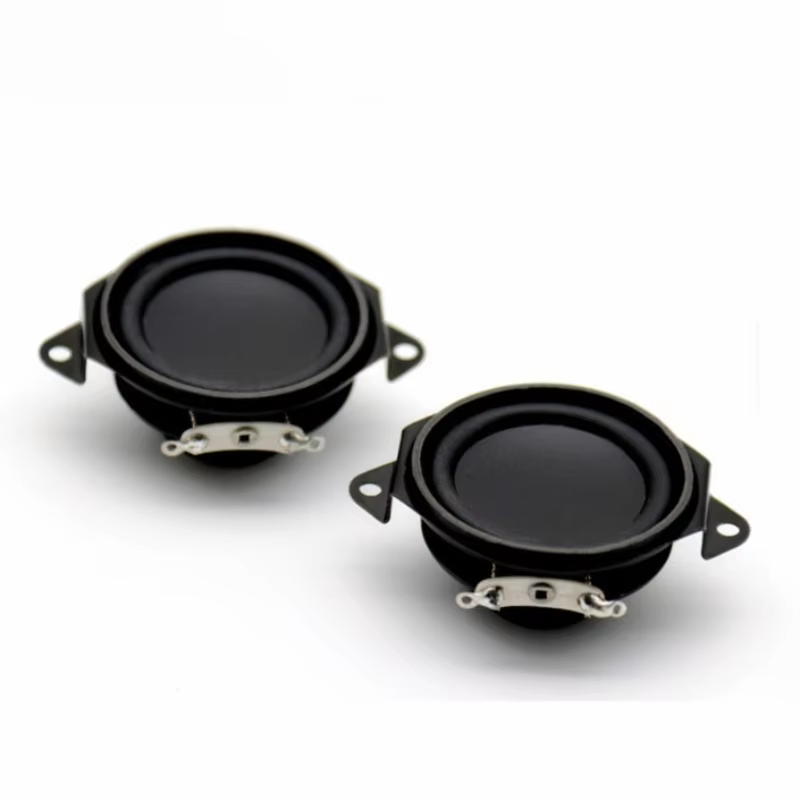

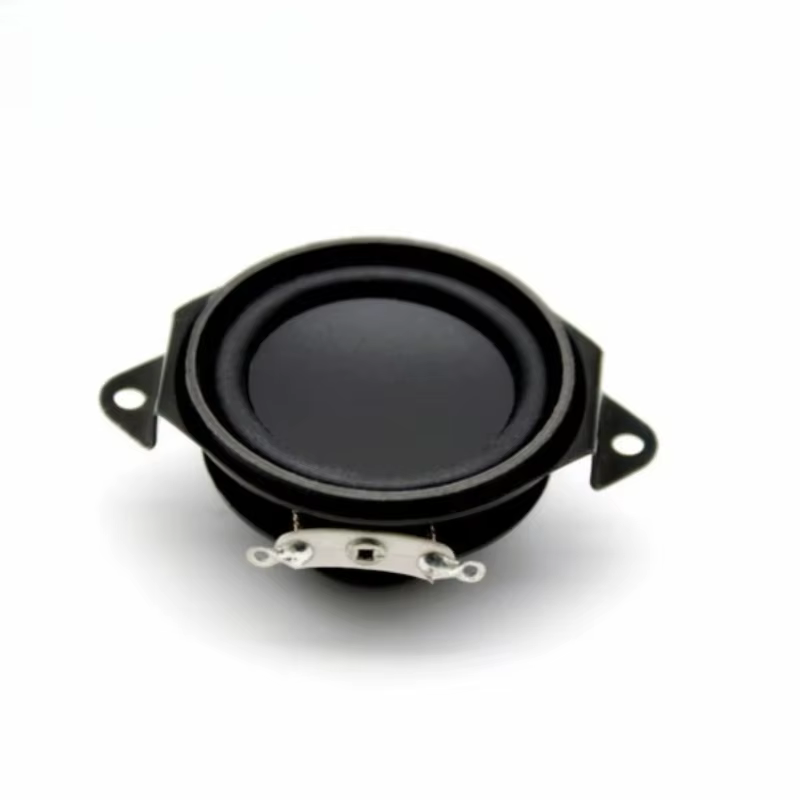

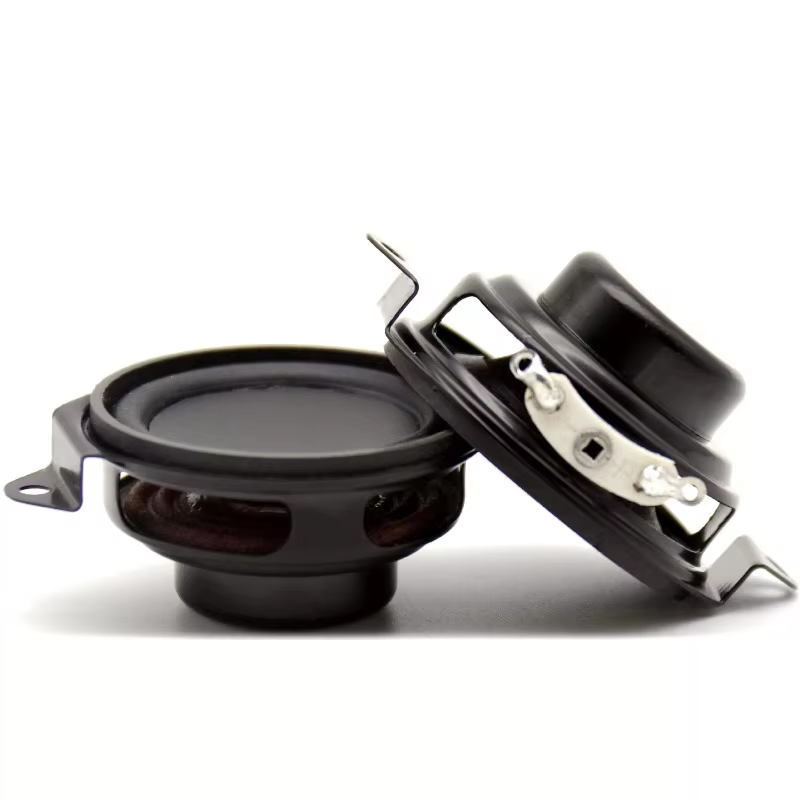

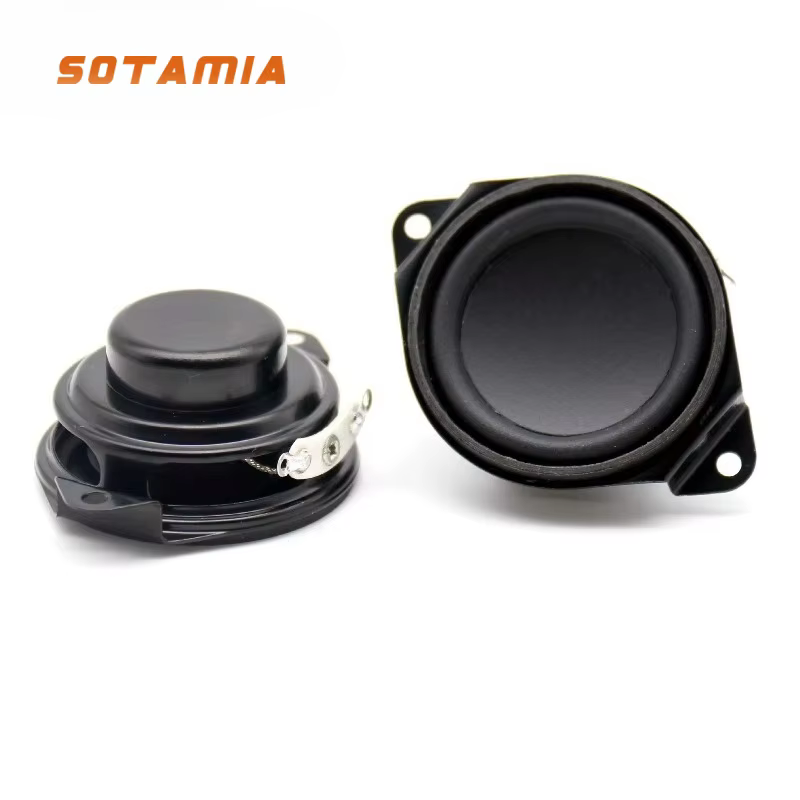

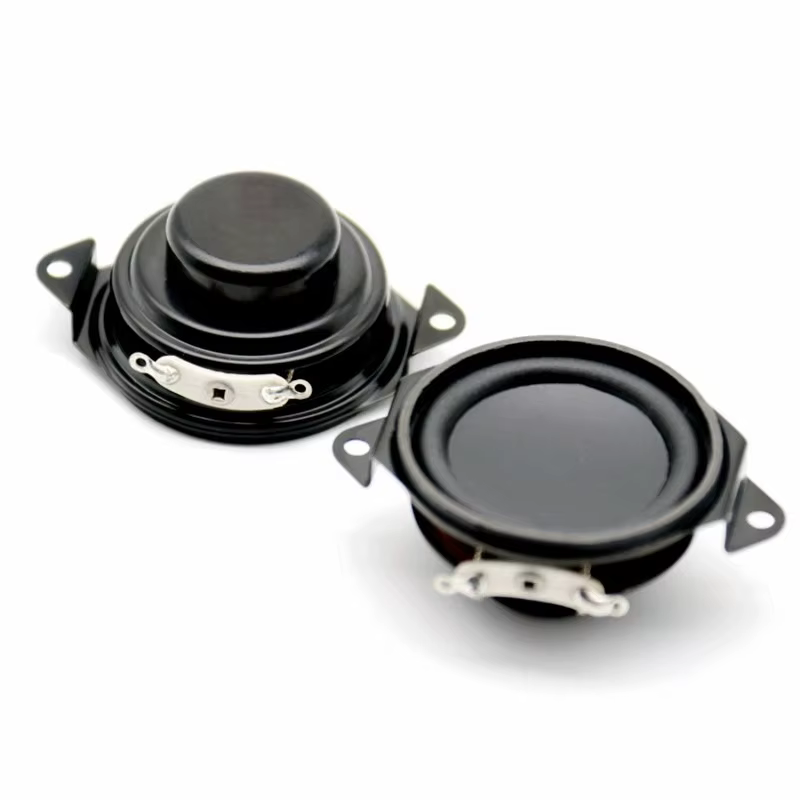

SOTAMIA 1.5 Inch 5W Full Range Audio Speaker Pair
Original price was: $18.53.$13.53Current price is: $13.53.
Pay now, in 4 interest-free payments of $3.38, or over 3–6 months
4 interest-free payments of $3.38
Set of 2 compact 1.5-inch full range speakers with 5W power, 4/8 Ohm impedance, metal cabinet, and high sensitivity.
↗
Estimated Delivery Time3–7 business days
Compact Power in a Small Package
The SOTAMIA 1.5-inch full range speaker delivers quality audio in a compact size ideal for DIY Bluetooth and HiFi sound projects. Built with a sturdy metal cabinet and precise 40mm diameter, it's well suited for custom speaker builds and replacement needs.
Robust Build and Materials
Featuring a 22mm neodymium magnet, a composite aluminum cone, and a durable rubber edge surround, these speakers provide a reliable performance with clear sound reproduction. The iron frame ensures structural strength and longevity.
- Composite aluminum cone for crisp sound
- Rubber edge for flexible cone movement
- Iron frame for durability
- Neodymium magnet for strong magnetic field
Sound and Power Specifications
With impedance options of 4 or 8 Ohms and sensitivity rated at 85dB, these speakers handle a nominal power of 5W and can peak up to 10W max. Their full-range crossover design allows broad frequency coverage in a single unit.
- Rated power: 5W
- Maximum power: 10W
- Sensitivity: 85dB
- Impedance: 4/8 Ohms
Dimensions and Installation
The total speaker height is 21mm with a 6mm tilted foot height for secure mounting. Panel diameter is 40mm with a diagonal diameter of 55mm, fitting openings of 40mm and diagonal screw pitch of 49mm for easy integration into custom builds.
- Total height: 21mm
- Tilted foot height: 6mm
- Panel diameter: 40mm
- Screw pitch: 49mm
Key specifications
- Speaker Diameter: 1.5 inch (40mm)
- Impedance: 4/8 Ohm
- Rated Power: 5W
- Max Power: 10W
- Sensitivity: 85dB
- Total Height: 21mm
- Magnet Type: 22mm Neodymium
What's in the box
- 2 x 1.5 Inch Full Range Audio Speakers
Product FAQ
Frequently asked questions
01 What is the impedance of these SOTAMIA speakers?
These speakers have an impedance of 4 or 8 Ohms, suitable for many audio applications.
02 What is the rated and maximum power of these speakers?
The rated power is 5W with a maximum power handling of 10W.
03 What size are these full range speakers?
They measure 1.5 inches (40mm panel diameter) in size.
04 What materials are used in the speaker cone and frame?
The speakers use a composite aluminum cone, rubber edge surround, iron frame, and a 22mm neodymium magnet.
05 How many speakers come in the package?
Each package includes two full range speakers.
06 Are these speakers designed for portable or home use?
They are portable speakers mainly intended for home audio or DIY Bluetooth speaker projects.
07 Do these speakers come with a crossover?
Yes, these are full-range speakers with integrated full-range audio crossover functionality.
08 What is the sensitivity rating of these speakers?
They have a sensitivity of 85dB, offering decent sound output for their size.
09 Are these speakers waterproof?
No, these speakers are not waterproof.
10 What are the physical dimensions and mounting requirements?
Total height is 21mm with a built-in opening of 40mm and a diagonal screw pitch of 49mm.
