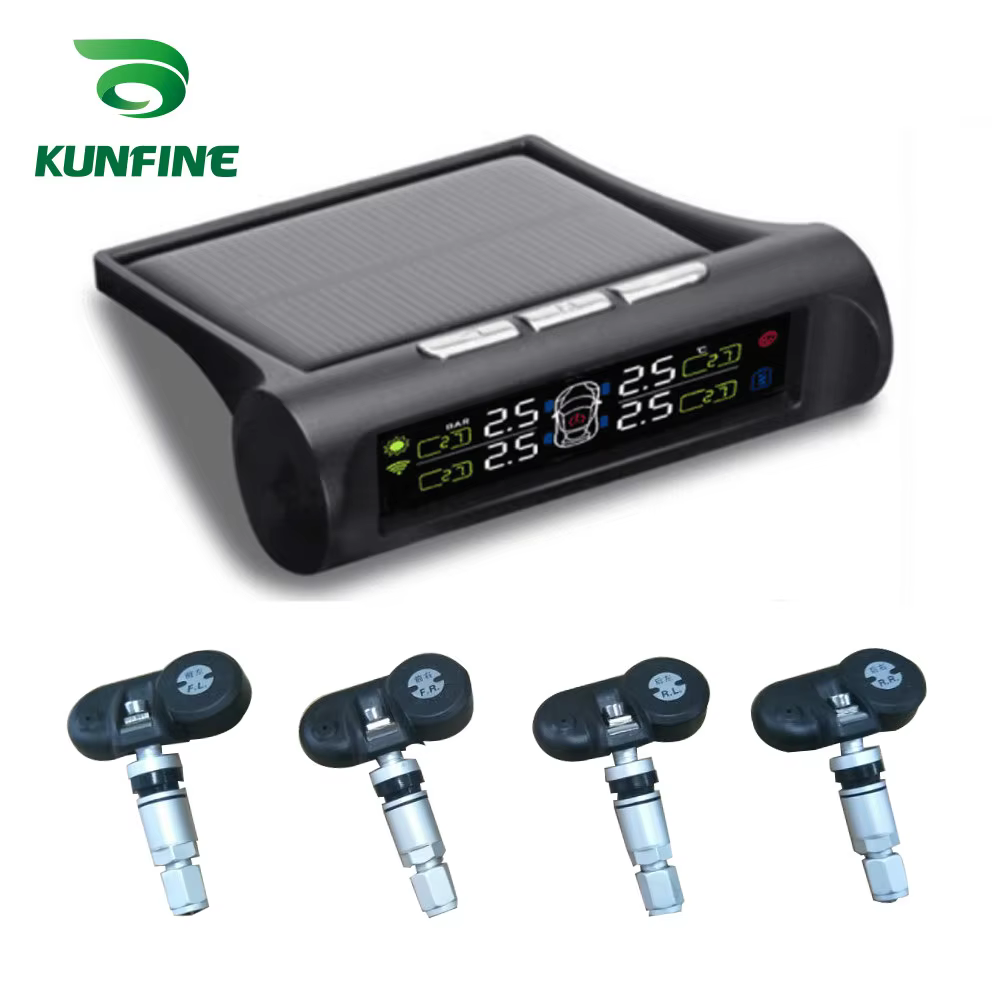

Smart Solar TPMS Tire Pressure Monitoring System LCD Display
Price range: $28.89 through $31.98
Pay now, in 4 interest-free payments of $7.22, or over 3–6 months
4 interest-free payments of $7.22
Smart car TPMS with solar-powered LCD display for real-time tire pressure and temperature monitoring. Offers low pressure and high temperature alerts. Available with internal or external sensors.
↗
Estimated Delivery Time3–7 business days
Reliable Tire Monitoring Powered by Solar Energy

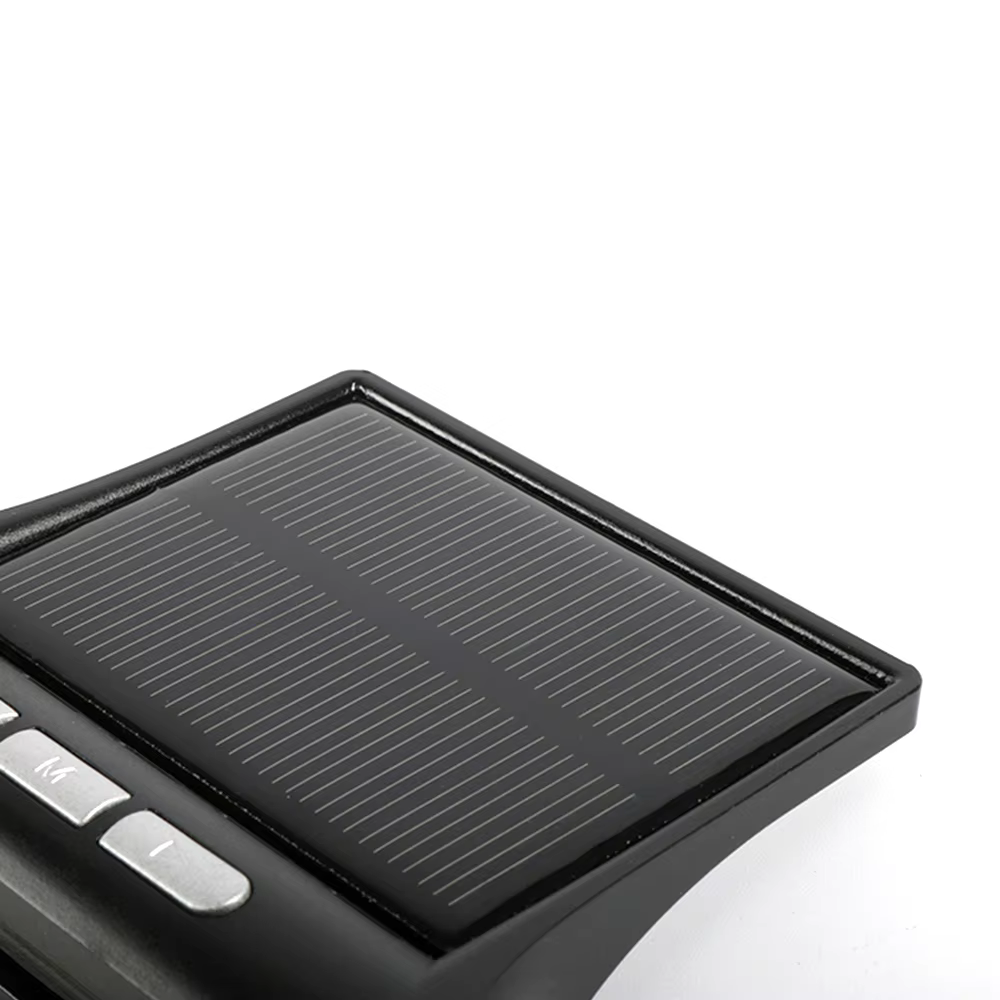

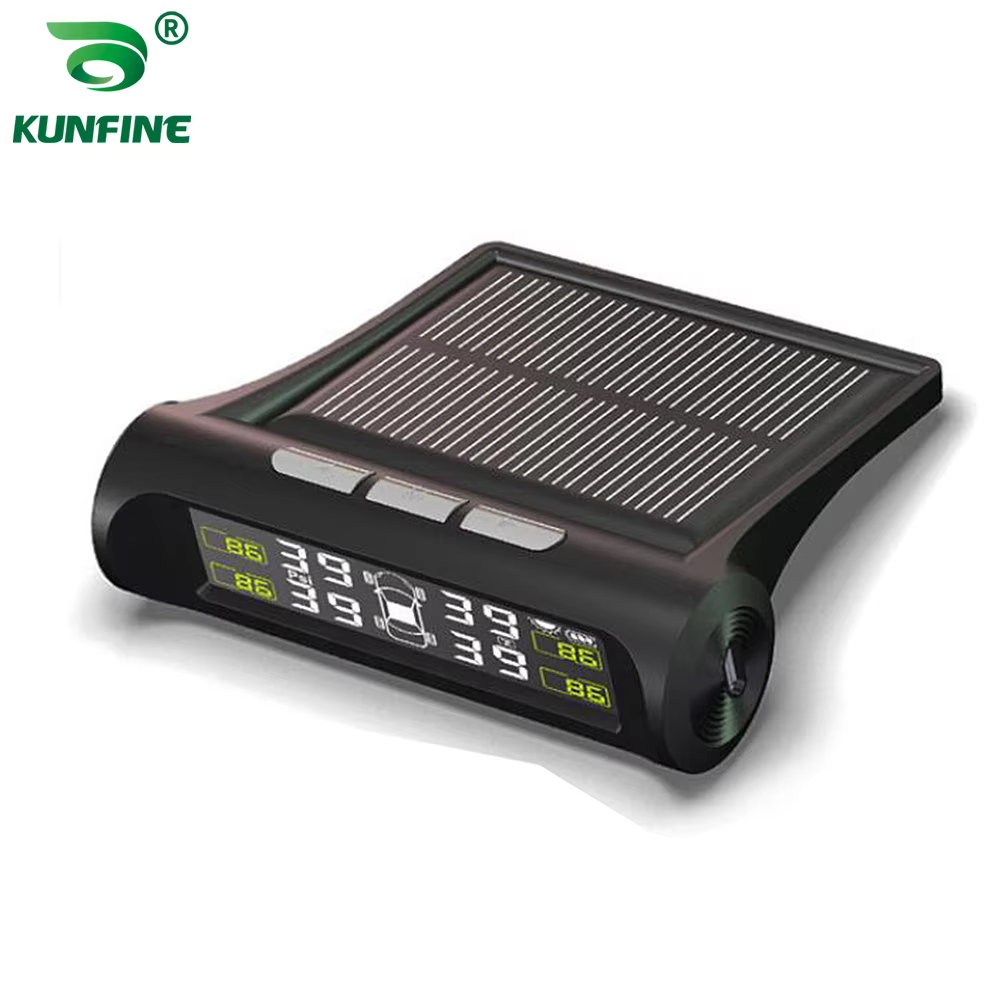

This innovative TPMS features a solar charging LCD display that automatically adjusts brightness to ensure clear visibility. It constantly monitors your vehicle's tire pressure and temperature to enhance driving safety.
Accurate Alerts for Tire Safety
Stay informed with timely low pressure and high temperature warnings, helping to prevent tire damage and maintain optimal performance.
- Pressure alarm triggers above 46.5 Psi or below 26.0 Psi
- Pressure measurement accuracy of ±1.5 Psi
- Temperature monitoring range from -40 ℃ to 120 ℃
Sensor Options for Your Needs

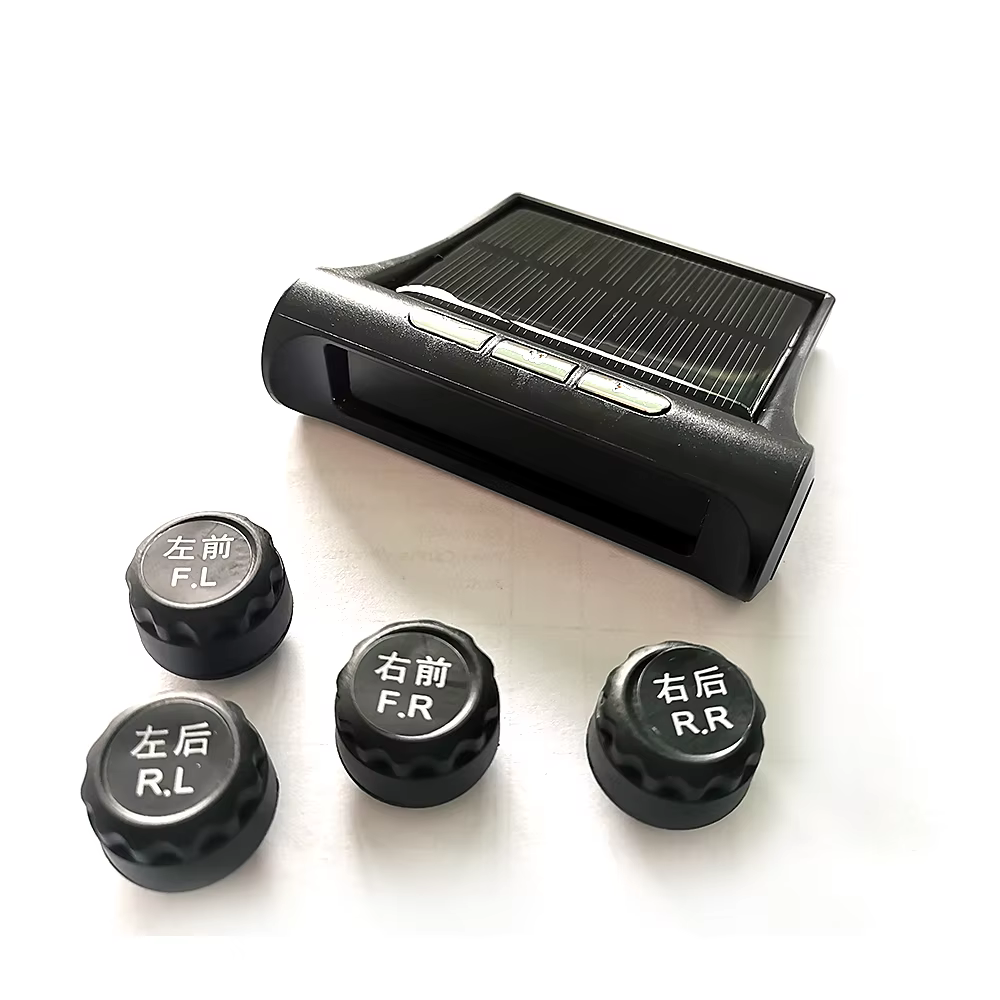

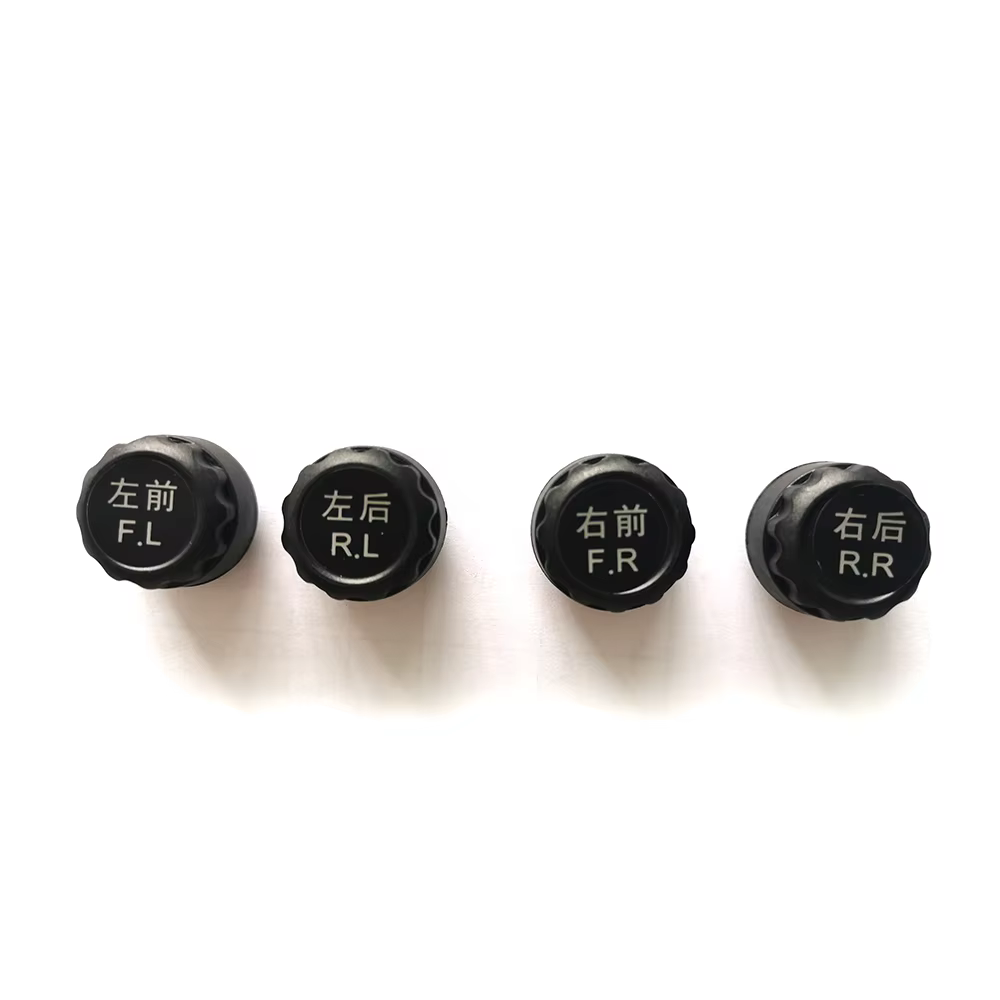

Choose between external sensors, which offer a replaceable battery with over two years of life, or internal sensors with non-replaceable batteries suited for specific installation preferences.
- External sensor battery life exceeds 2 years or 30,000 km
- Internal sensors are compact but non-replaceable battery
User-Friendly Interface and Installation
The system includes a clear color LCD and three-button interface for easy navigation and setup. Installation is straightforward, with the monitor attaching to your windshield and sensors fitted to tires.
- Long press buttons to power on/off
- Automatic sensor ID code learning when sensors are replaced
- Solar and USB port charging options
Robust Sensor Specifications
Designed to operate reliably in harsh conditions with an IP67 waterproof rating, suitable for various humidity levels from 0% to 100%.
Sensors communicate with the display via reliable 433.92 MHz frequency.
- Wide working temperature and humidity tolerance
- IP67 waterproof external sensors
Key specifications
- Operating Frequency: 433.92 MHz
- Working Temperature: -40 ℃ to 120 ℃ (Sensors), -20 ℃ to 75 ℃ (Monitor)
- Humidity Range: 0% to 100%
- Pressure Range: 0 – 75 Psi
- Alarm Pressure Threshold: >46.5 Psi or
- Pressure Accuracy: ±1.5 Psi
- Battery Life (External Sensor): Over 2 years / 30,000 km
- Working Voltage (Monitor): 3.7-5 V
- Waterproof Rating (Sensors): IP67

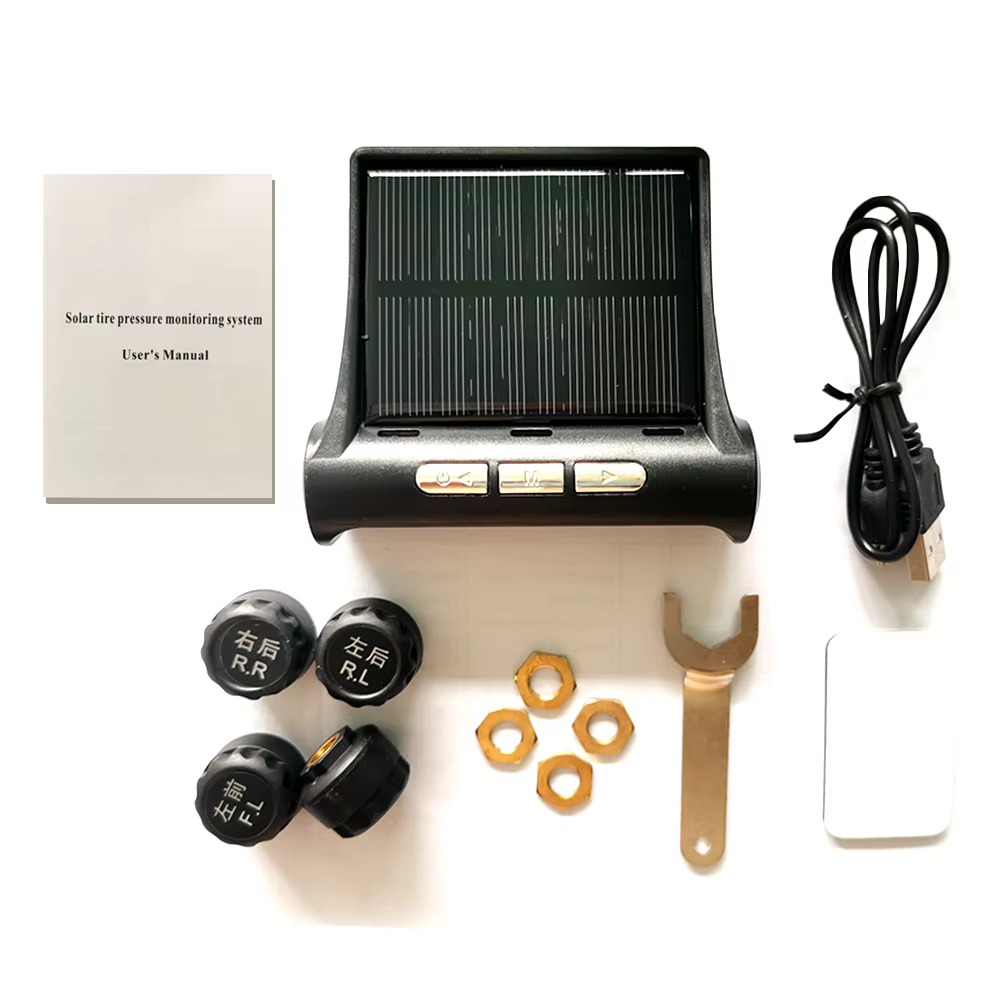

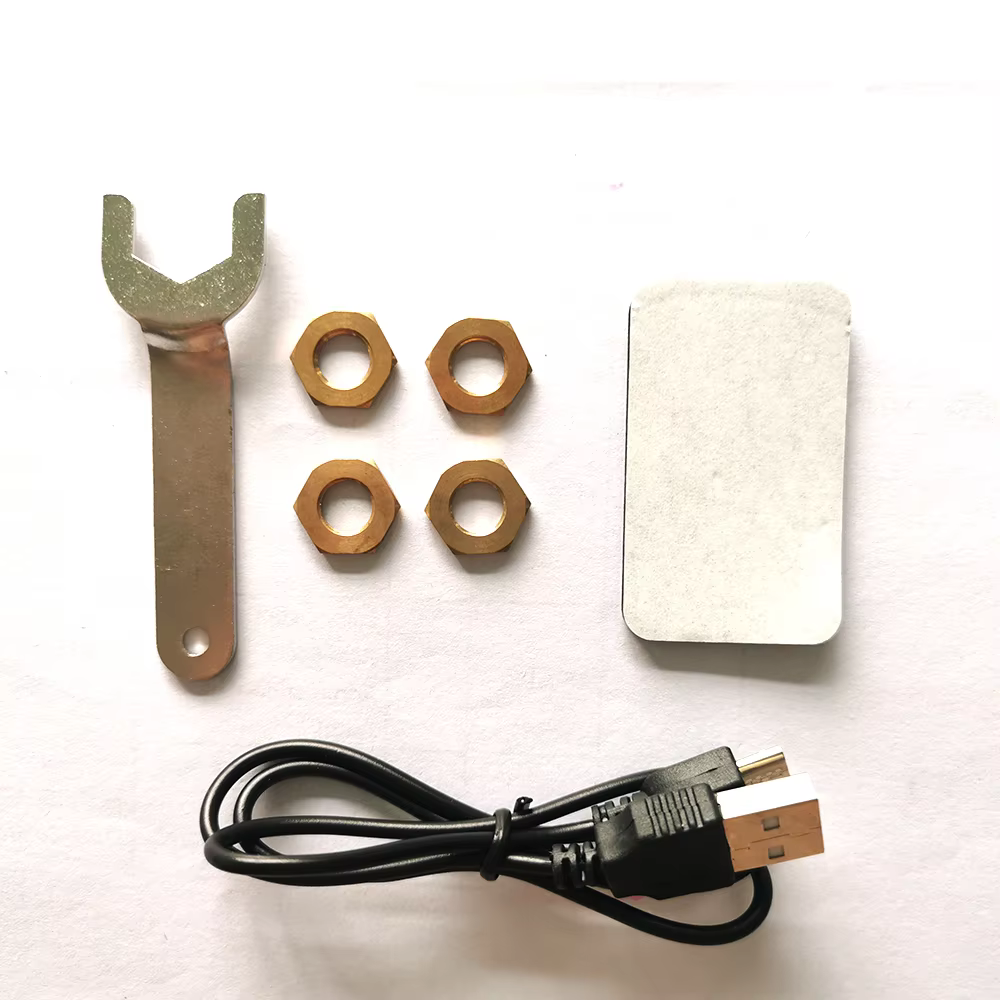

What's in the box
- TPMS monitor with solar panel LCD display
- Set of four tire sensors (internal or external based on option)
Product FAQ
Frequently asked questions
01 What types of sensors are available for this TPMS?
This TPMS comes with either internal sensors, which have non-replaceable batteries, or external sensors with replaceable batteries.
02 How is the TPMS powered?
The TPMS monitor features solar power charging and can also be charged via a USB port on the display.
03 What information does the LCD display show?
The LCD color display shows real-time tire pressure, temperature for each tire, battery level, and tire position.
04 Can I change the battery in the sensors?
External sensors have replaceable batteries with a lifespan of over 2 years or 30,000 km; internal sensors do not support battery replacement.
05 Does the system provide warnings?
Yes, it issues alerts for low tire pressure and high tire temperature conditions.
06 What is the operating temperature range of the sensors?
Sensors operate between -40 ℃ and 120 ℃.
07 What is the pressure alarm threshold?
Alarms trigger at tire pressures above 46.5 Psi or below 26.0 Psi.
08 How accurate is the pressure measurement?
Pressure accuracy is ±1.5 Psi.
09 How is the TPMS installed on the vehicle?
The monitor adheres to the car windscreen for easy installation; sensors attach to the tires accordingly.
10 What frequency do the sensors and monitor operate on?
They operate at 433.92 MHz with a tolerance of ±50 KHz.
