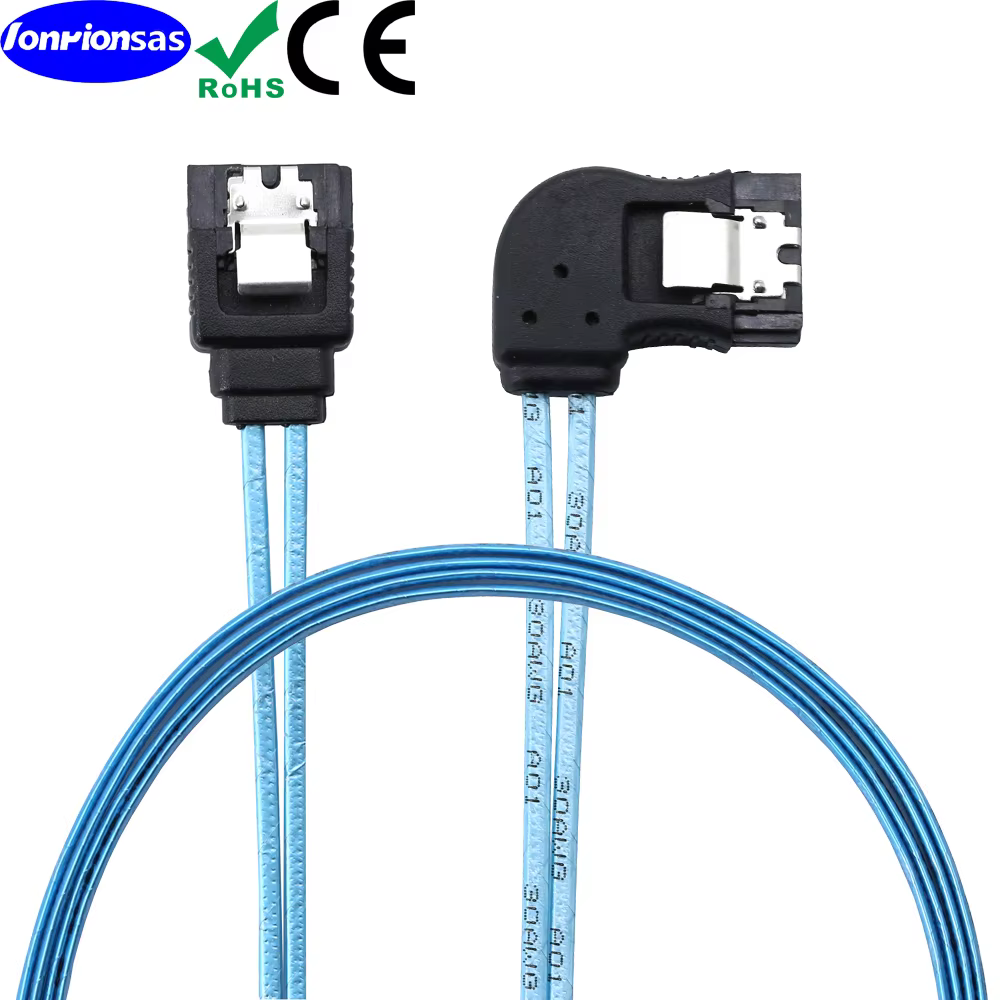

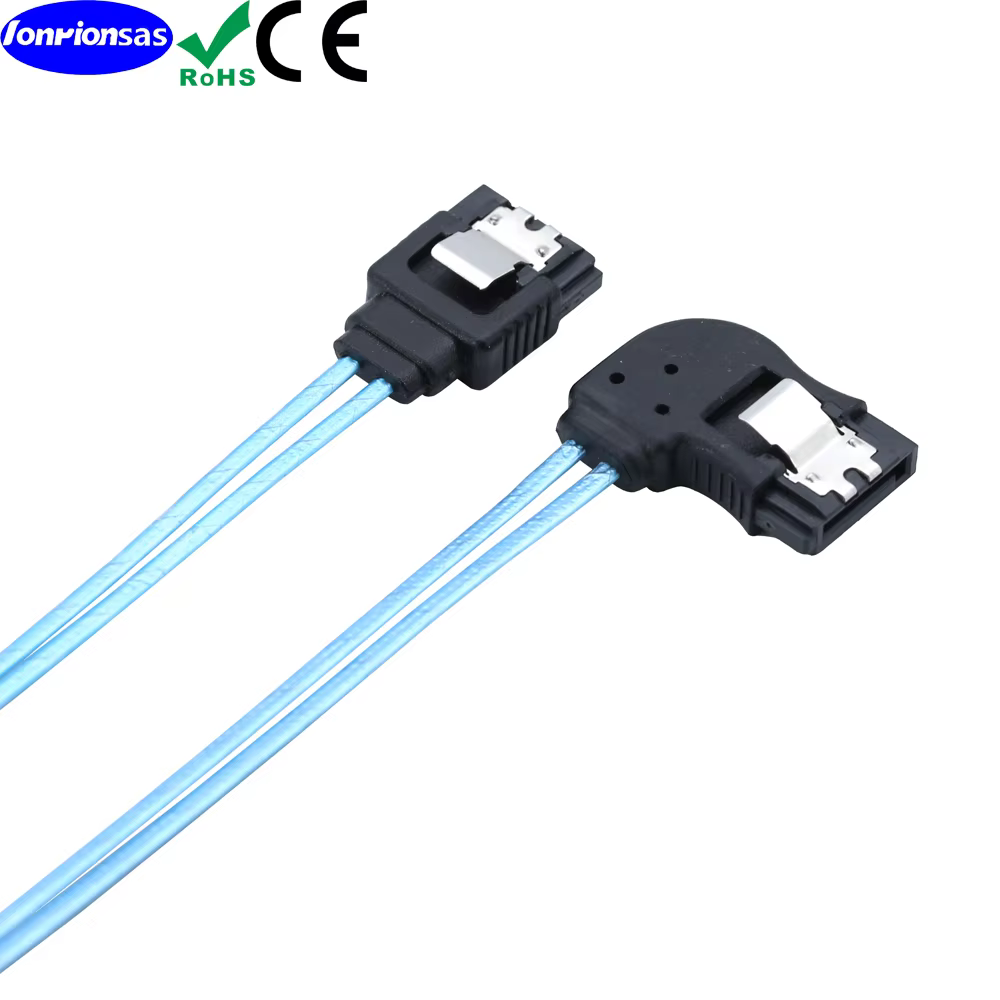

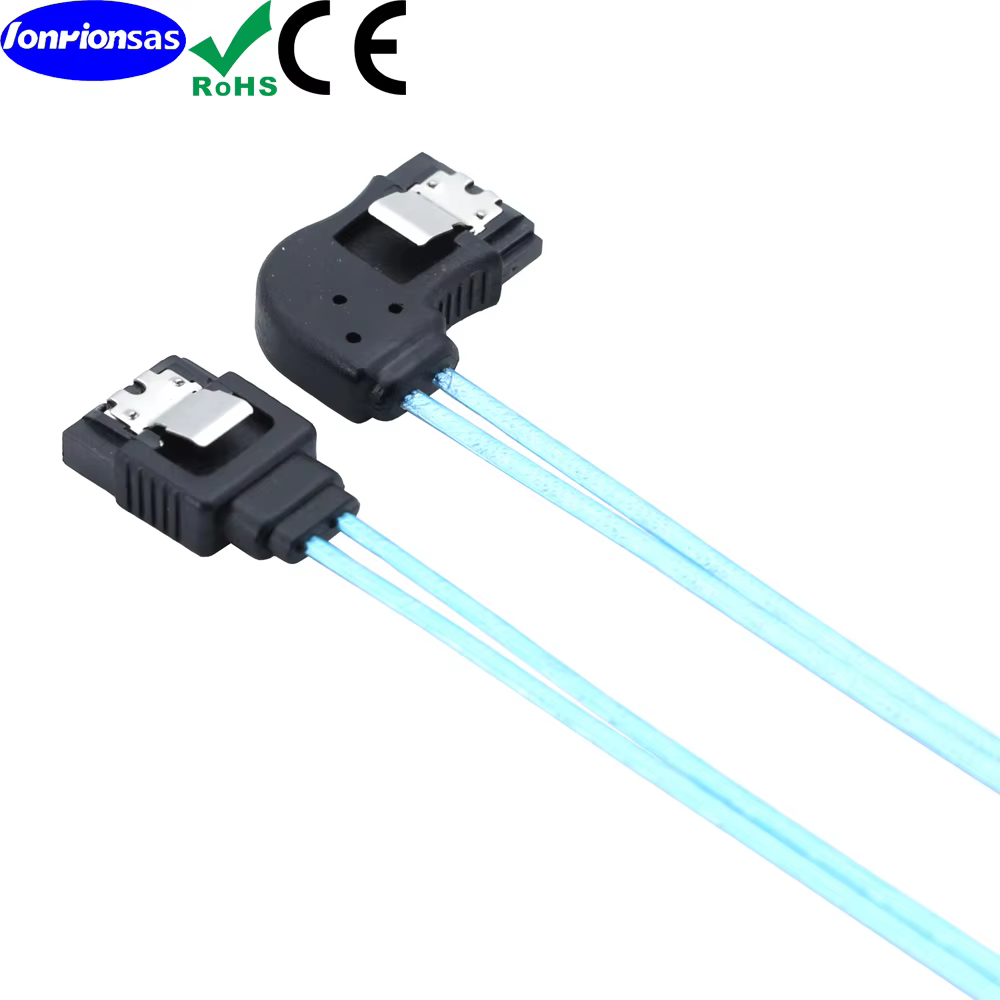

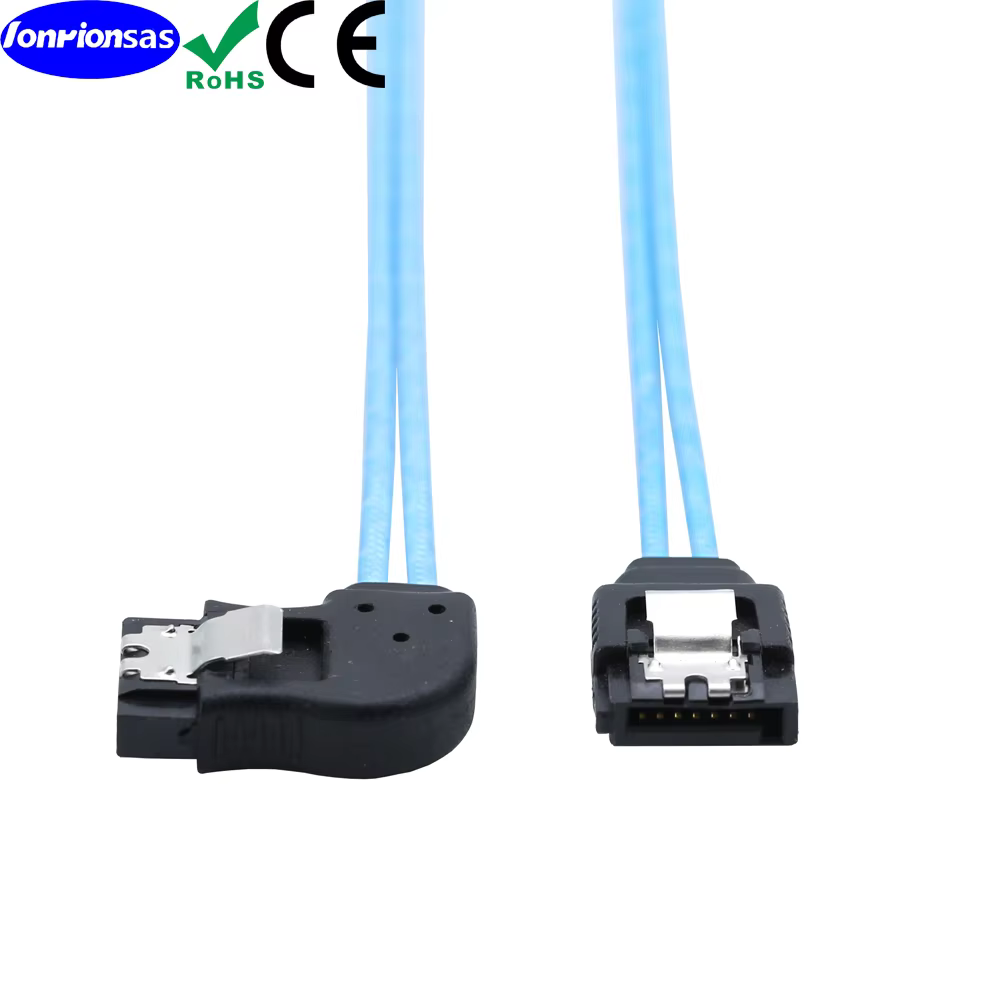

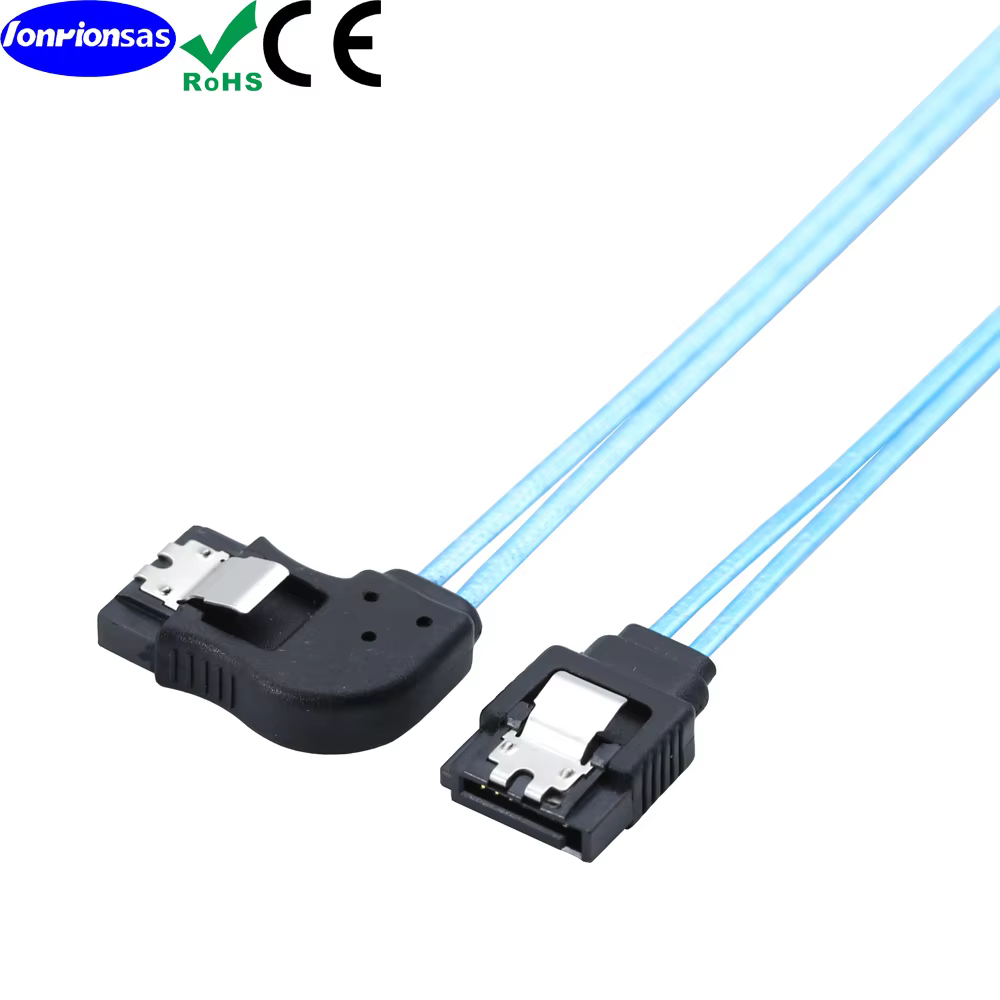

SATA-III 7Pin Female Straight to Right Angle 12Gbps Cable
Price range: $4.29 through $4.47
Pay now, in 4 interest-free payments of $1.07, or over 3β6 months
4 interest-free payments of $1.07
High-speed SATA-III cable with 7Pin female straight to right angle connectors for SSD, HDD, CD, and DVD drives.
- 12Gbps transmission rate
- Flexible, thin design with latch locking
- Multiple length options: 0.3m, 0.5m, 1m
- ROHS compliant and gold-plated connectors
β
Estimated Delivery Time3β7 business days
Reliable High-Speed Data Transmission
This SATA-III 7Pin cable supports a swift 12Gbps transfer rate, compatible with modern SSDs, HDDs, CD, and DVD drives. It meets the SAS 4.0 specification for top-notch performance in data communication and storage applications.
Its design ensures stable signal integrity, featuring impedance control and low crosstalk for minimal data interference, making it ideal for servers and RAID configurations.
Flexible Right Angle Design with Secure Latching
The cable features a female straight to right angle configuration, allowing flexible installation even in tight spaces. The integrated latch mechanism securely holds connectors in place to prevent accidental disconnections.
- 7Pin female connector to right angle configuration
- Latch locks for secure mating
- Flexible and thin cable design (0.9 x 2.3 mm)
Durable Materials and Environmental Compliance
Constructed with 30AWG tinned copper wire and gold-plated connectors, this cable offers excellent conductivity and corrosion resistance. It complies with RoHS 2.0 standards ensuring environmentally friendly manufacturing.
Flammability ratings meet Cable Horizontal flame and PCB 94V-0 standards for safety and durability in electronic setups.
- Gold-plated contacts (Au 30Β΅ min over Ni 100Β΅ min)
- RoHS 2.0 compliant and REACH SVHC regulation compliant
- Flame retardant materials certified to 94V-0
Versatile Usage for Data and Server Applications
Designed for high-demand environments like RAID arrays, workstations, rack servers, and storage racks, this cable provides reliable connectivity and high electrical performance.
Electrical specs include a contact current rating of 0.5A and voltage rating of 30VAC, assuring stable operation under typical data center loads.
- Supports RAID, workstation, and server storage
- Contact resistance max 30mΞ© initially, 15mΞ© after stress
- Dielectric withstand voltage of 500VAC for 1 minute
Key Specifications
- Cable lengths: 0.3m, 0.5m, 1m
- Wire size: 30AWG tinned copper
- Mating force: 45N max for SATA connector
- Unmating force: 10N max for SATA connector
- Impedance: 100Ξ© Β±10% absolute cable impedance
What's in the box
- SATA-III 7Pin female straight to right angle cable (selected length)
Product FAQ
Frequently asked questions
01 What devices are compatible with this SATA cable?
This SATA-III 7Pin female straight to right angle cable is compatible with SSD, HDD, CD, and DVD drives.
02 What is the maximum data transfer speed?
The cable supports a transmission rate of up to 12Gbps, meeting SATA-III specifications.
03 Does the cable have any locking mechanism?
Yes, it features a latch that locks to the mating connector for a secure connection.
04 What lengths are available for this SATA cable?
The cable comes in multiple lengths: 0.3 meters, 0.5 meters, and 1 meter.
05 Are the connectors gold-plated?
Yes, the connectors are plated with a minimum of 30 microinches of gold over 100 microinches of nickel.
06 Is this cable compliant with environmental standards?
Yes, it is RoHS 2.0 compliant and meets relevant environmental regulations.
07 What is the wire gauge and materials used?
The cable uses 30AWG tinned copper wire with outer dimensions of 0.9 by 2.3 millimeters.
08 How resistant is the cable to electrical issues?
It has a contact resistance of 30mΞ© initially, 15mΞ© after stress testing, and withstands 500VAC for 1 minute with no breakdown.
09 Can this cable be used in server rack environments?
Yes, it is suitable for RAID setups, workstations, rack-mount servers, and storage racks.
10 What is the maximum current and voltage rating per contact?
The contact current rating is 0.5 Amperes max per pin and the voltage rating is 30VAC per contact when mated or unmated.
