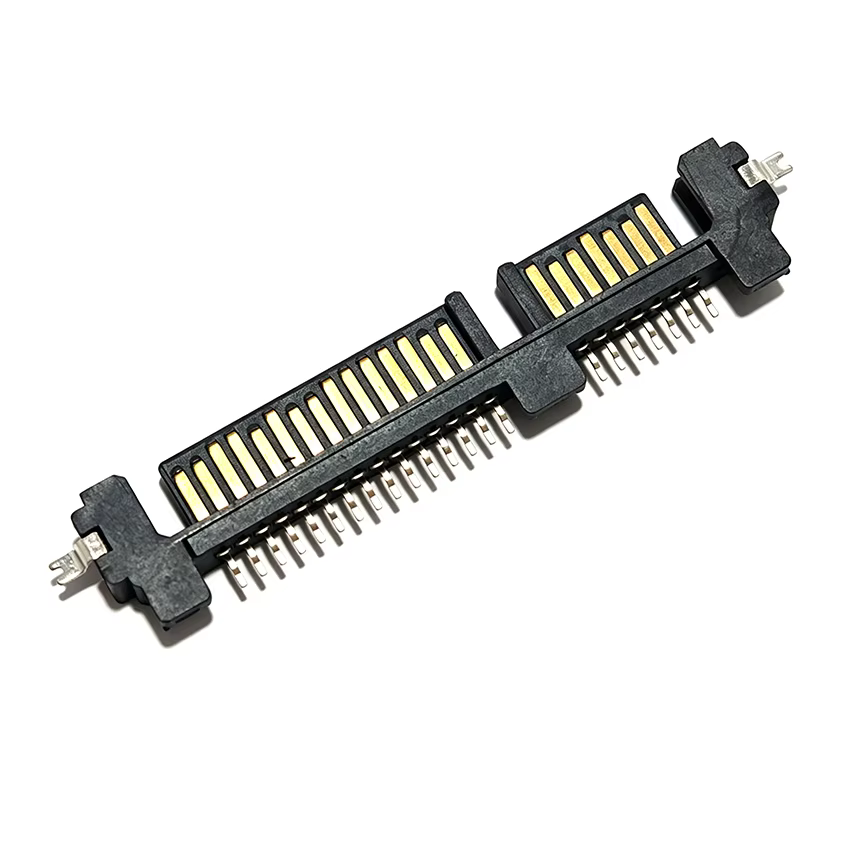

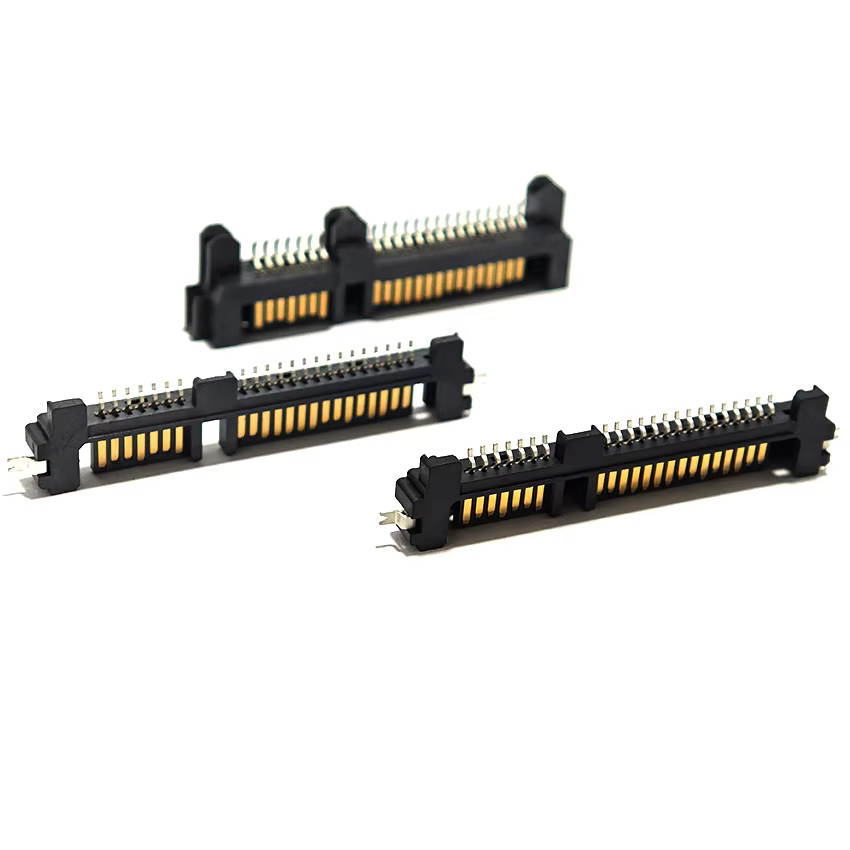

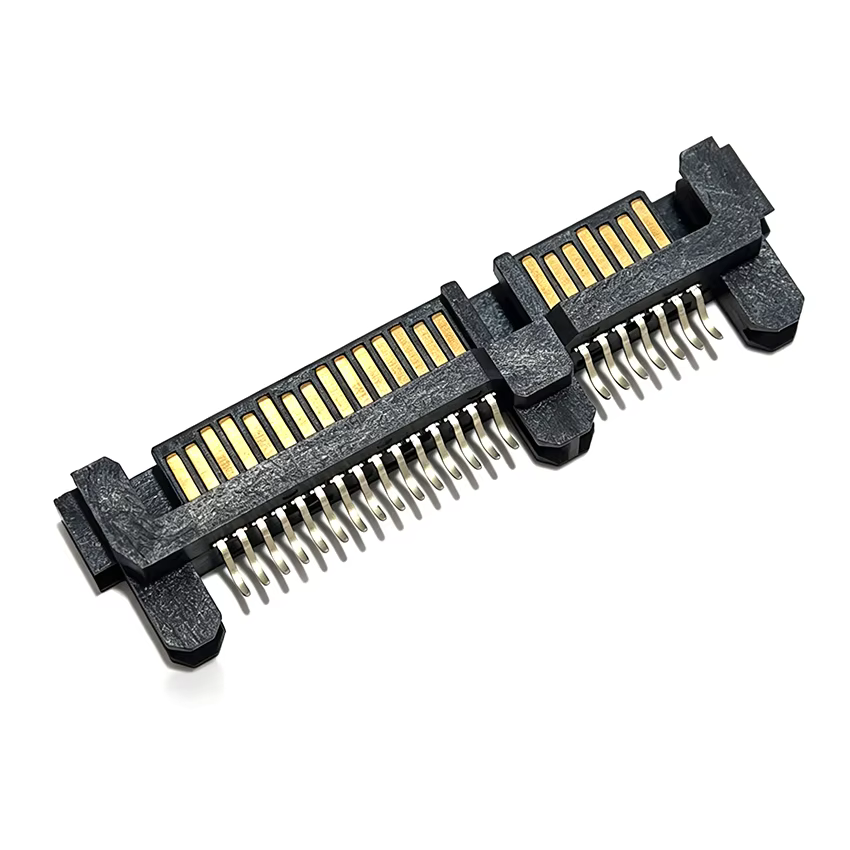

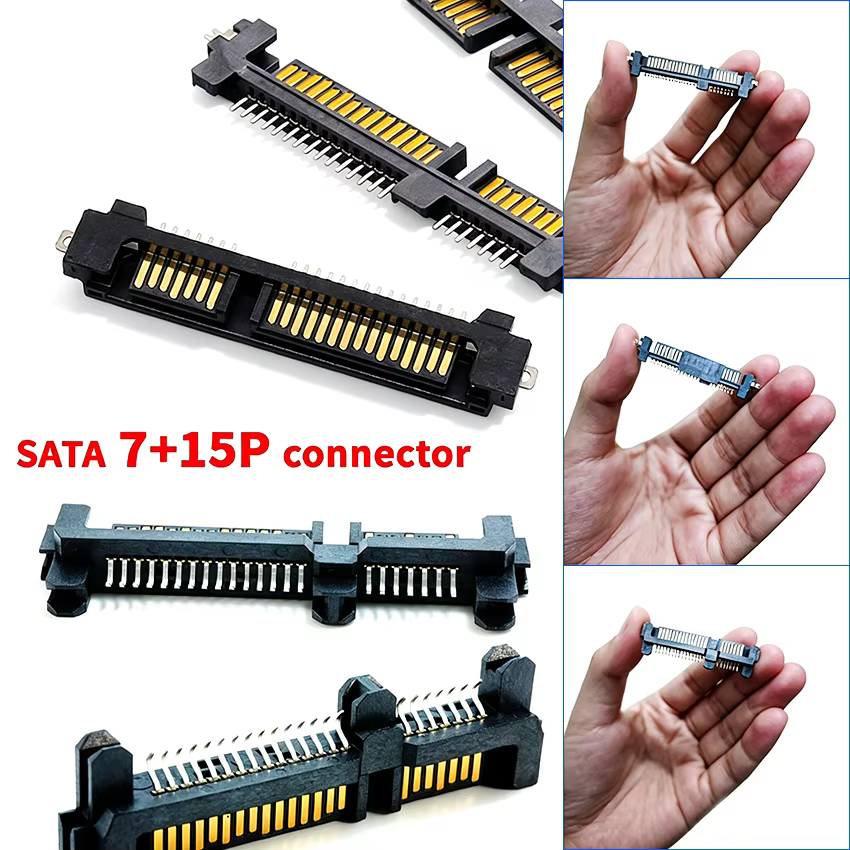

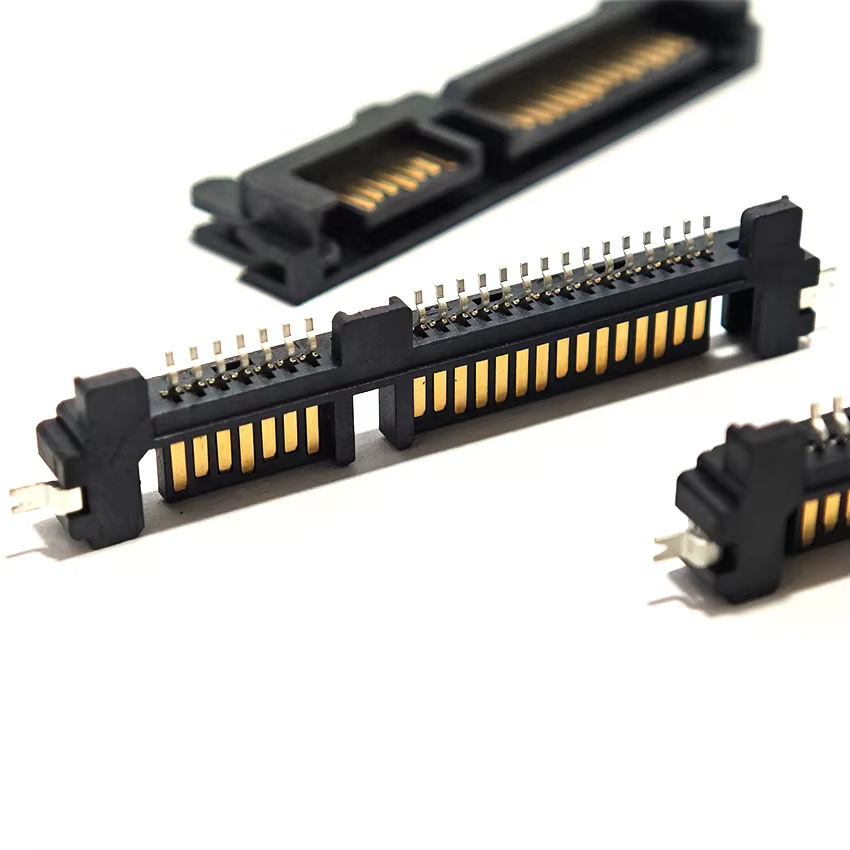

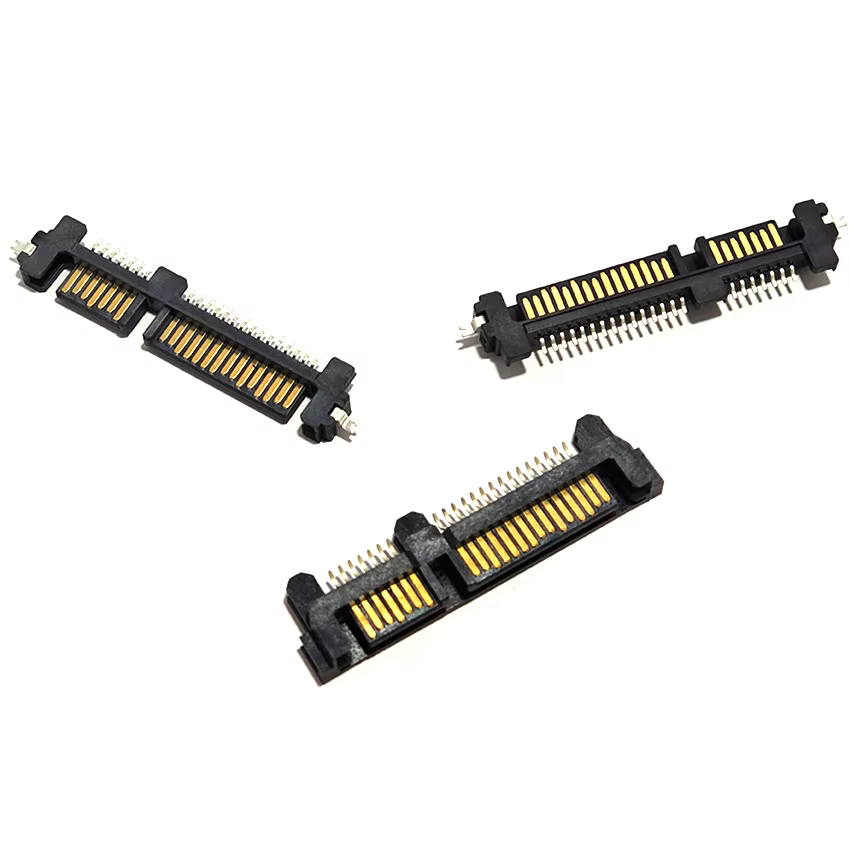

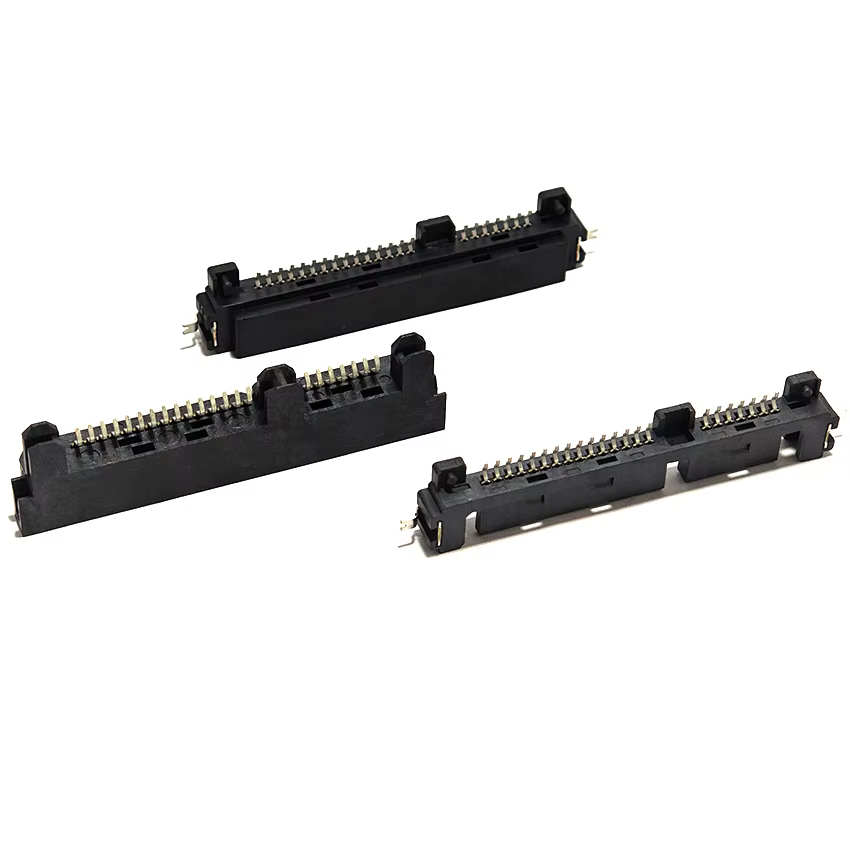

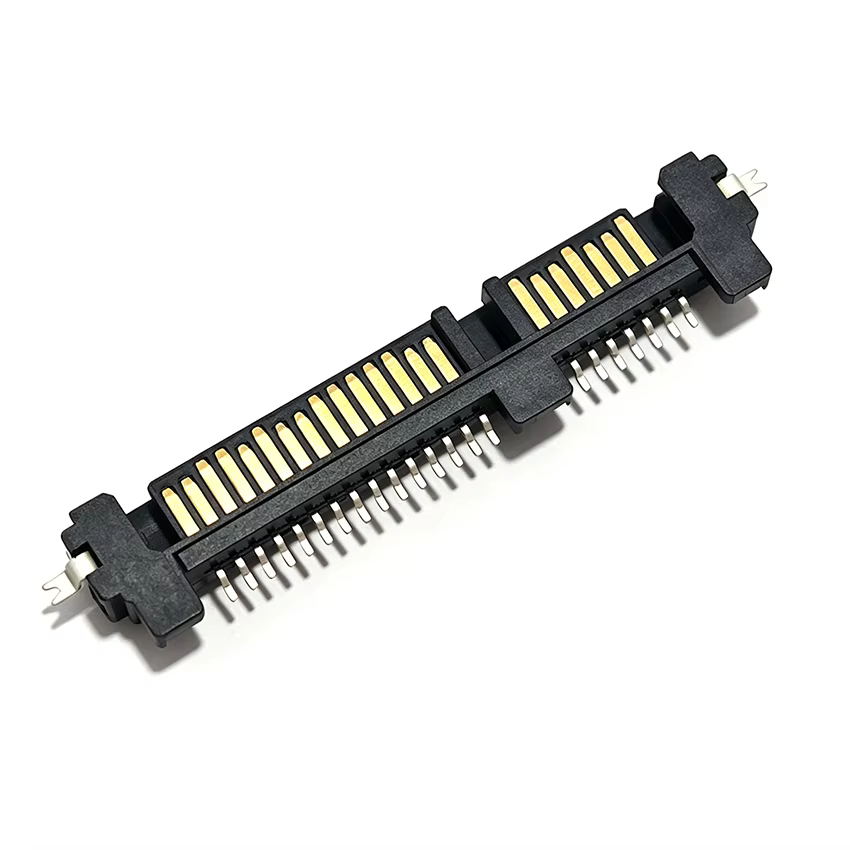

SATA 7+15P 22PIN SSD Connector Socket for 2.5″ Drives
Price range: $5.61 through $5.83
Pay now, in 4 interest-free payments of $1.40, or over 3–6 months
4 interest-free payments of $1.40
Durable SATA 7+15P integrated socket for 2.5" SSD and SATA hard drives.
- Gold-plated contacts ensure stable conductivity and anti-oxidation
- SMT surface mount and fixing buckle for secure installation
- Compatible with laptop, desktop, and industrial control motherboards
↗
Estimated Delivery Time3–7 business days
Integrated 22-Pin SATA Connector
This SATA connector socket integrates both the 7-pin data signal terminal and 15-pin power supply terminal into a compact 22-pin design. It features gold-plated contact spring pieces that ensure both stable conductivity and resistance to oxidation, providing reliable connections for 2.5-inch SATA hard drives and SSDs in various devices.
Durable and Precise Construction
Constructed with a high temperature resistant plastic base and copper terminals plated in gold, this socket is engineered for durability and heat resistance. The SMT surface mount welding and positioning fixing buckle offer secure and precise installation on laptop, desktop, and industrial motherboards.
Compatible with Multiple Applications
Designed for use in laptops, industrial control motherboards, hard drive expansion boards, and embedded storage devices, this SATA socket is a versatile replacement part for damaged hard drive holders. It supports various PCB boards on desktop and storage devices, making it a practical solution for repair and upgrades.
Key specifications
- Model: SATA 7+15P onboard female socket
- Terminal: 7-pin data + 15-pin power supply
- Contact material: Gold-plated for stable conductivity and anti-oxidation
- Installation: SMT surface mount welding with fixing buckle
- Material: High temperature resistant plastic base, copper gold-plated terminals
- Applicable devices: 2.5-inch SATA hard drives and SSDs
What's in the box
- One SATA 7+15P 22PIN integrated socket connector
Product FAQ
Frequently asked questions
01 What type of device is this SATA socket designed for?
This socket is designed for connecting 2.5-inch SATA hard drives and SSD solid-state drives.
02 How many pins does the SATA connector have?
The connector integrates 7 pins for data signal and 15 pins for power supply, totaling 22 pins.
03 What is the contact material used in this SATA socket?
It uses gold-plated contacts to ensure stable conductivity and prevent oxidation.
04 What is the installation method for this SATA connector?
The socket is designed for SMT (surface mount technology) welding with a positioning fixing buckle for secure mounting.
05 Is this SATA socket compatible with laptop motherboards?
Yes, it is suitable for laptop/motherboard PCB boards as well as industrial control motherboards and storage devices.
06 What materials are used in the SATA socket construction?
The base is made from high temperature resistant plastic and terminals are copper with gold plating.
07 Can this SATA socket be used for repairing damaged hard drive holders?
Yes, it is intended for repairing or replacing damaged SATA hard drive interface sockets on various motherboards.
08 Does the socket support wireless functionality or include a battery?
No, it does not include wireless functionality or a battery.
09 Are the dimensions of the SATA socket precisely specified?
Dimensions are measured manually and may have a slight error of 0-2cm. Please refer to the actual product for exact size.
10 Is this SATA socket suitable for industrial applications?
Yes, it is applicable for industrial control motherboards and embedded storage devices.
