QIYIDA X99 LGA2011-3 Micro-ATX Motherboard with M.2 Slot
Original price was: $120.37.$56.45Current price is: $56.45.
Pay now, in 4 interest-free payments of $14.11, or over 3β6 months
4 interest-free payments of $14.11
Reliable Micro-ATX motherboard featuring LGA2011-3 socket compatible with Intel Xeon E5 V3/V4 CPUs.
Supports DDR4 memory up to 64GB (4x16GB) with ECC/non-ECC modules.
Includes dual M.2 NVMe slots and multiple SATA ports for fast storage options.
3 in stock
β
Estimated Delivery Time3β7 business days
Robust Platform for High-Performance CPUs
The QIYIDA X99 motherboard features an LGA2011-3 socket supporting all Intel Xeon E5 V3 and V4 processors. Designed in a Micro-ATX form factor (22 x 19 cm), it suits desktop, workstation, and server environments requiring powerful computing capabilities.
Its Intel H51/H55/H5 chipset variants provide stable performance across various batches; exact chipset depends on product version.
Flexible DDR4 Memory Support
Equipped with four DDR4 DIMM slots, this motherboard supports up to 64GB of RAM with speeds ranging from 2133 to 3200 MHz. It is compatible with non-ECC, registered ECC, and ECC memory modules.

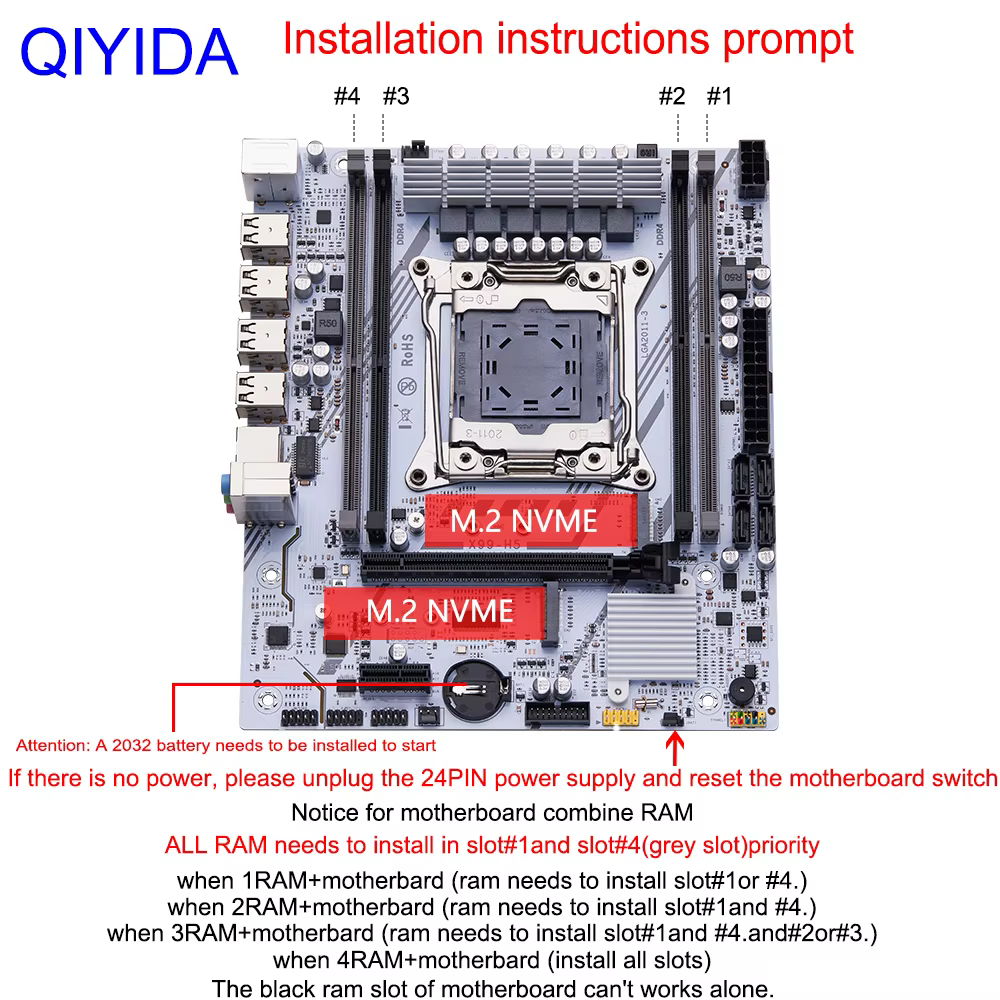

Memory installation must prioritize the grey slots first, as the black slots cannot function independently. This ensures system stability and proper operation.
- 4 DIMM slots supporting up to 4 x 16GB DDR4 memory
- Compatible with ECC, REG ECC, and non-ECC RAM
- Memory installation requires priority in grey slots
Advanced Storage Options with M.2 and SATA
This motherboard includes two M.2 slots supporting NVMe SSDs for modern ultra-fast storage solutions.
Additionally, multiple SATA 2 ports allow connection of traditional storage devices, offering a balance of speed and capacity.
- Dual M.2 slots for NVMe SSDs
- SATA 2 interfaces for additional drives

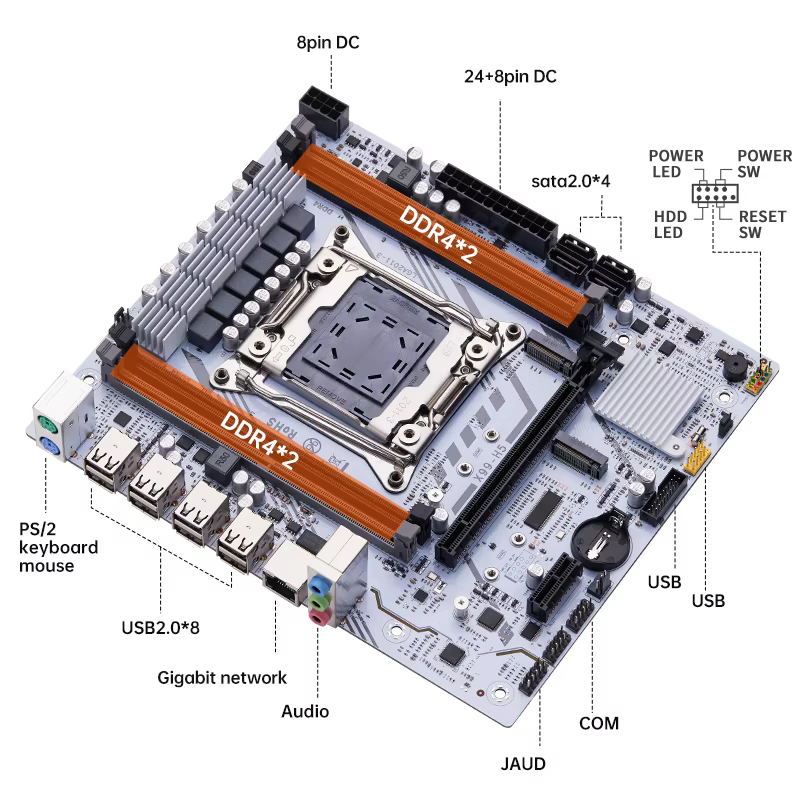

Connectivity and Expandability
Back panel provides at least one RJ45 LAN port for network connectivity plus USB 2.0 and USB 3.0 ports for peripherals.
Expansion slots include one PCI-E 3.0 x16 slot and one PCI-E x1 slot to support additional cards such as GPUs and expansion cards.
- 1 x PCI-E 3.0 x16 slot and 1 x PCI-E x1 slot
- Onboard RJ45 LAN and USB 2.0/3.0 ports
Important Setup Notes
A CR2032 battery must be installed for the system to start; absence will prevent booting.
Due to chip variations and batch differences, motherboard design details such as slot colors or SATA port placement may vary.
The motherboard lacks a temperature sensor chip; reported temperatures from software are virtual and can be higher than actual.
- CR2032 battery installation required for startup
- Potential variation in motherboard design between batches
- Virtual temperature readings; actual temperatures remain safe
- Requires power supply with minimum 500W capacity
Compatible Use Cases and Applications
Designed primarily for high-performance desktop use, it also supports gaming, video production, design work, scientific computing, servers, and mining rigs.
Its support for Intel Xeon processors and large DDR4 memory capacity makes it versatile across professional and industrial workloads.
- Suitable for desktops, workstations, servers, and gaming
- Supports professional applications like video rendering and 3D modeling
Key Specifications
Performance and technical specifications summarized for easy reference.
- CPU Socket: LGA2011-3 (Intel Xeon E5 V3/V4)
- Chipset: Intel H51/H55/H5
- Memory: 4 DDR4 slots, up to 64GB
- Storage: 2 x M.2 NVMe, SATA 2 ports
- Expansion: 1 x PCI-E 3.0 x16, 1 x PCI-E x1
- Form Factor: Micro-ATX (22 cm x 19 cm)
- Power: 24-pin + 8-pin connectors
- LAN: 1 x RJ45 port
What's in the box
- QIYIDA X99 Micro-ATX motherboard (LGA2011-3)
Product FAQ
Frequently asked questions
01 What CPU socket does the QIYIDA X99 motherboard support?
It supports the LGA2011-3 socket compatible with Intel Xeon E5 V3 and V4 series processors.
02 How many memory slots are available and what types does it support?
The motherboard has four DDR4 slots supporting up to 64GB total capacity and compatible with ECC, registered ECC, and non-ECC memory.
03 Does this motherboard include onboard graphics?
No, the QIYIDA X99 motherboard does not have an integrated graphics card.
04 How many M.2 slots are included and what storage types do they support?
It features two M.2 slots that support NVMe SSDs for high-speed storage.
05 Are there any requirements for RAM installation?
Yes, RAM must be installed in the grey slots first as priority; black memory slots cannot operate alone.
06 Is a battery included with the motherboard?
No, the motherboard does not include a battery; a CR2032 battery is required to be installed separately for startup.
07 What chipset does the motherboard use?
The motherboard chipset is either Intel H51, H55, or H5, depending on production batches.
08 What size and form factor does this motherboard have?
It is a Micro-ATX motherboard measuring approximately 22 cm by 19 cm.
09 What are the power connector requirements for this motherboard?
It requires a 24-pin main power connector plus an 8-pin CPU power connector.
10 Are there any special considerations for power supply compatibility?
A powerful power supply of at least 500W brand power supply is recommended to reliably support this platform.
