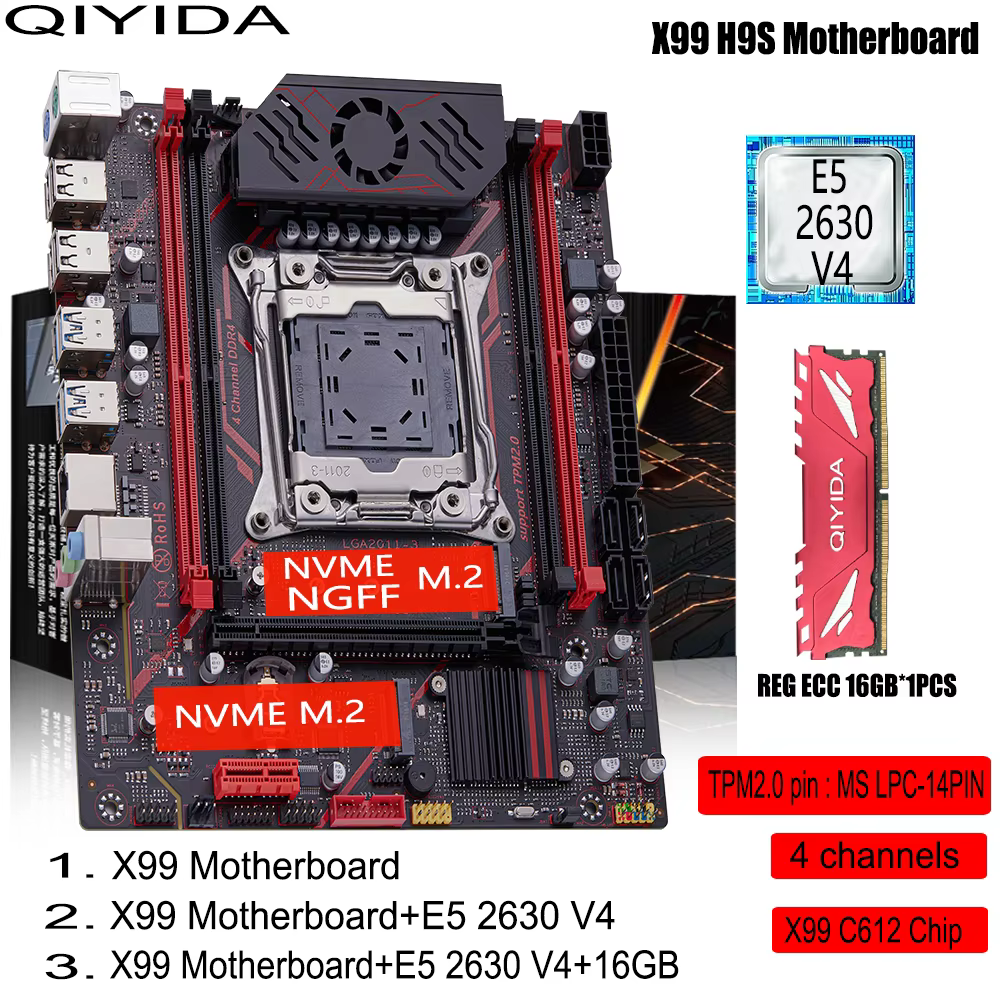

QIYIDA X99 H9S Motherboard Kit with Xeon E5 2630 V4 CPU 16GB ECC RAM
Price range: $68.26 through $155.46
Pay now, in 4 interest-free payments of $17.07, or over 3β6 months
4 interest-free payments of $17.07
High-performance QIYIDA X99 H9S motherboard featuring Intel Xeon E5 2630 V4 CPU, 16GB DDR4 ECC REG server memory, and support for NVMe M.2 storage.
β
Estimated Delivery Time3β7 business days
High-Performance Server-Grade Platform
Featuring the Intel Xeon E5 2630 V4 processor with 10 cores and 20 threads running at 2.2GHz, this platform delivers reliable multi-threaded performance ideal for servers, workstations, and demanding desktop use.
The motherboard supports high-capacity DDR4 ECC REG memory up to 128GB, ensuring system stability and error correction crucial for professional workloads.

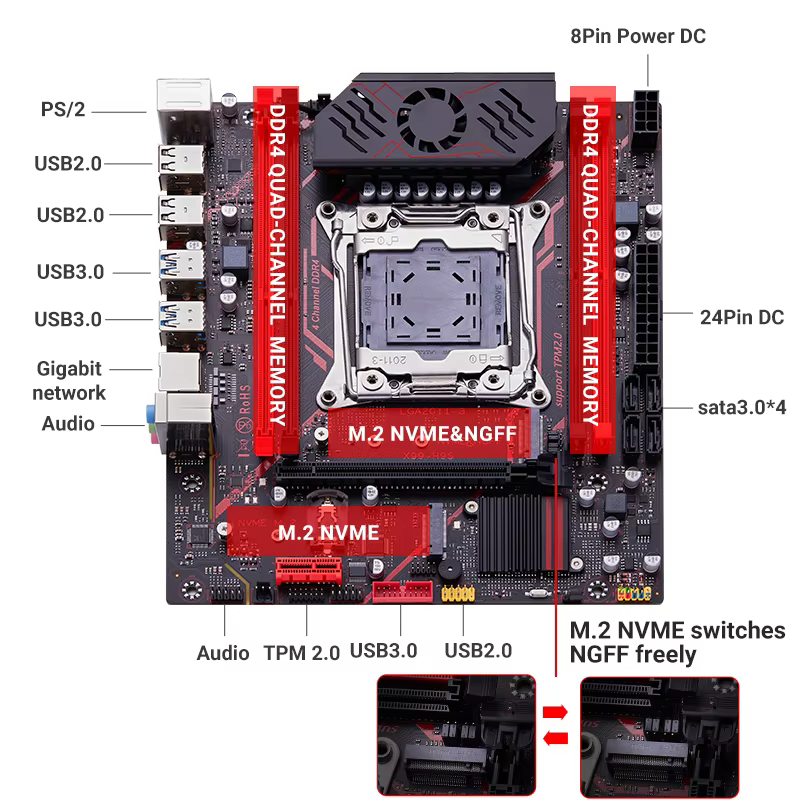

Advanced Storage and Expansion

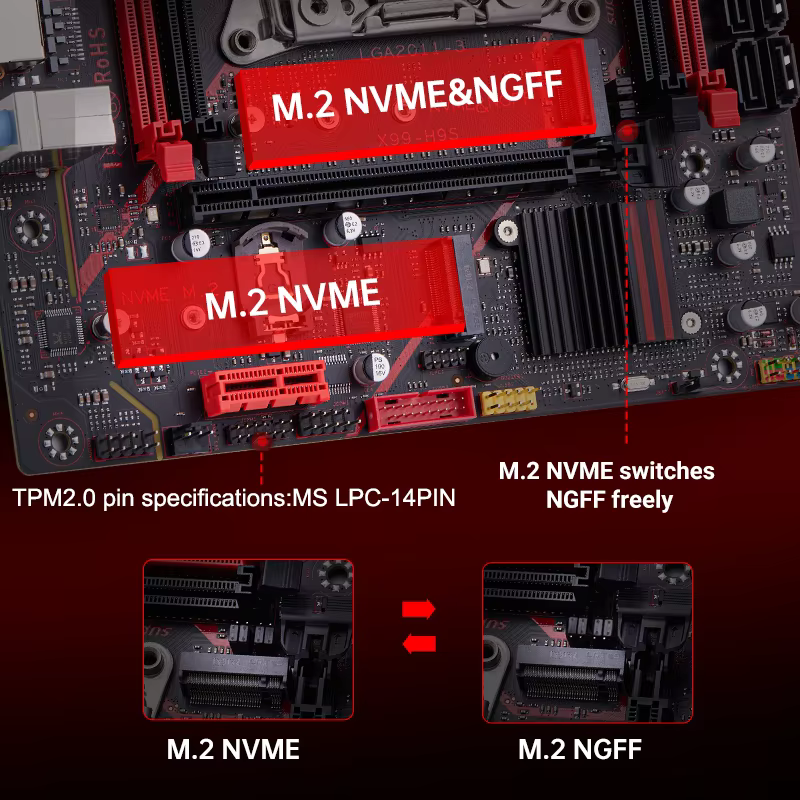

Supports dual M.2 slots compatible with high-speed NVMe and SATA SSDs, alongside SATA 3 interfaces for versatile storage configurations.
Equipped with PCI-E 3.0 x16 and x1 slots, it accommodates additional expansion cards for graphics, networking, or storage controllers.
- 2 PCIe slots: 1 x16 and 1 x1
- Dual M.2 slots for NVMe/SATA SSDs
- SATA 3 interfaces for HDD/SSD
Robust Build and Power Delivery
All solid capacitors and professional craftsmanship ensure durability and long-term stability under demanding workloads.
Power connectors include standard 24-pin ATX and 8-pin CPU sockets, supporting power supplies of at least 500W for stable operation.
Security and Compatibility Features
Includes support for TPM 2.0 modules (purchase specified type separately) to enhance hardware security and trusted platform features.
Compatible with Intel LGA 2011-3 socket CPUs and supports ECC memory modules, ideal for server and workstation environments.
Compact Micro-ATX Form Factor
With dimensions of 215mm by 190mm, the Micro-ATX form factor fits a wide range of cases while providing a rich feature set for desktops and servers.

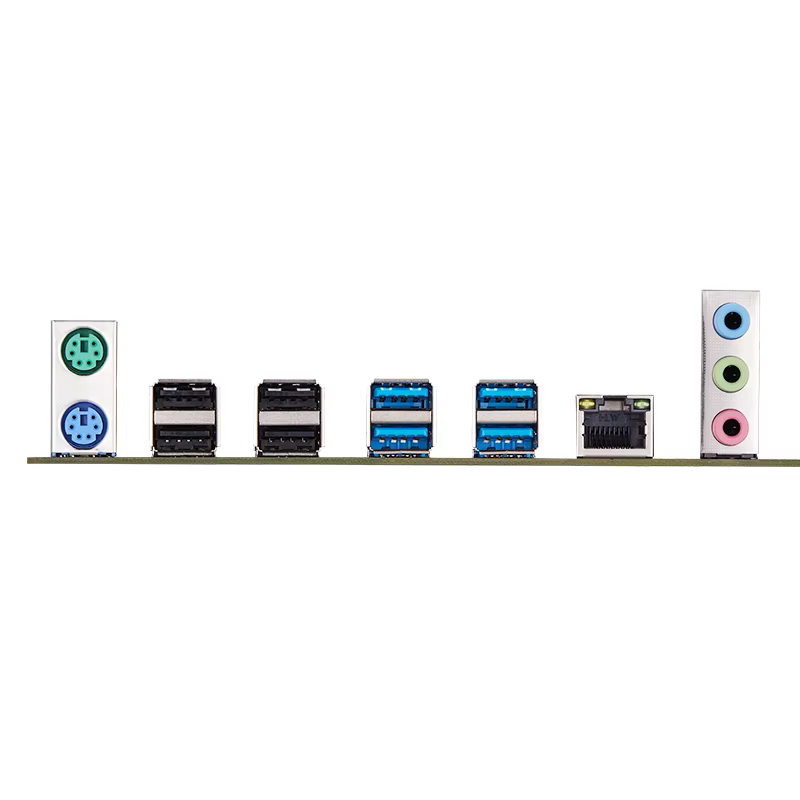

Onboard RJ45 LAN port facilitates wired network connectivity suitable for home, office, or industrial applications.
Key specifications
- Processor: Intel Xeon E5 2630 V4, 2.2GHz, 10 cores/20 threads
- Socket Type: LGA 2011-3
- Memory Type: DDR4 ECC REG
- Maximum Memory: 128GB
- Form Factor: Micro-ATX (215mm x 190mm)
- Storage Interfaces: 2x M.2 (NVMe & SATA), SATA3
- Expansion Slots: 1 x PCIe 3.0 x16, 1 x PCIe x1
- Power Connectors: 24-pin ATX + 8-pin CPU
- LAN Interface: 1 x RJ45
- TPM Support: Yes (TPM 2.0, module not included)
What's in the box
- Motherboard QIYIDA X99 H9S
- Intel Xeon E5 2630 V4 CPU (if selected)
- 16GB DDR4 ECC REG RAM (if selected)
Product FAQ
Frequently asked questions
01 What CPU is included with the QIYIDA X99 H9S motherboard kit?
The kit includes an Intel Xeon E5 2630 V4 CPU with 10 cores and 20 threads, running at 2.2 GHz.
02 What type and capacity of memory does this kit support?
It supports DDR4 ECC REG server memory, and the kit includes 16GB (1x16GB) of compatible RAM. Maximum supported capacity is 128GB.
03 Which socket type does this motherboard use?
It uses the LGA 2011-3 socket compatible with certain Intel Xeon processors.
04 Does the motherboard support M.2 NVMe SSDs?
Yes, it supports both M.2 NVMe and M.2 SATA SSD storage interfaces.
05 What form factor is the QIYIDA X99 H9S motherboard?
The motherboard is a Micro-ATX form factor measuring 215mm by 190mm.
06 Is TPM 2.0 supported on this motherboard?
Yes, it supports TPM 2.0, but users must use the specified TPM module to ensure boot compatibility.
07 What kind of power connectors does the motherboard have?
It requires a 24-pin main power connector and an 8-pin CPU power connector.
08 How many PCIe slots are available?
The motherboard features two PCIe slots: one PCIe 3.0 x16 and one PCIe x1 slot.
09 Does the kit include the motherboard only or other components?
You can choose from three options: motherboard only, motherboard plus CPU, or motherboard plus CPU and 16GB RAM.
10 What networking does the motherboard support?
It has one onboard RJ45 LAN port for wired network connectivity.
