PD3.0 PPS 100W Bidirectional Fast Charging Power Bank DIY Kit
Price range: $26.77 through $53.31
DIY power bank kit featuring 100W bidirectional fast charging with PPS support, compatible with Huawei, OPPO & OnePlus fast charge protocols. Supports 6 or 12 lithium-ion batteries (21700 cells). Ideal for FPV drones, phones, laptops.
↗
Estimated Delivery Time3–7 business days
Efficient Bidirectional Fast Charging

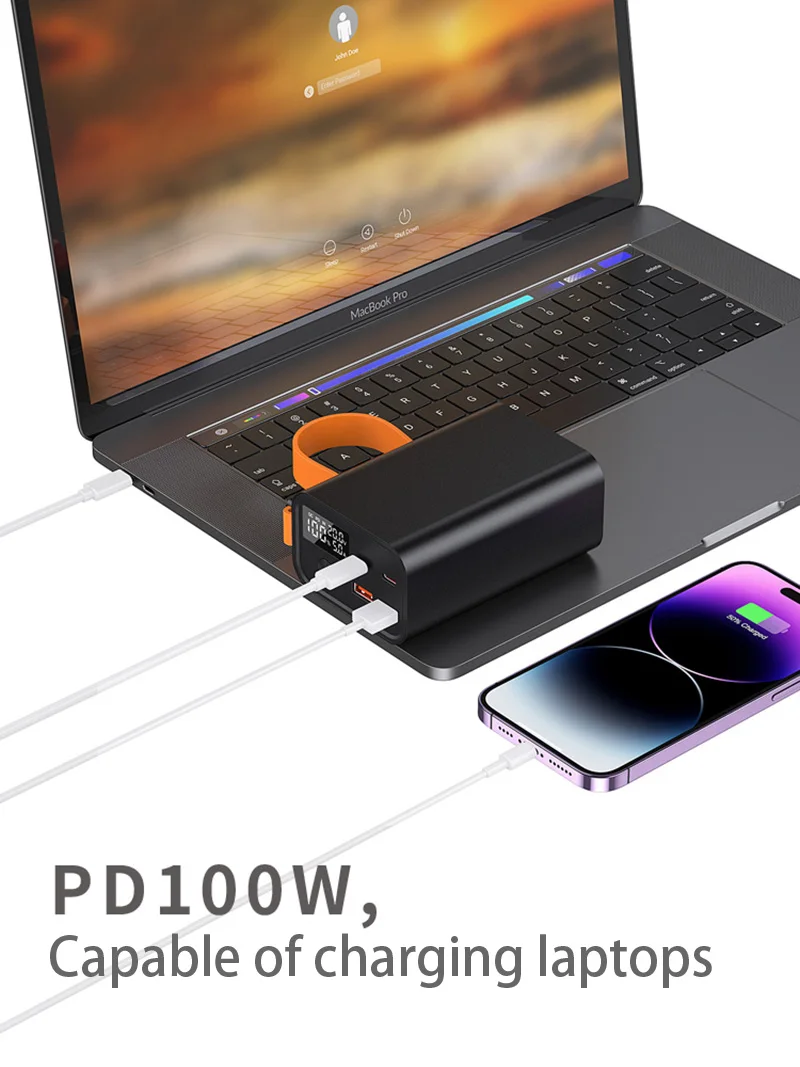

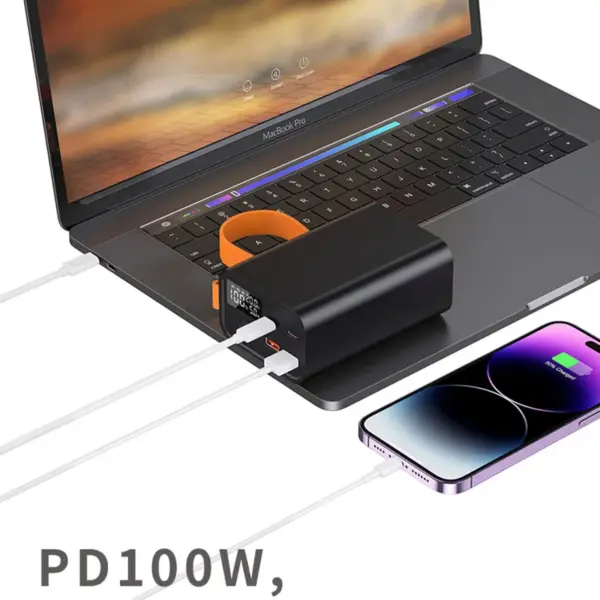

This DIY power bank kit delivers up to 100W bidirectional charging using PD3.0 and PPS protocols. Compatible with Huawei SuperCharge, OPPO, and OnePlus Super Flash Charge, it ensures fast and adaptive power delivery to a variety of devices including FPV drones, phones, and laptops.
Flexible Battery Capacity Options
Choose between two configurations: the compact F300 model for 6×21700 Li-ion NMC batteries supporting up to 30,000mAh total capacity, or the larger F600 model accommodating 12×21700 cells for up to 60,000mAh capacity. The F300 is labeled at 27,000mAh/99Wh for compliance with travel regulations.
- F300 dimensions: 110×73×48mm supports 6 batteries
- F600 dimensions: 169×80×48mm supports 12 batteries
- Supports 3.7V per cell Li-ion NMC battery type

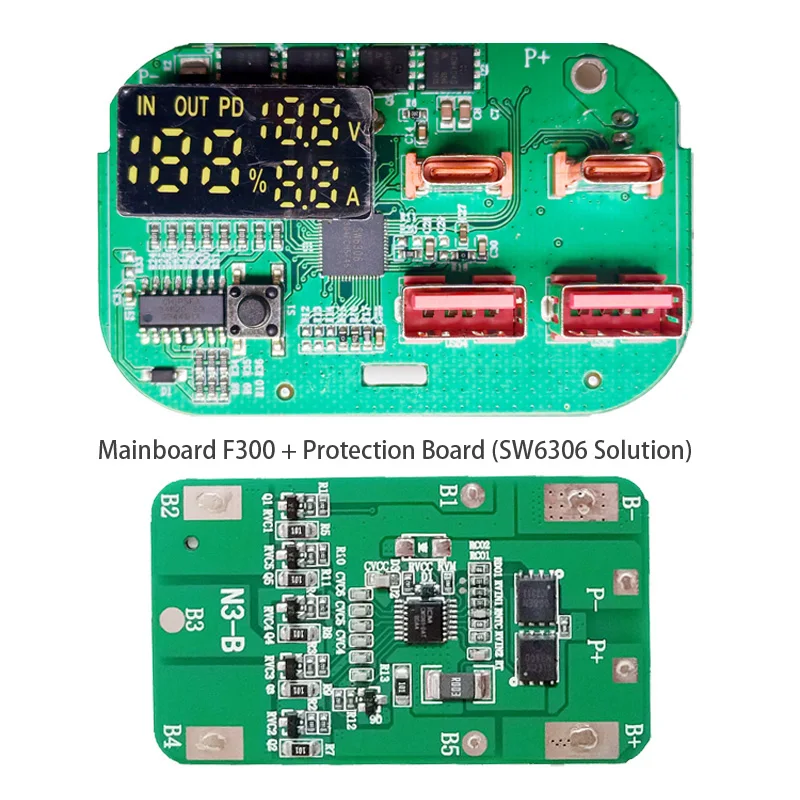

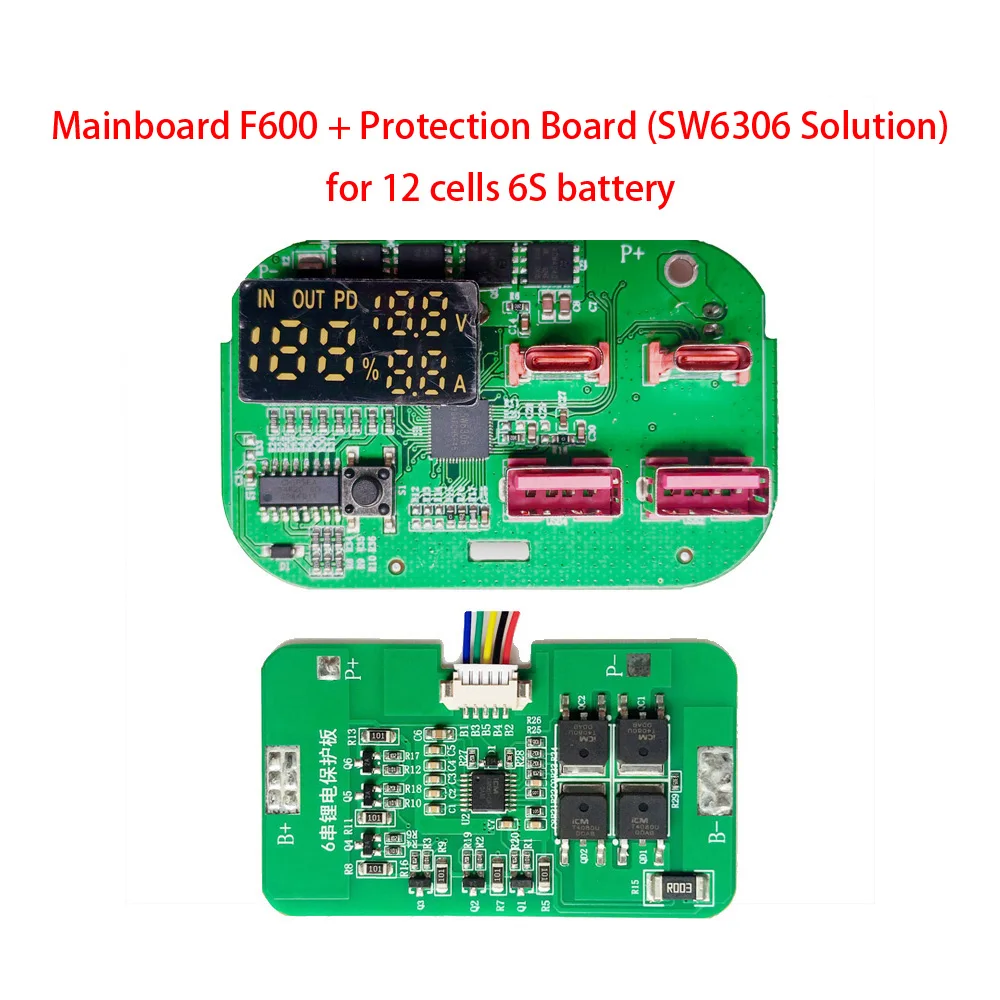

Advanced Circuit Board Solutions

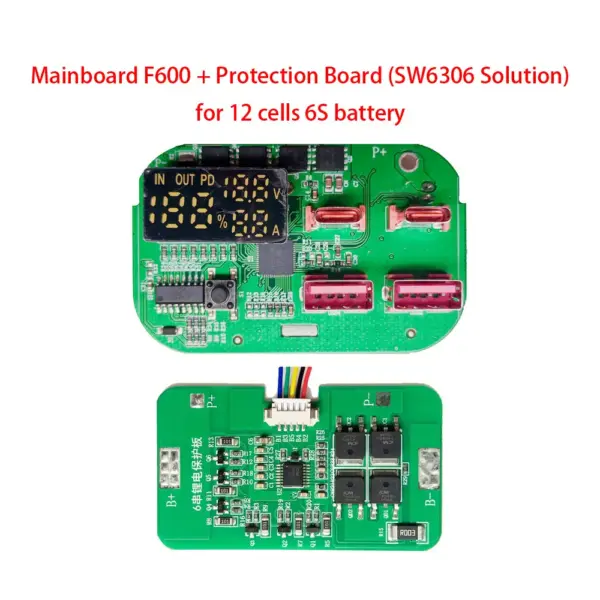

Two main board options are available for customization: a single-circuit SW6306 solution and a dual-circuit SD59D24B solution for enhanced charging management.
- Single-circuit supports 100W max output on shared ports
- Dual-circuit allows dual-device fast charging: 80W + 80W simultaneously
- Includes real-time voltage and current monitoring
Smart Safety and Thermal Management
Equipped with an NTC probe, the SW6306 board reduces charging power intelligently when temperatures exceed 55°C, and halts charging above 60°C to protect battery and user safety.
- Charging power adjusts with temperature
- Automatic sleep mode at 100% charge
- Auto-sleep when current falls below 90%
User Controls and Indicators
Integrated light controls include double-click for strobe mode and long press for constant light with three brightness levels cycling, allowing convenient status indication and user feedback.
- Light control with double-click and long press
- Three brightness levels available
Key Specifications
- Input/Output via Type-C: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A
- Supports QC3.0 (18W) and PD3.0 (up to 100W)
- USB-A Output: 5V/3A, 6.5–9V/2A, 9–12V/1.5A (22W max)
Assembly Recommendations
Intended for users with basic electrical knowledge. Circuit welding must follow wiring instructions precisely to avoid damage to the protection board. Activate units by charging after assembly.
- Supports only 21700 cell batteries, not 18650
- Welding sequence: B-, B1, B2, B3, B4, B5, B+
- Incorrect wiring may cause damage

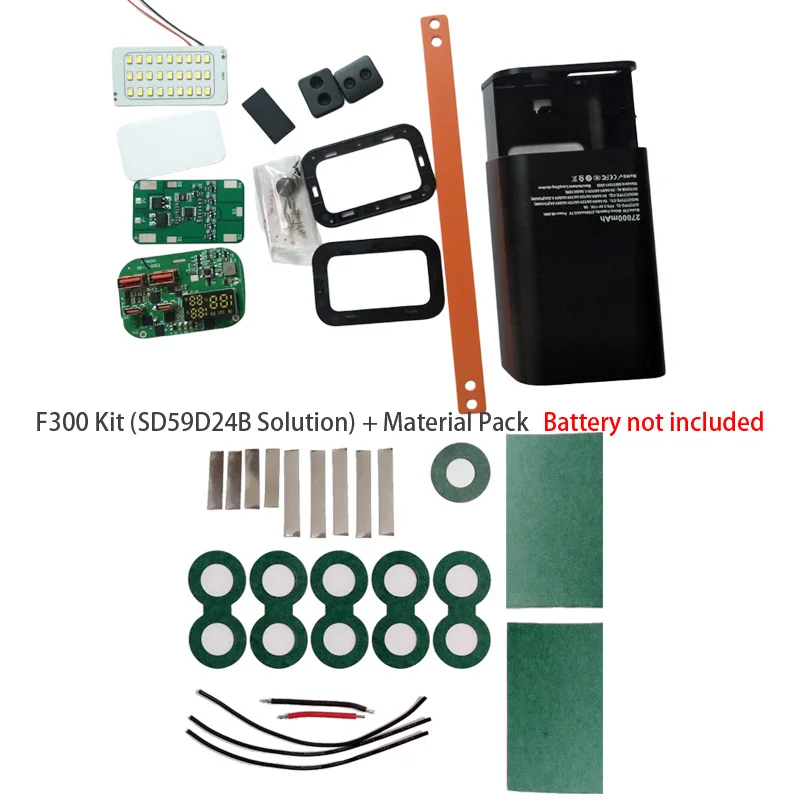

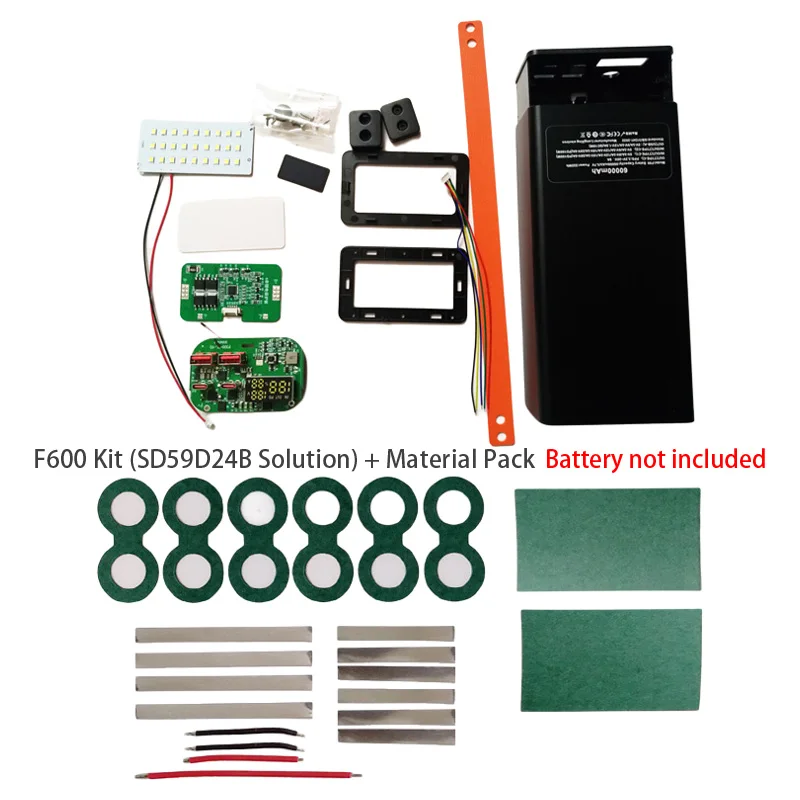

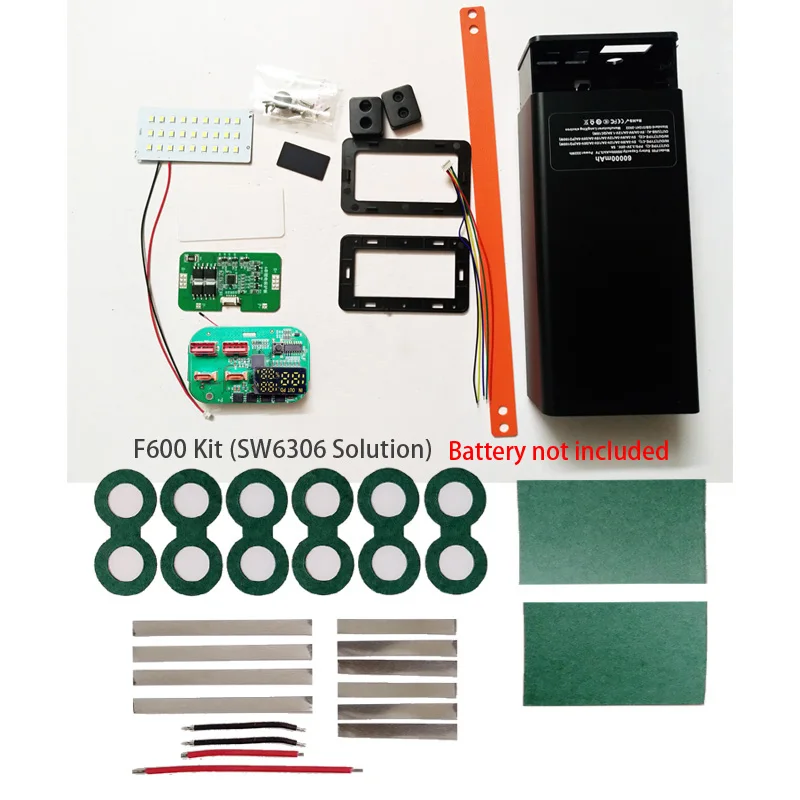

What's in the box
- Semi-finished casing
- Circuit board (single or dual circuit option)
- Assembly instructions (digital)
