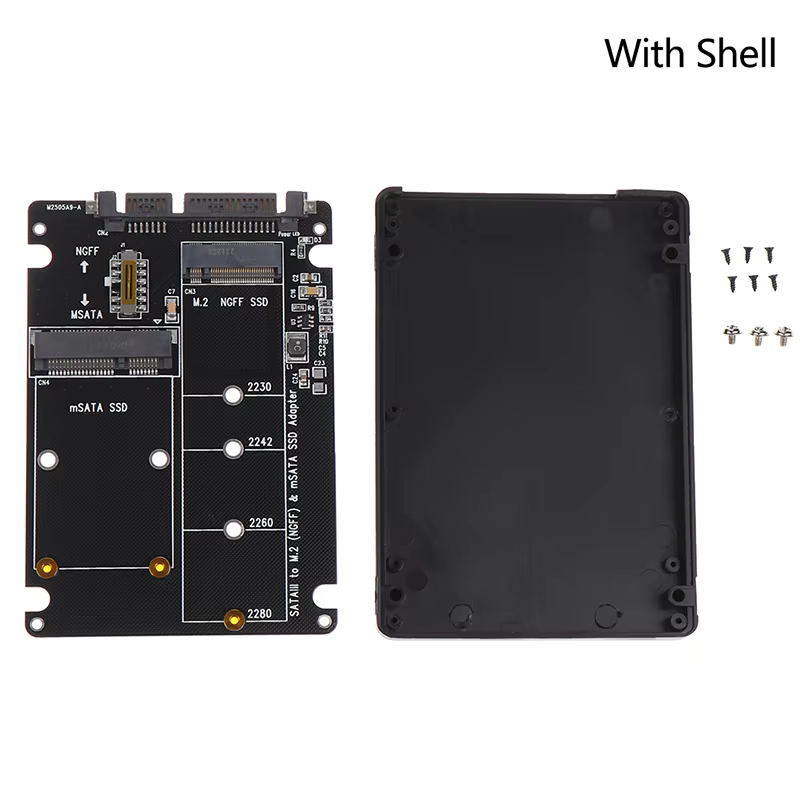

NGFF to SATA3 SSD Adapter Board with MSATA Support
Price range: $9.06 through $9.15
Pay now, in 4 interest-free payments of $2.27, or over 3–6 months
4 interest-free payments of $2.27
Convert M.2 NGFF or MSATA SSDs to SATA 2.5"/3.5" drives.
- Supports B-key and B/M-key interfaces (not M-key)
- Compatible with SATA3.1 and PCI Express M.2
- Toggle switch for NGFF or MSATA modes
↗
Estimated Delivery Time3–7 business days
Universal SSD Interface Conversion
Easily convert your M.2 NGFF or MSATA SSD into a standard SATA 2.5" or 3.5" hard drive format with this versatile adapter board. It supports B-key and B/M-key M.2 interfaces, enabling broad compatibility with popular SSD models.
The adapter supports SSDs that use the SATA protocol, making it ideal for upgrading or repurposing existing drives for SATA-enabled systems.

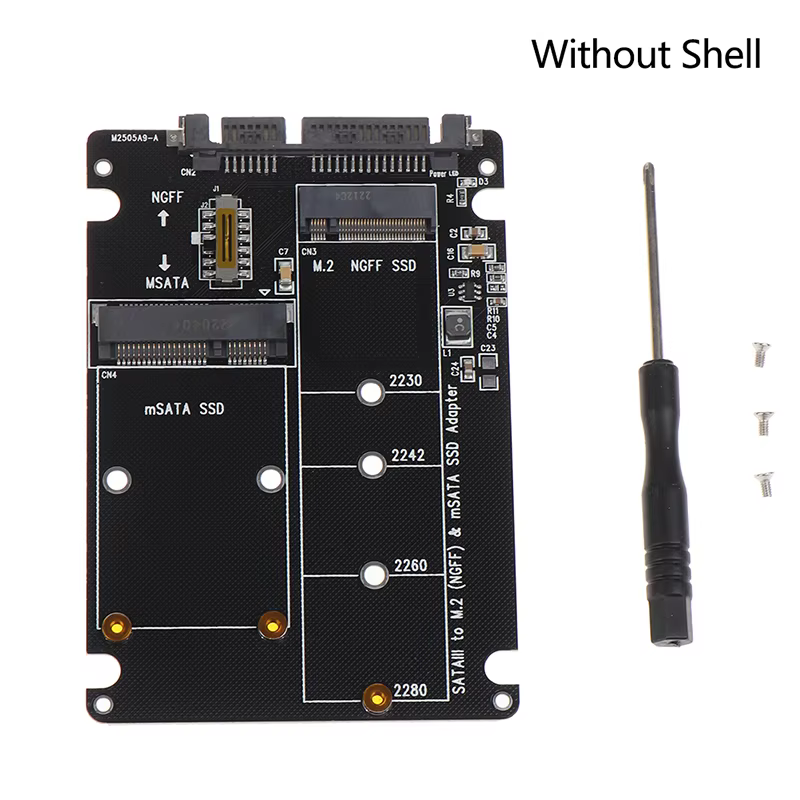

Dual SSD Slots with Toggle Switch
Designed with two SSD slots to accommodate both M.2 NGFF and MSATA drives, you can insert two SSDs but only one is active at a time. Easily switch between SSDs with a manual toggle switch for convenient operation.
- Toggle switch toggles NGFF mode up and MSATA mode down
- Ensures only one SSD is recognized at a time for system stability
Wide SSD Size Compatibility
The adapter supports a range of M.2 NGFF SSD lengths including 30mm, 42mm, 60mm, and 80mm, as well as full-height and half-height MSATA SSDs to fit various drive sizes.
- Compatible with most common M.2 SATA SSD sizes
- Supports several MSATA SSD form factors
SATA3.1 and PCI Express Support
Fully compatible with the SATA3.1 standard and PCI Express M.2 protocol, ensuring high-speed data transfer that depends on the SSD's capabilities.
The adapter functions solely as a transfer interface without embedded chips, so the overall speed is determined by the SSD installed.
Robust Power and Design

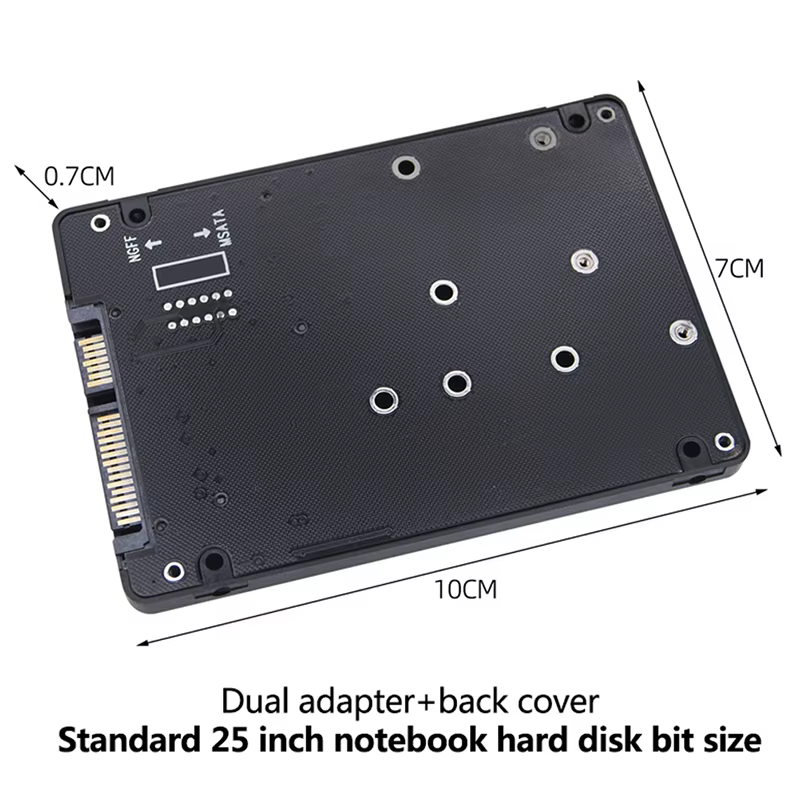

Supports input voltage of 3.3V and up to 3A current, providing stable power for connected SSDs. The compact 10x7cm size fits easily inside drive bays or custom enclosures.
This no-chip design adapter is a reliable spare or repair component for compatible equipment, designed for professional installation to guarantee performance.
Key specifications
- Adapter Dimensions: 10cm x 7cm
- Supported SSD Types: M.2 NGFF B-key/B+M-key, MSATA
- SSD Sizes Supported: M.2 30/42/60/80mm; Full-height and half-height MSATA
- Protocol Compatibility: SATA 3.1, PCI Express M.2
- Power Input: 3.3V, max 3A
- Simultaneous SSD Use: 2 SSDs inserted, 1 recognized at a time
- Switch Control: Toggle switch for NGFF and MSATA modes
- Chipset: None (transfer only)
What's in the box
- Hard Disk Adapter Board
Product FAQ
Frequently asked questions
01 What SSD interfaces does this adapter support?
It supports M.2 NGFF with B-key or B/M-key interfaces and MSATA SSDs. It does not support M-key SSDs.
02 Can both SSDs be used at the same time?
No, two SSDs can be inserted simultaneously but only one SSD is recognized at a time using the toggle switch.
03 What sizes of M.2 NGFF SSDs does the adapter support?
It supports 80mm, 60mm, 42mm, and 30mm M.2 NGFF SSDs.
04 Does this adapter support NVMe or AHCI SSDs?
No, it supports only SSDs that use the SATA protocol, excluding NVMe and AHCI protocols.
05 Is the adapter compatible with SATA3 standard?
Yes, it is fully compatible with the SATA3.1 standard.
06 Does the adapter affect the speed of the SSD?
No, the adapter acts only as a transfer board without chipsets, so the speed depends on the SSD itself.
07 What power input does the adapter support for SSDs?
It supports input voltage of 3.3V and maximum current of 3A for NGFF and MSATA SSDs.
08 Is professional installation recommended?
Yes, professional installation is strongly recommended to ensure proper functionality.
09 What are the physical dimensions of the adapter board?
The board measures approximately 10cm by 7cm.
10 Does it support both full-height and half-height MSATA SSDs?
Yes, it supports both full-height and half-height MSATA SSD sizes.
