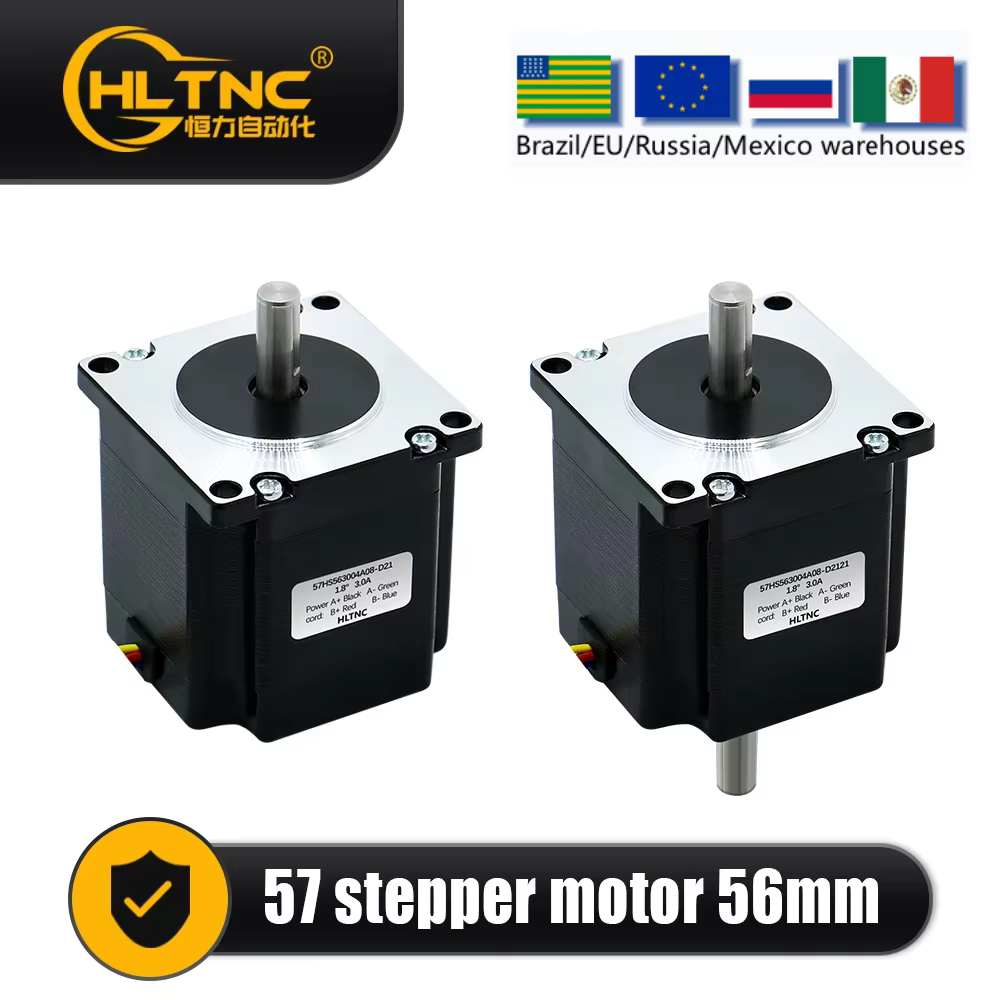

Nema 23 Stepper Motor 1.2N.m Torque with Dual/Single Shaft
Original price was: $39.08.$30.03Current price is: $30.03.
Pay now, in 4 interest-free payments of $7.51, or over 3–6 months
4 interest-free payments of $7.51
High-torque Nema 23 stepper motor with 1.2N.m torque and 3.0A current rating.
- Available in dual or single shaft, 6.35mm or 8mm diameters.
- Ideal for CNC routers and 3D printers.
↗
Estimated Delivery Time3–7 business days
Compact power for precise motion
This Nema 23 stepper motor delivers reliable torque output of 1.2 Newton-meters, ideal for precision control in CNC routers and 3D printers. Its robust black casing and quality construction ensure durability in demanding applications.
Flexible shaft options
Choose between single or dual shaft versions to suit your mechanical setup, with shaft diameter options of 6.35mm and 8mm for compatibility with a variety of couplings and accessories.
- Single or dual shaft configurations
- 6.35mm and 8mm shaft diameters available
Technical performance details
The motor runs on 2.8A to 3.0A current with 1.8° step angle, providing smooth and exact increments for precise positioning. The 0.95Ω resistance and 2.8mH inductance aid in efficient motor control and responsiveness.
Certified and quality backed
Manufactured under quality standards with CE certification, this motor meets essential safety and performance requirements for industrial and hobbyist use.
Key specifications
- Torque: 1.2 N.m (12 kg.cm)
- Current: 2.8A / 3.0A
- Step Angle: 1.8°
- Shaft Diameter: 6.35mm or 8mm
- Resistance: 0.95Ω
- Inductance: 2.8mH
- Insulation Class: B
- Certification: CE
- Phase Number: 2
What's in the box
- Nema 23 Stepper Motor
- User Manual
Product FAQ
Frequently asked questions
01 What is the torque rating of this Nema 23 stepper motor?
This motor delivers a torque of 1.2 Newton-meters (12 kg.cm).
02 What shaft diameter options are available?
The motor is available with shaft diameters of 6.35mm or 8mm.
03 Can I choose between single or dual shaft versions?
Yes, there are both single axle and dual axle configurations available.
04 What is the motor's current rating?
It operates at currents of 2.8A or 3.0A depending on the model.
05 What is the step angle of the motor?
The motor has a step angle of 1.8 degrees.
06 Is this motor suitable for CNC routers and 3D printers?
Yes, it is designed for use in CNC routers and 3D printers.
07 What is the insulation class of the motor?
The motor has insulation class B.
08 What is the resistance and inductance of this motor?
It has a resistance of 0.95 ohms and inductance of 2.8 millihenrys.
09 Does this motor include any wireless functionality or battery?
No, the motor does not include wireless functionality or a battery.
10 Is this stepper motor CE certified?
Yes, the motor is CE certified.
