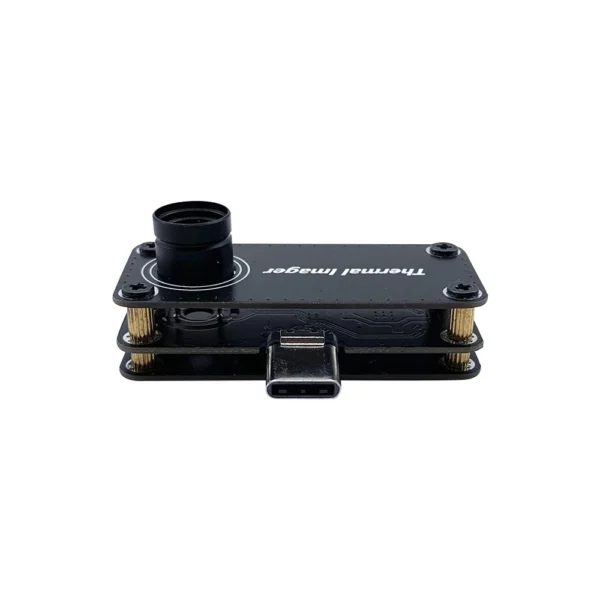

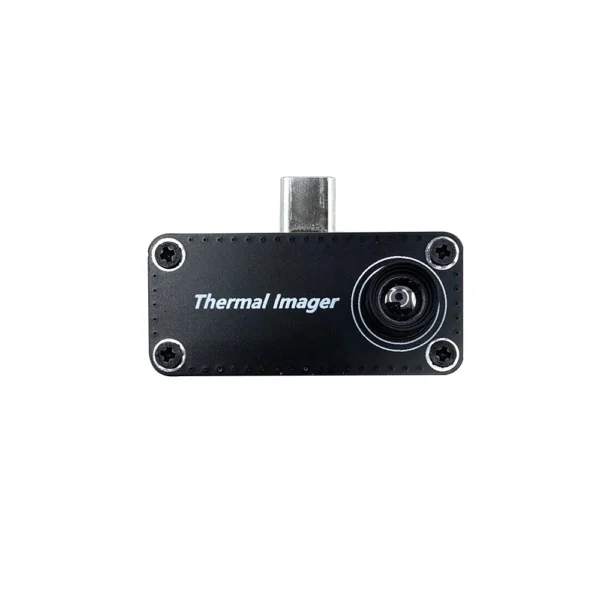

Mobile Phone Thermal Imaging Tool 32×32 Resolution Type-C
$70.99
Pay now, in 4 interest-free payments of $17.75, or over 3–6 months
4 interest-free payments of $17.75
Compact thermal imaging tool with 32x32 resolution for Android phones via Type-C interface.
- Temperature range from -20 to 1000°C
- 5 color palettes for clear visualization
- Accurate temperature measurement within ±3°C
11628 in stock
↗
Estimated Delivery Time3–7 business days
Compact Thermal Imaging for Android Phones

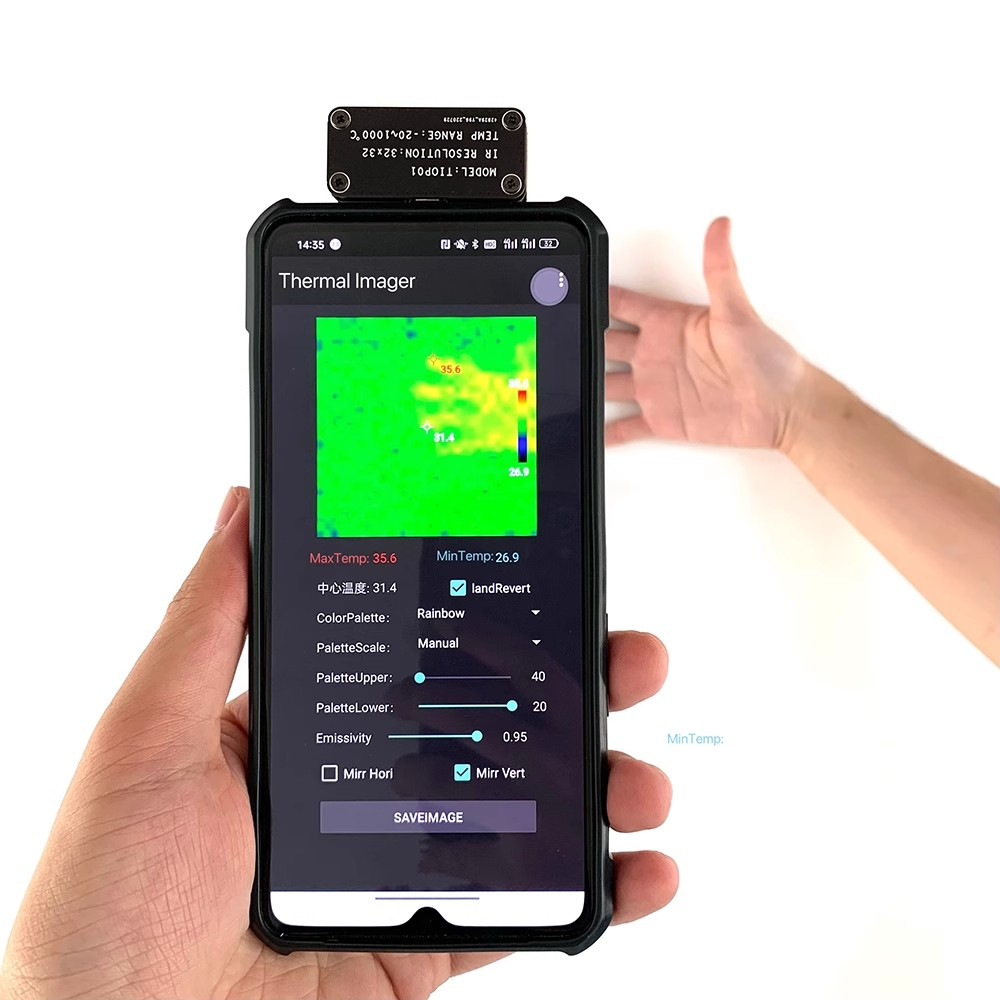

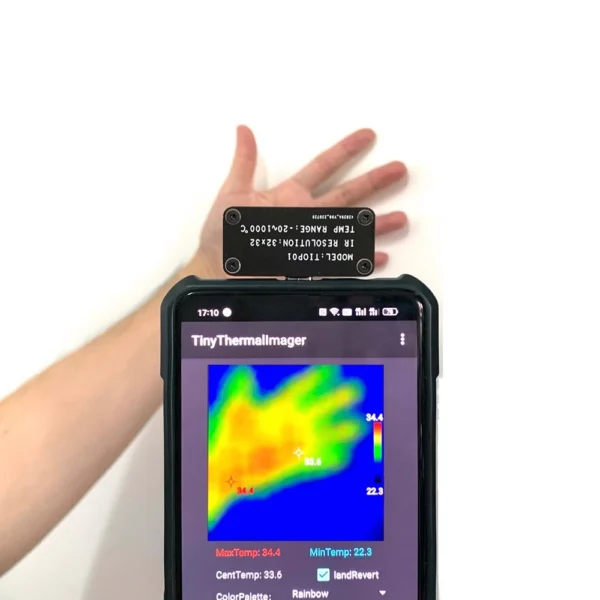

This mobile thermal imaging tool delivers 32×32 pixel resolution to quickly visualize temperature differences. Designed with a Type-C interface, it easily connects to Android smartphones running versions 8 to 12, enabling on-the-go thermal detection and analysis with image saving capability.
Accurate Temperature Measurements with Multiple Palettes
The device measures temperatures from -20°C up to 1000°C with ±3°C accuracy. It offers 5 color palettes to view thermal data clearly, enhancing detection of hot and cold spots in various environments.
- Temperature range: -20 to 1000°C
- Measurement accuracy: ±3°C
- 5 customizable color palettes for visualization
Optimized Performance and Portability
A 33° field of view combined with a frame rate up to 5 FPS ensures efficient thermal imaging. Compact dimensions (44 x 29.2 x 19 mm) and lightweight (10g) make it perfectly portable for field and mobile use.
- Field of view: 33°
- Maximum frame rate: 5 FPS
- Compact size and light weight for mobility
Durable Design and Ease of Use
Constructed from plastic material, the thermal imager is lightweight and durable. It operates reliably in ambient temperatures ranging from 0°C to 50°C, and can be safely stored between -40°C and 80°C for convenience and longevity.
Key specifications
- Resolution: 32 x 32 pixels
- Interface: Type-C
- Operating System Compatibility: Android 8 to 12
- Temperature Measurement Range: -20 to 1000 °C
- Measurement Accuracy: ±3 °C
- Field of View: 33 degrees
- Maximum Frame Rate: 5 frames per second
- Weight: 10 grams
- Dimensions: 44 x 29.2 x 19 mm
- Operating Temperature: 0 to 50 °C
- Storage Temperature: -40 to 80 °C
- Material: Plastic
What's in the box
- Thermal imager × 1
Product FAQ
Frequently asked questions
01 What resolution does the thermal imager have?
It features a 32 x 32 pixel resolution thermal imaging sensor.
02 Which smartphones are compatible with this thermal imager?
It is compatible with Android phones running versions 8 through 12 that support Type-C interface.
03 What is the temperature measurement range?
The thermal imager measures temperatures from -20°C up to 1000°C.
04 How accurate is the temperature measurement?
Temperature measurements have an accuracy of plus or minus 3 degrees Celsius.
05 How many color palettes are available?
There are 5 different color palettes to visualize thermal data.
06 What is the maximum frame rate of the thermal imager?
It can capture thermal images at a maximum of 5 frames per second.
07 Does the device allow saving images?
Yes, it supports saving thermal images locally on the device it's connected to.
08 What is the field of view angle?
The thermal imager has a 33-degree field of view.
09 What are the operating and storage temperature limits?
It operates within 0-50°C and can be stored safely between -40°C and 80°C.
10 What materials is the device made from?
The housing is made of plastic material.
