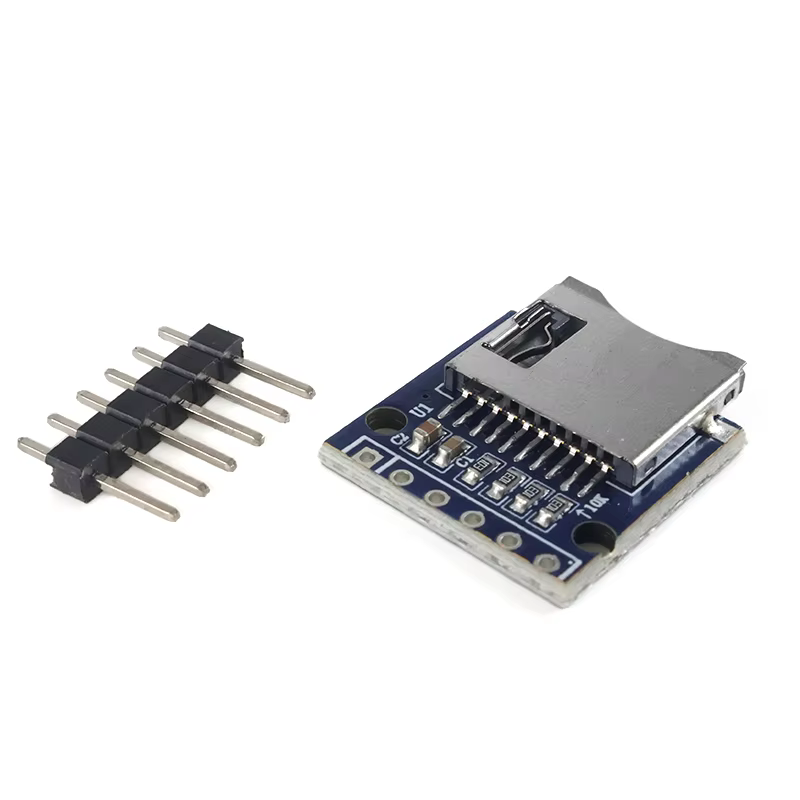

Micro SD Card Reader Module 3.3V SPI for Arduino ESP32 DIY
Price range: $3.91 through $5.94
Pay now, in 4 interest-free payments of $0.98, or over 3β6 months
4 interest-free payments of $0.98
Add reliable data storage to your DIY projects with this Micro SD Card Reader Module featuring 3.3V safe operation, SPI interface, and unsoldered headers for flexible installation.
β
Estimated Delivery Time3β7 business days
Compact and Versatile Storage Module
This Micro SD Card Reader Module provides a reliable way to expand storage for your DIY electronics projects. Its compact size (18.5mm x 17.5mm) makes it ideal for space-conscious applications on breadboards or PCBs.
Designed for makers with soldering skills, the module allows you to configure pin headers vertically or at right angles to fit your project layout perfectly.
Safe 3.3V Operation and Level Shifting
Featuring an onboard 3.3V regulator and level shifting circuit, the module safely bridges the voltage gap between 5V microcontrollers and 3.3V SD cards. This ensures stable communication and protects your components from electrical damage.
Broad Compatibility and Standard SPI Interface
The module supports standard SPI communication, widely supported across Arduino, ESP32, STM32, Raspberry Pi Pico, and similar development boards. It works seamlessly with FAT16 and FAT32 formatted Micro SD cards, ideal for data, image, or configuration file storage.
DIY Installation for Custom Integration

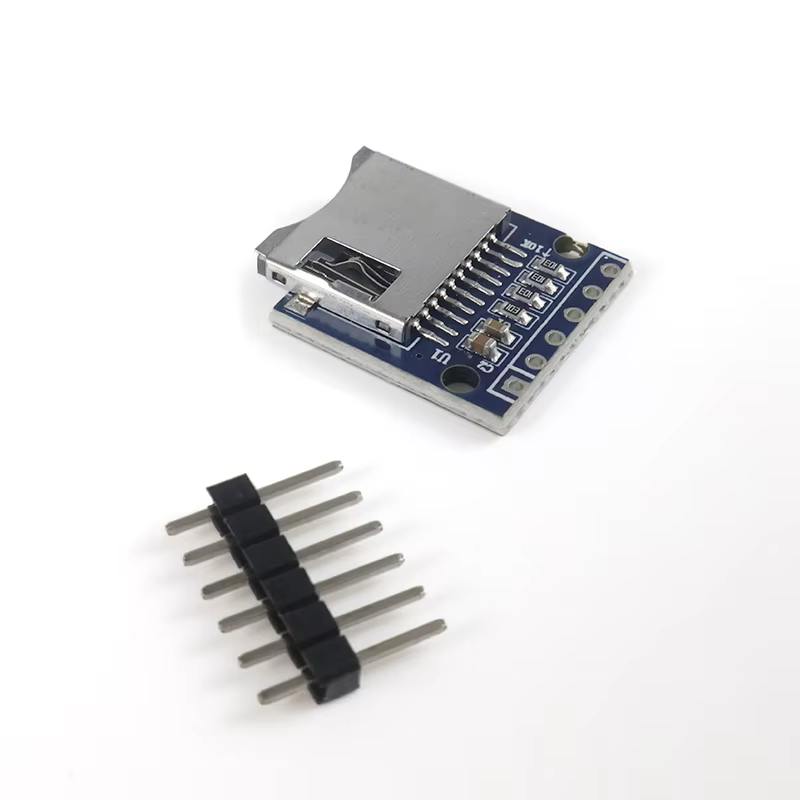

Pin headers are supplied but not soldered, granting flexibility to choose orientation based on your enclosure or project design. Basic soldering skills are required to assemble the module for your application.
Key specifications

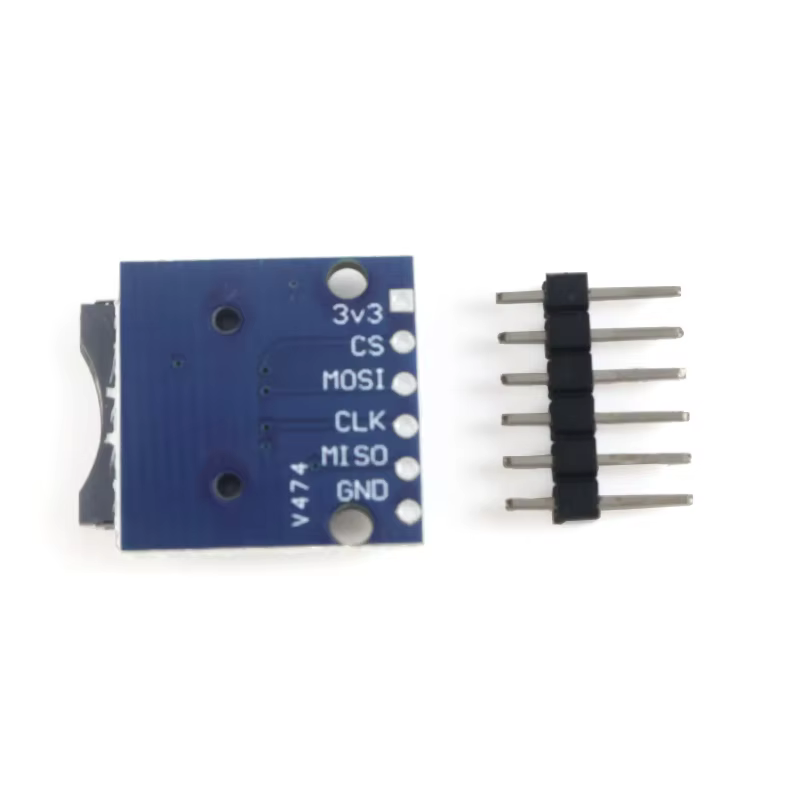

- Interface: SPI
- Operating Voltage: 3.3V
- Supported Card Type: Micro SD (TF)
- File Systems: FAT16, FAT32
- Dimensions: 18.5mm Γ 17.5mm
- Compatibility: Arduino, ESP32, STM32, Raspberry Pi Pico
What's in the box
- 1 x Micro SD Card Reader Module
- 1 x Set of 2.54mm Pin Headers (Unsoldered)
Product FAQ
Frequently asked questions
01 What voltage does this Micro SD Card Reader Module operate at?
This module operates at 3.3V, supporting safe communication with 3.3V SD cards and requiring 3.3V power input.
02 Are the pin headers pre-soldered on this module?
No, the included 2.54mm pin headers are NOT soldered. Users need to solder them according to their preferred orientation.
03 Which microcontroller boards is this module compatible with?
It is compatible with Arduino, ESP32, STM32, Raspberry Pi Pico, and other MCUs that support SPI communication.
04 What type of memory card does this reader support?
The module supports Micro SD (TF) cards formatted with FAT16 or FAT32 file systems.
05 What communication interface does this module use?
The module uses the standard SPI (Serial Peripheral Interface) to communicate with microcontrollers.
06 What are the physical dimensions of the module?
The board measures approximately 18.5mm by 17.5mm, making it compact for embedded projects.
07 Is soldering required to use this module?
Yes, basic soldering skills and equipment are needed to solder the headers before use.
08 What should I avoid when powering this module?
Do not connect the module to 5V power as it will damage the module and any inserted SD card.
09 Can this module be used for long-term data logging?
Yes, it is designed for reliable, long-term data storage in embedded applications.
10 Does the module include any additional accessories?
Yes, it comes with a set of unsoldered 2.54mm pin headers for DIY assembly.
