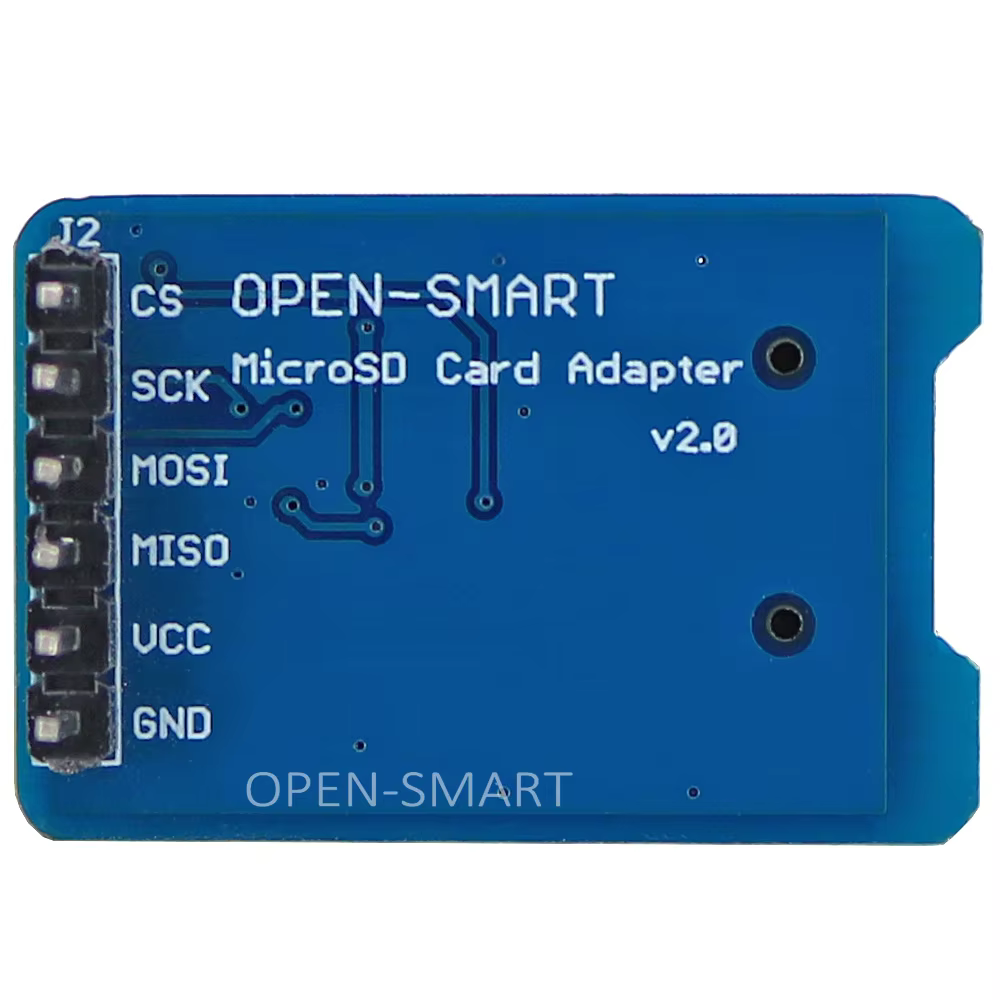

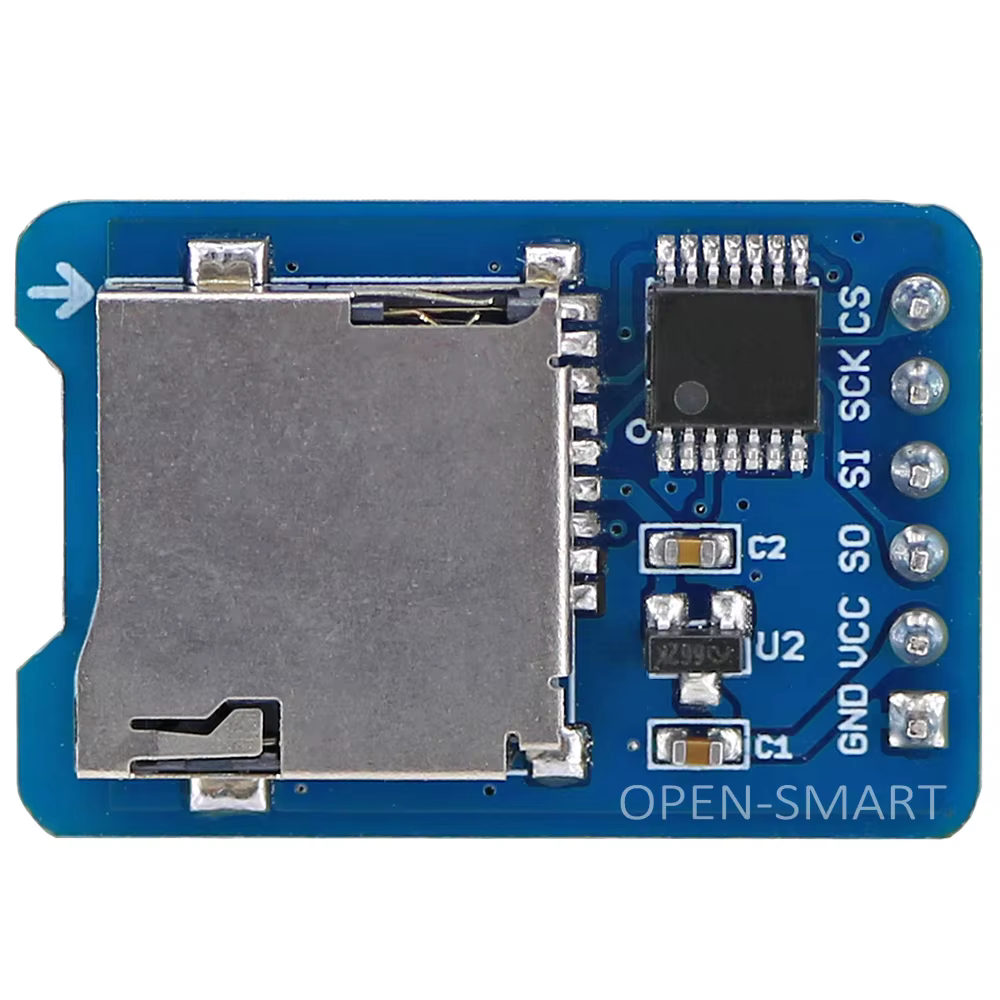

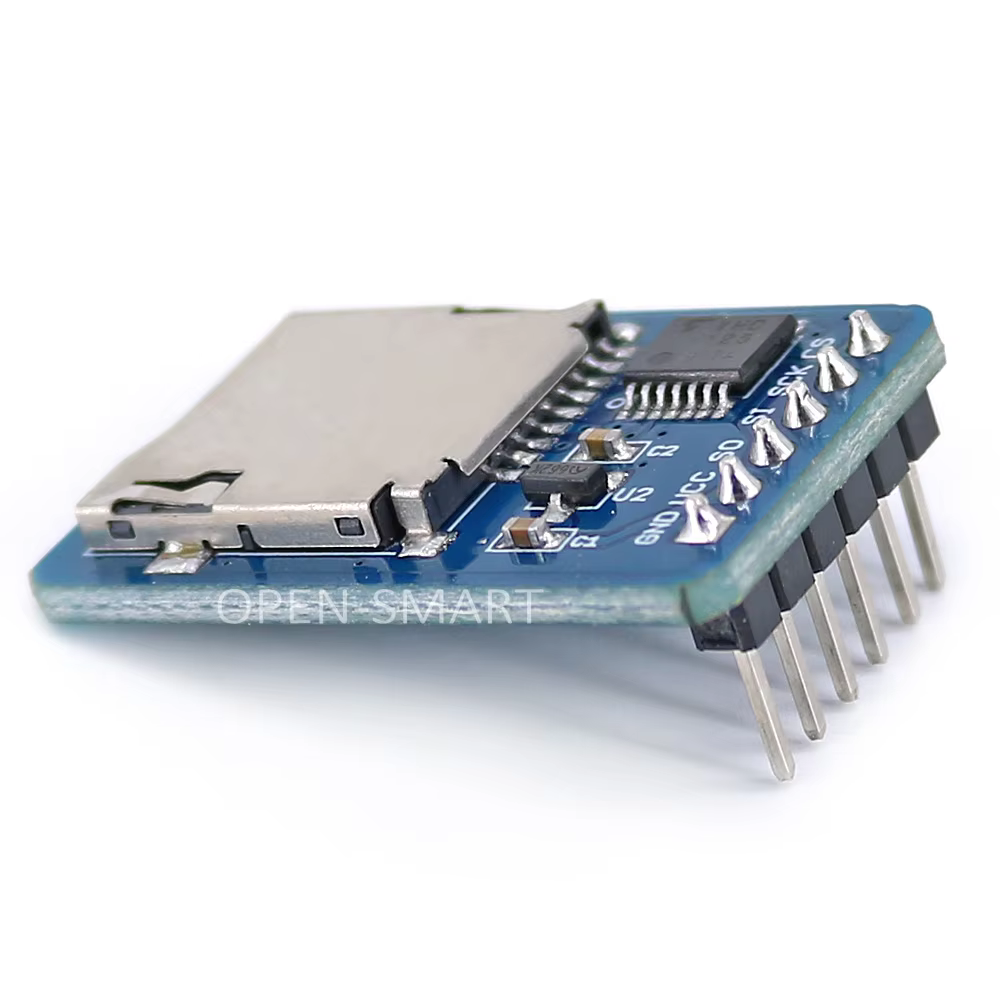

Micro SD Card Module TF Reader Board SPI for Arduino
Original price was: $3.65.$3.61Current price is: $3.61.
Pay now, in 4 interest-free payments of $0.90, or over 3β6 months
4 interest-free payments of $0.90
Compact Micro SD card reader module with SPI interface for Arduino compatibility.
- Supports Micro SD (β€2GB) and Micro SDHC (β€32GB) cards
- Operates safely with 3.3V to 5V via onboard regulator
- Easy plug-in for MB102 breadboards to enhance your DIY projects
25 in stock
β
Estimated Delivery Time3β7 business days
Compatible Micro SD Card Storage
This compact module reads and writes files from Micro SD and Micro SDHC cards, supporting storage capacities up to 32GB. It enables easy data management in embedded systems through SPI protocol.
Seamless Arduino Integration
Designed for plug-and-play compatibility, the module connects directly to Arduino boards, allowing users to utilize the Arduino IDE's SD library for simple initialization and file operations.
Robust Voltage Handling
The module operates within a voltage range between 3.2V and 5.5V. An onboard 3.3V low dropout regulator ensures safe power handling, complemented by a level shifting circuit to accept both 3.3V and 5V logic signals.
- Operating voltage: 3.2V β 5.5V
- Onboard 3.3V LDO regulator
- 3.3V / 5V logic compatible with level shifter
Breadboard Friendly Design
Ideal for DIY electronics projects, this module easily mounts on MB102 breadboards, simplifying prototyping and experimental development without additional hardware adapters.
- Direct plug-in for MB102 breadboards
- Simplifies prototyping and project assembly
Key specifications
- Card compatibility: Micro SD up to 2GB, Micro SDHC up to 32GB
- Interface: Standard SPI port
- Operating voltage: 3.2V β 5.5V with onboard regulator
- Logic level compatibility: 3.3V/5V with onboard level shifter
- Package includes: 1 x Micro SD Card Module
What's in the box
- 1 x Micro SD Card Module
Product FAQ
Frequently asked questions
01 What types of cards are supported by this Micro SD Card Module?
It supports Micro SD cards up to 2GB and Micro SDHC cards up to 32GB.
02 Is this module compatible with Arduino boards?
Yes, the module can be directly connected to Arduino and used with the SD card library in the Arduino IDE.
03 What voltage levels does this module operate at?
It operates between 3.2V and 5.5V with an onboard 3.3V voltage regulator and supports both 3.3V and 5V logic levels.
04 What interface does this card module use for communication?
The module uses the SPI (Serial Peripheral Interface) protocol for communication.
05 Can this module be used directly on a breadboard?
Yes, it can be plugged directly onto MB102 breadboards for DIY project integration.
06 Does the module include a voltage level shifter?
Yes, it includes an onboard level shift circuit to support both 3.3V and 5V logic interface voltage levels.
07 Is any battery required or included with the module?
No battery is included or required to operate this module.
08 What programming support is available for this module?
Users can use the standard SD card library available in the Arduino IDE to initialize, read, and write cards.
09 What is the color of the PCB for this Micro SD Card Module?
The module PCB is blue in color.
10 Is this module certified or inspected?
No specific certifications or inspections are mentioned for this product.
