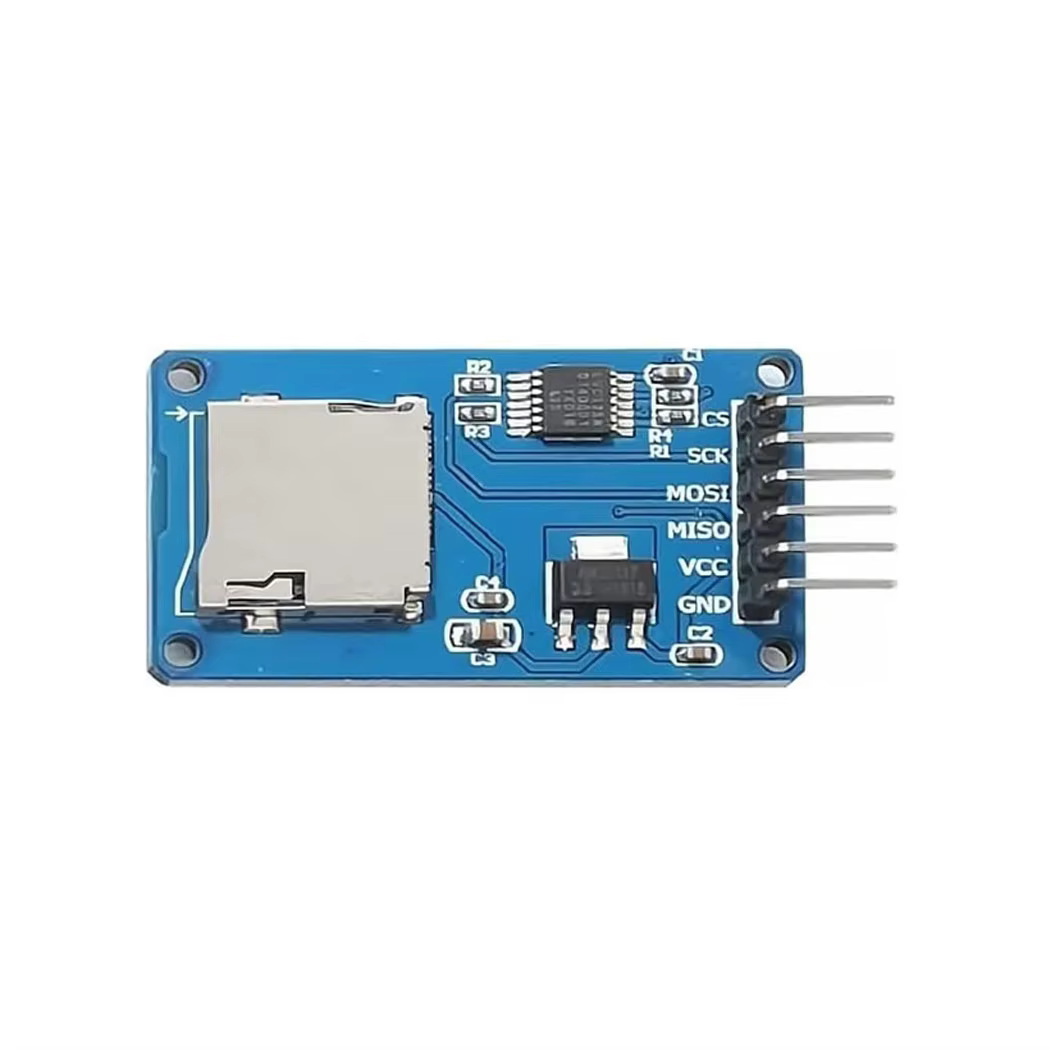

Micro SD Card Adapter Reader Module with SPI Interface
Price range: $3.86 through $4.90
Pay now, in 4 interest-free payments of $0.97, or over 3β6 months
4 interest-free payments of $0.97
Micro SD card reader module with built-in level converter for 3.3V/5V logic. Compatible with Arduino via standard SPI interface. Supports Micro SD and SDHC cards up to 32GB.
β
Estimated Delivery Time3β7 business days
Compact and Versatile Micro SD Interface
This Micro SD Card Adapter Module provides a reliable way to read and write data on Micro SD and SDHC memory cards using a SPI interface. Designed especially for embedded systems and compatible microcontroller platforms like Arduino and Raspberry Pi, it simplifies data storage integration.
The module features a standard SPI communication protocol, enabling easy connection to various development boards and quick software integration with existing SD card libraries.
Built-in Level Conversion for Broad Compatibility
Equipped with an integrated level regulator and conversion circuitry, the adapter supports both 3.3V and 5V signal levels. This design ensures safe and seamless operation across different microcontroller interfaces without additional hardware. The module converts signals in both directions, including the MISO line, to 3.3V logic levels.
- Operates at 4.5V to 5.5V DC supply voltage
- Supports 3.3V and 5V logic signals
- Protects microcontrollers from voltage mismatches
Easy Integration and Usage
The Micro SD card slot uses a self-deck type connector allowing simple card insertion and removal. This design minimizes handling issues and maintains secure connections during operation, ideal for development and prototype environments.

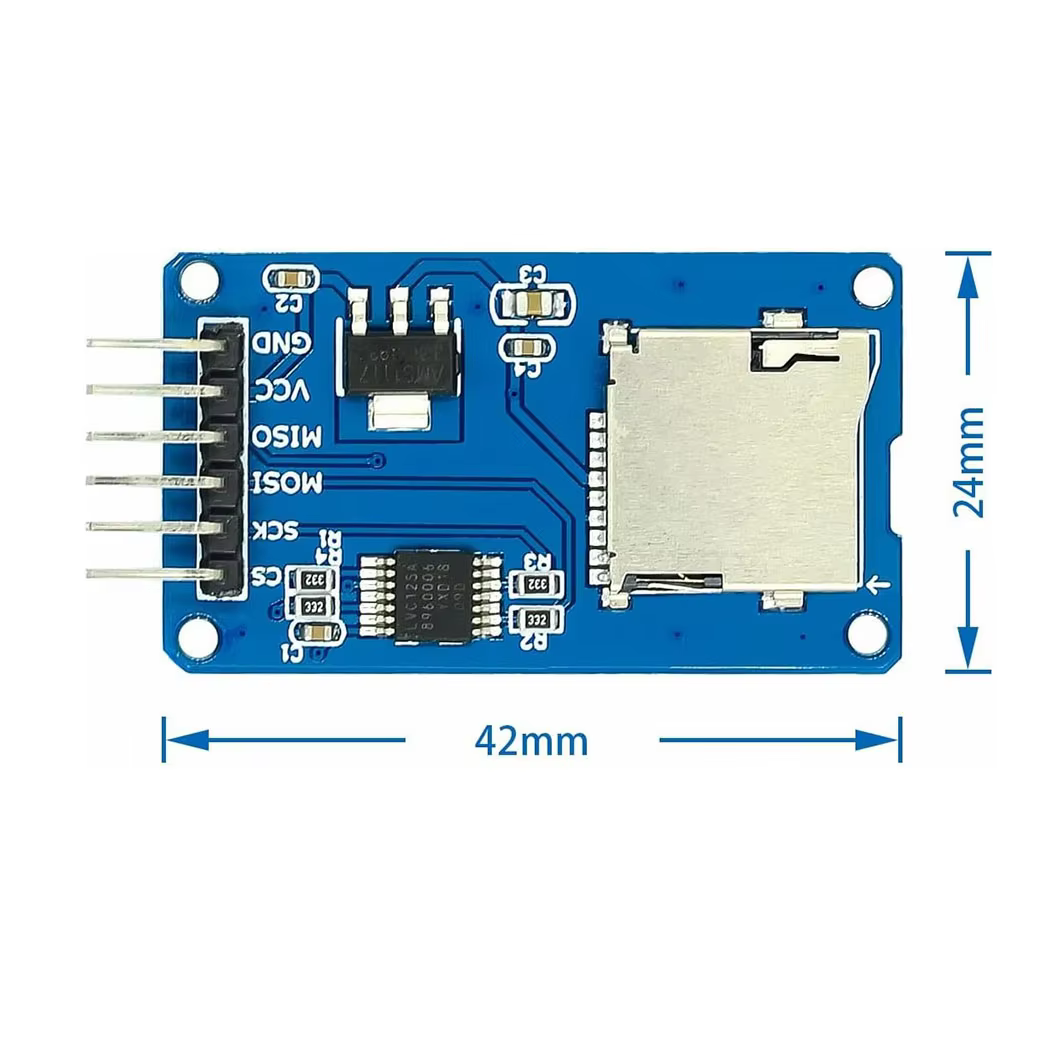

Additionally, the control interface provides clearly labeled pins (GND, 3V3, MISO, MOSI, CLK, CS) to facilitate straightforward wiring and integration into any SPI-enabled system.
- Self-deck Micro SD card connector for convenience
- Standard SPI pin layout for quick setup
Key Specifications
Voltage: 4.5V to 5.5V DC
Current: 0.2mA to 200mA
Communication Interface: SPI
Package Options for Flexibility

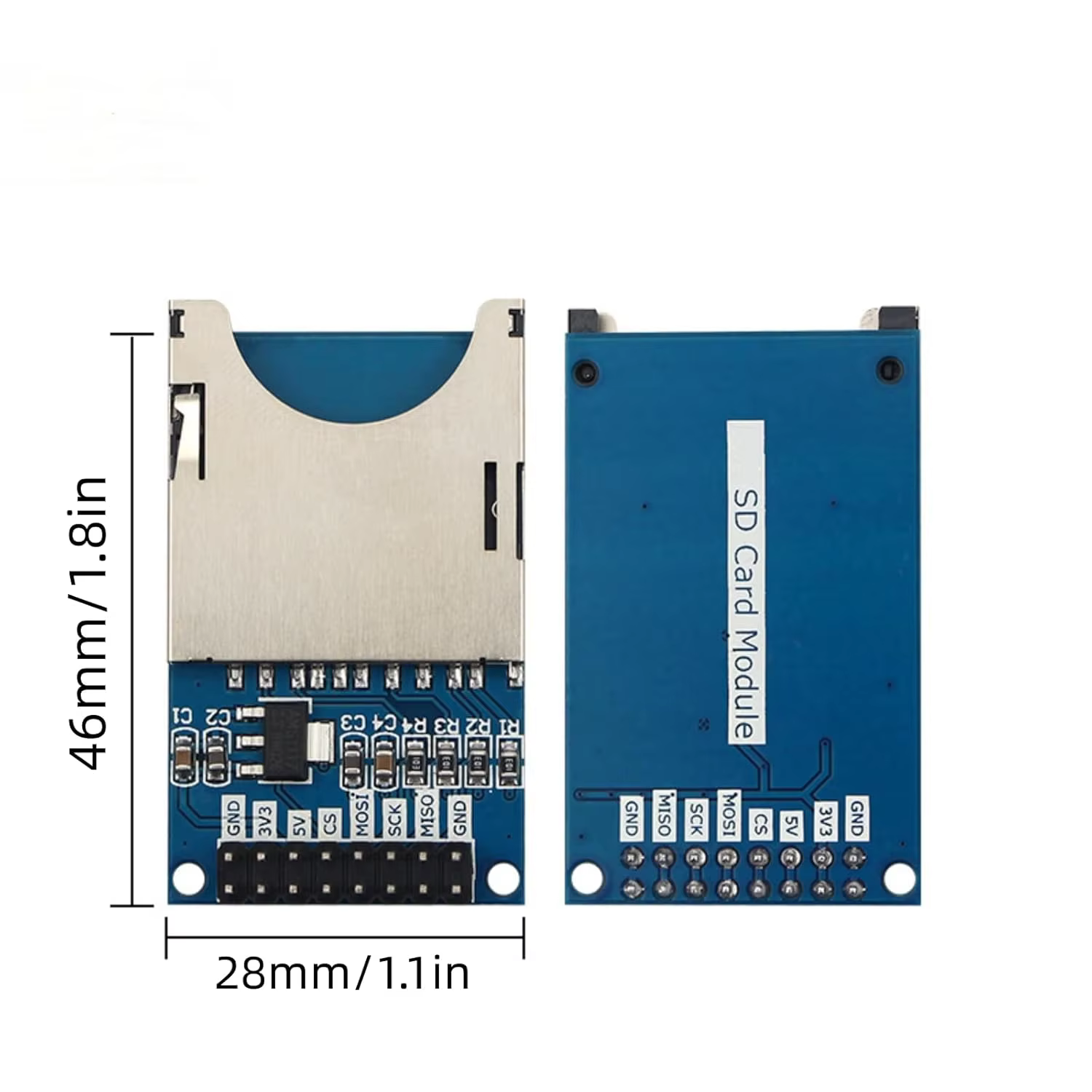

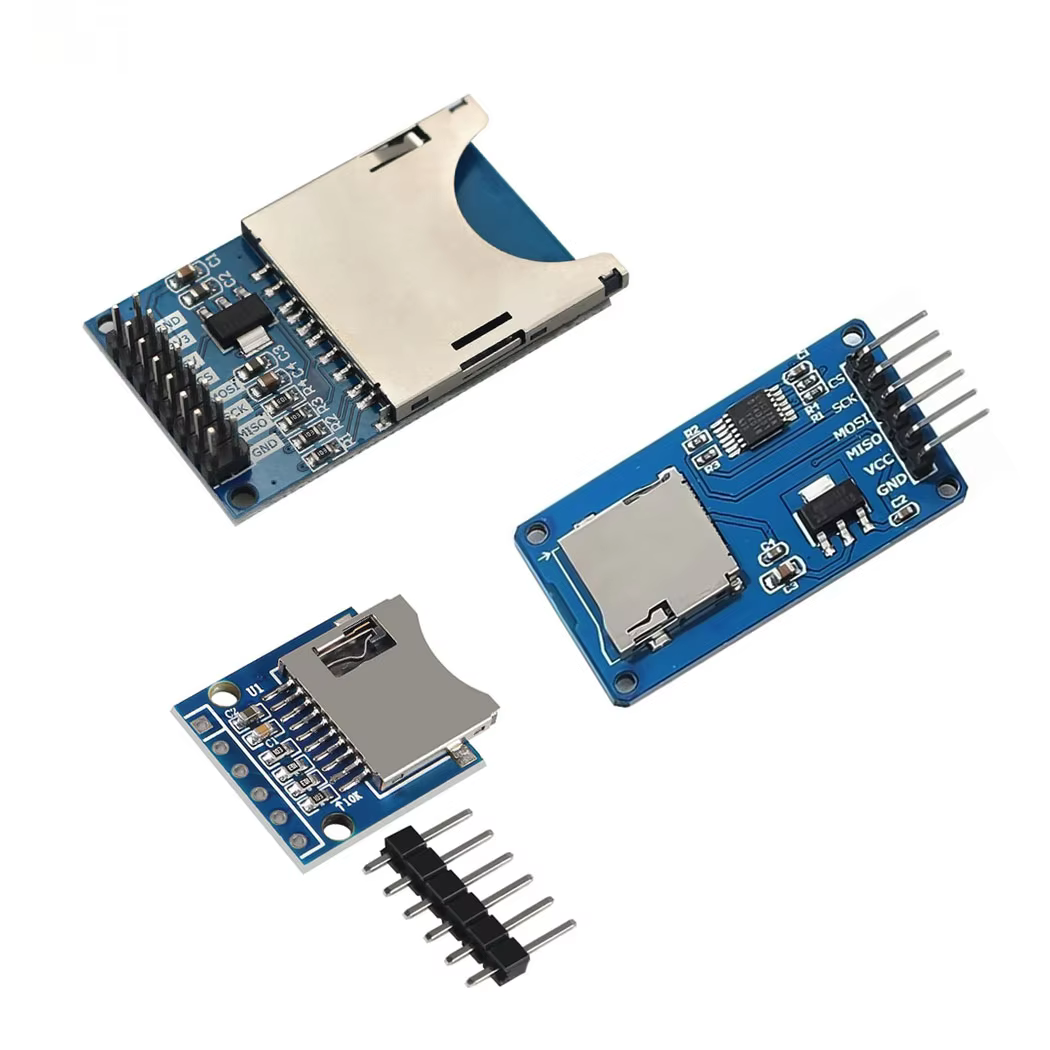

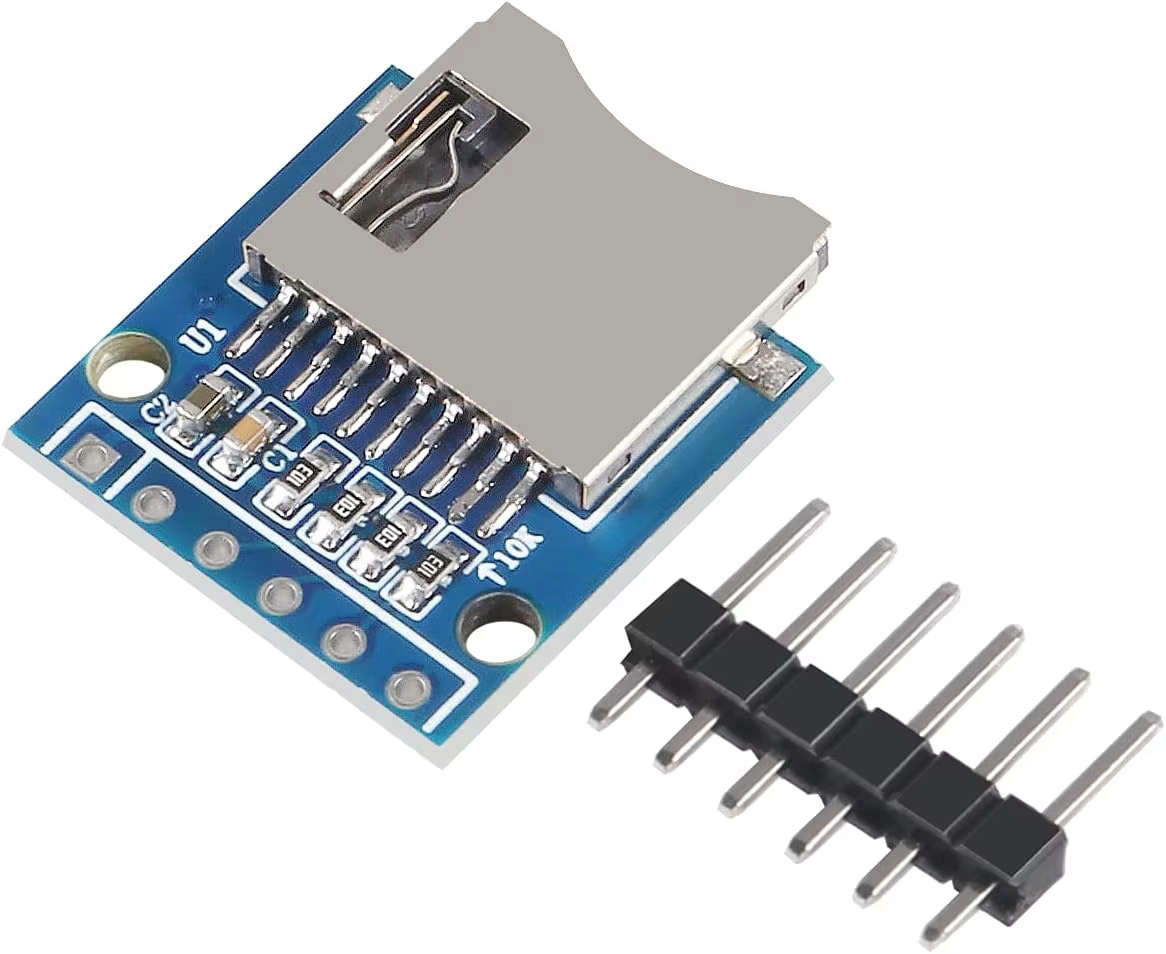

Available in multiple configurations including 1 or 2 pieces per pack and adapter types such as Mini Card Welding and TF Card versions. Customers can select the option that matches their project needs and quantity requirements.
What's in the box
- Micro SD Card Adapter Reader Module (1 or 2 pieces per selected option)
Product FAQ
Frequently asked questions
01 What type of memory cards does this adapter support?
This adapter supports Micro SD cards less than 2GB and Micro SDHC cards up to 32GB.
02 Is this module compatible with Arduino boards?
Yes, it is compatible with Arduino and can be used with the Arduino IDE's SD card library for initialization and read-write operations.
03 What communication interface does the module use?
The module uses a standard SPI (Serial Peripheral Interface) for communication.
04 What voltage levels does the module support?
It supports operating voltages from 4.5V to 5.5V DC and includes a level converter to handle 3.3V and 5V signal levels.
05 What signals are available on the control interface pins?
Control pins include GND, 3V3 (power supply), MISO, MOSI, CLK (SPI bus), and CS (chip select).
06 Does the module require additional level shifting hardware?
No, the module has a built-in level regulator and level conversion circuit, making it suitable for 3.3V and 5V systems.
07 Is this module suitable for Raspberry Pi?
Yes, its SPI interface and level shifting make it compatible with Raspberry Pi and other similar development boards.
08 How is the Micro SD card inserted?
The module features a self-deck type Micro SD card connector for easy and secure card insertion.
09 What are the current consumption specifications?
The module operates with a current range from 0.2mA up to 200mA depending on usage conditions.
10 Are there options for quantity when purchasing this module?
Yes, the product is available in options of 1 or 2 pieces per purchase, with different card adapter types.
