MACHINIST B760 GT4 DDR4 LGA1700 Intel Core Motherboard

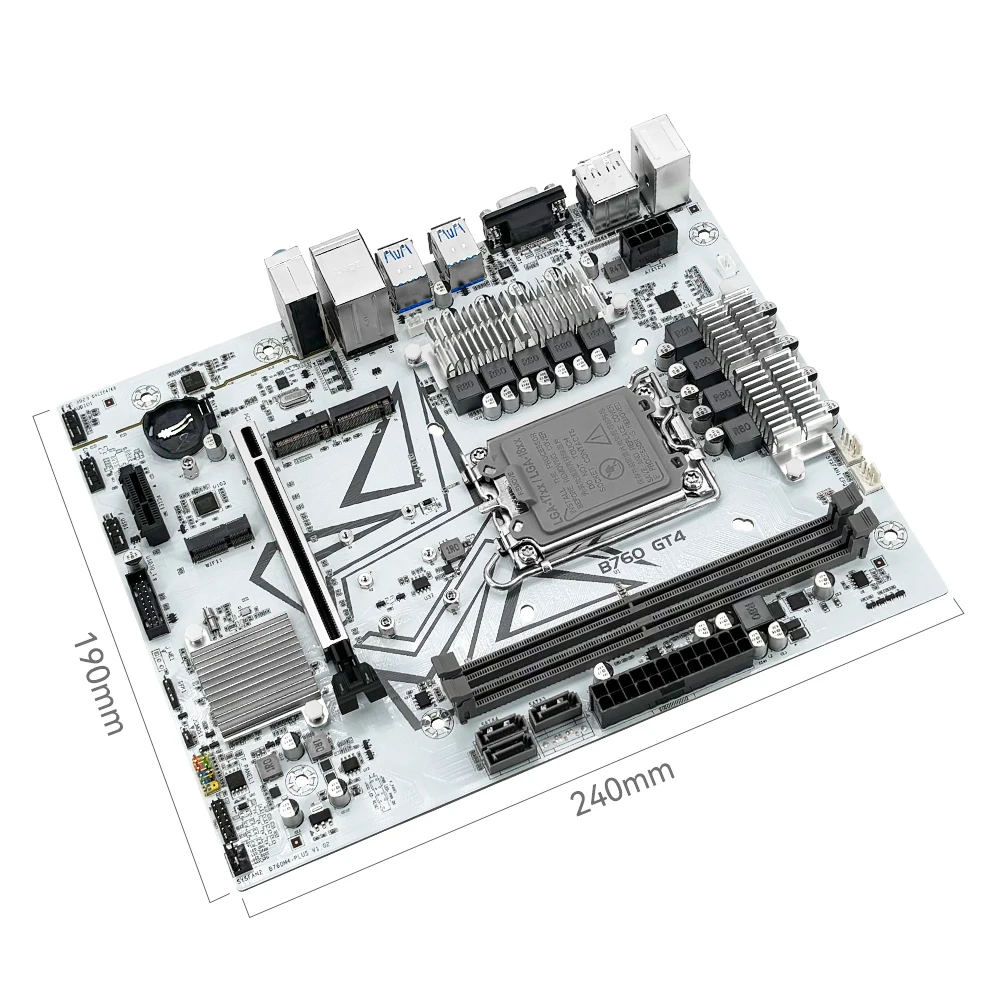

Experience powerful performance with the MACHINIST B760 GT4 motherboard, designed for Intel LGA 1700 socket processors including 12th and 13th Gen Core i3/i5/i7/i9 CPUs. Featuring the Intel B760 chipset and a Micro-ATX form factor (240mm x 190mm), this board supports dual-channel DDR4 memory up to 64GB (2 slots, 288-pin) at speeds of 2133/2666/3000/3200/3600MHz. Note: Compatible with DDR4 desktop memory from brands like Samsung, Kingston, Sandee, Micron, and Hynix.

• Supports PCIe 4.0 with one PCIe x16 slot and one PCIe x1 slot for versatile expansion.
• Storage options include two M.2 slots (1 PCIe 4.0 x4 NVMe, 1 PCIe 4.0 x4 NVMe/SATA) and three SATA 3.0 ports.
• Rear I/O offers 1x PS/2 combo port, 1x RJ45 Gigabit LAN, 2x USB 2.0, 4x USB 3.2 ports, and audio jacks supporting 5.1 channels.
• Display outputs include VGA, HDMI, and DisplayPort for triple simultaneous display support.
• Additional onboard connectors: CPU fan headers, AAFP audio header, and front panel connectors.
• Supports advanced features like network wake-up, Re-Size BAR, TPM 2.0, and XMP profiles for memory overclocking.
• Certified with CE and RoHS standards for quality assurance.

Package includes the MACHINIST B760 GT4 motherboard, I/O shield, and SATA cable. Please note the motherboard does not include a battery and requires a 500W or higher power supply for stable operation. This reliable motherboard fits gaming, office, audio/video, and household desktop applications.
