M506 Wireless Car Immobilizer Anti-Theft Engine Lock
Original price was: $71.21.$42.53Current price is: $42.53.
Pay now, in 4 interest-free payments of $10.63, or over 3–6 months
4 interest-free payments of $10.63
Compact and lightweight wireless immobilizer system
- Easy DIY installation by fuse replacement
- Auto-sensing remote control for hands-free operation
- Two anti-theft modes with LED feedback
893 in stock
↗
Estimated Delivery Time3–7 business days
Advanced Compact Car Immobilizer
The M506 car immobilizer features a compact main unit and slim, lightweight remote controls engineered with new micro-electric technology for enhanced security.
Designed for easy DIY installation, simply unplug your car's oil pump fuse and replace it with the M506 unit, securing it inside the fuse box for seamless integration.
Smart Remote Control Features
The remote offers an auto-sensing function, allowing hands-free operation by simply carrying it in your wallet or concealed spots, with no button needed to engage the system.
Manual mode is also available, requiring a button press at start-up, providing flexibility according to user preference.
Dual Anti-Theft Modes with LED Feedback

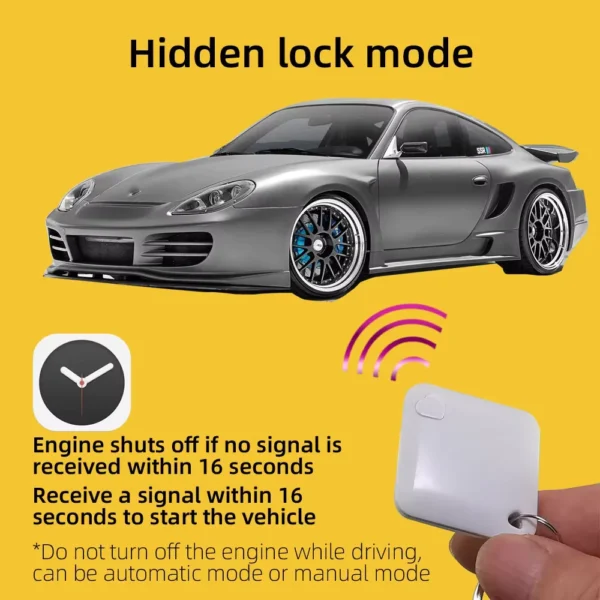

Circuit hidden lock mode disables the engine if no remote signal is detected within 16 seconds after ignition, while allowing continued operation after initial validation.
Anti-robbery mode requires continuous signal reception; absence of signal causes engine shutdown after 30 seconds, with LED flashes indicating signal status and timing.
- LED flashes once when signal is received
- Flashes multiple times at varying speeds when signal is lost
Simple Coding and Setup
Up to two remotes can be paired using the host's learning switch and remote button, confirmed by audible beeps.
Factory settings come pre-coded, easing installation for most users.
Key Specifications
- Operating voltage: 12V ± 3V
- Quiescent current: ≤12mA
- Control current: ≤30A
- Remote battery: CR2032
- Remote frequency: 433.92MHz
- Unit size: 48 × 26 × 15 mm
- Remote size: 33 × 33 × 4.5 mm

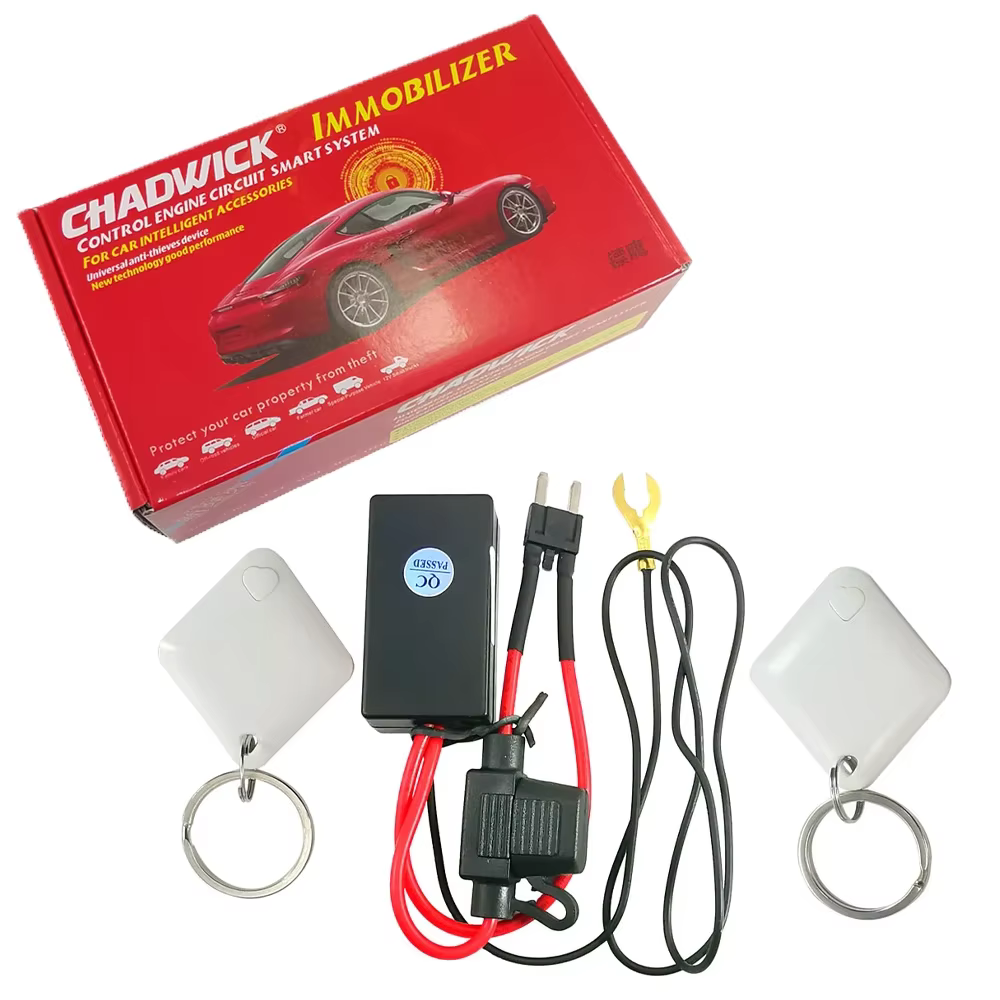

What's in the box

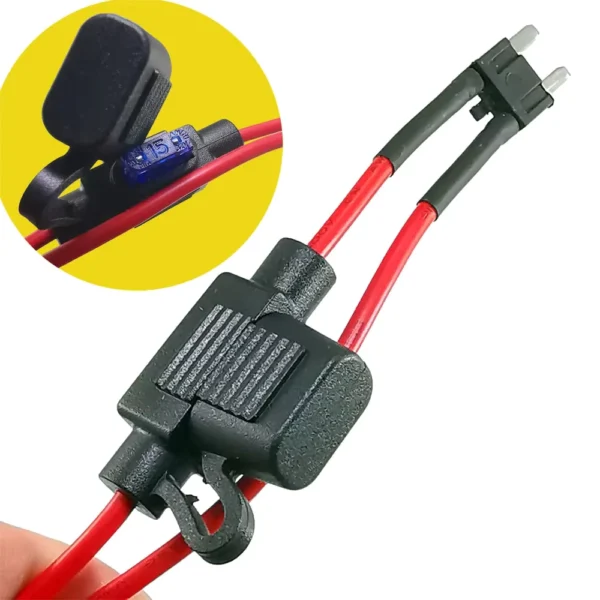

- 1 x Main unit with wire and 15A fuse
- 2 x Sensor remote controls
- 1 x User manual in English
Product FAQ
Frequently asked questions
01 How is the M506 immobilizer installed?
Installation is DIY by removing the car's oil pump fuse and plugging the M506 unit in its place, then securing and covering the fuse box.
02 What does the auto-sensing remote control do?
The remote control can automatically communicate with the immobilizer without manual operation, allowing you to keep it hidden and hands-free.
03 What happens if the remote signal is lost after starting the car?
In circuit hidden lock mode, if no signal is received within 16 seconds after starting, the engine will cut off; otherwise, it stays on.
04 What is the anti-robbery mode feature?
With a short-circuit ring inserted, the car must continuously receive the remote signal or it will shut down after 30 seconds, enhancing security.
05 How many remotes can the M506 system learn?
The system can learn up to two remote controls via a coding learning process using the host switch and remote buttons.
06 What indication does the LED provide on the unit?
The LED flashes once upon receiving a remote signal; in anti-robbery mode, the flash rate indicates signal status and timing.
07 What is the operating voltage and current of the unit?
The unit works at 12V±3V, with a quiescent current ≤12mA and maximum control current ≤30A.
08 What battery type does the remote control use?
The remote uses a CR2032 battery for operation and a standby current ≤1μA to conserve power.
09 Is the M506 immobilizer waterproof?
No, the product is not designed to be waterproof.
10 Can the remote control be carried with car keys?
It is recommended to keep the remote separate from car keys to make it more difficult for thieves to locate.
