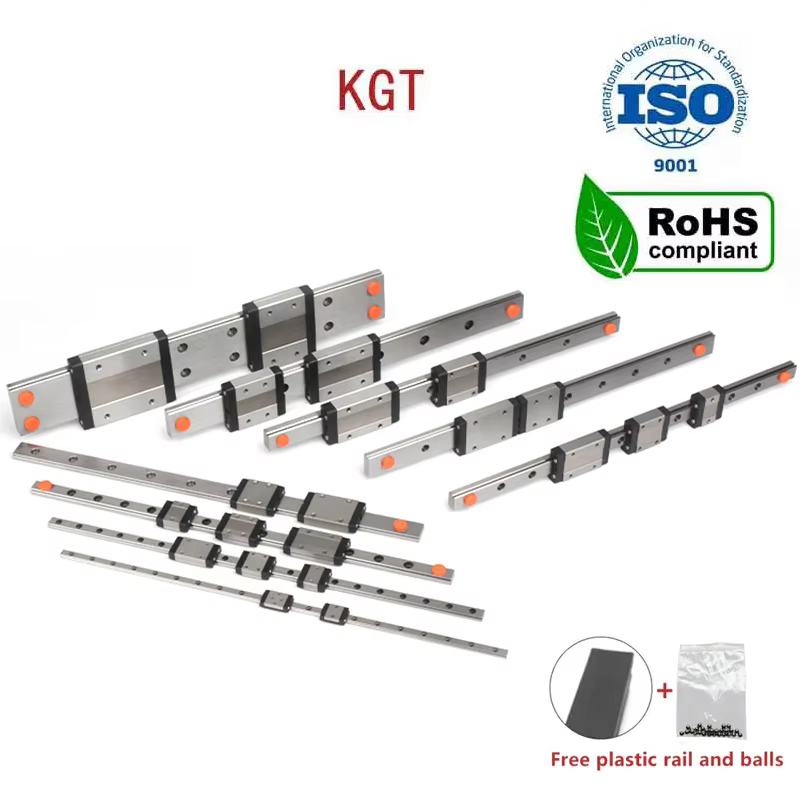

Precision KGT miniature linear guide rails with RoHS certification. Available in MGN9 and MGN12 sizes, lengths from 100mm to 1000mm. Ideal for 3D printer and CNC applications.

Color

Guide Length

Clear

↗

Estimated Delivery Time3–7 business days

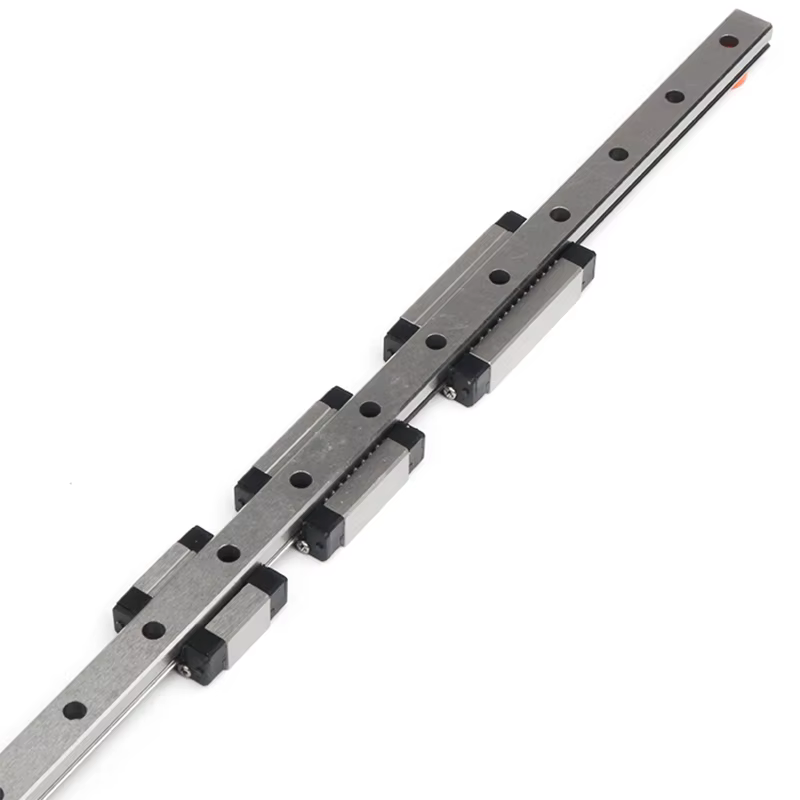

Precision miniature linear guides

KGT offers miniature linear guide rails with precision slide carriages designed for applications such as 3D printers and CNC machines. These guides ensure smooth, accurate linear motion in compact setups.

Model varieties and sizes

Choose from four core models: MGN9C, MGN9H, MGN12C, and MGN12H. Lengths are available from 100mm to 1000mm, meeting a wide range of project requirements.

MGN9 and MGN12 series for varying load capacities
Lengths in increments from 100mm to 1000mm
Single carriage blocks available separately

Quality and environmental compliance

These products are RoHS certified and ISO9001 quality assured. The manufacturing process focuses on environmentally friendly materials, gradually updating packaging and components across global warehouses.

RoHS compliant for hazardous substance control
ISO9001 certified quality management
Environmental material upgrades in warehouses worldwide

Global availability and customization

Stock held in warehouses in Spain and Brazil facilitates faster delivery for European and Brazilian customers. Customization options for color, size, and material are available on request to meet specialized needs.

Warehouses in Spain and Brazil for regional customers
Customizable options for color, size, and materials
Stainless steel models available via separate listings

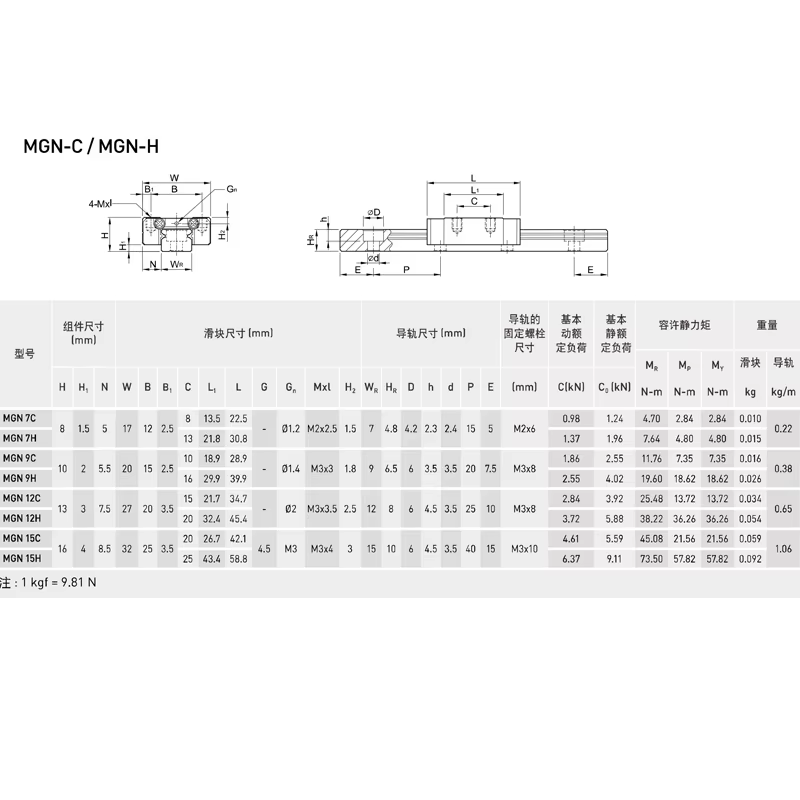

Key specifications

Model series: MGN9C, MGN9H, MGN12C, MGN12H
Length range: 100mm to 1000mm
Certification: RoHS, ISO9001
Material: Standard and environmental materials; stainless steel versions available separately
Included components: Linear guide rail with slide carriage blocks; free bearing balls included

What's in the box

Miniature linear guide rail in chosen length and model
Slide carriage block(s)
Bearing balls included

Product FAQ

Frequently asked questions

01 What models of KGT linear guide rails are available?

Available models include MGN9C, MGN9H, MGN12C, and MGN12H linear guide rails.

02 What lengths do these linear guide rails come in?

Lengths range from 100mm up to 1000mm in various increments to suit different needs.

03 Are the linear guide rails RoHS certified?

Yes, these rails are RoHS certified, ensuring compliance with environmental safety standards.

04 Can these rails be used for 3D printers and CNC machines?

Yes, they are designed as components compatible with 3D printers and CNC machines.

05 Is a stainless steel version available?

Yes, a stainless steel model is available separately; customers should contact the supplier for details.

06 Are there options for customization?

Customization options for color, size, and materials such as environmental or stainless steel materials are offered upon inquiry.

07 Where are these linear guides shipped from?

Some models are stocked in warehouses in Spain and Brazil to serve customers in Europe and Brazil.

08 Does the product include free bearing balls?

Yes, the linear guides shipped from China include free balls, and foreign warehouses are being updated with environmentally friendly materials including free balls.

09 Are there single block options available?

Yes, single slide carriage blocks are available for purchase separately in various models.

10 What certification standards does the product meet?

The product is ISO9001 certified and RoHS compliant.
