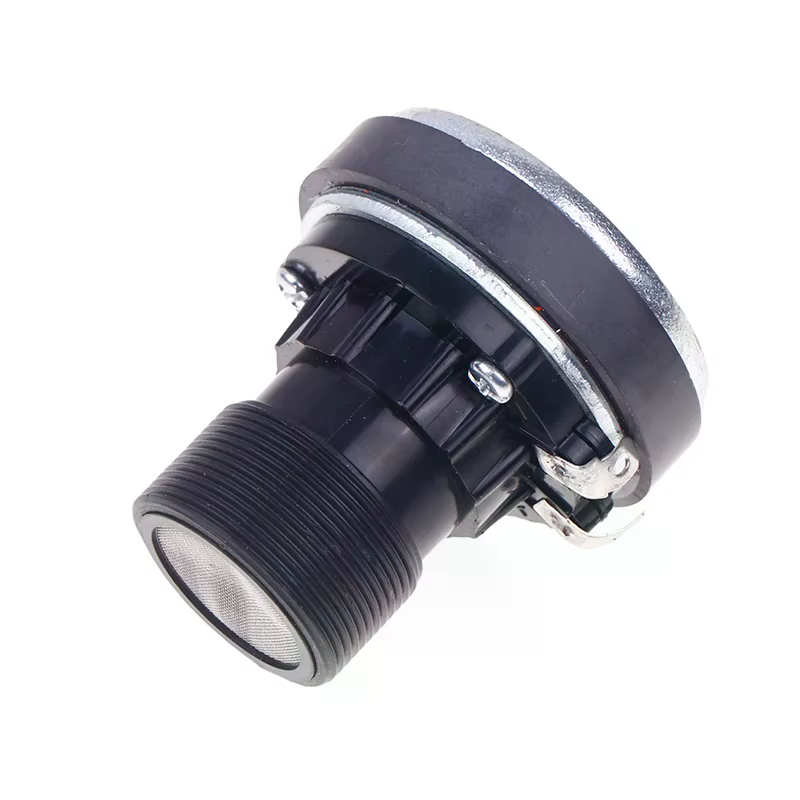

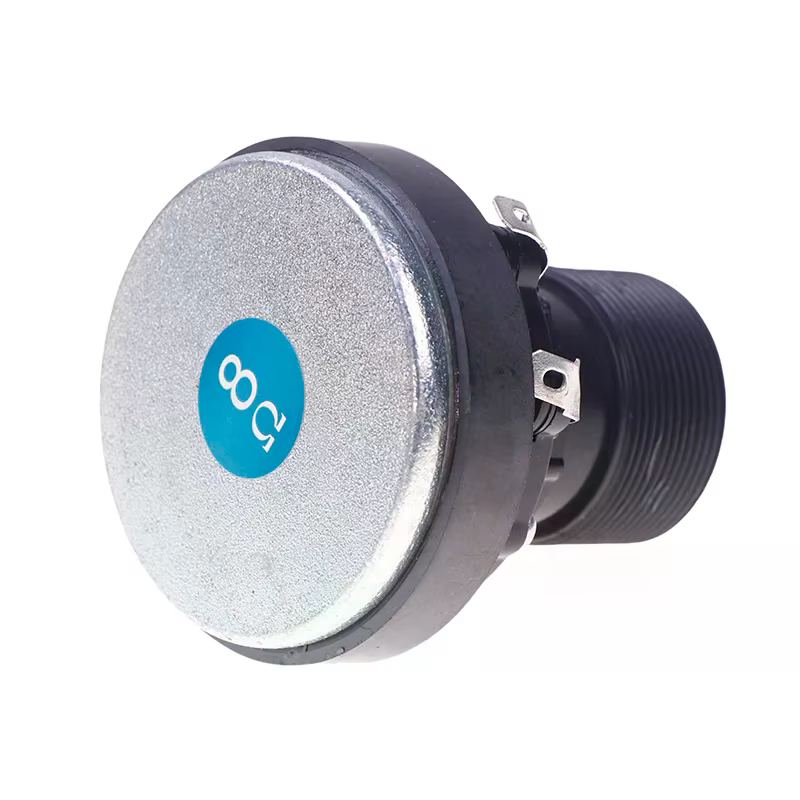

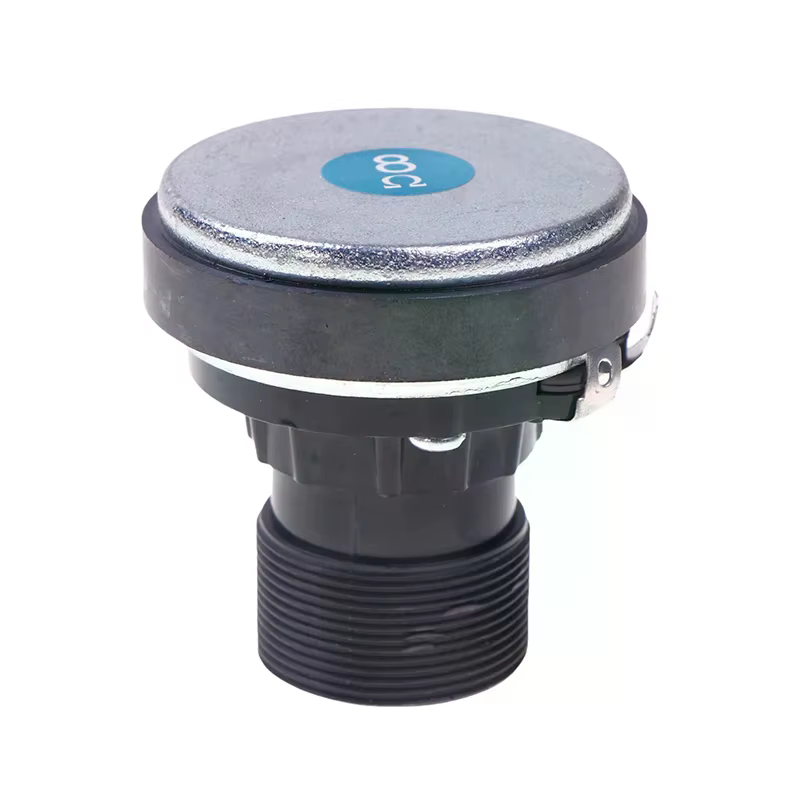

JETTING 8Ohm 40W Titanium Film Tweeter Speaker Driver
Original price was: $16.88.$15.27Current price is: $15.27.
Pay now, in 4 interest-free payments of $3.82, or over 3–6 months
4 interest-free payments of $3.82
High-quality JETTING 8Ohm tweeter speaker driver featuring a titanium diaphragm and 40W power capacity. Ideal for DIY audio systems.
999 in stock
↗
Estimated Delivery Time3–7 business days
Precision Sound with Titanium Diaphragm
Experience clear and detailed high frequencies with the 1-inch titanium film diaphragm designed to deliver crisp audio performance.
The titanium material enhances rigidity and reduces distortion for superior sound clarity in your audio setup.
Robust Power Handling and Sensitivity
With a power rating up to 40 watts RMS and sensitivity of 109 dB, this tweeter handles demanding audio signals while maintaining clarity.
Its 8-ohm impedance matches common audio amplifiers, making it straightforward to integrate.
Compact Design for Easy Integration

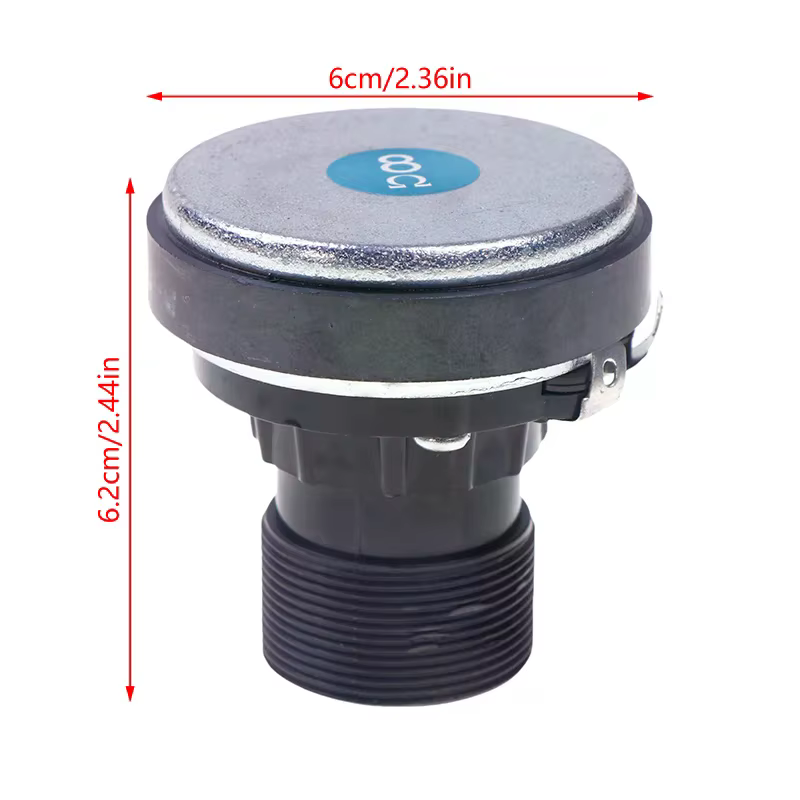

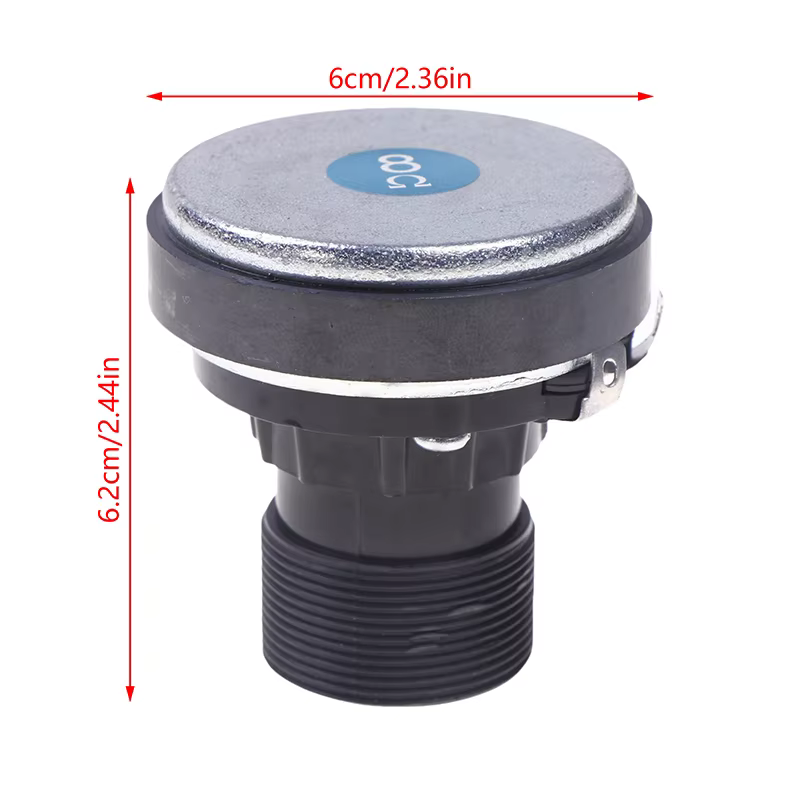

Measuring about 6 x 6.2 cm, the tweeter’s compact size fits well in various DIY speaker cabinets and custom audio projects.
Mounting is versatile with threaded screw or bolt-on option, allowing secure installation.
Quality Materials and Construction
Constructed with a plastic and metal frame for durability and stability, featuring a round aluminum voice coil wire and powerful strontium ferrite magnet.
Each component is selected to support reliability and acoustic performance over time.
Key Specifications
- Nominal Impedance: 8 Ohms
- Power Capacity: 20W (nominal), 40W RMS
- Frequency Range: 1.2 kHz – 20 kHz
- Sensitivity: 109 dB (1W/1M)
- Voice Coil Diameter: 1 inch (25.4 mm)
- Mount Type: Threaded screw or bolt on 1 3/8 inch
What's in the box
- 1 x JETTING 8Ohm 40W Titanium Film Tweeter Speaker Driver
Product FAQ
Frequently asked questions
01 What is the nominal impedance of this tweeter speaker driver?
The tweeter speaker driver has a nominal impedance of 8 ohms.
02 What power capacity does this tweeter speaker support?
It supports a power capacity of 20 watts nominal and 40 watts RMS.
03 What material is the diaphragm made from?
The diaphragm is made from titanium film.
04 What frequency range does the tweeter cover?
It covers a frequency range from 1.2 KHz to 20 KHz.
05 What is the sensitivity rating of this tweeter?
The sensitivity is 109 dB at 1 watt/1 meter.
06 What is the throat diameter of the speaker driver?
The throat diameter is 1 inch, or approximately 25 millimeters.
07 What mounting options are available for this tweeter?
Mounting can be done via threaded screw or bolt on 1 3/8 inches.
08 What materials are used in the construction besides the diaphragm?
The tweeter is constructed using plastic and metal components, with an aluminum round wire voice coil and a strontium ferrite magnet.
09 What is the size of the voice coil?
The voice coil diameter is 1 inch (25.4 millimeters).
10 Is this tweeter suitable for DIY audio projects?
Yes, this single tweeter driver is intended for DIY audio applications.
