IP55 Automated Gate Infrared Sensor for Swing & Sliding Gates
Original price was: $18.47.$10.16Current price is: $10.16.
Pay now, in 4 interest-free payments of $2.54, or over 3–6 months
4 interest-free payments of $2.54
Durable IP55 infrared sensor designed for automatic gate safety with 20m detection range.
- High sensitivity with anti-rain and dust protection
- Adjustable beam interdiction period
- Includes transmitter, receiver, installation accessories, and manual
3 in stock
↗
Estimated Delivery Time3–7 business days
Reliable Detection for Automated Gates

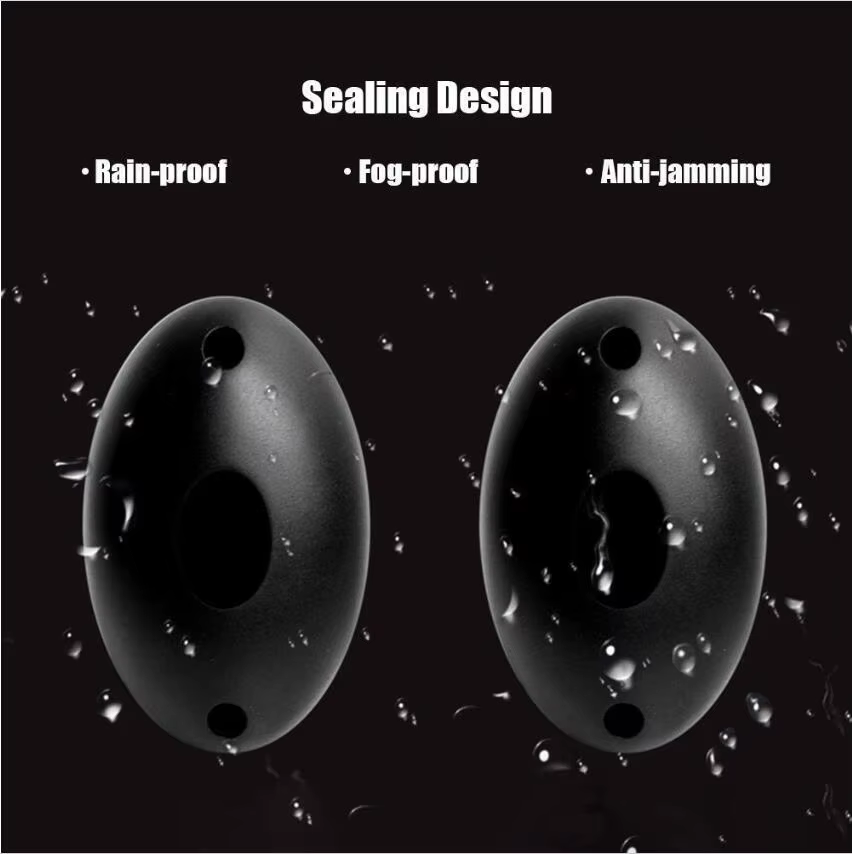

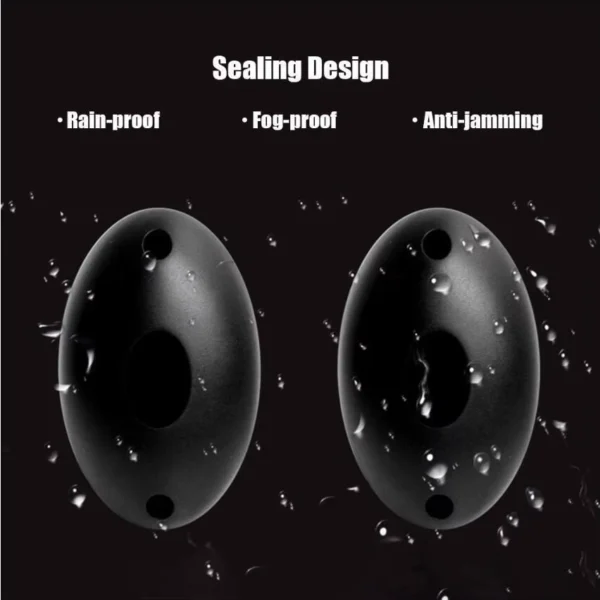

This IP55-rated infrared sensor system enhances safety for swing, sliding, and garage gates. Its sealed housing protects against rain, dust, fog, and UV damage, ensuring consistent performance in harsh outdoor environments.
The sensor detects objects up to 20 meters indoors and 10 meters outdoors, providing reliable protection for your automated gate access points.
High Sensitivity and Anti-Interference Design
Equipped with a high-power transmitter and infrared receiver tube, the sensor achieves up to 90% sensitivity surplus. It incorporates advanced low-power processing technology and professional anti-jamming optical housing for stable operation even in electromagnetic interference (EMI) prone areas.
Flexible and Easy Installation
The beam interdiction period is adjustable, allowing the sensor to adapt to specific installation requirements. Upon beam interruption, the relay outputs a voltage-free switch signal, which is compatible with a variety of gate control systems.
Key Specifications
- Power supply: DC/AC 12-24V
- Work current: 50mA
- Operating temperature: -30℃ to 50℃
- Dimensions: 49.2 x 76 x 21.6 mm
- Indoor detection distance: 20 m
- Outdoor detection distance: 10 m
- Waterproof and UV proof design
What's in the box
- 1 x Infrared Sensor Transmitter
- 1 x Infrared Sensor Receiver
- 1 x Bag of Installation Accessories
- 1 x English Usage Manual
Product FAQ
Frequently asked questions
01 What type of power supply does this gate sensor require?
It operates on DC or AC power supply ranging from 12 to 24 volts.
02 What is the detection range of this infrared sensor?
The sensor detects up to 20 meters indoors and 10 meters outdoors.
03 Is the sensor protected against weather elements?
Yes, it has a sealed design with IP55 rating for resistance against rain, fog, dust, and UV.
04 What components are included in the package?
The package includes one transmitter, one receiver, installation accessories, and an English usage manual.
05 Can the sensitivity of the sensor adjust automatically?
Yes, it features an automatic gain control (AGC) circuit that increases detector sensitivity under various conditions.
06 Does the sensor provide relay output upon beam interruption?
Yes, when the beam is interrupted, the relay outputs a voltage-free switch signal.
07 What is the size of the sensor units?
Each sensor measures approximately 49.2 x 76 x 21.6 millimeters.
08 What is the working temperature range for this sensor?
It operates reliably in temperatures ranging from -30°C to 50°C.
09 Is the sensor resistant to electromagnetic interference?
Yes, it has high anti-RFI/EMI capability to minimize false detections.
10 Can the beam interdiction period be adjusted?
Yes, the sensor allows adjustable beam interdiction timing for flexibility.
