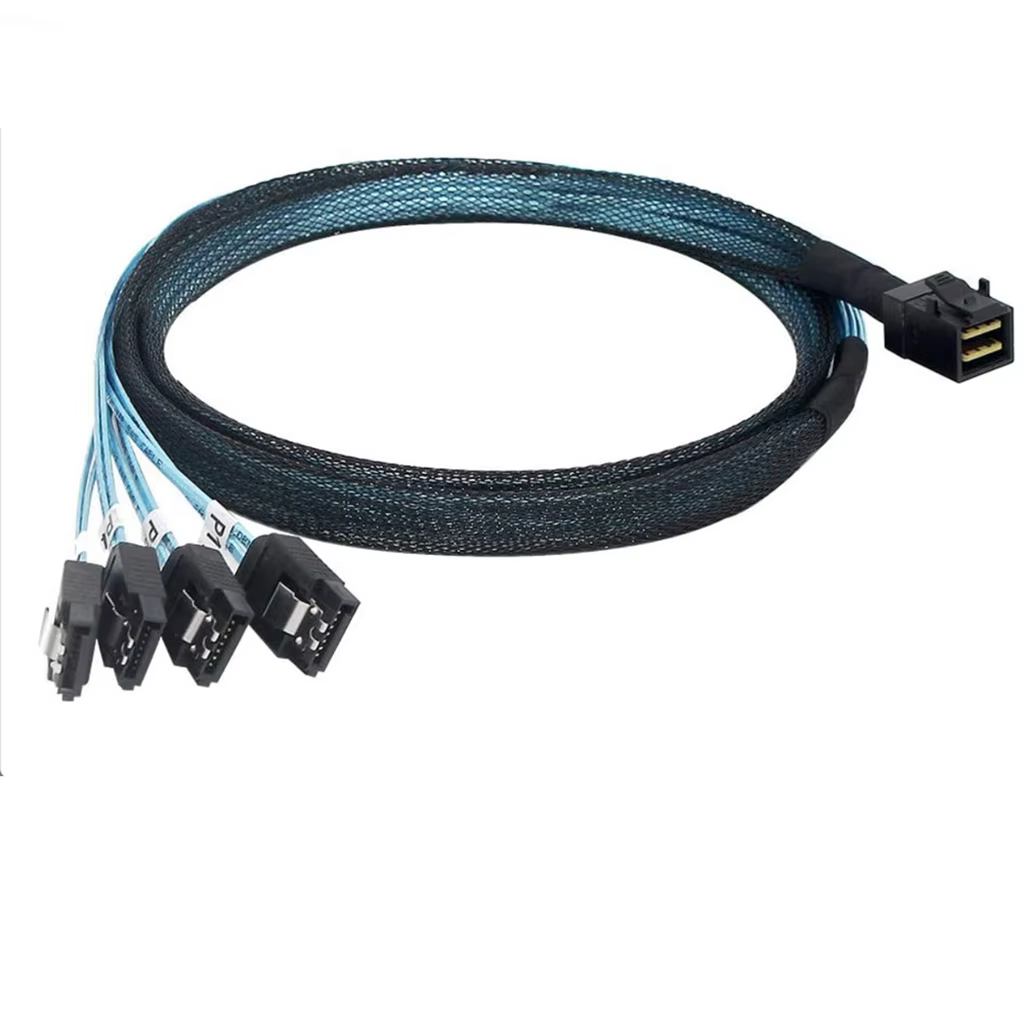

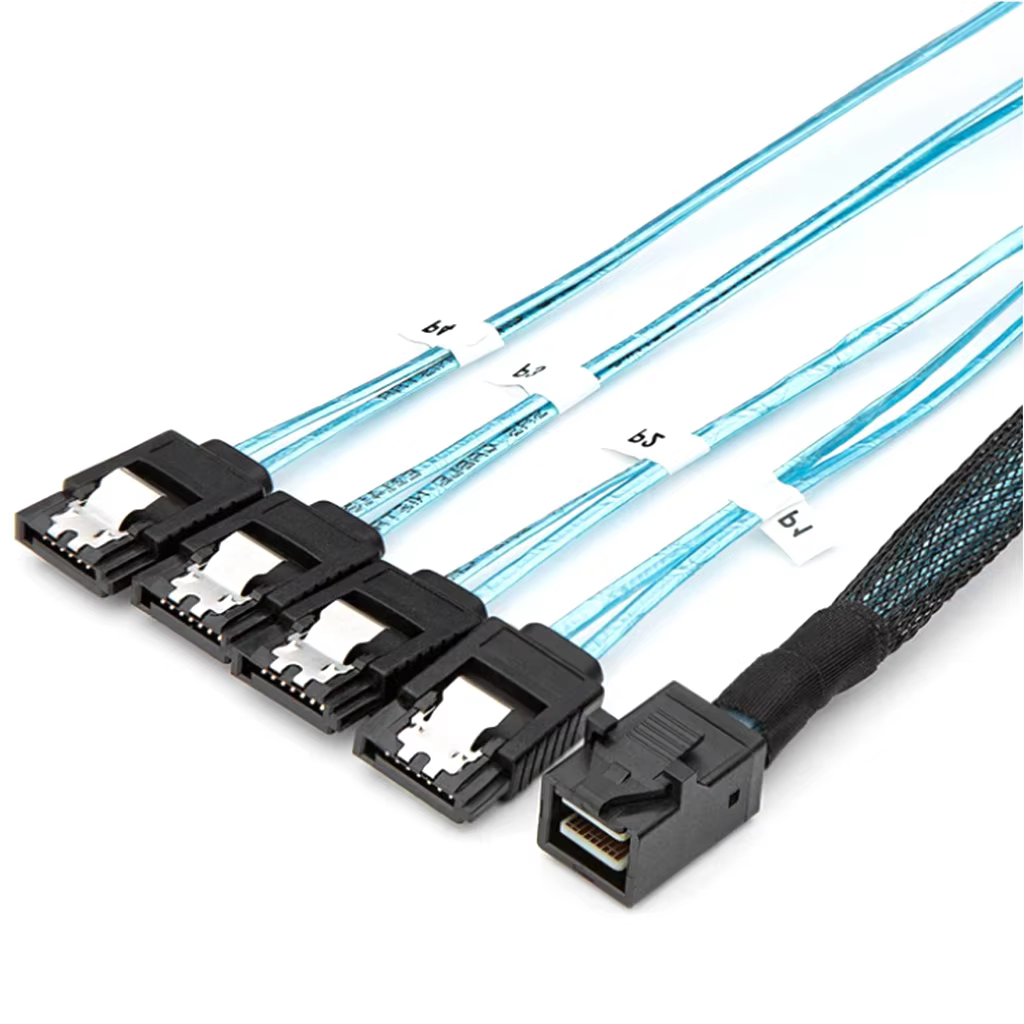

HD MINI SAS SFF8643 to 4xSATA3.0 Adapter Cable 6Gbps
Price range: $9.90 through $10.95
Pay now, in 4 interest-free payments of $2.48, or over 3β6 months
4 interest-free payments of $2.48
Connect a 12Gbps host adapter to four SATA drives with this flexible HD MINI SAS to SATA adapter cable. Supports 2.5"/3.5" SATA I, II, III drives with 6Gbps speed and secure latch connectors.
β
Estimated Delivery Time3β7 business days
Reliable High-Density Connection
This HD MINI SAS SFF8643 to 4xSATA3.0 adapter cable ensures a seamless internal connection between high-density RAID controllers and directly attached SATA storage devices.
Designed specifically for enterprise and server environments, it supports 12 Gbps host adapters connecting up to four SATA drives simultaneously.
Versatile SATA Compatibility
Supports both 2.5-inch and 3.5-inch SATA I, II, and III hard drives, allowing flexibility for various storage configurations.
- Compatible with SATA data transfer speeds of 3 Gbps and 6 Gbps.
- Enables smooth migration to higher speed 12 Gbps SAS systems.
Durable and Flexible Design
Features a flexible cable design incorporating acetate fabric tape to reduce cable stress and a braided mesh jacket for protection and easy routing.
Flat SATA connectors equipped with stainless steel latches and easy-grip treads secure connections and minimize vibration.
- 30AWG silver-plated copper wiring ensures signal integrity with 100 ohm impedance.

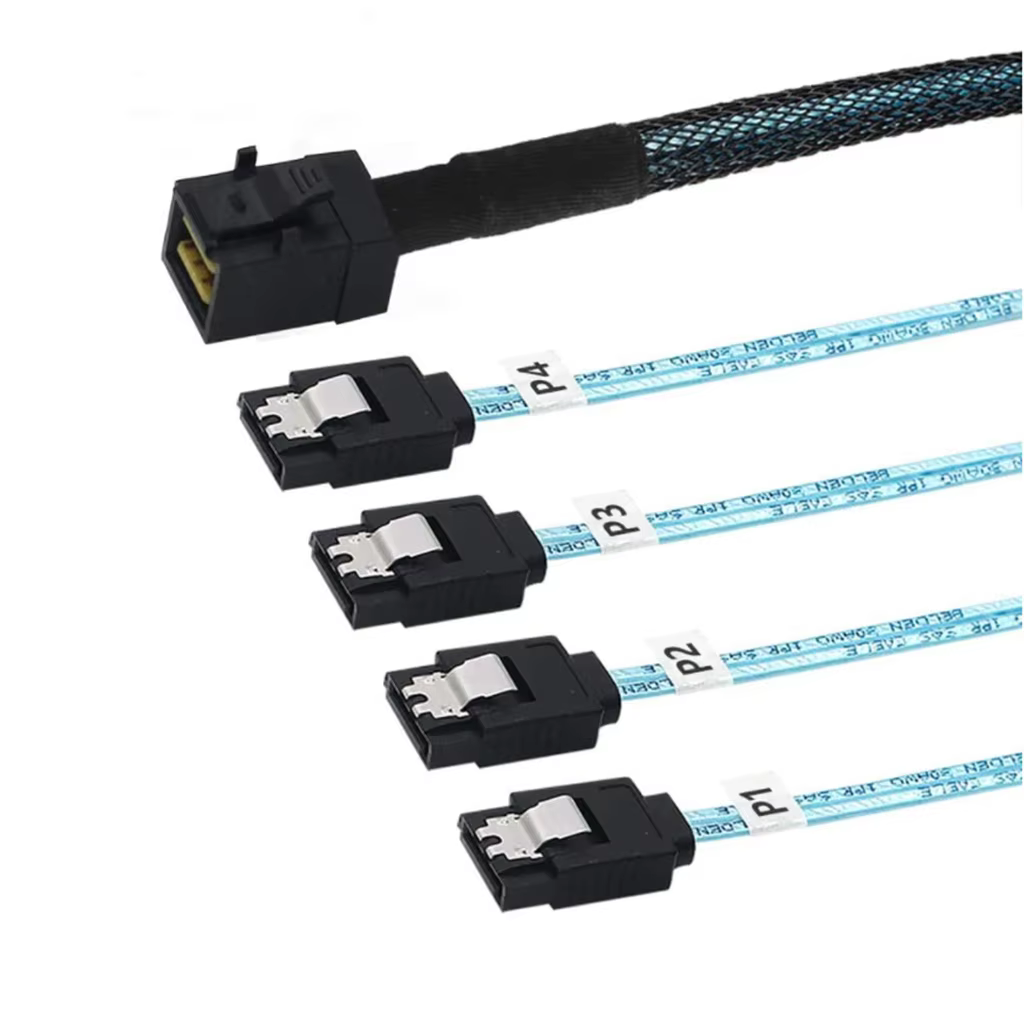

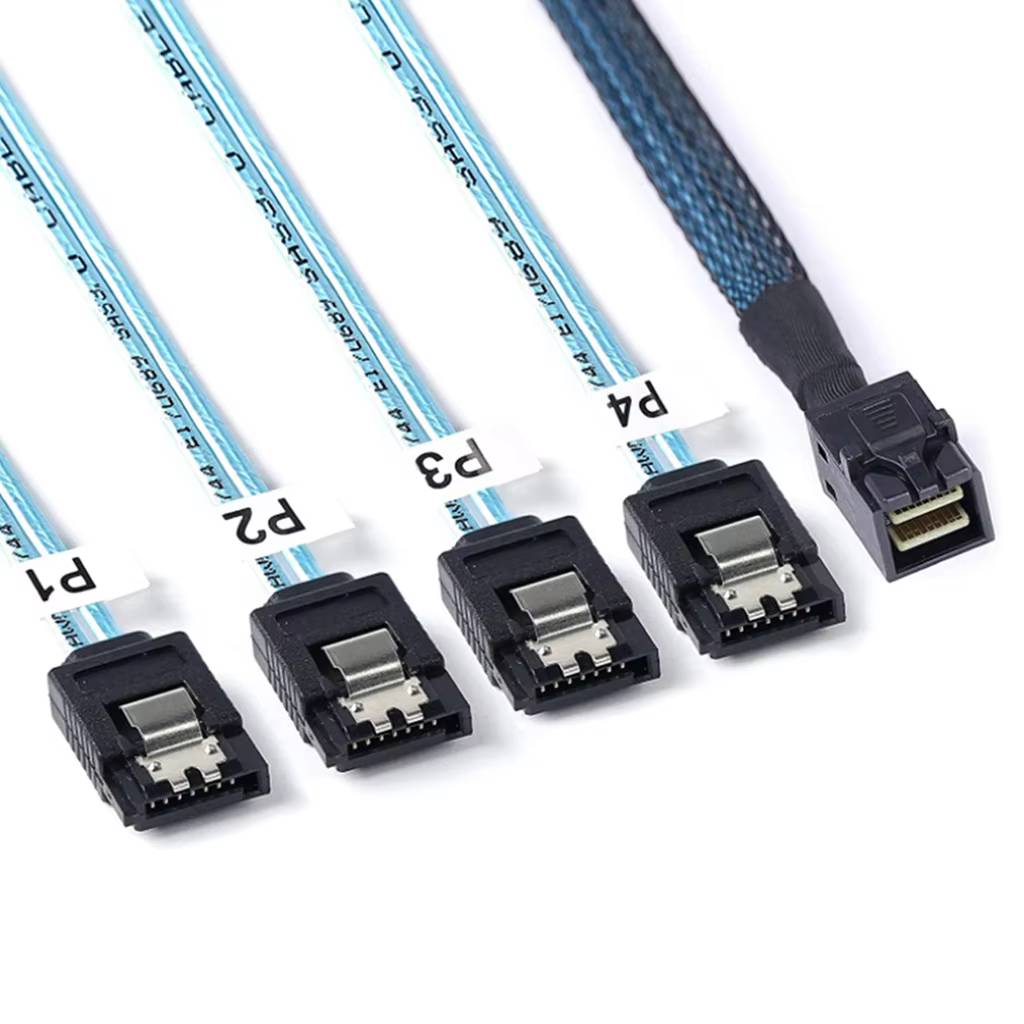

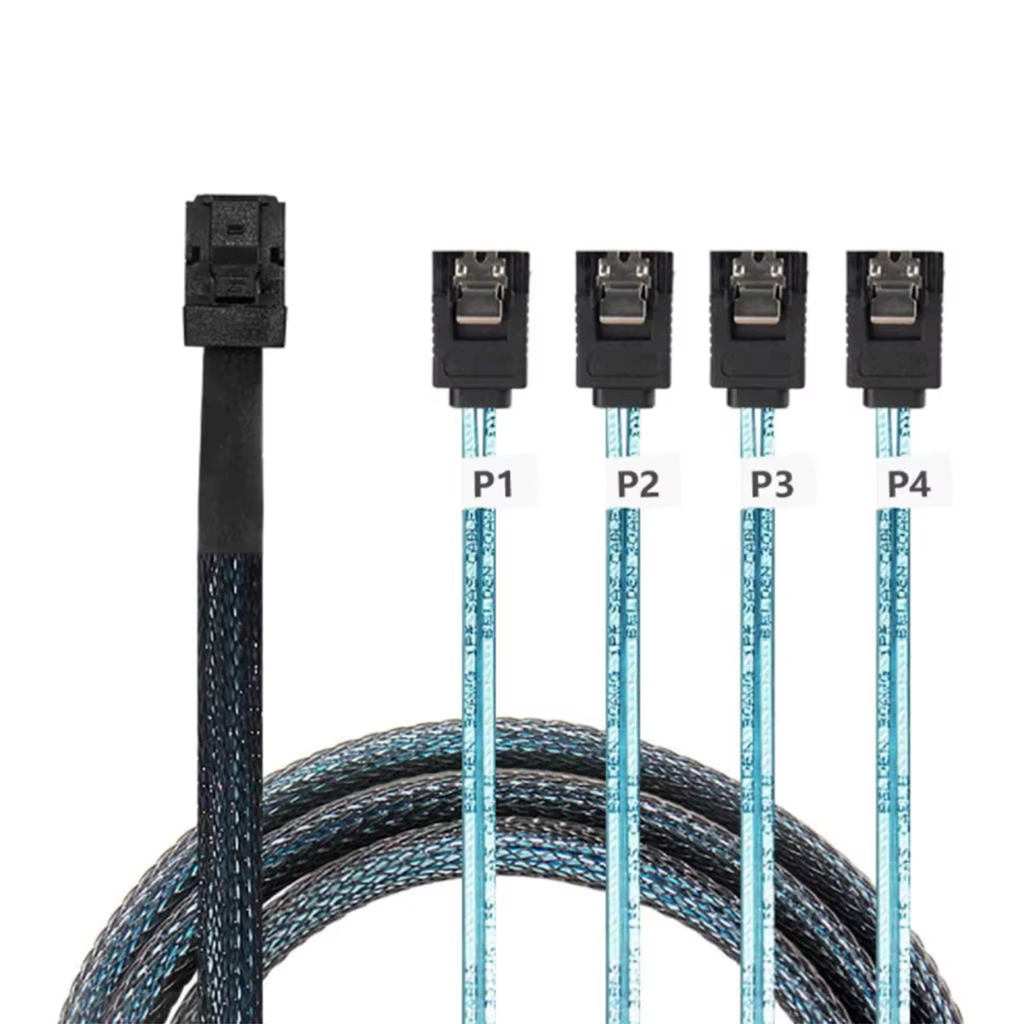

- P1 to P4 markings on connectors simplify identification and installation.
Key Specifications
- Host connection: 1 x 36-pin HD Mini-SAS SFF-8643 Male with latch lock
- Drive connections: 4 x 7-pin SATA Female with latch lock
- Lengths available: 50cm and 100cm
- Fire resistance: VW-1 rated
- Compliance: RoHS
What's in the box
- HD MINI SAS SFF8643 to 4xSATA3.0 Adapter Cable
Product FAQ
Frequently asked questions
01 What devices does this adapter cable connect?
It connects a 12 Gbps HD MINI SAS SFF-8643 host bus adapter or RAID controller to four SATA drives.
02 Which SATA drive sizes are compatible?
The cable supports both 2.5-inch and 3.5-inch SATA I, II, and III hard drives.
03 What is the data transfer speed supported?
It provides 3 Gbps and 6 Gbps compatibility for SATA drives, while supporting migration to 12 Gbps SAS systems.
04 What connector types are on the cable?
One 36-pin male HD MINI SAS SFF-8643 connector with latch lock and four 7-pin female SATA connectors with latch locks.
05 How long is the cable?
Available in two lengths: 50cm and 100cm.
06 What materials ensure cable durability?
The cable uses 30AWG silver-plated copper wires, acetate fabric tape to reduce stress, and a braided mesh jacket for protection.
07 Does the cable have any fire resistance?
Yes, it meets the VW-1 fireproof standard.
08 Are there features to prevent cable disconnection?
Yes, SATA connectors have stainless steel latches to prevent accidental disconnection and reduce vibration.
09 Is the cable compliant with environmental standards?
Yes, it is RoHS compliant.
10 Are the SATA connectors labeled for easy installation?
Yes, P1 to P4 markings on the SATA connectors allow easy identification after installation.
