This board is awesome with a powerful ESP32 and silent stepper drivers.
Sale

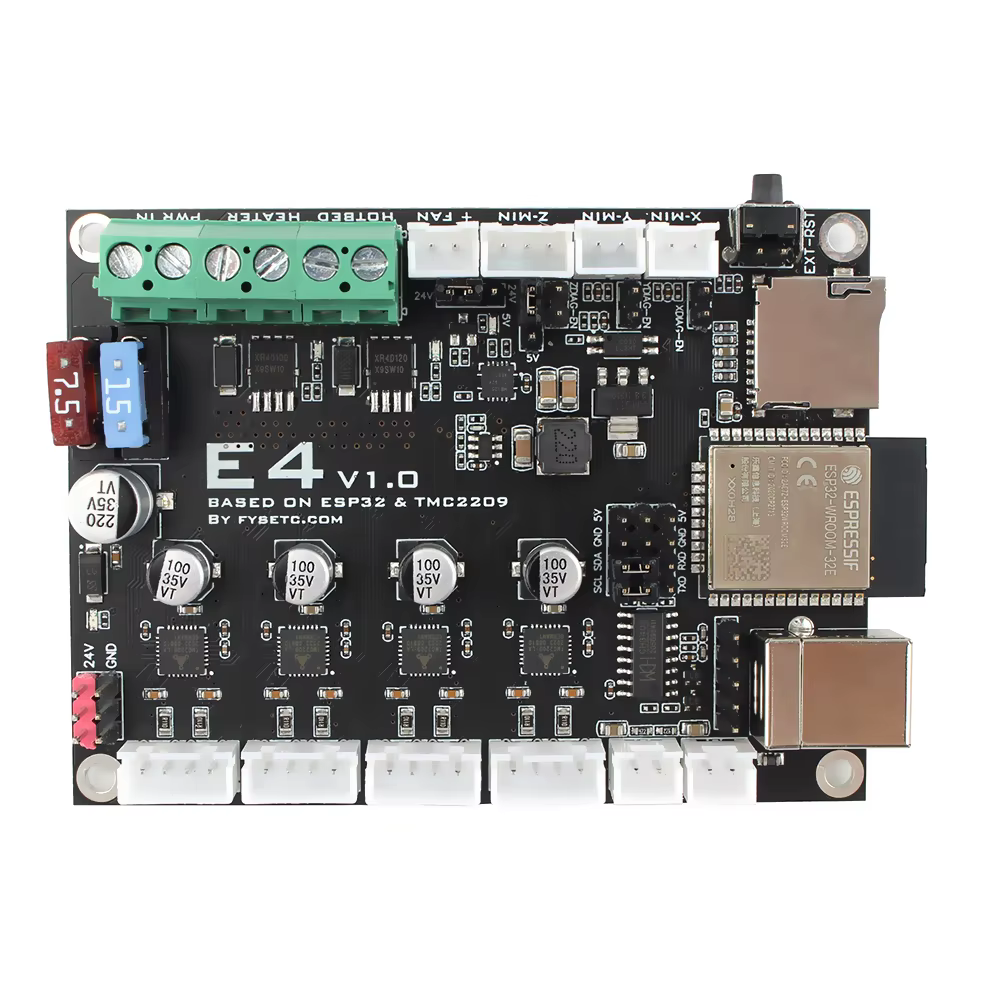

FYSETC E4 3D Printer Control Board with Wi-Fi & Bluetooth
Price range: $45.08 through $48.16
Pay now, in 4 interest-free payments of $11.27, or over 3–6 months
4 interest-free payments of $11.27
Upgrade your 3D printer with the FYSETC E4 control board featuring native Wi-Fi and Bluetooth via ESP32 MCU.
Powered by 4 Trinamic TMC2209 drivers, it supports sensorless homing and high voltage Z-probe operation.
Control prints directly through any web browser without extra hardware.
↗
Estimated Delivery Time3–7 business days
Compact control with built-in wireless
The FYSETC E4 board centers on the powerful ESP32 microcontroller featuring built-in Wi-Fi and Bluetooth. This integration allows direct printer management across any web browser, removing the need for additional hardware like Raspberry Pi. Its compact 90mm x 67mm size makes it ideal for modern 3D printers.
Advanced stepper drivers for smooth motion
Equipped with four Trinamic TMC2209 drivers, the board provides ultra-quiet operation with efficient heat dissipation and up to 2A current capacity. Sensorless homing functionality enables precise and maintenance-free axis calibration.
- Quiet and powerful stepper control
- Large heat sinks for effective cooling
- Support for sensorless homing on X, Y, and Z axes
High-voltage Z-probe support
Unlike boards powering probes at 3.3V or 5V, the FYSETC E4 supplies Z-axis probes with the main input voltage (12V or 24V). This ensures inductive or capacitive sensors operate effectively at their designed voltages, improving detection reliability.
- Dedicated Z probe connector
- Power supplied at 12V or 24V depending on power input
- Improves probe detection performance
Flexible antenna options
Choose between a built-in Wi-Fi antenna or an external antenna version. The external antenna is ideal for enclosed setups where signal strength may degrade, ensuring stable wireless connectivity.
- Onboard antenna for open environments
- External antenna for improved signal in closed boxes
Robust hardware and connectivity
The board includes three power outputs (12V to 24V) and three 5V outputs, a TF card slot, and a CH340 USB serial chip support. Connectors use secure Xh2.54 pins for reliable wiring.
- Multiple output voltages for peripherals
- Onboard TF card for file storage
- High-speed USB interface for data transfer
Open-source firmware and web UI
The FYSETC E4 ships with a custom Marlin firmware fork and ESP3D web user interface. Users can configure, update firmware OTA, and control their printer easily through a familiar web browser interface without extra components.
- Custom Marlin fork for enhanced features
- ESP3D webUI accessible from PC or mobile
- Firmware updates via web interface or PlatformIO
Key specifications
- Microcontroller: ESP32 dual-core, up to 240MHz
- Stepper Drivers: 4x Trinamic TMC2209
- Connectivity: Wi-Fi 802.11 b/g/n, Bluetooth
- Power Input: 12V to 24V DC
- FLASH Memory: 16M Flash
- Board Size: 90mm x 67mm
- PCB Material: FR4-TG130, lead-free, black matte ink
What's in the box
- FYSETC E4 3D printer control board
Product FAQ
Frequently asked questions
01 What microcontroller powers the FYSETC E4 board?
The FYSETC E4 uses the ESP32 microcontroller from ESPRESSIF running up to 240 MHz.
02 Does the FYSETC E4 board support wireless connectivity?
Yes, it has built-in Wi-Fi support for 802.11 b/g/n and Bluetooth connectivity.
03 What stepper drivers are included on the FYSETC E4 board?
It includes 4 TMC2209 stepper drivers for X, Y, Z, and extruder axes.
04 Can I control my 3D printer via a web browser using this board?
Yes, the board runs a custom Marlin fork with the ESP3D web interface to control prints from any browser.
05 Is sensorless homing supported?
Yes, the FYSETC E4 supports sensorless homing for X, Y, and Z axes.
06 What are the supported input power voltages?
The board supports 12V to 24V input power supply options.
07 Can I use an inductive or capacitive Z probe with this board?
Yes, it has a dedicated connector powering Z probes at supply voltage (12V or 24V) for optimal detection distances.
08 Are there options for Wi-Fi antenna types?
Yes, the board comes with either an onboard antenna or an optional external antenna version.
09 What USB connection does the board use?
It uses a CH340 chip for a high-speed USB serial connection.
10 What PCB quality does the FYSETC E4 have?
It uses a high-quality, lead-free, high-temperature FR4-TG130 PCB with black matte ink.
