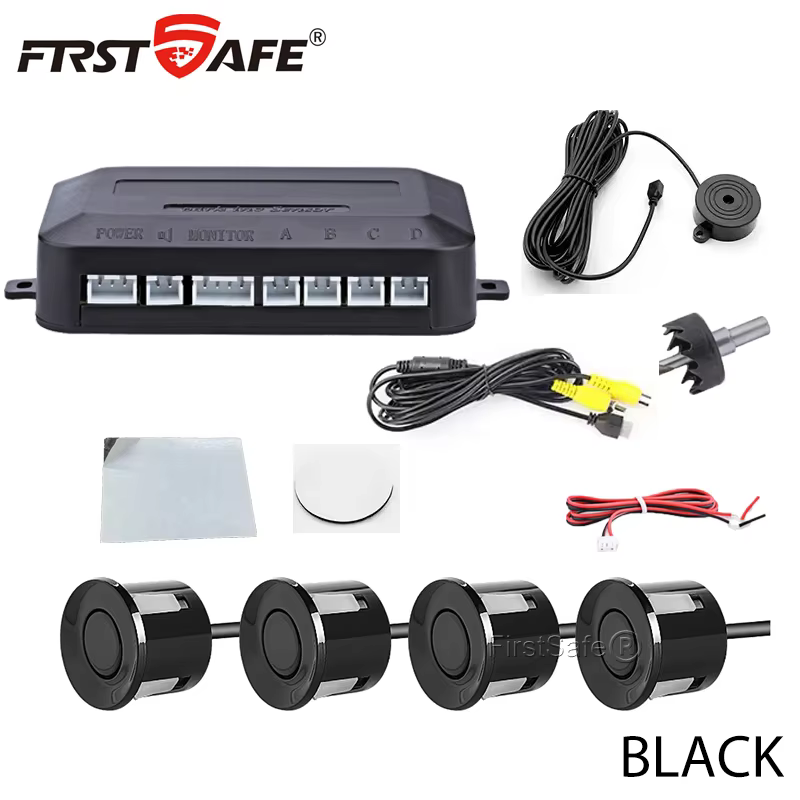

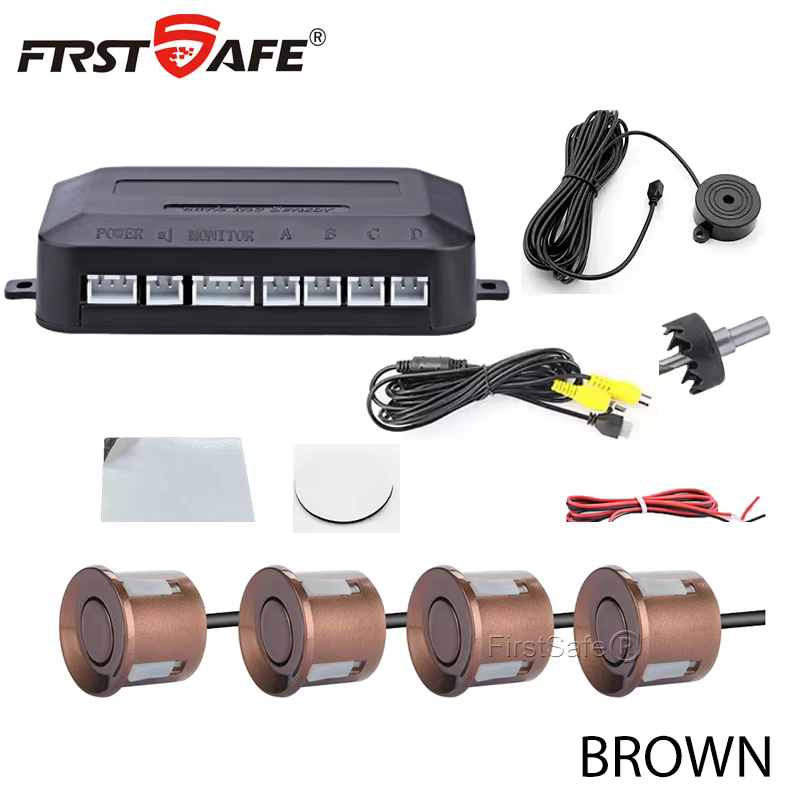

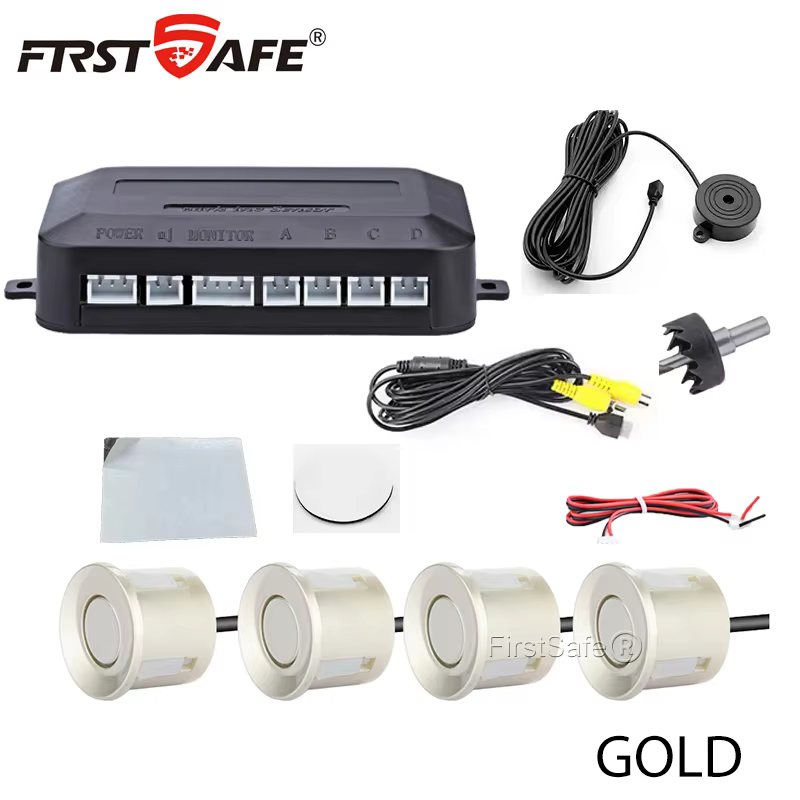

First Safe 4-Sensor CVBS AHD Car Reverse Radar System

Pay now, in 4 interest-free payments of $9.05, or over 3–6 months

4 interest-free payments of $9.05

First Safe 4-sensor reverse parking radar with clear ultrasonic detection and graded alarm volume. Compatible with TFT monitors supporting CVBS/AHD signals. Easy installation with included drill and cables.

Color Name

Clear

↗

Estimated Delivery Time3–7 business days

Advanced Parking Assistance

This First Safe parking radar system enhances your reversing safety with high-precision ultrasonic sensors that detect obstacles accurately from 0.3 to 2.5 meters. The system features double CPU digital fill image sensor technology ensuring clear display images and precise distance readings on compatible TFT-LCD monitors.

With graded alarm volume, the closer an object gets, the louder and more urgent the warning buzzer sounds, making parallel parking and reversing safer and easier.

Reliable and Durable Design

Built to endure harsh conditions, the sensors feature multilayer waterproof design capable of withstanding high-pressure washing and immersion. Tested with 12 hours of electrical aging, the system operates reliably within a temperature range from -30°C to +60°C.

These rugged sensors are suitable only for plastic bumper installations on 12V fuel vehicles, providing longtime durability and consistent performance.

Wide Compatibility and Easy Installation

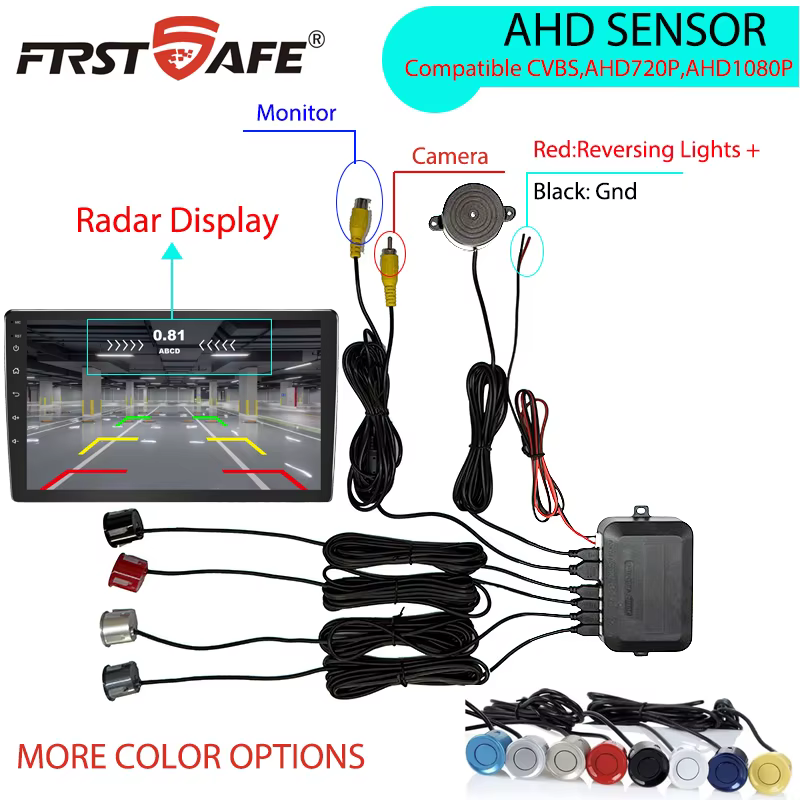

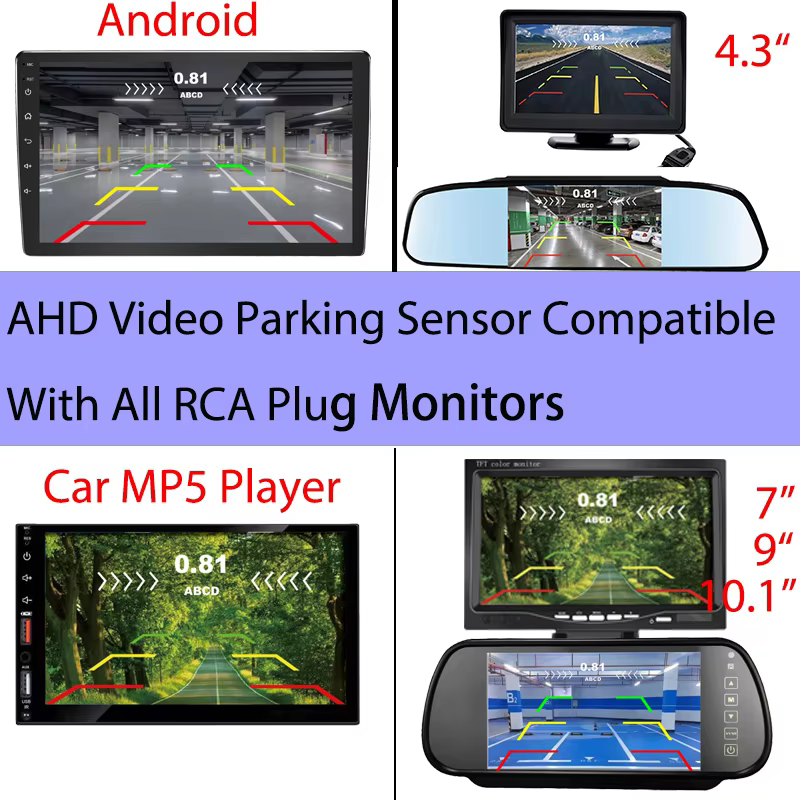

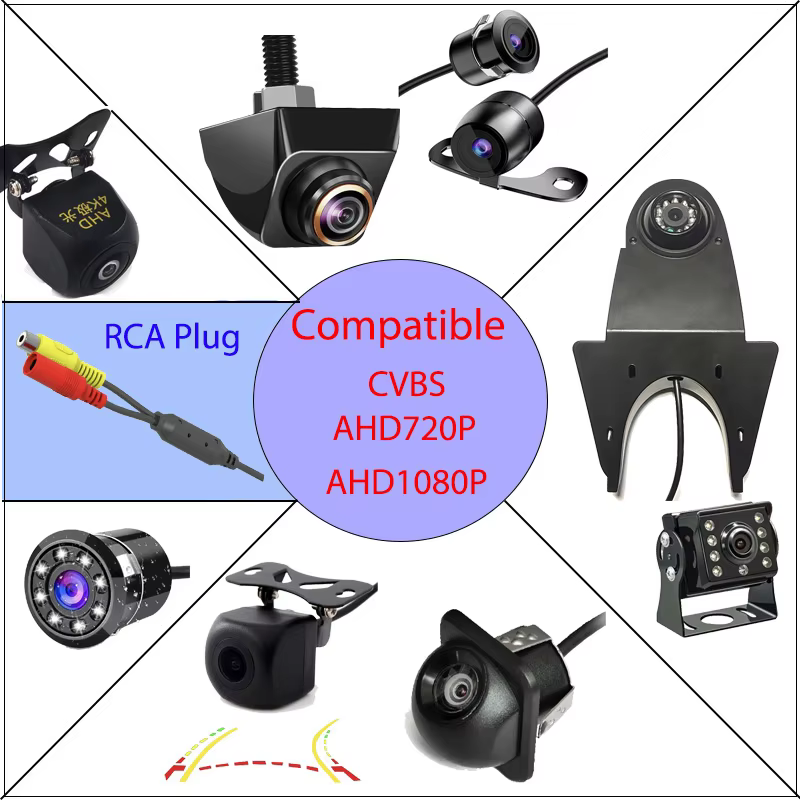

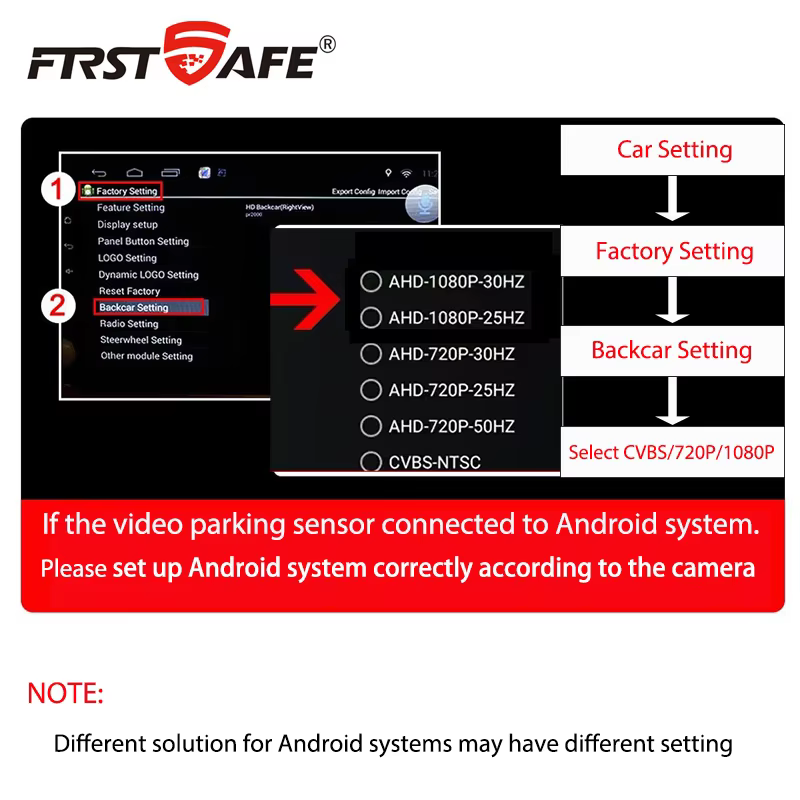

Compatible with CVBS and AHD720P/1080P camera signals, this system ensures enhanced clarity when connected to compatible vehicle displays. It supports most TFT monitors equipped with RCA interfaces for seamless integration.

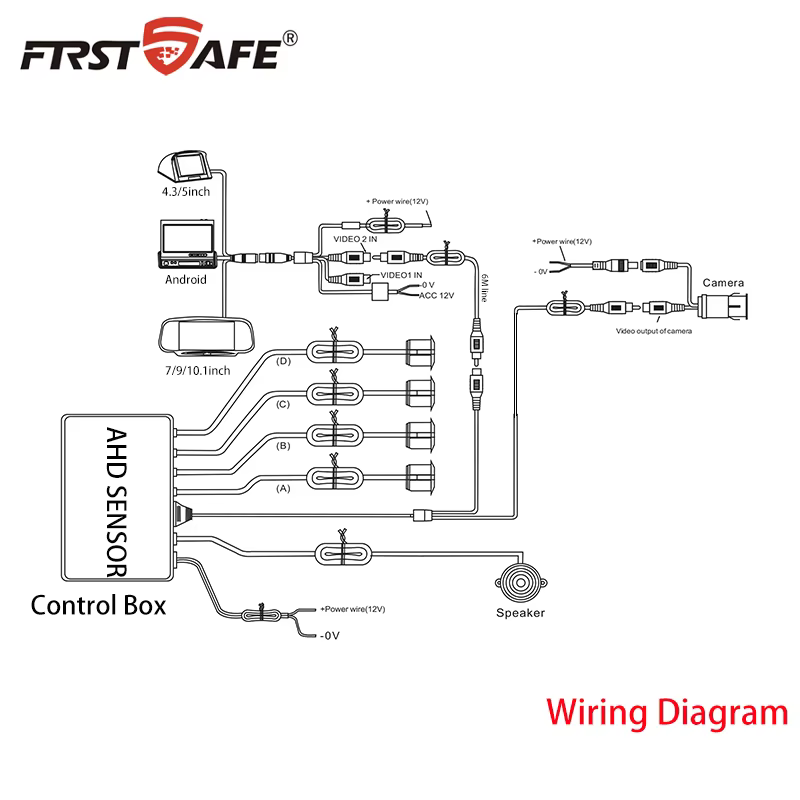

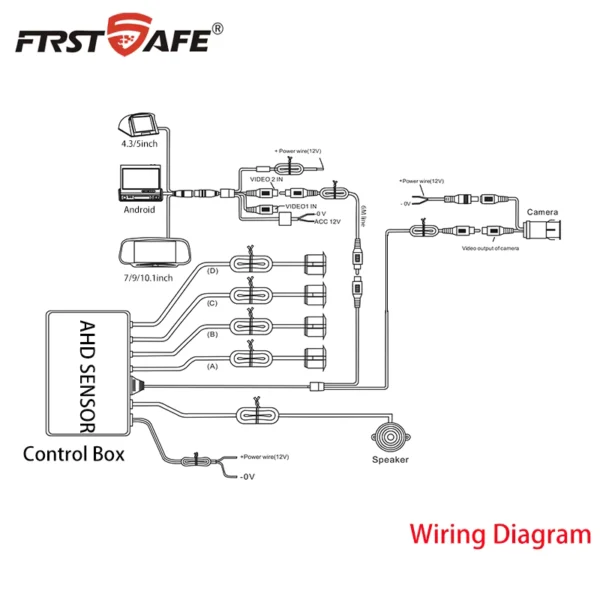

Installation is simplified with included accessories: a drill for sensor mounting, a 2.2m video adapter cable, power cable, and clear instructions, enabling quick setup and reliable connections to your vehicle’s reversing power supply.

Key Specifications

Rated voltage: DC 12V (operating range 9~16V)
Rated current: 20~200mA
Ultrasonic frequency: 40KHz
Sensor diameter: 22mm
Detection distance: 0.3 – 2.5 meters
Alarm distance: 0.3 – 1.5 meters
Sensor cable length: approx. 2.3m
Power cable length: approx. 0.8m
Video adapter cable length: approx. 2.2m

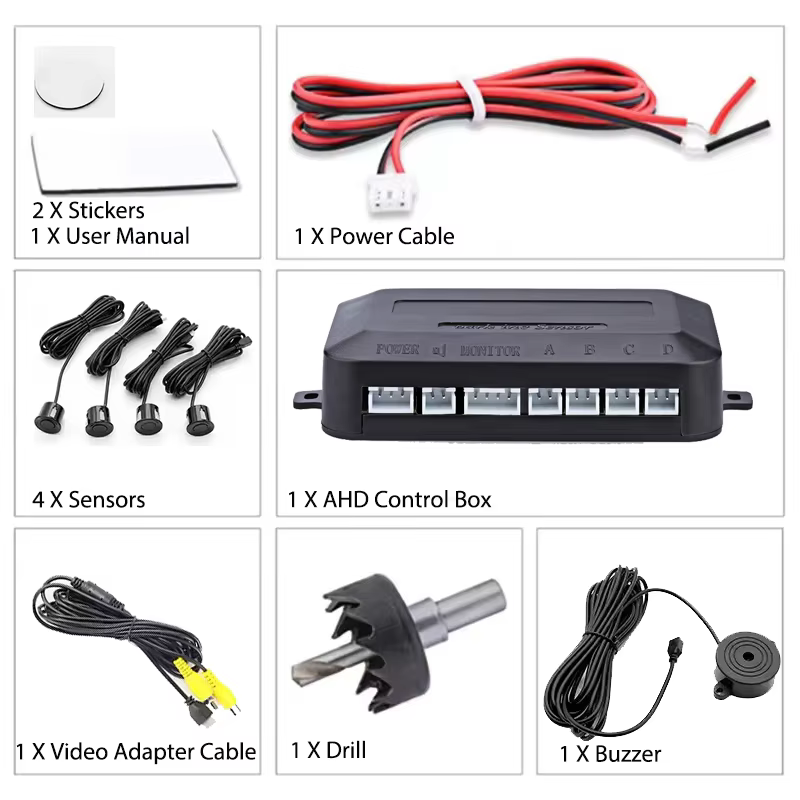

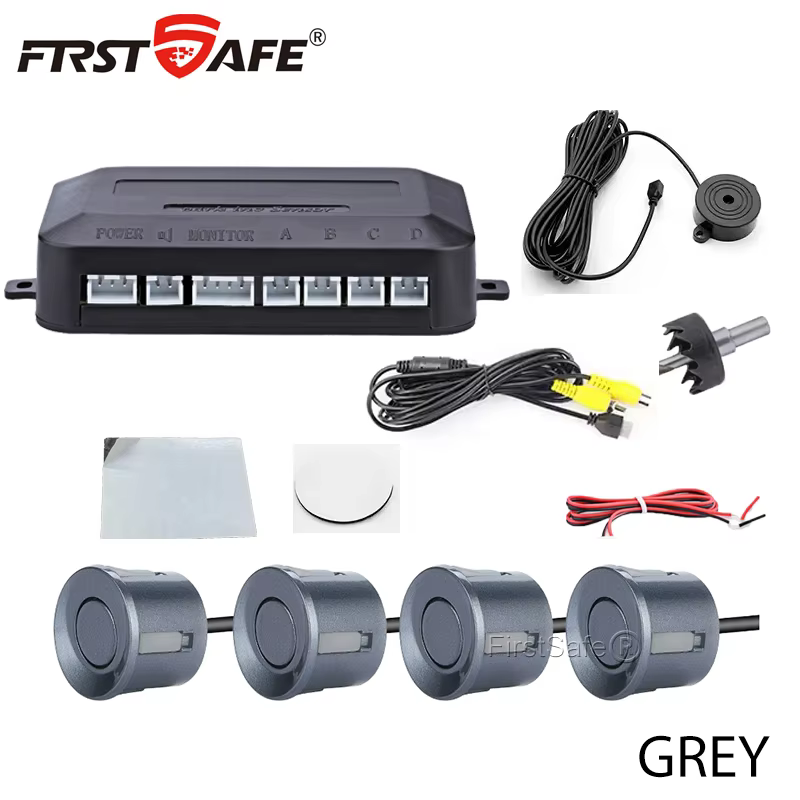

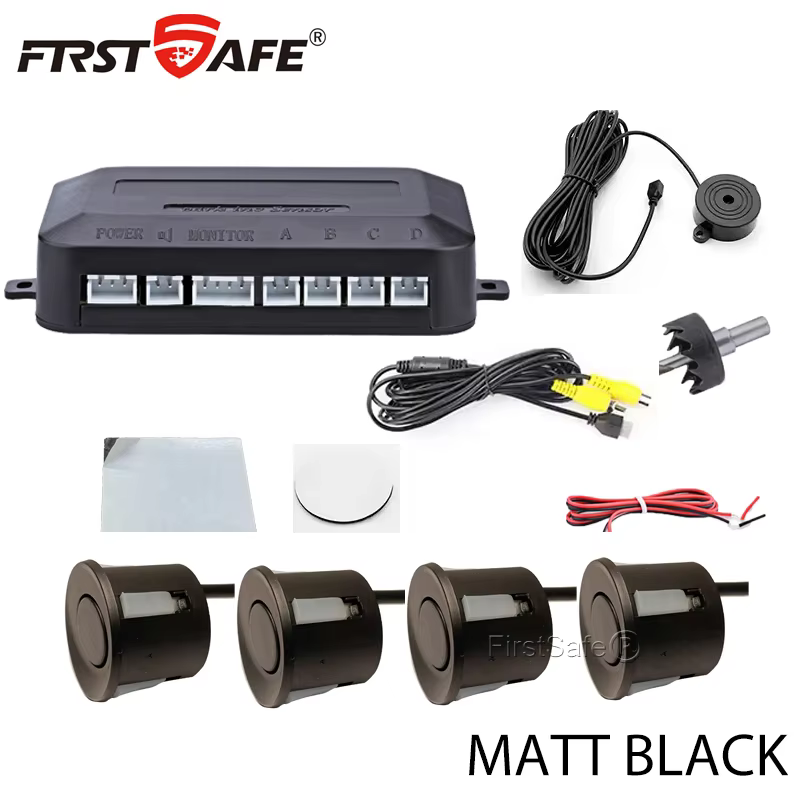

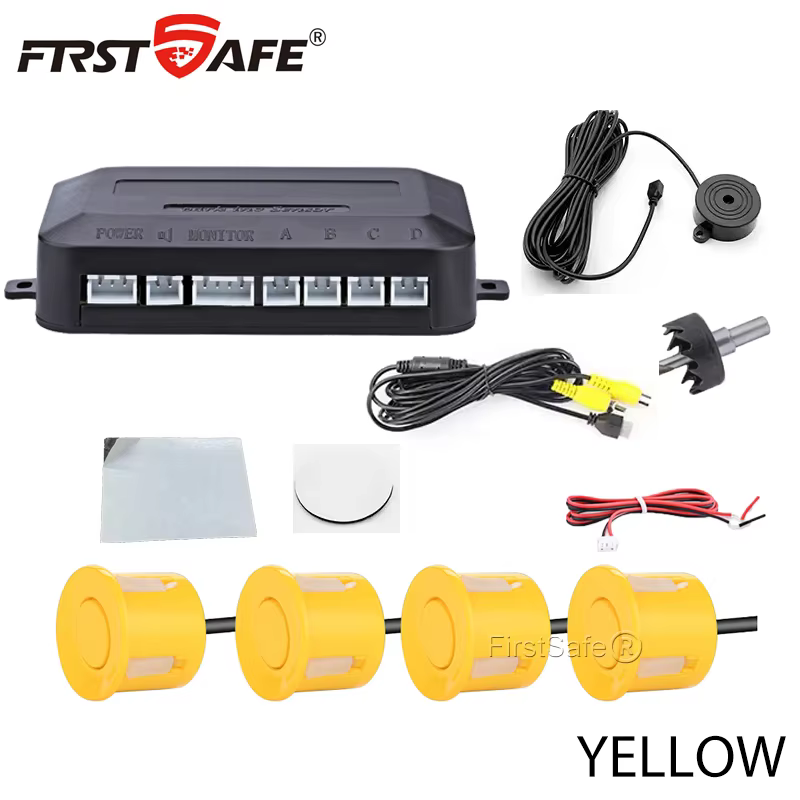

What's in the box

Control Box
Buzzer with 3m line
4 Parking Sensors with 2.3m lines
Video Adapter Cable (2.2m)
Power Cable (0.8m)
Installation Drill
2 Stickers
User Manual

Product FAQ

Frequently asked questions

01 Is the monitor included with the First Safe parking radar system?

No, the package does not include a TFT monitor or rear view camera.

02 What types of vehicles is this parking radar system compatible with?

It is compatible with 12V fuel vehicles only and is not suitable for electric vehicles.

03 Can this parking radar system be installed on metal bumpers?

No, the sensors are only suitable for installation in plastic housings, not metal bumpers.

04 What is the detection and alarm distance range of the sensors?

It detects large obstacles between 0.3 to 2.5 meters and alarms from 0.3 to 1.5 meters.

05 Does this system work with CVBS and AHD cameras?

Yes, it is compatible with CVBS, AHD720P, and AHD1080P cameras and supports AHD signals for enhanced clarity.

06 What is the operating voltage range for the system?

The system operates on DC 12V with a voltage range from 9 to 16 volts.

07 Are the sensors water resistant?

Yes, the sensors feature multilayer waterproof design with high-pressure water resistance and immersion protection.

08 What components are included in the package?

The package includes 1 control box, 1 buzzer with 3m line, 4 parking sensors with 2.3m lines, 1 video adapter cable (2.2m), 1 power cable (0.8m), 1 drill, 2 stickers, and 1 user manual.

09 How is the alarm volume controlled?

The alarm volume is graded and increases in urgency as the obstacle distance decreases.

10 What is the recommended sensor installation height?

Sensors are recommended to be installed at a height of 50 to 70 cm from the ground.
