First Safe 4-Sensor Car Parking Sensor Kit with AHD Support
Price range: $29.44 through $30.39
Pay now, in 4 interest-free payments of $7.36, or over 3–6 months
4 interest-free payments of $7.36
Enhance your car's safety with First Safe's 4 ultrasonic sensors delivering accurate distance detection from 0.3 to 2.5m. Designed for 12V fuel vehicles with plastic bumpers, featuring graded sound alarms and multilayer waterproof design.
↗
Estimated Delivery Time3–7 business days
Accurate Parking Assistance
First Safe's parking sensor kit uses high-precision ultrasonic sensors and advanced digital signal processing for clear distance readings on your vehicle's monitor. Experience precise detection from 0.3 to 2.5 meters, making parallel parking safer and easier.
Rugged and Waterproof Design
This kit features a multilayer waterproof construction that endures high-pressure washing and immersion, ensuring reliable performance regardless of weather conditions.
- Multilayer waterproof design
- Passes high-pressure water immersion tests
- Operates in wide temperature range (-30°C to +60°C)
Clear Visual and Audio Alerts
Equipped with a double CPU digital fill image sensor, this system enhances image quality and distance clarity on compatible TFT-LCD screens. The alarm volume increases as your vehicle gets closer to obstacles for intuitive warnings.

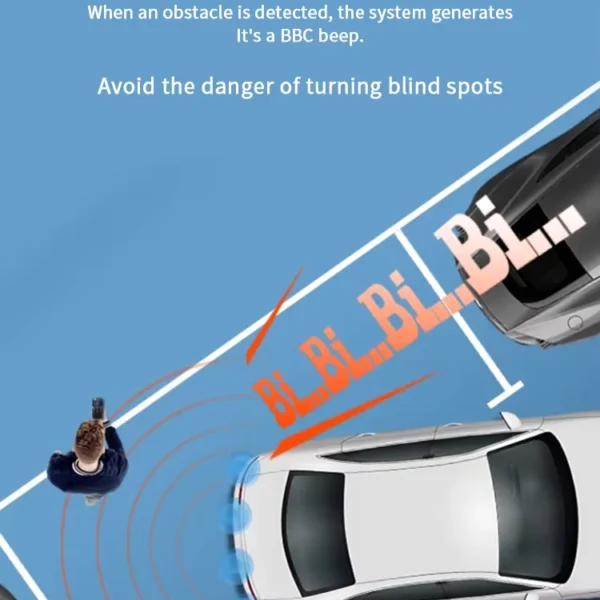

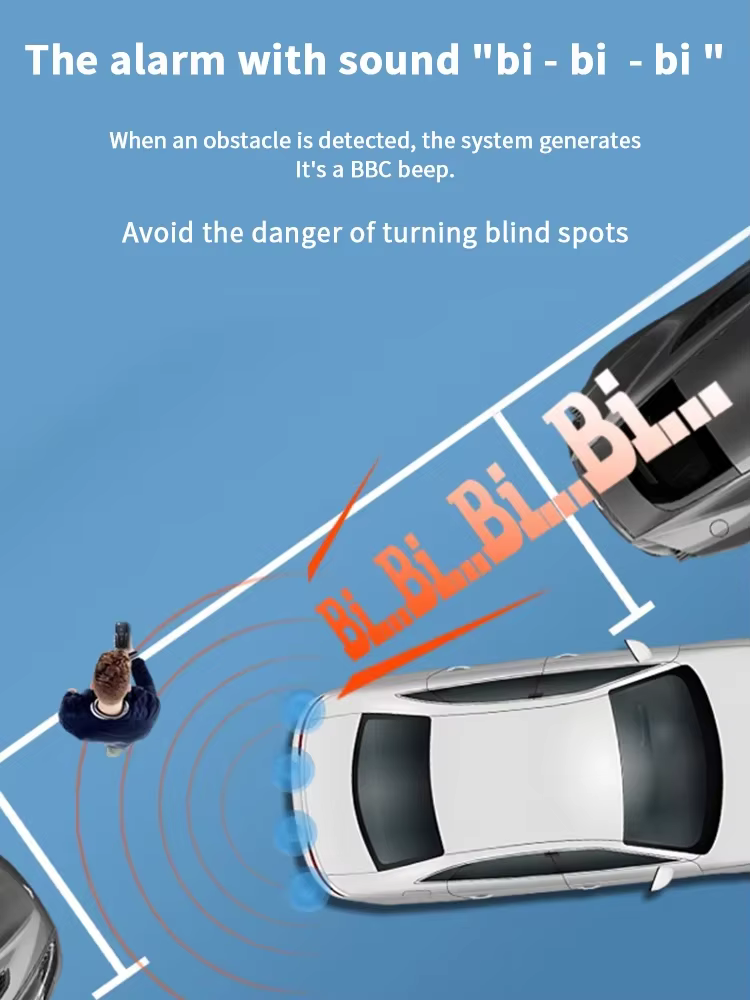

- Graded alarm volume based on proximity

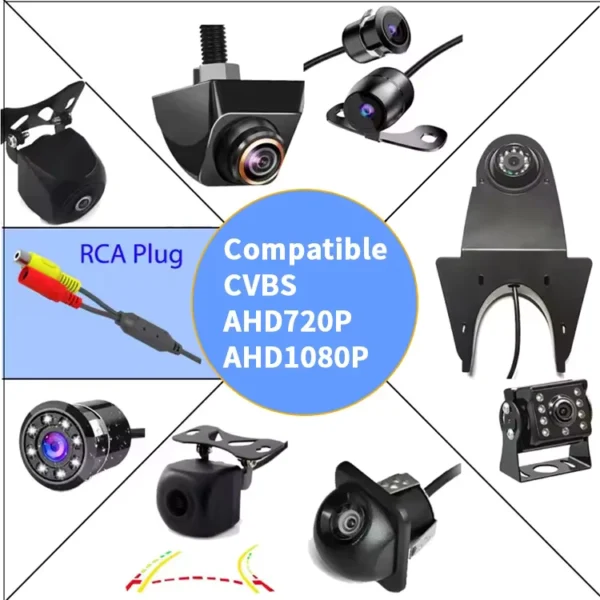

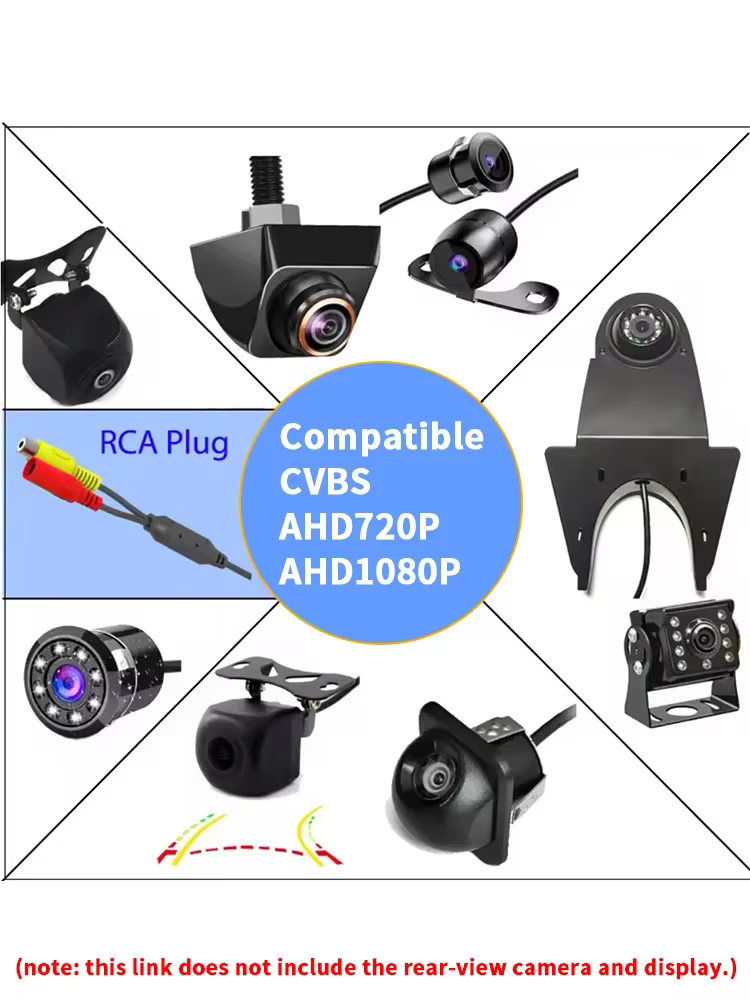

- Compatible with CVBS, AHD720P, and AHD1080P cameras
Easy Installation for Compatible Vehicles

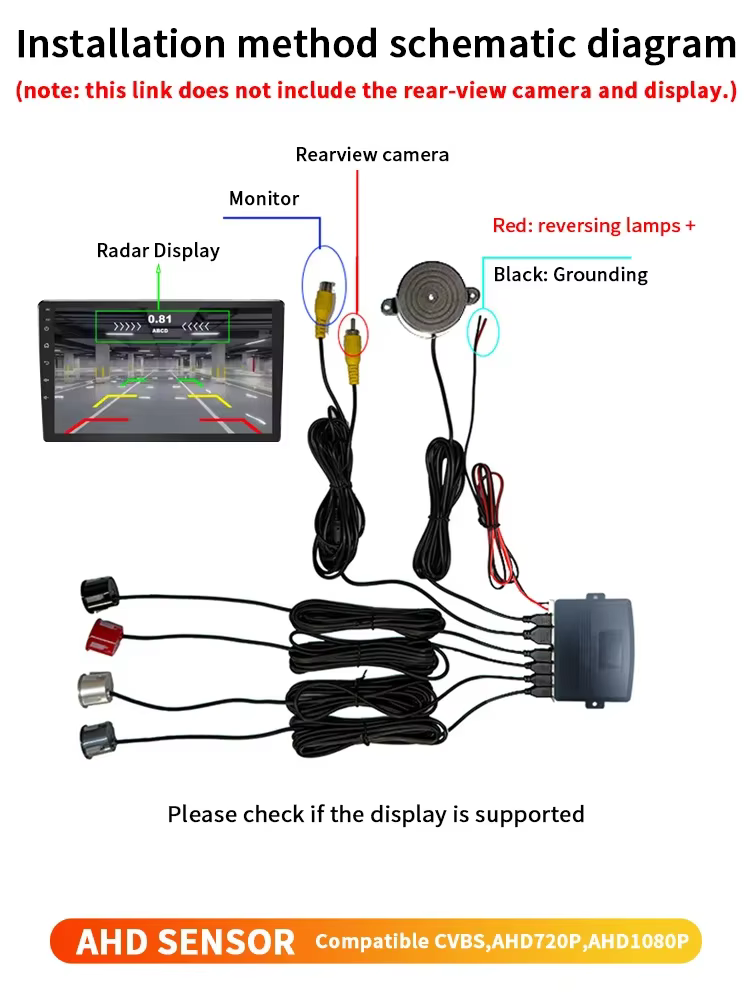

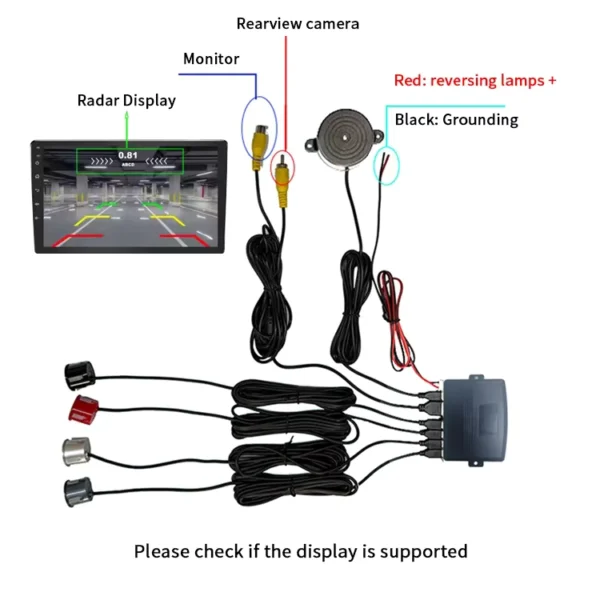

Designed exclusively for 12V fuel vehicles with plastic bumpers, the kit includes installation tools and cables for straightforward setup. Control box ports are labeled for accurate sensor placement from left to right.
- Comes with drill and video adapter cable
- Includes power cable for reversing power supply
Key Specifications
This parking sensor set operates on DC 12V with a operating voltage range of 9 to 16V and a rated current of 20 to 200mA. The ultrasonic frequency is 40KHz with sensor diameter of 22mm.
- Detection distance: 0.3 – 2.5m
- Alarm distance: 0.3 – 1.5m
- Sensor cable length: approximately 2.3m
- Power line length: approximately 0.8m
- Video adapter cable length: approximately 2.2m

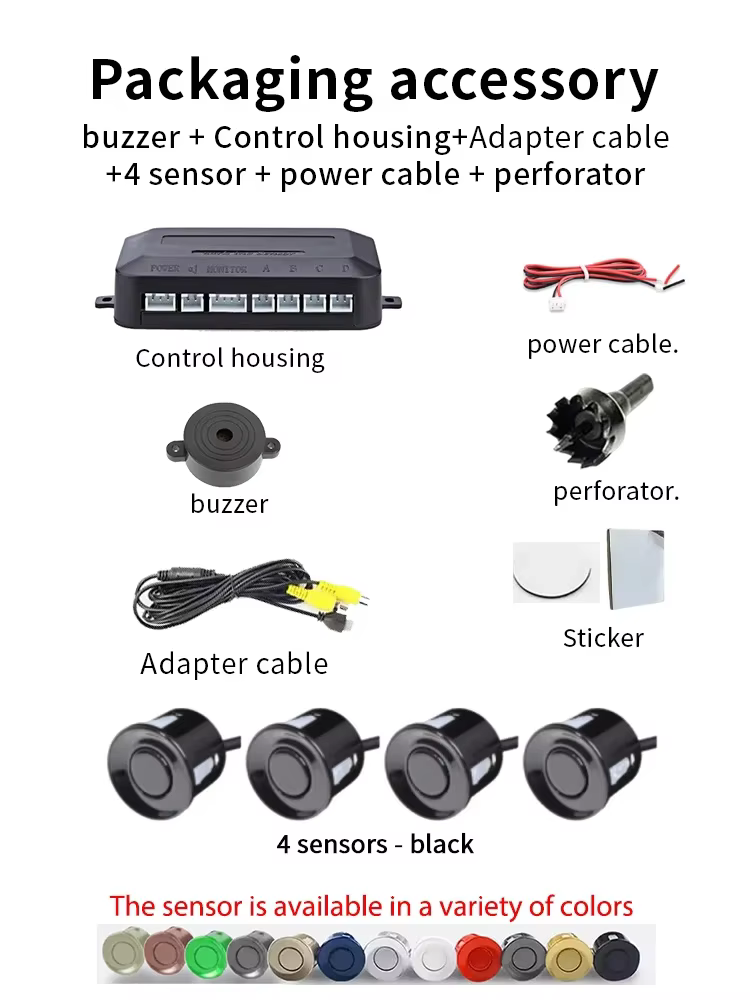

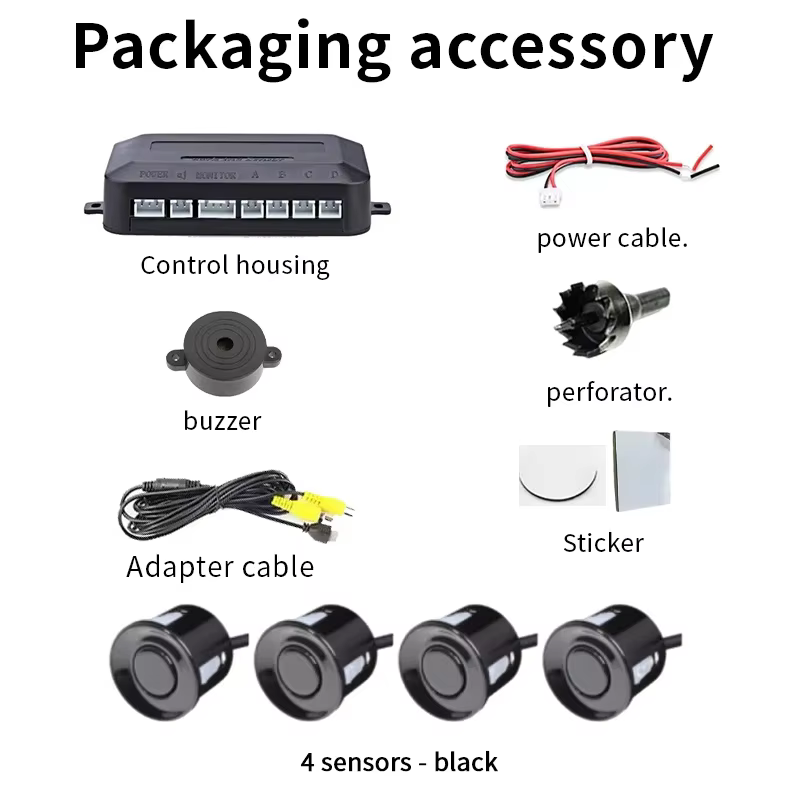

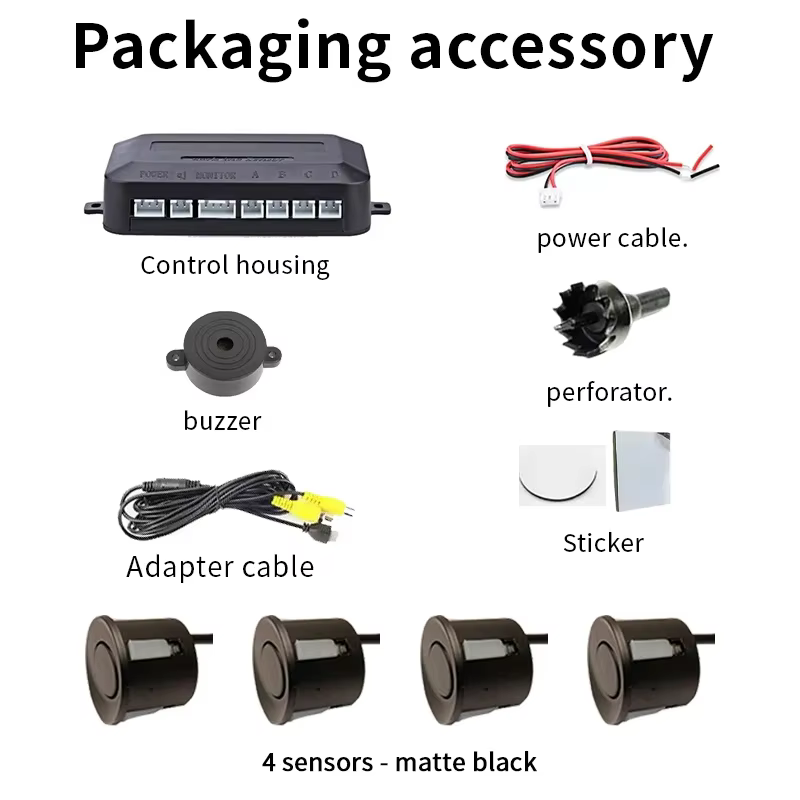

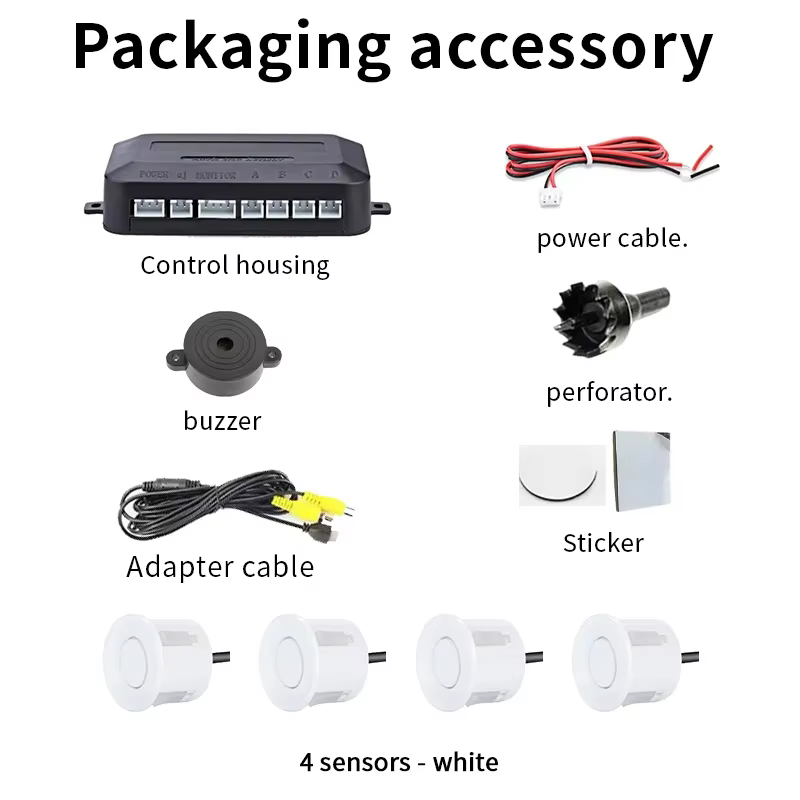

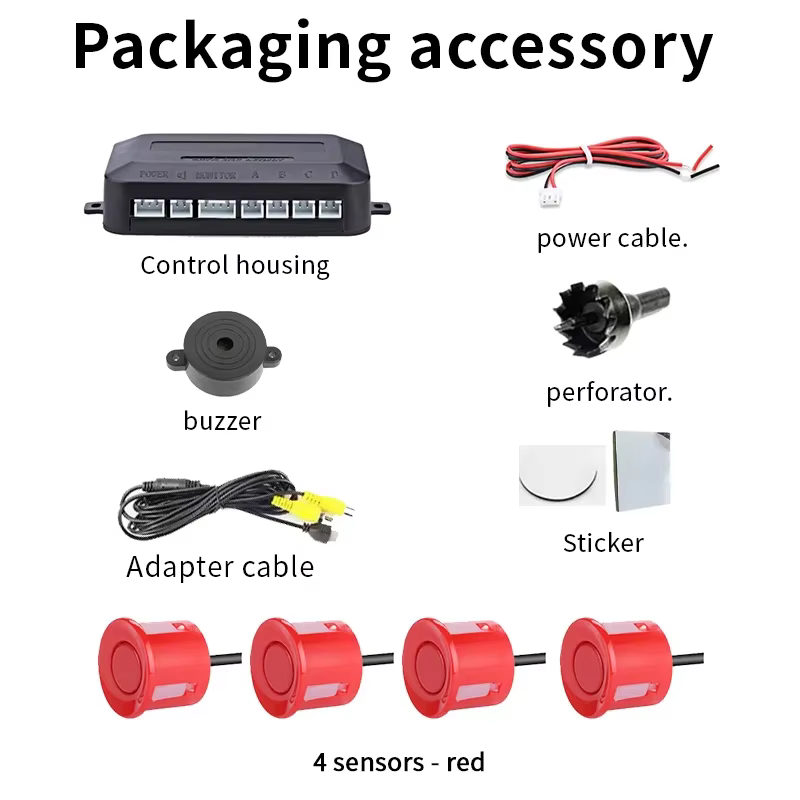

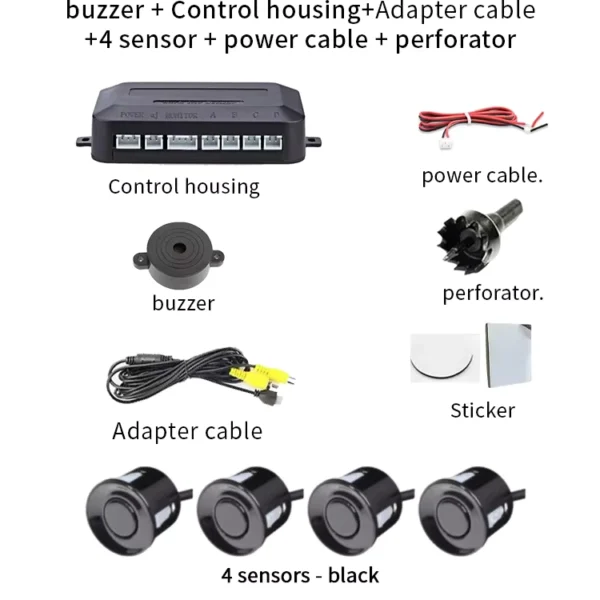

What's in the box

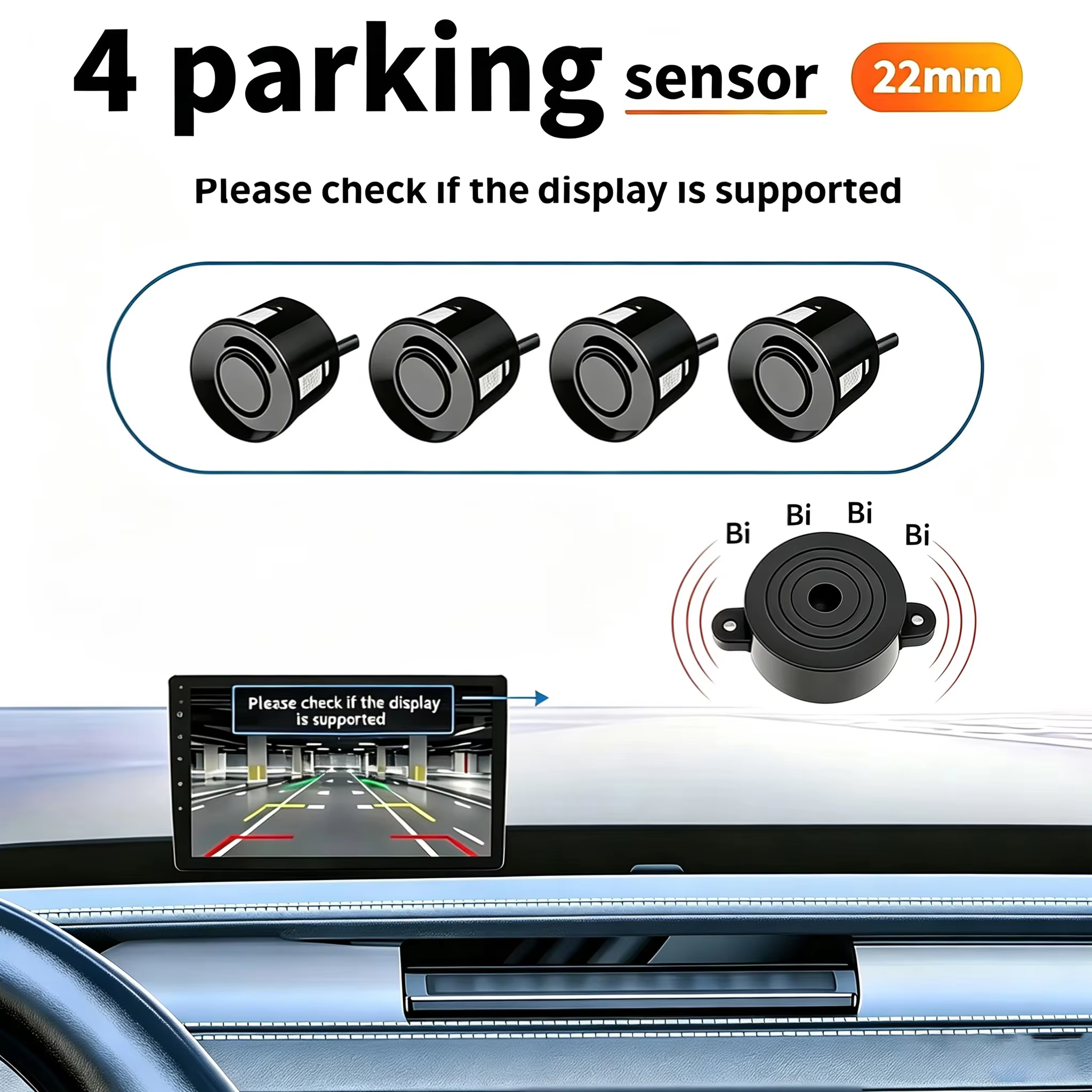

- 4 Ultrasonic Parking Sensors
- Control Box with ABCD Ports
- Installation Drill
- 2.2m Video Adapter Cable
- Power Connection Cable
Product FAQ
Frequently asked questions
01 Is the TFT monitor included with the parking sensor kit?

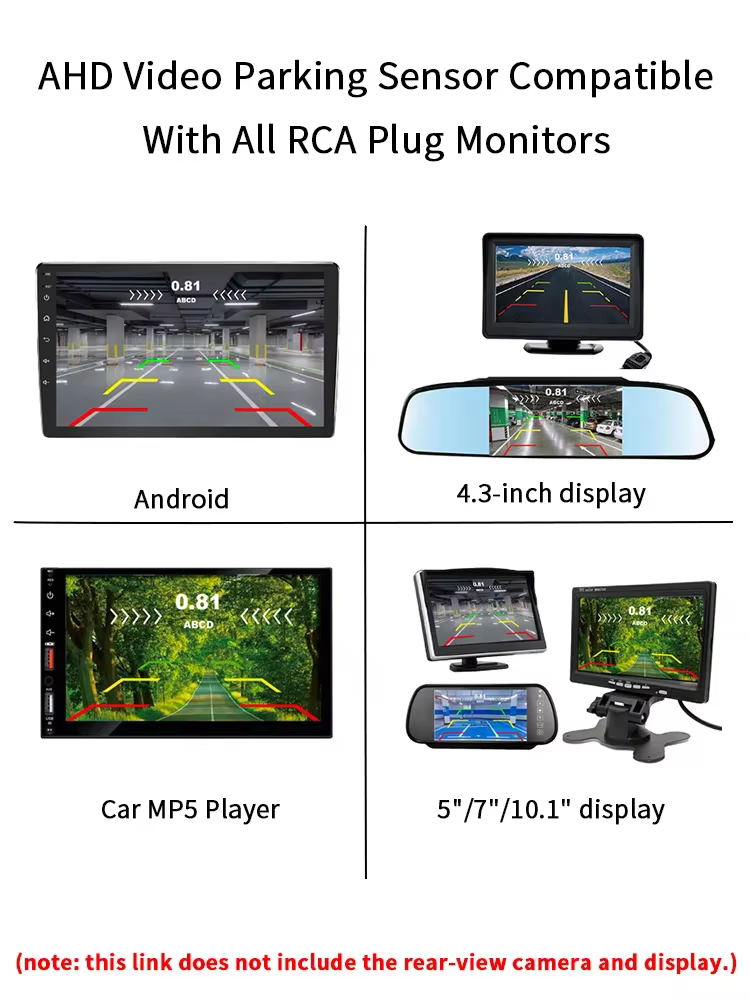

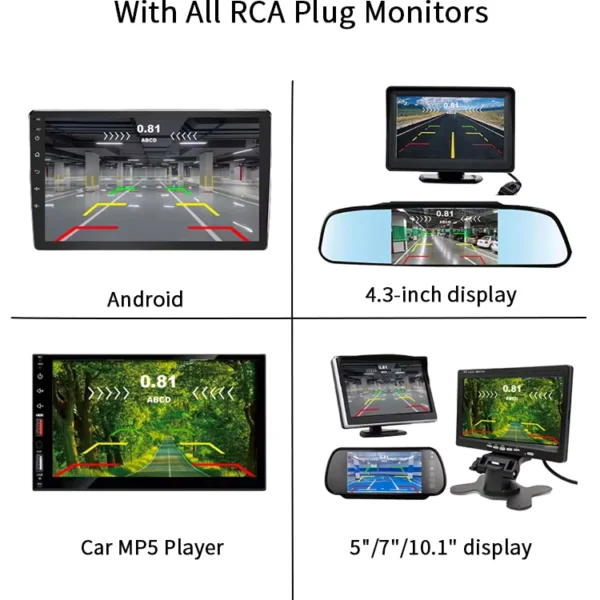

No, the kit does not include a TFT monitor or rear view camera; it requires a compatible monitor with RCA interface.
02 What type of vehicles is this parking sensor kit compatible with?
This kit is suitable only for 12V fuel vehicles with plastic bumpers and is not compatible with electric vehicles or metal bumpers.
03 How do the sensors correspond to the car's rear?
The control box ports labeled ABCD correspond to the rear of the car from left to right to ensure proper sensor placement.
04 What is the recommended installation height for the sensors?
Sensors should be installed at a height between 50 to 70 cm from the ground for optimal detection.
05 What distance ranges can the sensors detect?
Detection distance for large obstacles ranges from 0.3 to 2.5 meters, with alarm activation between 0.3 and 1.5 meters.
06 Are the sensors waterproof and durable?
Yes, they have a multilayer waterproof design that withstands high-pressure washing and immersion.
07 What video standards does the sensor kit support?
The sensors are compatible with CVBS and support AHD720P and AHD1080P video signals for enhanced clarity.
08 Does the kit include installation tools?
Yes, the package includes a drill for sensor installation and a 2.2-meter video adapter cable.
09 What is the operating temperature range for the sensor kit?
The parking sensor kit operates reliably in temperatures between -30°C and +60°C.
10 What is the power requirement for the parking sensor kit?
It requires a rated voltage of DC 12V and operates within 9 to 16V, drawing a current between 20 and 200 mA.
